FOREWORD
This publication contains information on major
changes which have occurred as a result of a newly
added equipment Mitsubishi stability control
(Mitsubishi SC).
It contains only additions to the original issue. For
detailed information on inspection of the electrical
system components, you should refer to the
following publications as well as this manual if
necessary.
Note that some wiring harness configuration
diagrams and circuit diagrams are compilation
diagrams containing information for different vehicle
specifications, and actual diagrams may not be
identical to those shown in the manual.
TECHNICAL INFORMATION MANUAL
PYJE0001
WORKSHOP MANUAL
CHASSIS GROUP
PWJE0001
BODY REPAIR MANUAL
PBJE0001
ENGINE GROUP
PWEEjj
(Looseleaf edition)
ELECTRICAL WIRING
PHJE0001
(Basic)
PARTS CATALOGUE
B603H601Aj
All information, illustrations and product
descriptions contained in this manual are current
as of time of publication. We, however, reserve
the right to make changes at any time without prior
notice or obligation.
WARNINGS REGARDING SERVICING OF SUPPLEMENTAL
RESTRAINT SYSTEM (SRS) EQUIPPED VEHICLE
WARNING!
(1) Improper service or maintenance of any component of the SRS or any SRS-related component,
can lead to personal injury or death to service personnel (from inadvertent firing of the air
bag) or to the driver and passenger (from rendering the SRS inoperative).
(2) SRS components should not be subjected to heat over 93 _C, so remove the SRS-ECU, air
bag module (driver’s side and front passenger’s side) and clock spring before drying or baking
the vehicle after painting.
(3) Service or maintenance of any SRS component or SRS-related component must be performed
only at an authorized MITSUBISHI dealer.
(4) MITSUBISHI dealer personal must thoroughly review this manual, and especially its GROUP
52B-Supplemental Restraint System (SRS), before beginning any service or maintenance of
any component of the SRS or any SRS-related component.
HOW TO USE THIS MANUAL
CONTENTS
The preceding page contains GROUP INDEX that
lists the group title and group number.
PAGE NUMBERS
All page numbers consist of two sets of digits
separated by a dash. The digits preceding the dash
identify the number of the group. The digits following
the dash represent the consecutive page number
within the group. The page number can be found
on the top left or right of each page.
GENERAL 0-1
GENERAL
OUTLINE OF CHANGES
ABBREVIATION SYMBOL
Abbreviation symbol Meaning Description of changes
SC * Stability control DNew definition for abbreviation symbol has been added to
correspond to the addition of a MITSUBISHI STABILITY
CONTROL.
NOTE: The symbol “SB” which the combination meter displays, means “Stability control warning lamp.”
WIRING HARNESS CONFIGURATION DIAGRAMS
Connector
Symbol
Name Reference
Page
Description of changes
EFLOOR
CONSOLE
L.H.drive vehicles 1-1 DFollowing connectors have been added.
DSC-ECU (E-120), (E-121)
R.H.drive vehicles 1-2
DControl wiring harness and SC wiring harness
combination (E-122)
DSC G sensor (E-123)
SINGLE PART INSTALLATION POSITION
Location of changes Reference Page Description of changes
ECU 2-1 DA SC-ECU has been added.
SENSOR 2-1 DA SC G sensor has been added.
CIRCUIT DIAGRAMS
Main title Sub title Reference
Page
Description of changes
CENTRALIZED - 3-2 DThe centralized junction has been changed
JUNCTION to correspond to the addition of a
MITSUBISHI STABILITY CONTROL.
MITSUBISHI 6G7 <L.H.drive vehicles> 3-4 DThe circuits have been added to correspond
STABILITY
CONTROL 6G7 <R.H.drive vehicles> 3-8
to the addition of a MITSUBISHI STABILITY
CONTROL.
(MITSUBISHI SC)
4M4 <L.H.drive vehicles> 3-12
4M4 <R.H.drive vehicles> 3-16
WIRING HARNESS CONFIGURATION DIAGRAMS
Connector
symbol
EE-120
Connector colour code
B: Black
BR: Brown
G: Green
GR: Gray
L: Blue
None: Milk white
O: Orange
R: Red
V: Violet
Y: Yellow
E-121
E-123 E-122
15
17
1-1
WIRING HARNESS CONFIGURATION DIAGRAMS

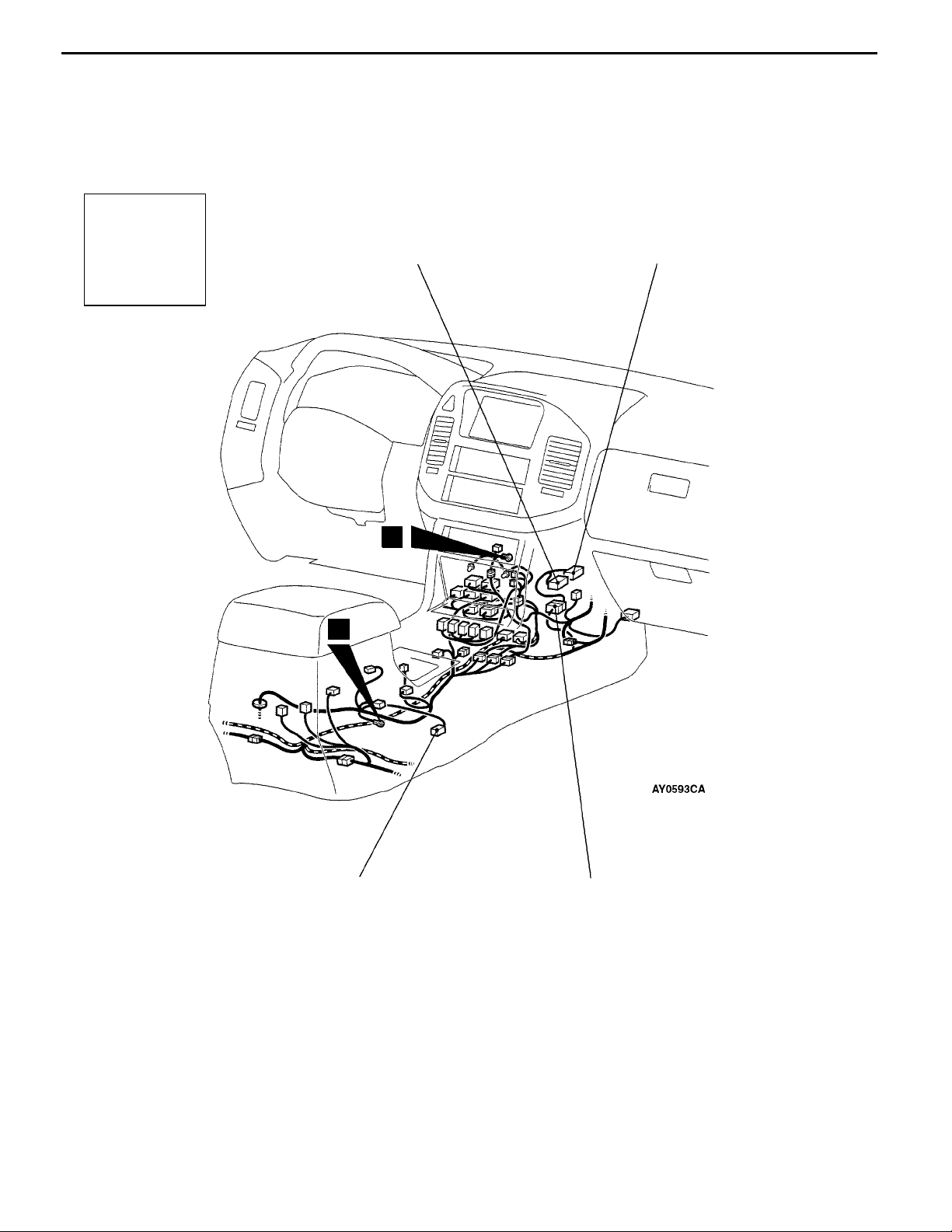

FLOOR CONSOLE
L.H.drive vehicles
E-120 (16) SC-ECU
E-121 (26-Y) SC-ECU
E-122 (20) Control wiring harness and SC wiring
harness combination
E-123 (3-B) SC G sensor
WIRING HARNESS CONFIGURATION DIAGRAMS
Connector
symbol
EE-120
Connector colour code
B: Black
BR: Brown
G: Green
GR: Gray
L: Blue
None: Milk white
O: Orange
R: Red
V: Violet
Y: Yellow
E-121
E-123
E-122
15
17
1-2
FLOOR CONSOLE
R.H.drive vehicles
E-120 (16) SC-ECU
E-121 (26-Y) SC-ECU
E-122 (20) Control wiring harness and SC wiring
harness combination
E-123 (3-B) SC G sensor
SINGLE PART INSTALLATION POSITION
2-1
SINGLE PART INSTALLATION POSITION
ECU/SENSOR
SC-ECU
Parking
brake
lever
SC G sensor
Accelerator pedal
3-1
CIRCUIT
DIAGRAMS
CONTENTS
CENTRALIZED JUNCTION 2..................
MITSUBISHI STABILITY CONTROL
(MITSUBISHI SC)
6G7 <L.H.drive vehicles> 4....................
6G7 <R.H.drive vehicles> 8...................
4M4 <L.H.drive vehicles> 12...................
4M4 <R.H.drive vehicles> 16..................
CIRCUIT DIAGRAMSCIRCUIT DIAGRAMS
3-2
CENTRALIZED JUNCTION
FUSIBLE LINK
No. Circuit Type Housing colour Rated capacity (A)
6Mitsubishi stability control, engine control,
INVECS-II, immobilizer and auto-cruise
control system
Connector type Light blue 20
(Relay box in engine compartment)
Front of vehicle
12
34
5
6
7
DEDICATED FUSE
Power supply circuit No. Rated capacity (A) Housing colour Circuit
Battery
(fusible link No.1)
7 10 Red Clock, combination meter, door lamp, ignition
key cylinder illumination lamp, center display,
radio, tape player, room lamp, sunroof circuit
and ECU power supply
(Relay box in engine compartment)
Front of vehicle
12
34
567
89
10 11
12 13 14 15 16
17 18
19
20 21
22 23
CIRCUIT DIAGRAMS 3-3
MULTI-PURPOSE FUSE
Power supply circuit No. Rated capacity (A) Housing colour Load circuit
Ignition switch IG1 8 10 Red Combination meter, engine-A/T-ECU, engine-
ECU, ETACS-ECU, front propeller shaft speed
sensor, input shaft speed sensor, output shaft
speed sensor, SRS-ECU, transfer-ECU, rear
propeller shaft speed sensor and SC G sensor
J/B (in fuse box)
Multi-purpose fuse
CIRCUIT DIAGRAMS
3-4
MITSUBISHI STABILITY CONTROL (MITSUBISHI SC)
6G7 <L.H.drive vehicles>
