Wi-Fi INTERFACE

MODEL

MAC-568IF-E

MAC-588IF-E

INSTALLATION GUIDE

Intelligent control, no matter where you are.

Setting Information

Indoor unit model name

Indoor unit serial number

Outdoor unit model name

Outdoor unit serial number

Wi-Fi interface MAC address (MAC)

Wi-Fi interface serial number (ID)

Wi-Fi interface PIN (PIN) <MAC-568IF-E only>

Wi-Fi interface SSID (SSID)

Wi-Fi interface KEY (KEY)

System commissioning date

Wi-Fi interface installation date

Installer Contact Details

Name

Telephone Number

Wi-Fi interface Minimum Requirements for Operation:

• Router capable of WPA2-PSK(AES) encryption. 2.4GHz needs to be enabled

on dual band Routers. The wireless network coverage must include the heat

pump installation location.

• A PC or Smartphone/Tablet that is iOS/Android compatible.

• A compatible Mitsubishi Electric indoor unit with a Wi-Fi interface.

Contents

About Wi-Fi Interface

This Wi-Fi interface communicates the status information and controls the

commands from the server by connecting to an indoor unit.

Safety Precautions

• Read all safety instructions before installation, setting up, or use of the Wi-Fi

interface.

• This installation manual contains important safety information. Be sure to

comply with the instructions.

• After installing the Wi-Fi interface, provide this installation manual for the user.

Instruct users to store it with their indoor unit instruction manual in a safe

location.

[Precautions for installation]

Warning

(Improper handling may have serious consequences, including serious injury or death.)

• Do not install the Wi-Fi interface by

yourself (user).

Improper installation may result in fire, electric

shock, injury due to fall of the Wi-Fi interface,

or water leaks. Consult the dealer from

whom you purchased the Wi-Fi interface or

professional installer.

• The Wi-Fi interface should be securely

installed in accordance with this

installation manual.

Improper installation may result in fire, electric

shock, or damage, or the Wi-Fi interface

falling.

• The Wi-Fi interface should be mounted in a

location that can support its weight.

If the Wi-Fi interface is installed in a location

that cannot support its weight, the Wi-Fi

interface could fall and cause damage.

• Connect and fasten the electric wires

securely so external force on the wires will

not apply on the terminals.

Improper connection and mounting may

result in breakdown, heat generation, smoke

generation, or fire.

• Mitsubishi Electric’s components or other

designated components must be used for

installation.

Improper component may result in fire,

electric shock, or damage/water leaks.

• Electric work must be performed by

authorized personnel in accordance with

the local regulations and the instructions

detailed in the installation manual.

Inadequate circuit capacity or improper

installation may result in electric shock or fire.

• Do not connect the Wi-Fi interface to earth

inside the indoor unit.

Safety Precautions

Wi-Fi interface introduction

Parts

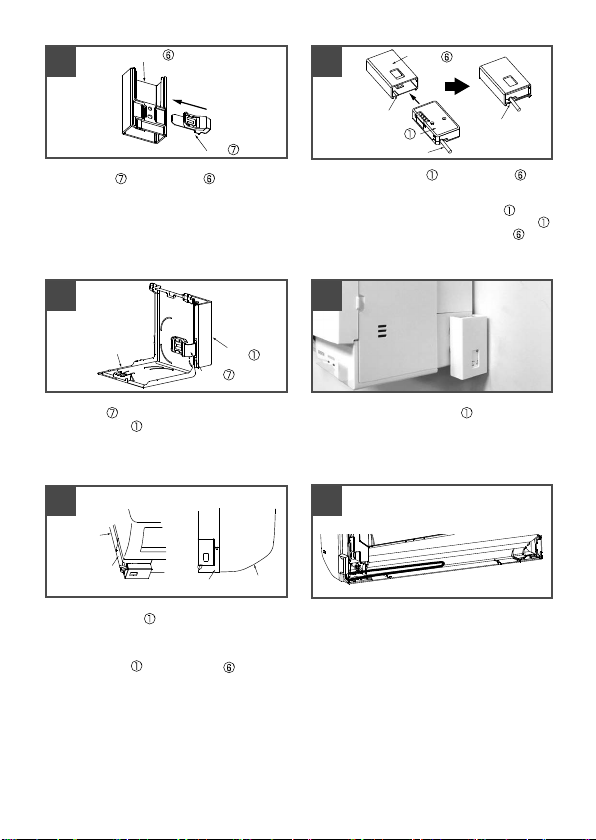

Connecting the Wi-Fi Interface

Wi-Fi Interface: Setting Up Instructions

LED Pattern

Troubleshooting

Specifications

Warning

(Improper handling may have serious consequences, including serious injury or death.)

• Attach the electrical cover to the indoor

unit securely.

If the electrical cover of the indoor units is not

attached securely, it could result in a fire or an

electric shock due to dust, water, etc.

• When installing the Wi-Fi interface, use

appropriate protective equipment and

tools for safety.

Failure to do so could cause injury.

• Turn off the breaker or unplug the power

supply plug of the indoor unit when

connecting the Wi-Fi interface.

Failure to do so could cause electric shock.

• Make sure to connect the connecter of

the Wi-Fi interface to the P.C. board of the

indoor unit properly.

Incomplete connecting or mounting may

result in broken wire, heat generation, smoke

generation, or fire.

• Do not install the Wi-Fi interface nearby

the automatic control devices such as

automatic doors or fire alarms.

It can cause accidents due to malfunctions.

• Do not disassemble, modify, or repair by

yourself.

It can cause electric shock, fire, or injury.

• Do not use the Wi-Fi interface near medical

electrical equipment or people who

have a medical device such as a cardiac

pacemaker or an implantable cardioverter-

defibrillator.

It can cause an accident due to malfunctions

of the medical equipment or device.

• This equipment should be installed and

operated with a minimum distance of 20

cm between the device and the user or

bystanders.

• This device complies with all Australia and

New zealand regulrements for EMC and

electrical safety.

Caution

(Improper handling may have consequences, including injury or damage to building.)

• To prevent damage from static electricity,

touch a nearby metal body to discharge

static electricity from yourself before

touching the Wi-Fi interface.

Static electricity from the human body may

damage the Wi-Fi interface unit.

• Do not install the Wi-Fi interface in a place

which produces steam, such as bathrooms

and kitchens.

Avoid places where water is splashed or

where condensation forms on walls. Installing

in such places can cause electric shock or

breakdown.

• Do not install the Wi-Fi interface in places

with direct sunlight or where the ambient

temperature is 40°C or more or is 0°C or

less.

Direct sunlight and high or low temperature

environments may cause the Wi-Fi interface

to deform or breakdown.

• Do not use in special environments.

Use in places with oil (including machine oil),

steam, or sulfuric gas may lead to severe

decrease in functionality and damage to parts.

• Turn off power supply of connected

equipment when performing construction

or wiring work.

Failure to turn off the power supply to

the connected equipment may lead to

malfunction or breakdown of the Wi-Fi

interface or connected equipment.

• The connecting cable must not touch

piping directly.

• Do not use the Wi-Fi interface near other

wireless devices, microwaves, cordless

phones, or facsimiles.

It can cause malfunctions.

• Do not mount the Wi-Fi interface where

children can reach.

It can cause injury.

[Precautions for setting up, or use of the Wi-Fi interface]

Warning

(Improper handling may have serious consequences, including serious injury or death.)

Be sure not to do. Never touch with wet hand.

• Do not disassemble, modify, or repair by

yourself (user).

It can cause electric shock, fire, or injury.

• This appliance is not intended for use by

persons (including children) with reduced

physical, sensory or mental capabilities,

or lack of experience and knowledge,

unless they have been given supervision

or instruction concerning use of the

appliance by a person responsible for

their safety.

• Children should be supervised to ensure

that they do not play with the appliances.

• This appliance can be used by children

aged from 8 years and above and persons

with reduced physical, sensory or mental

capabilities or lack of experience and

knowledge if they have been given

supervision or instruction concerning

use of the appliance in a safe way and

understand the hazards involved.

• Children shall not play with the appliance.

Cleaning and user maintenance shall not

be done by children without supervision.

• Do not use the Wi-Fi interface near

electrical medical equipment or people

who have a medical device such as a

cardiac pacemaker or an implantable

cardioverter-defibrillator.

It can cause an accident due to malfunctions

of the medical equipment or device.

• Do not install the Wi-Fi interface near

automatic control devices such as

automatic doors or fire alarms.

It can cause accidents due to malfunctions.

• Do not touch the Wi-Fi interface with wet

hands.

It can cause damage to the device, electric

shock, or fire.

Never splash water on the unit.

• Do not splash water on the Wi-Fi interface or

use it in a bathroom.

It can cause damage to the device, electric

shock, or fire.

Be sure to follow all the instructions.

• Do not install the Wi-Fi interface by yourself

(user).

Improper installation may result in fire, electric

shock, or injury due to the Wi-Fi interface

falling. Consult the dealer from whom you

purchased the Wi-Fi interface or professional

installer.

Be sure to disconnect the power

supply plug from the power outlet.

• When the Wi-Fi interface is dropped, or the

holder or cable is damaged, disconnect the

power supply plug or turn the breaker OFF.

It may cause fire or electric shock. In this case,

consult your dealer.

• In case of an abnormal condition (such as

a burning smell), stop the indoor unit and

disconnect the power supply plug or turn

the breaker OFF.

A continued operation in the abnormal state

may cause a malfunction, fire, or electric

shock. In this case, consult your dealer.

[Precautions for installation, setting up, or use of the Wi-Fi interface]

Caution

(Improper handling may have consequences, including injury or damage to building.)

Be sure not to do.

• Do not mount the Wi-Fi interface where

children can reach.

It can cause injury.

• Do not step on unstable step stool to set

up or clean the Wi-Fi interface.

It may cause injury if you fall down.

• Do not use the Wi-Fi interface near other

wireless devices, microwaves, cordless

phones, or facsimiles.

It can cause malfunctions.

Note

• Please ensure that the Router supports the

WPA2-PSK(AES) encryption setting before

installation for this Wi-Fi interface begins.

• The end user should read and accept the

terms and conditions of the Wi-Fi service

before installation of this Wi-Fi interface

begins.

• The Router may be required to complete

connection of this Wi-Fi interface to the Wi-Fi

service.

• This Wi-Fi interface should not be installed

and connected to any Mitsubishi Electric

System which is to provide application critical

cooling or heating.

• Please write down the model information and

more on the first page "Setting Information",

when you install this Wi-Fi interface.

• Before transferring or disposing of the Wi-Fi

interface, it has to be reset to the factory

default.

• Dismantling the indoor unit

Please refer to the indoor units “service

manual” for detailed instructions for accessing

the control adaptor connector CN105 on the

indoor unit control PCB.

Mitsubishi Electric’s Wi-Fi interface is designed for communication to Mitsubishi Electric’s

Wi-Fi service. Third party Wi-Fi interfaces cannot connect to Mitsubishi Electric’s Wi-Fi

service. Mitsubishi Electric is not responsible for any (i) underperformance of a system or

any product; (ii) system or product fault; or (iii) loss or damage to any system or product;

which is caused by or arises from connection to and/or use of any third party Wi-Fi

interface or any third party Wi-Fi service with Mitsubishi Electric equipment.

For the latest information regarding Wi-Fi Control:

New Zealand based enquiries please visit: www.mitsubishi-electric.co.nz/wifi

Australian based enquiries please visit: www.mitsubishielectric.com.au/wifi

This Wi-Fi interface, communicates the status information and controls the

commands from the server by connecting to the indoor unit.

No Item Description

1MODE Button Selects modes.

2RESET Button

Resets the system and ALL settings.

3ERR LED (Orange)

Shows the network error state.

4NET LED (Green) Shows the network state.

MODE LED (Orange)

Shows the Access Point Mode state.

6UNIT LED (Green)

Shows the indoor unit state.

(1) MODE Button

WPS-Push mode <For a router with a WPS button>

[To enter the mode]

Hold down the MODE Button for 2 seconds.

[LED indication]

When WPS-Push is enabled on the Wi-Fi interface, the MODE LED starts flashing

orange (every second).

[To cancel the mode]

Hold down the RESET Button for 2 seconds to return to the initial state.

Access Point mode <For a router without a WPS button and to set up with a

smart phone>

[To enter the mode]

Hold down the MODE Button for 7 seconds.

[LED indication]

When Access Point mode is enabled on the Wi-Fi interface, the MODE LED

starts flashing orange (every 5 seconds).

[To cancel the mode]

Hold down the MODE Button for 7 seconds again and ensure that the MODE

LED is no longer flashing.

In any mode, the NET LED will ash when the Wi-Fi interface is connected to the

Router.

Wi-Fi interface introduction

RESET

ERR

NET

MODE

UNIT

MODE

MAC-568IF-E MAC-588IF-E

ERR

NET

MODE

UNIT

RESET MODE

Wi-Fi INTERFACE

MODEL

XXXXXXXX

MAC

SSID

KEY

:XXXXXXXXXXXX

:XXXXXXXXXX

:XXXXXXXXXXXX

VOLTAGE

CURRENT

MITSUBISHI ELECTRIC CORPORATION

WiFi.ASSYDWG No.

XXXXXXXXXXX

MADE IN CHINA

XXXXXXXXXX

>PP<

(2) RESET Button

• Hold down the RESET Button for 2 seconds to reboot the system.

• Hold down the RESET Button for 14 seconds to initialise the Wi-Fi interface

to the factory default.

Note: When the Wi-Fi interface is reset to the factory default, ALL the

configuration information will be lost. Take great care in implementing this

operation.

WPS-PIN mode <MAC-568IF-E only>

[To enter the mode]

Hold down the MODE Button for 14 seconds.

[LED indication]

When WPS-PIN is enabled on the Wi-Fi interface, the MODE LED starts flashing

orange (every 0.5 seconds).

[To cancel the mode]

Hold down the RESET Button for 2 seconds to return to the initial state.

Before dismantling the indoor unit, turn the power off and make sure that the

power has been disconnected from the complete system.

Dismantle the indoor unit in accordance with the service manual to access the

main control PCB.

Locate the CN105 port on the main control PCB and connect the Wi-Fi interface.

When mounting the interface unit inside an indoor unit, refer to the

installation manual of the indoor unit. Do not mount the interface

unit inside the indoor unit, unless mentioned in the manual.

Connecting the Wi-Fi Interface

(For details about your heat pump, see the relevant installation manual)

Parts

Interface unit

(with connecting

cable)

Holder

Fixing screw

for

3.5×16 mm

Clip

Fixing screw

for

4×16 mm

Mounting cord

clamp

Fastener

(for bundling

the wires)

Insert the clip into the holder until it clicks

into place.

Slip the clip over the edge of corner box to fix

the interface unit .

Note: Mount the interface unit on the

underside of the indoor unit if it cannot be

mounted on the side of the indoor unit.

Insert the interface unit into the holder until

it clicks into place.

Note: When inserting the interface unit into

the holder, align the cable of the interface unit

with the mark for the cable on the holder .

Clip

Holder

Interface unit

Mark for cable

Align

Holder

Connecting cable

Interface

unit

Corner box

Clip

Indoor unit

Corner box

Underside of the

indoor unit Side of the

indoor unit

Example of mounting on the left side of the indoor unit

Otherwise, light leakage or degradation in

appearance may result.

Note: Interface unit can also be mounted on

the right side of the indoor unit.

To check the LED indication after setup, remove

the interface unit from the holder .

Run the connecting cable in the space on the

back of the unit as shown in the above image.

Tuck cabling away and secure it.

Note: Make sure that the connecting cable will

not get caught on or between the installation

plate and the wall, or between the indoor unit

and the installation plate. Failure to do so may

cause damage to the connecting cable resulting

in communication problems.

Make sure that the connecting cable will not

come out from the indoor unit.
