Metrologic ScanQuest IS4110 Manuel utilisateur

METROLOGIC INSTRUMENTS, INC.

IS4110 and IS4125

ScanQuest®Laser Scan Engine

Installation and User’s Guide

work may be reproduced, transmitted, or stored in any form or by any means

without prior written consent, except by reviewer, who may quote brief

passages in a review, or provided for in the Copyright Act of 1976.

Trademarks

Metrologic is a registered trademark of Metrologic Instruments, Inc.

Products identified in this document are hereby acknowledged as

trademarks, registered or otherwise, of Metrologic Instruments, Inc. or their

respective companies.

TABLE OF CONTENTS

Introduction

Theory of Operation...............................................................................1

Accessories ...........................................................................................2

Components of the ScanQuest Engine .................................................3

Label Locations .....................................................................................4

Maintenance ..........................................................................................4

IR Sensor Activation..................................................................................5

Applications and Protocols........................................................................5

Design Specifications

Operational ............................................................................................6

Maintenance ..........................................................................................6

Mechanical ............................................................................................7

Electrical ................................................................................................7

Specifications for the Supplemental Window ........................................8

Default Settings

IS4125 Communication Parameters .....................................................9

Scanner Terminations

IS4125-17 Connector Pin Assignments ..............................................15

IS4125-38 Connector Pin Assignments ..............................................16

IS4125-41 Connector Pin Assignments ..............................................17

IS4125-103 Connector Pin Assignments ............................................18

IS4110 Connector Pin Assignments....................................................19

Scan Sense Timing

IS4110 Timing Diagram.......................................................................20

Regulatory Requirements and Warnings

Regulatory Requirements....................................................................21

Europe .................................................................................................22

United States .......................................................................................23

iii

TABLE OF CONTENTS

Canada ................................................................................................24

Warnings..............................................................................................24

Limited Warranty .....................................................................................25

Patents ....................................................................................................26

Index........................................................................................................27

Contact Information and Office Locations...............................................29

INTRODUCTION

Metrologic’s ScanQuest®Engines are miniature laser bar code scanners

designed to be used in OEM applications and decode equipped OEM devices.

The ScanQuest series provides fast, accurate, reliable scanning in a compact,

lightweight package.

Two engine models are available: the IS4125 and the IS4110. The IS4125 has

built-in decoding for versatile OEM operations, while the IS4110 non-decode

engine interfaces directly with decode-equipped OEM devices*. The IS4125 has

flash upgradeable firmware.

* Note: The manufacturer of the end equipment must register with agencies

such as the Food and Drug Administration (FDA). The

specifications required for registration are not obtainable until the

OEM manufacturer uses the ScanQuest Engine in its final

configuration. Therefore, it becomes the responsibility of the

manufacturer who incorporates the scan engine into their product to

comply with all federal laser safety regulations. The manufacturer

must submit a Laser Product Report for the FDA in the US or

similar forms as required by other countries. Metrologic will assist

its customers in complying with the necessary procedures.

Theory of Operation

An infrared (IR) device located behind the scanner window initiates the scanning

process. The IR sensor is active as long as the unit is being powered. When the

laser decodes a bar code, the scan engine transmits the data to the host system.

If the same bar code stays in the field after successfully scanning, the laser stays

on for approximately 4 seconds and then turns off. This prevents unintentional

reads of the same bar code. To read the same symbol more than once, remove

the object from the scan field for approximately 1 second and then present the

symbol again.

If the bar code and object is removed from the field during the scanning process,

the laser turns off. In this stage, the scan engine’s computer remains on

“standby”.

However, if the object stays in the field, the laser remains on for up to 2.5

seconds trying to detect the bar code. To reactivate the scanning sequence,

remove the object.

INTRODUCTION

Accessories

The following are available:

IS4125 Decoded Scan Engine Part Numbers

Decode Demo Kit 45729

(Includes RS232 adapter cable – MCA951 to 9 PC port)

MLPN* DESCRIPTION MANUFACTURE/PART NO.

6233 Red LED GI High Efficiency HP HLMP-1300

811 Green LED GI High Efficiency HP HLMP-1523

1170 Transducer Star Micronics QMB-105

7102 Thru Hole 12 Pos ZIF Connector Burndy FLWSLW125-1C7

7103 Flex Ribbon 12 Pos x 130mm Burndy BFC12X30A4

IS4110 Non-Decoded Scan Engine Part Numbers

Non-Decode Demo Kit 45730

(Includes 9-pin squeeze connector to decode controllers)

MLPN* DESCRIPTION MANUFACTURE/PART NO.

6233 Red LED GI High Efficiency HP HLMP-1300

811 Green LED GI High Efficiency HP HLMP-1523

1170 Transducer Star Micronics QMB-105

7084 1mm 10 POS ZIF Connector MOLEX 52030-1010

7104 Flex Ribbon 10 POS x 130mm Burndy BFC10X130A4

* Metrologic Part Number

INTRODUCTION

Components of the ScanQuest Scan Engine

Figure 1:IS4110

Figure 2:IS4125

Scanner window: This aperture emits laser light.

Infrared Object Sensor: When a specified time has elapsed without any

scanning, the unit will enter a “standby” mode. To

reactivate the unit, present an object in front of the

IR (infrared) sensor.

Ribbon Cables: This IS4110 has a 10 position FFC/FPC cable and the

IS4125 has a 12-position FFC/FPC cable. Refer to

Scanner Termination starting on page 15.

NTRODUCTION

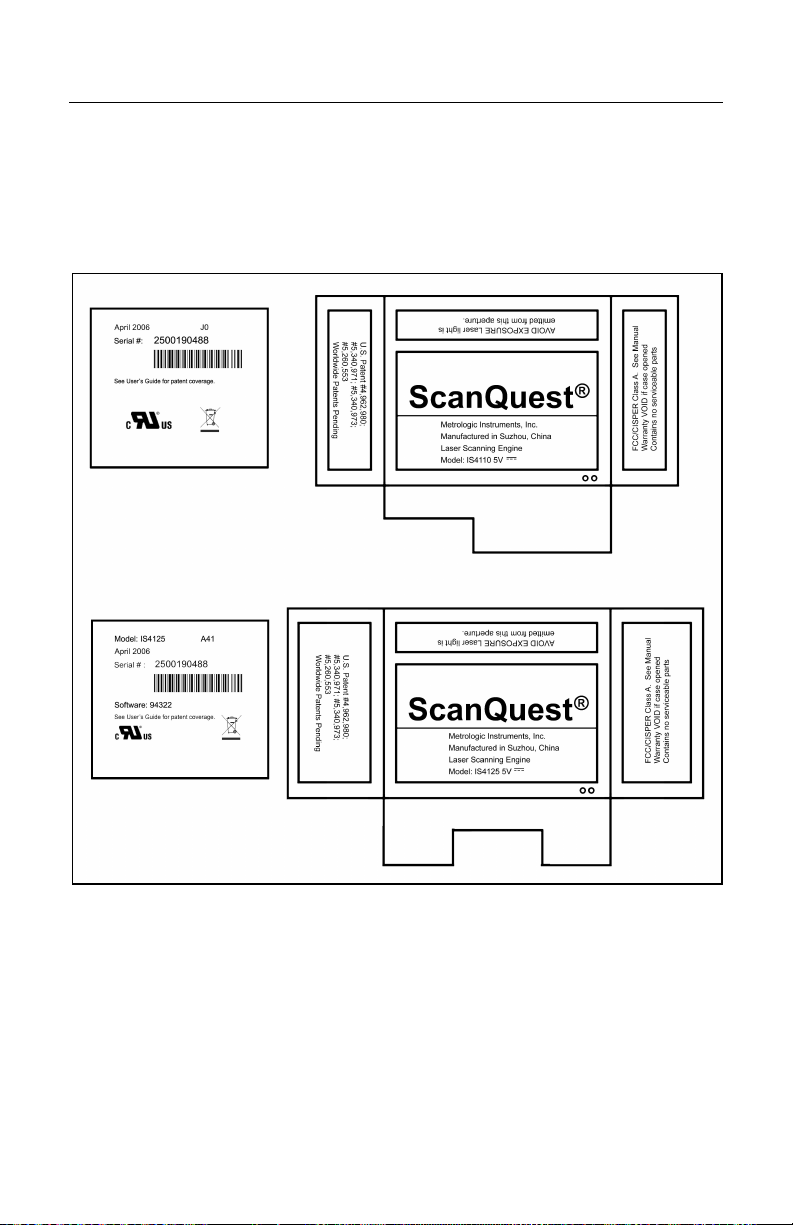

Label Locations

The serial number label is located on the bottom of the unit. On the top of the

unit is the “avoid exposure” and model number label.

The following are examples of these labels:

Figure 3:Labels

Maintenance

Smudges and dirt can interfere with the proper scanning of a bar code.

Therefore, the output window will need occasional cleaning.

1. Spray glass cleaner onto lint free, non-abrasive cleaning cloth.

2. Gently wipe the scanning window.

IR SENSOR ACTIVATION

An infrared (IR) sensor located behind the scanner window initiates the scanning

process. In short range mode the signal projects approximately 101.61 mm –

177.84 mm (4" – 7") beyond the output window. In long range mode the signal

projects approximately 228.61 mm – 330.21 mm (9" – 13") beyond the output

window. The IR sensor remains active as long as the unit is powered.

When the unit remains dormant for a time, the laser will turn off. In this stage, the

scan engine’s computer is on “standby”. To reactivate the unit, present an object

within the scan field.

APPLICATIONS AND PROTOCOLS

The model number on each scan engine includes the scan engine number and

communications protocol.

Unit Communication Protocol(s) Type

IS4110 Laser Data Non-decode

IS4125-41 RS232 and Light Pen Emulation

(Flash Upgradeable Firmware)

IS4125-17 Keyboard Wedge, Stand Alone Keyboard

(Flash Upgradeable Firmware)

IS4125-38 Low Speed USB

Keyboard Emulation or Serial Emulation Mode

IS4125-103 TTL, RS232

Decode

DESIGN SPECIFICATIONS

OPERATIONAL

Light Source: VLD 650 ± 10 nm

CDRH/IEC: Designed to be used in CDRH Class II

and IEC Class 2 laser products

UL: UL recognized component for

Canada and US

Depth of Field, UPC 100%: 12.7 mm to 203.2 mm (.5" to 8") for

0.33 mm (13 mil) bar codes

Scan Speed: 52 scan lines per second minimum

Scan Pattern: Single scan line

Beam Focus at 3" from

Window: .21 mm ± 10%

Flipper Scan Angle: ± 15 degrees from 0 axis

At 152 mm (6") from Flipper (5" from Face)

114 mm ± 13 mm (4 ½" ± ½")

Scan Width:

At 25 mm (1”) from Flipper (Face)

22 mm ± 13 mm (⅞" ± ⅛")

Print Contrast: 35% minimum reflectance difference

Decode Capability: Autodiscriminates (menu select)

IS4125

System Interfaces:

RS232C, Light Pen Emulation,

Keyboard Wedge, Low Speed USB,

RS232 TTL

MAINTENANCE

Window: Clean Periodically

Specifications are subject to change without notice.
