MasterChef G32008 Manuel utilisateur

PRIME 3-BURNER

PROPANE BARBECUE

Assembly Manual

085-3135-0 / G32008

1 YEAR LIMITED WARRANTY

ANSI Z21.58-2015 / CSA 1.6-2015

ANSI Z21.58-2015 / CSA 1.6-2015 ANSI Z21.58-2015 / CSA 1.6-2015

ANSI Z21.58-2015 / CSA 1.6-2015

READ AND SAVE MANUAL FOR FUTURE REFERENCE.

Assemble your grill immediately.

Missing or damaged parts claims must be submitted within 30 days of purchase date.

For product inquiries, parts, warranty and troubleshooting support,

please call 1-855-453-2150.

DANGER

1. If you smell Gas:

a. Shut o gas to the appliance.

b. Extinguish any open ame.

c. Open lid.

d. If odor continues, keep away from

the appliance and immediately

call your gas supplier or your

re department.

2. Requires two people to complete the

assembly process.

3. Beware of sharp edges.

WARNING

Failure to follow all of the Manufacturer’s

instructions could result in hazardous res,

explosions, property damage, or serious

personal injury or even death.

Follow all leak check procedures carefully

prior to operation of barbecue, even if grill

was dealer assembled. Do not try to light

this barbecue without reading the Lighting

Instructions section of this manual.

THIS MANUAL MUST REMAIN WITH THE PRODUCT AT ALL TIMES

CAUTION

Read and follow all safety statements,

assembly instructions, use and care

directions before attempting to assemble

and cook.

WARNING

1. Do not store or use gasoline or other

ammable liquids or vapours in the

vicinity of this or any other appliance.

2. An LP cylinder not connected for use shall

not be stored in the vicinity of this or any

other appliance.

WARNING

IN DIRECT SUNLIGHT, AND IN

OPERATION, YOUR BBQ’S STAINLESS

STEEL AND PAINTED STEEL PARTS CAN

BECOME VERY HOT.

CAUTION

Sharp edges. Wear gloves when assembling

your grill.

THIS BARBECUE IS FOR OUTDOOR USE ONLY.

CONTACT CALL CENTRE IF ANY PARTS ARE MISSING.

1-855-453-2150

INSTALLER OR ASSEMBLER/CONSUMER

This manual should be kept with the BBQ at

all times.

HEAVY ARTICLE NEEDS 2 TO LIFT

To ORDER non-warranty replacement parts or accessories, or to register your warranty,

please visit us on the web at

www.masterchefbbqs.com

HARDWARE PACK

1/4” - 20 UNC x 30 Screw

X 4

No. 10 - 24 UNC x 13 Screw

X 24

No. 10 - 24 UNC x 13 Screw Set

X 4

1/4” - 20 UNC Nut

X 10

1/4” - 20 UNC Wing Nut

X 2

Wheel Spacer

X 2

Stopper, Warming Rack

X 2

1/4” - 20 UNC x 13 Screw

X 16

No. 8 - 32 UNC x 10 Screw

X 6

Aluminum Washer

X 5

Hitch Pin, Burner

X 3

Hitch Pin, Wheel

X 1

ST4.2 x 8 Tapping Screw

X 6

Washer, Burner Box

X 4

φ6 Washer

X 1

Wheel Washer

X 1

1 3

KEY # DESCRIPTION PART NUMBER QUANTITY

1 1/4” - 20 UNC x 30 Screw 20120-13030-036 4

2 1/4” - 20 UNC x 13 Screw 20120-13013-036 16

3 No. 10 - 24 UNC x 13 20124-10013-036 24

4 No. 10 - 24 UNC x 13 Screw Set G432-U400-9091 4

5 No. 8 - 32 UNC x 10 Screw 20132-08010-250 6

6 ST4.2 x 8 Tapping Screw 24200-42008-136 6

7 1/4” - 20 UNC Nut 31220-13000-036 10

8 Aluminum Washer G466-0042-9000 5

9 Washer, Burner Box G437-0050-9000 4

10 1/4” - 20 UNC Wing Nut 33300-13000-036 2

11 Hitch Pin, Burner G515-0013-9000 3

12 φ6 Washer 40100-06000-036 1

13 Wheel Spacer G305-0024-9088 2

14 Hitch Pin, Wheel G306-0005-9088 1

15 Wheel Washer 40300-08000-036 1

16 Stopper, Warming Rack G320-3004-9191 2

TOOLS NEEDED FOR ASSEMBLY

• #2 Star-head screwdriver (long and short)

• ¼” Slotted screwdriver (long and short)

• Adjustable wrench

• Pliers

For correct hardware assembly, always position

the lock washer between the screw and the at

washer.

Caution:

Sheet metal can cause injury. Wear gloves when installing the grill.

Lock Washer

Flat Washer

Screw

BEFORE ASSEMBLING THIS BARBECUE, READ THE INSTRUCTIONS CAREFULLY.

Assemble the barbecue on a flat, clean surface. The grill is heavy, two people are

recommended to complete assembly.

PARTS LIST (PROPANE) FOR 085-3135-0 / G32008

KEY # QUANTITY DESCRIPTION PART NO.

AA 1 Top Lid Assembly G320-5200-01

AB 1 Thermometer G312-B201-02

AC 1 Top Lid Handle G320-5102-01

AD 2 Lid Hinge G320-5101-01

BA 1 Burner Box Assembly G320-5400-01

BB 3 Main Burner G320-0200-01

BC 1 Electrode Set, Main Burner G311-0005-02

BD 2 Carryover Assembly G413-0004-02

BE 3 Flame Tamer G320-3002-01

BF 1 Cooking Grate G305-0006-01

BG 1 Warming Rack G320-5301-01

CA 1 Control Panel G320-6000-01

CB 1 Manifold Assembly G320-6100-01

CC 1 Regulator G320-0702-01

CD 3 Control Knob G320-5302-01

CE 1 Ignitor G206-0701-01

CF 1 Grease Cup Hook G305-0043-01

CG 1 Grease Cup G430-0033-02

CH 1 Heat Shield G320-3003-01

DA 1 Left cart frame, G320-5601-01

DB 1 Left front cart leg (1) G320-5602-01

DC 1 Left rear cart leg (2) G320-5603-01

DD 1 Right cart frame G320-5701-01

DE 1 Right front cart leg (3) G320-5702-01

DF 1 Right Rear Cart Leg (4) G320-5703-01

DG 2 Lower Cart Brace G320-5604-01

DH 1 Upper Back Brace G320-5800-01

DI 1 Lower Back Brace G320-5900-01

DJ 1 Front Panel G320-5501-01

DK 2 End Caps G320-5504-01

DL 2 Wheel G320-5506-01

DM 1 Wheel Axle G320-5507-01

DN 1 Match Holder G401-0079-01

DO 2 Tank Exclusion Wire G320-5502-01

DP 1 Gas Tank Support G320-5503-01

EA 2 Side Shelf G320-0051-01

F1 1 Hardware Pack G320-B008-01

F2 1 Assembly Instructions G320-M008-01

F3 1 Safe Use and Care Manual G320-M008-02

EXPLODED DIAGRAM (PROPANE) FOR 085-3135-0 / G32008

DC DE

HARDWARE

PACK

F2 F3

ASSEMBLY

MANUAL

SAFETY

AND CARE

MANUAL

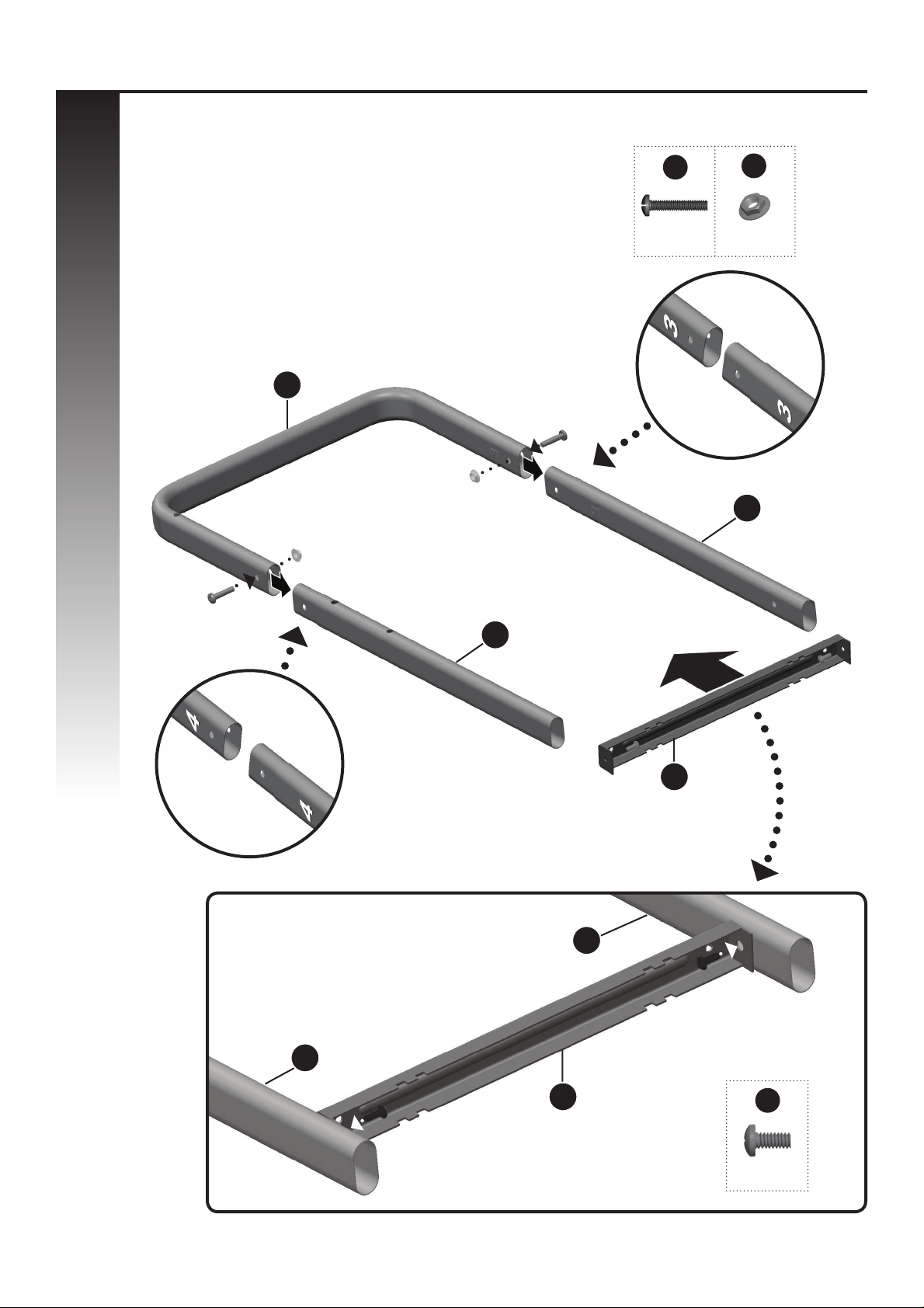

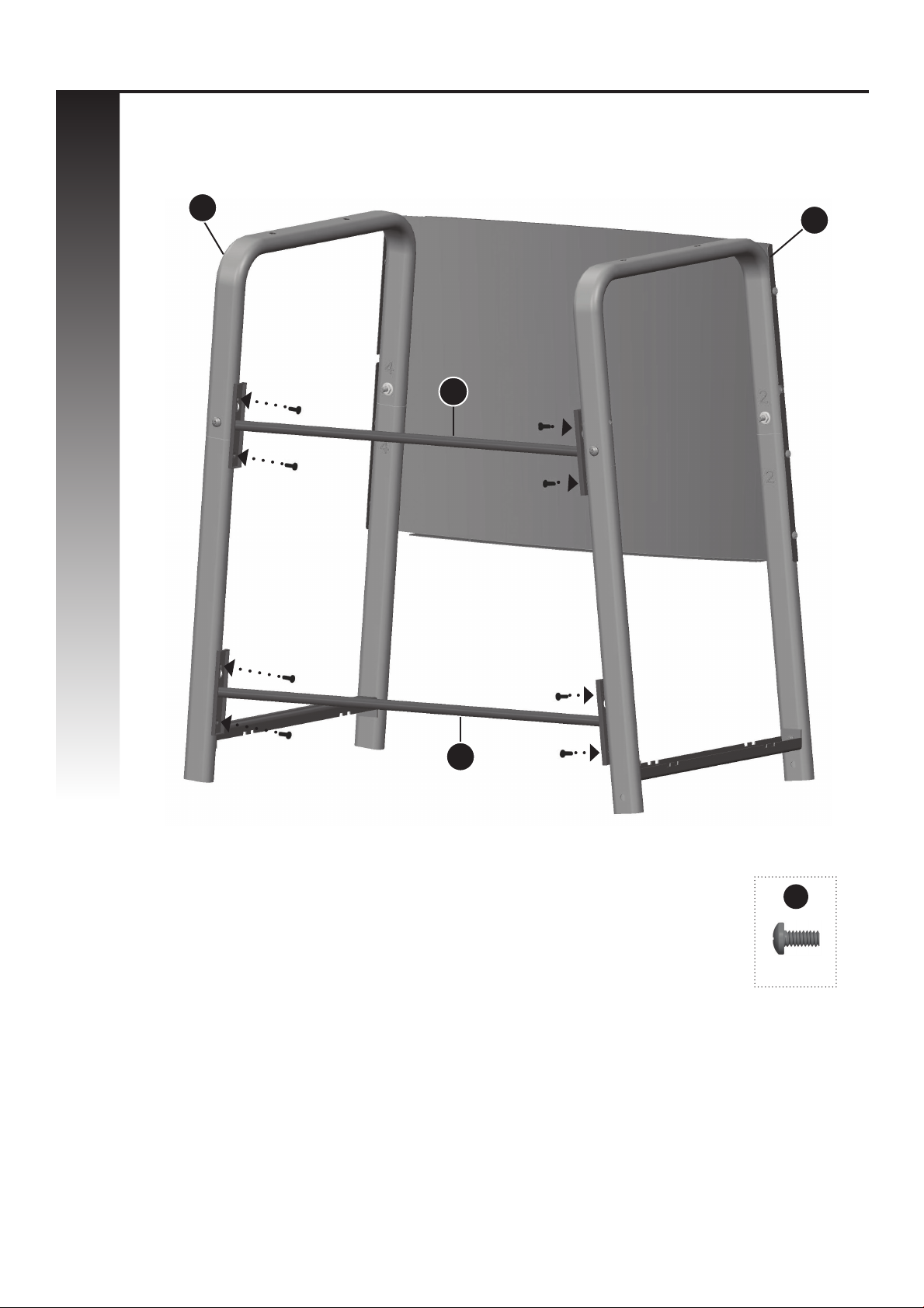

ASSEMBLY INSTRUCTIONS

YOU WILL NEED:

X 2

YOU WILL NEED:

X 2

ASSEMBLY INSTRUCTIONS

YOU WILL NEED:

X 2

YOU WILL NEED:

X 2

ASSEMBLY INSTRUCTIONS

YOU WILL NEED:

X 6

ASSEMBLY INSTRUCTIONS

YOU WILL NEED:

X 8

DD DA

ASSEMBLY INSTRUCTIONS

13 15

YOU WILL NEED:

X 2

14 15

X 1 X 1
