M-system R3-AR4 Manuel utilisateur

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-8433 Rev.3 P. 1 / 4

INSTRUCTION MANUAL

RTD INPUT ALARM MODULE

(4 points, isolated) MODEL R3-AR4

BEFORE USE ....

Thank you for choosing M-System. Before use, please check

contents of the package you received as outlined below.

If you have any problems or questions with the product,

please contact M-System’s Sales Ofﬁce or representatives.

■PACKAGE INCLUDES:

RTD input alarm module....................................................(1)

■MODEL NO.

Conﬁrm Model No. marking on the product to be exactly

what you ordered.

■INSTRUCTION MANUAL

This manual describes necessary points of caution when

you use this product, including installation, connection and

basic maintenance procedures.

POINTS OF CAUTION

■CONFORMITY WITH EU DIRECTIVES

• The equipment must be mounted inside the instrument

panel of a metal enclosure.

• The actual installation environments such as panel con-

ﬁgurations, connected devices, connected wires, may af-

fect the protection level of this unit when it is integrated

in a panel system. The user may have to review the CE

requirements in regard to the whole system and employ

additional protective measures to ensure the CE conform-

ity.

■HOT SWAPPABLE MODULES

• Replacing the module does not affect other modules on

the same base. Thus, the module can be replaced while

the power is ON. However, replacing multiple modules

at once may greatly change live voltage levels. We highly

recommend to replace them one by one.

■GENERAL PRECAUTIONS

• DO NOT set the switches on the module while the power

is supplied. The switches are used only for maintenance

without the power.

■ENVIRONMENT

• Indoor use.

• When heavy dust or metal particles are present in the

air, install the unit inside proper housing with sufﬁcient

ventilation.

• Do not install the unit where it is subjected to continuous

vibration. Do not subject the unit to physical impact.

• Environmental temperature must be within -10 to +55°C

(14 to 131°F) with relative humidity within 30 to 90% RH

in order to ensure adequate life span and operation.

■WIRING

• Do not install cables close to noise sources (relay drive

cable, high frequency line, etc.).

• Do not bind these cables together with those in which

noises are present. Do not install them in the same duct.

■AND ....

• The unit is designed to function as soon as power is sup-

plied, however, a warm up for 10 minutes is required for

satisfying complete performance described in the data

sheet.

INSTALLATION

Use the Installation Base (model: R3-BSx).

R3-AR4

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-8433 Rev.3 P. 2 / 4

COMPONENT IDENTIFICATION

SW1SW2

SW3

■FRONT VIEW ■SIDE VIEW

ERR LED

RUN LED

Conv.

Rate

Temp.

Unit

Input 2 (SW1)

Input 4 (SW2)

RTD

Input 1 (SW1)

Input 3 (SW2)

Burnout

Functions

■STATUS INDICATOR LED

RUN indicator: Bi-color (red/green) LED;

Red when the bus A operates normally;

Green when the bus B operates normally;

Amber when both buses operate normally.

ERR indicator: Bi-color (red/green) LED;

Red with burnout;

Green in normal operating conditions.

■SIDE DIP SW

(*) Factory setting

• RTD Type: SW1, SW2

INPUT 1 (SW1) INPUT 2 (SW1)

RTDINPUT 3 (SW2) INPUT 4 (SW2)

12345678

OFF OFF OFF OFF OFF OFF OFF OFF Pt 100 (*)

(JIS ’97, IEC)

ON OFF OFF OFF ON OFF OFF OFF Pt 100 (JIS ’89)

OFF ON OFF OFF OFF ON OFF OFF JPt 100 (JIS ’89)

ON ON OFF OFF ON ON OFF OFF Pt 50 Ω (JIS ’81)

OFF OFF ON OFF OFF OFF ON OFF Ni 100

ON OFF ON OFF ON OFF ON OFF Cu 10 @ 25°C

OFF ON ON OFF OFF ON ON OFF Pt 1000

ON ON ON OFF ON ON ON OFF Ni 508.4 Ω

OFF OFF OFF ON OFF OFF OFF ON Cu 50

• Burnout: SW3-1

SW3-1 BURNOUT

OFF Upscale (*)

ON Downscale

• Temperature Unit: SW3-2, 3-3

SW3-2 SW3-3 TEMP. UNIT

OFF OFF °C (*)

ON OFF °F

OFF ON (Absolute Temp)

• Conversion Rate: SW3-4

SW3-4 CONV. RATE

OFF 250 msec. (*)

ON 1 sec.

R3-AR4

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-8433 Rev.3 P. 3 / 4

TERMINAL CONNECTIONS

Connect the unit as in the diagram below.

■EXTERNAL DIMENSIONS unit: mm (inch)

130 (5.12)

27.5 (1.08) 109 (4.29) POSITIONING

GUIDE

TERMINAL

COVER

20–M3

SCREW

6.2

(.24)

■CONNECTION DIAGRAM

INPUT 1

INPUT 2

INPUT 3

INPUT 4

100Ω

11 13 16 18

• Unused Input Channels

Close across the unused input terminals with a resistor as

shown below and set the DIP switch for Pt 100 input.

Unused channels left open are equal to the burnout,

which turns the red ERR LED on and sets a burnout flag at

the PLC or the host device.

Connecting the resistor means approx. 0°C. An alarm

setpoint must be set to a value that does not trip an

unwanted alarm.

Unused channels can be specified and set so on the PC

Configurator Software (model: R3CON) without needing to

connect resistors at the field terminals.

RTD

*For dual redundant communication.

INPUT 1

RTD

INPUT 2

RTD

INPUT 3

RTD

INPUT 4

BUS CONNECTOR

INTERNAL POWER

INTERNAL BUS A

INTERNAL BUS B*

R3-AR4

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EM-8433 Rev.3 P. 4 / 4

ALARM SETTING

The following parameters are programmable using the PC

Conﬁgurator Software (model: R3CON).

■ALARM TRIP POINT

(-200.0 to +850.0°C or -328 to +1562°F; factory set to A1:

400.0°C, A2: 300.0°C, A3: 200.0°C, A4: 100.0°C)

Four alarm setpoints are selectable per each input.

■ALARM TYPE (High or Low; factory set to A1: High, A2:

High, A3: Low, A4: Low)

High or Low alarm is selectable for each alarm trip point.

High alarm: An alarm is set when the input signal goes

above the setpoint.

Low alarm: An alarm is set when the input signal goes be-

low the setpoint.

■DEADBAND (HYSTERESIS)

(0.00 to 100.0°C or 0 to 1800°F; factory set to 10.0°C or 100°F)

Deadband (deviation between the points where the alarm is

set and reset) is selectable for each alarm trip point.

■POWER ON DELAY TIME

(0.0 to 99.0 seconds; factory set to 5.0)

The alarm output start functioning in the preset time after

the power has been turned on.

This setting is common to all four points.

■ALARM ON DELAY TIME

(0.0 to 99.0 seconds; factory set to 1.0)

The alarm output is set when the preset time elapses after

the input has entered in the alarm range.

This setting is common to all four points.

■ALARM HOLD TIME

(0.0 to 99.0 seconds; factory set to 1.0)

The alarm output is held for the preset time even if it is

reset in shorter time.

This setting is common to all four points.

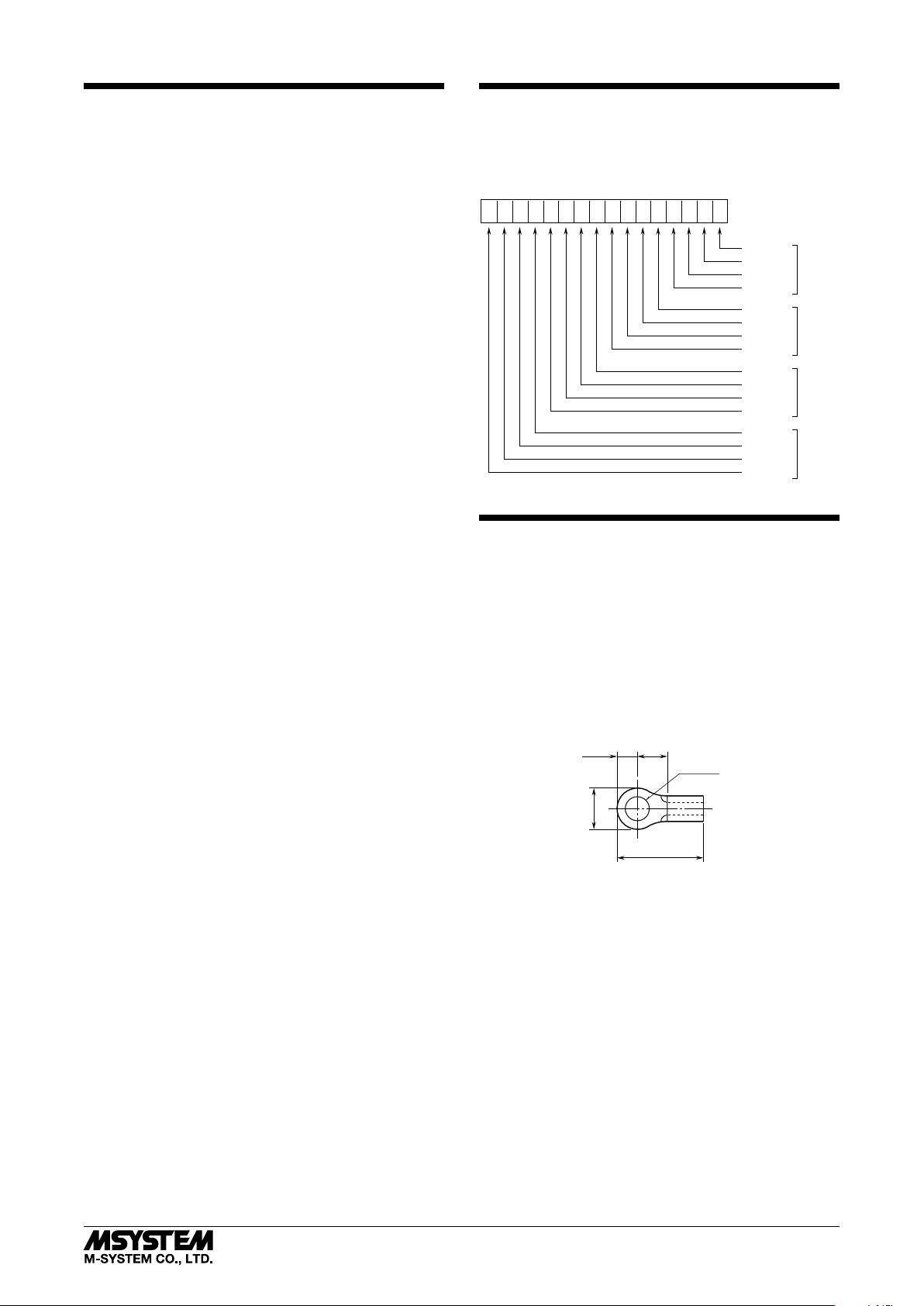

OUTPUT DATA DESCRIPTIONS

Four alarm setpoints are selectable per each input. One

(1) word (16 bit) data is transmitted to the PLC or the host

device via the R3 network module.

Alarm 1

Alarm 2 Input 1

Alarm 3

Alarm 4

Alarm 1

Alarm 2 Input 2

Alarm 3

Alarm 4

Alarm 1

Alarm 2 Input 3

Alarm 3

Alarm 4

Alarm 1

Alarm 2 Input 4

Alarm 3

Alarm 4

WIRING INSTRUCTIONS

■SCREW TERMINAL

Torque: 0.5 N·m

■SOLDERLESS TERMINAL

Refer to the drawing below for recommended ring tongue

terminal size. Spade tongue type is also applicable. Solder-

less terminals with insulation sleeve do not ﬁt.

Applicable wire size: 0.3 – 0.75 mm2

Recommended manufacturer: Japan Solderless Terminal

MFG. Co., Ltd., Nichifu Co., Ltd.

12max

6max

3max 4min

3.2 dia.

(mm)
