M-system R8-DC4C Manuel utilisateur

R8-DC4C

P. 1 / 4EM-9743 Rev.1

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

PHOTO MOSFET RELAY OUTPUT MODULE

(4 points) MODEL R8-DC4C

INSTRUCTION MANUAL

BEFORE USE ....

Thank you for choosing M-System. Before use, check the

contents of the package you received as below.

If you have any problems or questions with the product,

please contact M-System’s Sales Ofﬁce or representatives.

■ PACKAGE INCLUDES:

Photo MOSFET relay output module......................... (1)

■MODEL NO.

Conﬁrm that the model number described on the product is

exactly what you ordered.

■INSTRUCTION MANUAL

This manual describes necessary points of caution when

you use this product, including installation, connection and

basic maintenance procedures.

POINTS OF CAUTION

■CONFORMITY WITH EU DIRECTIVES

•Theequipmentmustbemountedinsideapanel.

•Theactualinstallationenvironmentssuchaspanelcon-

ﬁgurations, connected devices and connected wires may

affect the protection level of this unit when it is integrated

in a panel system. The user may have to review the CE

requirements in regard to the whole system and employ

additional protective measures to ensure CE conformity.

■GENERAL PRECAUTIONS

•Beforeyouremoveormounttheunit,turnoffthepower

supply and output signal for safety.

•Switches on the side of the module can be set for mainte-

nance only while the power supply is off. Do not access

them while the power is supplied.

■ ENVIRONMENT

•Indooruse

•Whenheavydustormetalparticlesarepresentintheair,

install the unit inside proper housing with sufﬁcient ven-

tilation.

•Donotinstalltheunitwhereitissubjectedtocontinuous

vibration. Do not apply physical impact to the unit.

•Environmentaltemperaturemustbewithin-10to+55°C

(14to131°F)withrelativehumiditywithin30to90%RH

in order to ensure adequate life span and operation.

■WIRING

•Do not install cables close to noise sources (relay drive

cable, high frequency line, etc.).

•Do not bind these cables together with those in which

noises are present. Do not install them in the same duct.

■AND ....

•Theunitisdesignedtofunctionassoonaspowerissup-

plied,however,awarmupfor10minutesisrequiredfor

satisfying complete performance described in the data

sheet.

INSTALLATION

■HOW TO MOUNT THE MODULE ON DIN RAIL

• I/O Module

Confirm that the locking clamps of the I/O module are set.

Insert the module in parallel to the next one while aligning the grooves of

both modules (A & B in the above figure).

Maintain it perpendicularly to the rail.

More I/O modules can be added in the same manner.

R8-DC4C

P. 2 / 4EM-9743 Rev.1

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

■HOW TO UNMOUNT THE MODULE FROM DIN RAIL

Release the locking clamps and pull out straight the module.

Caution !

1) Be careful not to hurt your hand by pointed edges of the internal

communication bus connector.

2) I/O modules cannot hold tightly on the DIN rail by themselves without

power/network module.

Secure them to the position if necessary by using DIN rail end plates.

• Removing an intermediate module

• Protective Cover

The protective cover is to be attached over the connected I/O module

at the right end.

Align the hooks on the cover with the grooves of the module and slide it

straight until the hooks are latched.

When removing the cover, pull it out while squeezing the hooks inward.

Groove

Hook

R8-DC4C

P. 3 / 4EM-9743 Rev.1

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

COMPONENT IDENTIFICATION

RUN

Module Address Setting

Rotary SW

Function Setting

DIP SW

Terminator DIP SW

SW1

x10

12345678

SW2

SW4

SW3Term

Status Indicator LED

Output Status Indicator LED

Internal Bus Connector

Output Connectors

FRONT VIEW SIDE VIEW

CARD ADD.

DO1

DO2

DO3

DO4

■INDICATOR LED

LED

OPERATION

FUNCTION

Status OFF Stopping

Green ON Valid host communication

Green Blinking

Reading/writingconguration

RedON Setting error

RedBlinking Parameter error

Output

Status

OFF OFF

Green ON ON

■OUTPUT CONNECTOR ASSIGNMENT

PIN ID FUNCTION

No.

1 DO Discrete output

2 NC No connection

3 NC No connection

4 DO Discrete output

■PC CONFIGURATOR

The following parameters can be set with using PC Conﬁgu-

ratorSoftware(model:R8CFG):

•Outputatthestartup

•Outputatthelossofcommunication

•Commonsetting(lossofinternalbuscommunicationde-

tection time)

TurnSW4-8ONtoallowprogrammingbythePCCongu-

ratorviathePower/NetworkModule.

RefertotheusersmanualfortheR8CFGfordetailedopera-

tion of the software program.

■MODULE ADDRESS

■Module Address

The left switch determines the tenth place digit, while the

right switch does the ones place digit of the address.

Address is selected between 0 to 31.

(Factory setting: 0)

Module Address Setting (x1)

Module Address Setting (x10)

■OPERATING MODE

*Factory setting

• Output at The Loss of Communication

OUTPUT AT THE LOSS OF COMMUNICATION SW4-7

OutputHold(*)

(last data correctly rerceived is hold)

OFF

Stop output (Output ﬁxed at OFF) ON

• Conguration Mode

CONFIGURATION MODE SW4-8

DIP switch setting (*) OFF

PC Conﬁgurator and communicaton ON

• Terminator DIP SW

TERMINATOR SW SW3

Without(*) OFF

With ON

Caution:BesuretosetunusedSW4-1through4-6toOFF.

R8-DC4C

P. 4 / 4EM-9743 Rev.1

5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN

Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp

EXTERNAL DIMENSIONS unit: mm (inch)

115 (4.53)6 (.24)7 (.28) 6 (.24) 7 (.28)

DIN RAIL

(35 mm wide)

[3 (.12)] [4 (.16)]

12 (.47) 59 (2.32)

55 (2.17)

CONNECTION DIAGRAM

OUTPUT

CONNECTOR 1

OUTPUT

CONNECTOR 4

INTERNAL

BUS

EXC.

SUPPLY

BUS CONNECTOR

INTERNAL

POWER

*1. Not used.

Do4

Do1

WIRING INSTRUCTIONS

■ e-CON connector

connectorXN2D-1474-S002(Omron)

RecommendedcableconnectorXN2A-1470(Omron)*1

Applicablewiresize:0.08mm2(AWG28)-0.5mm2(AWG20)

Outersheathdiameter:max.1.5dia

*1. The cable connector is not included in the package.

Refertothespecicationsoftheproduct.

Autres manuels M-system Unité de contrôle

M-system

M-system R7M-DA16 Manuel utilisateur

M-system

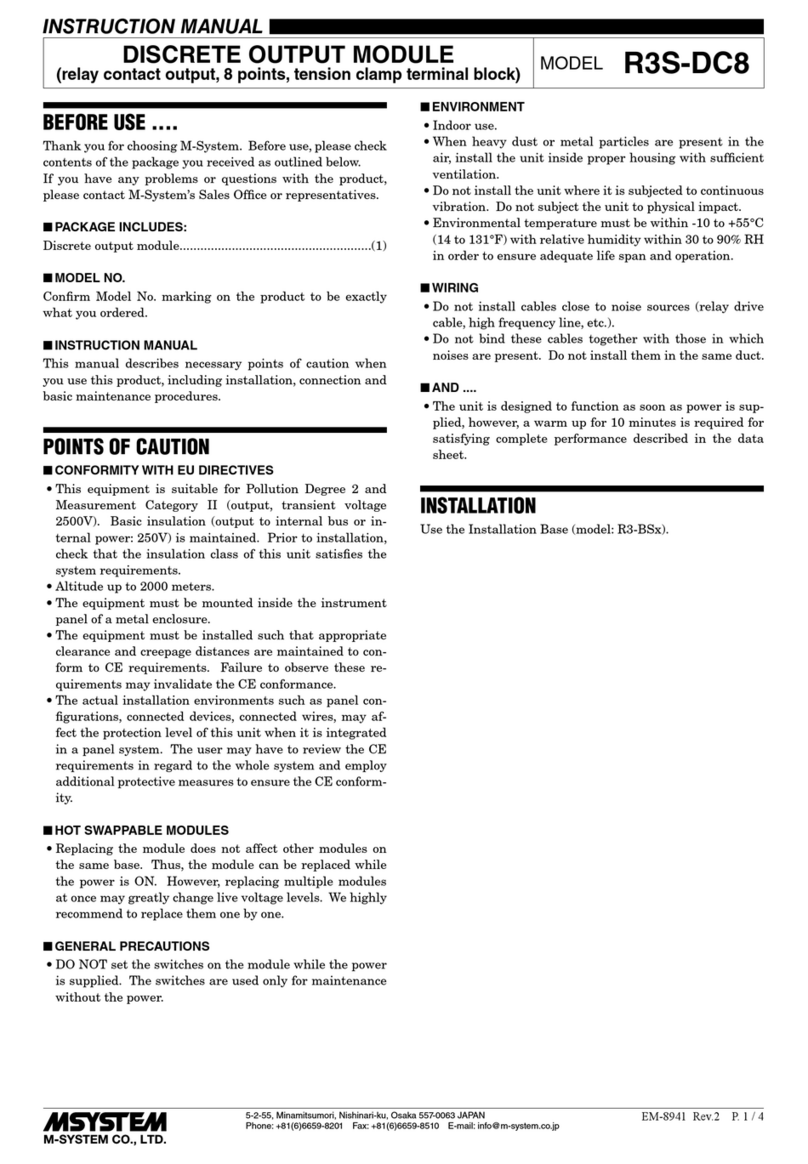

M-system R3S-DC8 Manuel utilisateur

M-system

M-system R7ML-YV2 Manuel utilisateur

M-system

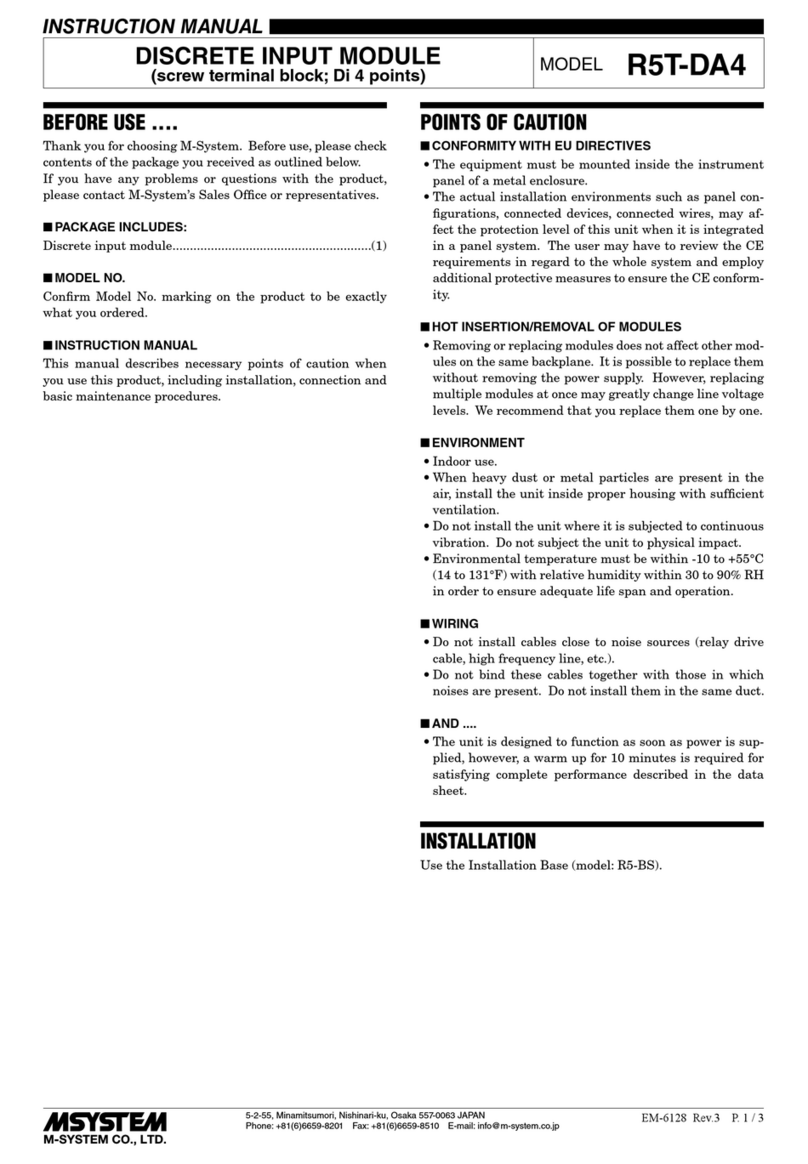

M-system R5T-DA4 Manuel utilisateur
