Lightolier Lighting Systems LFK1 Manuel utilisateur

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Lighting Systems LFK1

1BHFPG -JHIU51FS'PPUDN/PNJOBM4FDUJPO

#

4.295"

(10.91cm)3.400"

(8.64cm)

4.895” (12.43cm)

Half Scale

35 4

Ordering Information

LFK 1

Family Lamps Wattage Voltage Length

1=1lamp per

4’ (121.92cm)

28 = 28w T5

54 = 54w T5

2D = 28w T5 Dimming

5D = 54w T5 Dimming

2E = 28w T5 Emergency Pack

5E = 54w T5 Emergency Pack

1= 120v

2= 277v

4= 4’ (121.92cm)

8= 8’ (243.84cm)

Options

DS = Dual Switch

X4 = 4 Through Wires

X5 = 5 Through Wires

Features

1. Extrusion: Extruded aluminum, painted white.

2. Housing: Multi-layered 5/8" (1.59cm) thick polycarbonate panels with patented

prismdesign. Clear outer layer and an opal non-glare inner layer. Light

transmission is 32% ASTM D1003 perpendicular to the panel. Reflectivity is

more than 40% perpendicular to the panel.

3. Endcap: Die cast aluminum, painted white.

5. Lamp: T5 linear fluorescent, 28 or 54 watt. (by others).

Electrical

Ballast: Electronic and meets A.N.S.I. starting, end of life protection, T.H.D., "A"

sound rating, and end-of-life specifications. Factory installed ballast disconnect

allows the ballast to be disconnected fromand reconnected to incoming power

under load without turning the entire circuit off.

iring: 3 Conductor 18 gauge wire. Color-coded quick connectors allow ease of

connection for fixture modules.

Dimming: Advance Mark X. Use Advance compatible 2 wire control (no extra lead

is required in the luminaire).

Emergency Battery Pack: 54 Watt: 390-700 Lumens for 90 minutes,

28 Watt: 370-520 Lumens for 90 minutes.

Dual Switching: Order the DS option for separate row switching. DS option

comes complete with the 4th through wire option.

4 and 5 wire: Order X4 for EM Battery Pack. For non-standard dimming options

order X5 option for Osramor DALI 54 watt dimming, X4 option for Lutron HiLume

or ECO-10 54 Watt dimming.

Consult Factory for any additional wiring conditions.

Finish

Powder coated white baked enamel. Customcolors available, consult factory.

Ordering Instructions

Individual Fixtures:

1. Order number of MODULES required.

2. Order one POWER FEED CABLE END SET per MODULE.

Continuous Rows:

1. Determine run length.

2. Order the appropriate number of MODULES for the complete run.

3. Order one POWER FEED CABLE END SET per run.

4. Order one INTERMEDIATE CABLE SET per MODULE minus one per run.

5. For runs that exceed amperage limits, order the appropriate number of

CABLE/CORD SET.

Labels

UL , cUL and I.B.E.W. Patent Applied For.

Mounting

Mounting locations are adjustable along the top of the extrusion. Cable suspension

(not shown) consists of 4 1/2" (11.43cm) diameter canopy finished white enamel,

1/16" (0.16cm) diameter stainless steel aircraft cable adjustable up to 36”

(91.44cm). Draw-tight connector to create hairline seambetween joiner modules.

Modules allow 6” (15.24cm) of suspension position adjustment.

Complete Ordering Instructions below.

Shielding

N= No

Sheilding

by 1.2" (3.05cm) tall.

Accepts linear fluorescent ballasts up to 1.2" (3.05cm) wide4. Ballast Channel:

Job Information Type:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Lighting Systems LFK1

1BHFPG -JHIU51FS'PPUDN/PNJOBM4FDUJPO

#

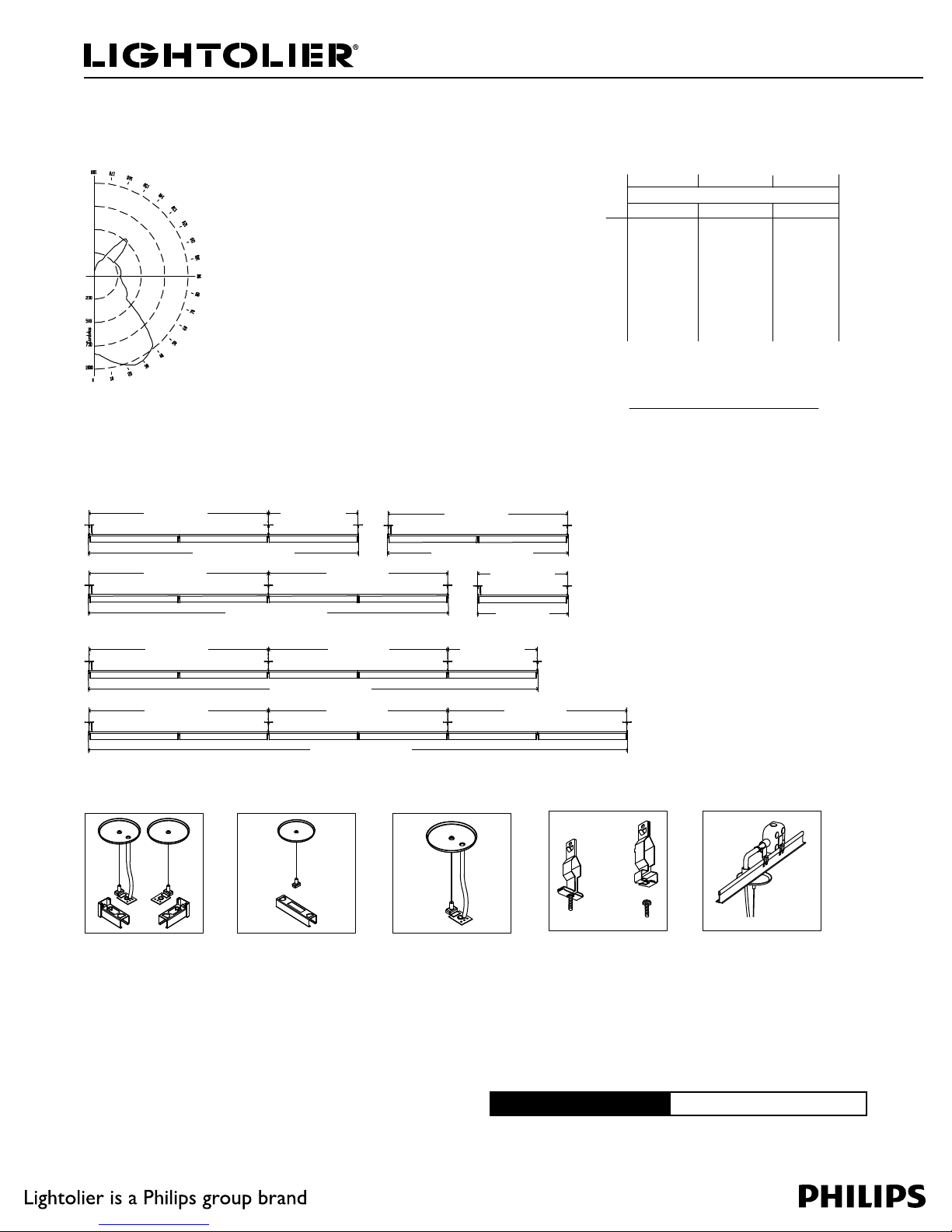

CANDLEPOWER

ZONE 0 22 45 67 90

DEG. CANDELAS

180 54 54 54 54 54

175 53 56 61 65 68

165 51 74 113 140 149

155 50 104 160 182 190

145 46 127 193 339 400

135 40 131 344 491 475

125 32 153 360 277 264

115 23 229 184 247 275

105 13 75 162 250 286

95 6 51 131 234 286

90 0 40 118 224 277

85 15 60 132 237 285

75 129 145 214 284 317

65 287 445 293 357 381

55 422 617 600 438 418

45 550 731 848 844 784

35 659 799 948 997 1012

25 745 833 953 1025 1050

15 806 847 910 953 971

5 836 844 857 860 864

0 835 835 835 835 835

Performance

REPORT NO.: ITL54306

LAMPS: 1-F54T5

LUMENS: 5000

EFFICIENCY: 87.0%

CAT NO.: LFK1N5414

CANDLEPOWER CURVE

80% 70% 50%

70 50 30 70 50 30 50 30 10

0 989898 9393 93 838383

1 888480 8380 76 726966

2 807367 7669 64 625854

3 736457 6961 54 555046

4 675649 6354 47 484339

5 615043 5848 41 433833

6 564537 5343 36 393329

7 524133 4939 32 352925

8 483730 4635 29 322622

9 453427 4232 26 292420

10 42 31 24 40 30 23 27 22 18

20% FLOOR CAVITY REFLECTANCE

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY REFLECTANCE

WALL REFLECTANCE

DISTRIBUTION

Zone Lumens % Lamp %Luminaire

0-90 3136 63.0 72.0

90-180 1216 24.0 28.0

0-180 4352 87.0 100.0

ROOM CAVITY RATIO

Fixture Lengths & Mounting

4' (121.92cm)

8' (243.48cm)

Note: All suspension points have

6" (15.24cm) of adjustment within

each module. 12" (30.48cm) when

two modules are joined. Field

cutting of wire cover is required.

12’ 0-3/4" (367.67cm)

16’ 0-3/4" (489.59cm)

8' (243.48cm) 8' (243.48cm)

8' (243.48cm)

8' (243.48cm) 8' (243.48cm)

4' (121.92cm)

20’ 0-3/4" (611.51cm)

24’ 0-3/4" (733.43cm)

8’ 0-3/4" (245.75cm)

4’ 0-3/4"

(123.83cm)

Mounting Accessories

Power Feed Cable End Set Intermediate Cable Set

Cable length is 36" (91.44cm)

Single Cable: LFKC36

Intermediate

Cable/Cord Set

Cable length is 36" (91.44cm)

Straight Cord: LFKCC36

Ceiling Grid Kit (CGK)

Includes both standard

1" (2.54cm) Tee and Slot

Tee Clip.

Order one for every non-

powered suspension point.

Ceiling Grid Kit—

Power (CGKP)

Includes the hardware

necessary to install a

power feed above a

suspended ceiling. J-box

not included. Order one for

every powered suspension

point.

4 Wire Cord: LFKCC36X4

5 Wire Cord: LFKCC36X5

Cable length is 36" (91.44cm)

Straight Cord: LFKEC36WH

4 Wire Cord: LFKEC36WHX4

5 Wire Cord: LFKEC36WHX5
