Lightolier LFK2 Manuel utilisateur

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Lighting Systems LFK2

1BHFPG -JHIU51FS'PPUDN/PNJOBM4FDUJPO

#

4.295"

(10.91cm)3.400"

(8.64cm)

4.895” (12.43cm)

Half Scale

365

Ordering Information

LFK 1

Family Lamps Wattage Voltage Length

1=1lamp per

4’ (121.92cm)

28 = 28w T5

54 = 54w T5

2D = 28w T5 Dimming

5D = 54w T5 Dimming

2E = 28w T5 Emergency Pack

5E = 54w T5 Emergency Pack

1= 120v

2= 277v

4= 4’ (121.92cm)

8= 8’ (243.84cm)

Options

DS = Dual Switch

X4 = 4 Through Wires

X5 = 5 Through Wires

Features

1. Extrusion: Extruded aluminum, painted white.

2. Housing: Multi-layered 5/8" (1.59cm) thick polycarbonate panels with patented

prismdesign. Clear outer layer and an opal non-glare inner layer. Light

transmission is 32% ASTM D1003 perpendicular to the panel. Reflectivity is

more than 40% perpendicular to the panel.

3. Endcap: Die cast aluminum, painted white.

5. Lamp: T5 linear fluorescent, 28 or 54 watt. (by others).

Electrical

Ballast: Electronic and meets A.N.S.I. starting, end of life protection, T.H.D., "A"

sound rating, and end-of-life specifications. Factory installed ballast disconnect

allows the ballast to be disconnected fromand reconnected to incoming power

under load without turning the entire circuit off.

iring: 3 Conductor 18 gauge wire. Color-coded quick connectors allow ease of

connection for fixture modules.

Dimming: Advance Mark X. Use Advance compatible 2 wire control (no extra lead

is required in the luminaire).

Emergency Battery Pack: 54 Watt: 390-700 Lumens for 90 minutes,

28 Watt: 370-520 Lumens for 90 minutes.

Dual Switching: Order the DS option for separate row switching. DS option

comes complete with the 4th through wire option.

4 and 5 wire: Order X4 for EM Battery Pack. For non-standard dimming options

order X5 option for Osramor DALI 54 watt dimming, X4 option for Lutron HiLume

or ECO-10 54 Watt dimming.

Consult Factory for any additional wiring conditions.

Finish

Powder coated white baked enamel. Customcolors available, consult factory.

Ordering Instructions

Individual Fixtures:

1. Order number of MODULES required.

2. Order one POWER FEED CABLE END SET per MODULE.

Continuous Rows:

1. Determine run length.

2. Order the appropriate number of MODULES for the complete run.

3. Order one POWER FEED CABLE END SET per run.

4. Order one INTERMEDIATE CABLE SET per MODULE minus one per run.

5. For runs that exceed amperage limits, order the appropriate number of

CABLE/CORD SET.

Labels

UL , cUL and I.B.E.W. Patent Applied For.

Mounting

Mounting locations are adjustable along the top of the extrusion. Cable suspension

(not shown) consists of 4 1/2" (11.43cm) diameter canopy finished white enamel,

1/16" (0.16cm) diameter stainless steel aircraft cable adjustable up to 36”

(91.44cm). Draw-tight connector to create hairline seambetween joiner modules.

Modules allow 6” (15.24cm) of suspension position adjustment.

Complete Ordering Instructions below.

Shielding

L= Louver

by 1.2" (3.05cm) tall.

Accepts linear fluorescent ballasts up to 1.2" (3.05cm) wide4. Ballast Channel:

Job Information Type:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Lighting Systems LFK2

1BHFPG -JHIU51FS'PPUDN/PNJOBM4FDUJPO

#

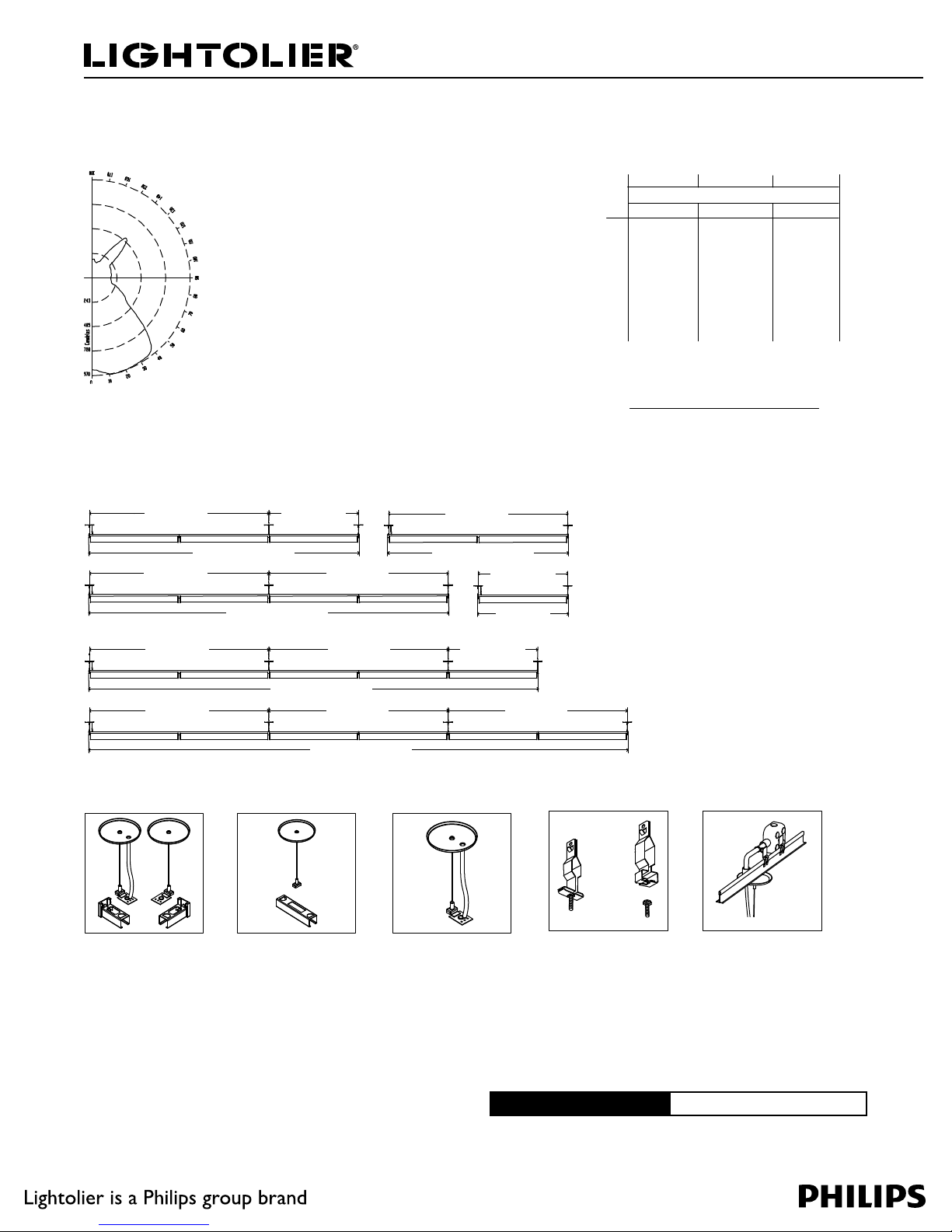

CANDLEPOWER

ZONE 0 22 45 67 90

DEG. CANDELAS

180 183 183 183 183 183

175 183 184 184 186 186

165 184 184 162 155 152

155 180 162 166 178 184

145 170 153 200 334 392

135 156 160 350 475 452

125 135 186 342 236 211

115 100 237 141 182 199

105 60 66 115 170 192

95 16 38 90 155 187

90 0 28 80 148 180

85 11 40 90 157 184

75 57 104 150 196 196

65 113 263 234 286 304

55 183 322 495 412 412

45 349 466 657 762 763

35 513 618 733 871 949

25 667 748 832 913 961

15 798 841 909 952 975

5 896 905 920 928 933

0 912 912 912 912 912

Performance

REPORT NO.: ITL54308

LAMPS: 1-F54T5

LUMENS: 5000

EFFICIENCY: 73.5%

CAT NO.: LFK1L5414

CANDLEPOWER CURVE

80% 70% 50%

70 50 30 70 50 30 50 30 10

0 828282 7777 77 696969

1 747168 7067 64 605856

2 686257 6459 55 524946

3 625549 5852 47 464239

4 574943 5346 41 413734

5 524337 4941 36 373329

6 483933 4537 32 342925

7 453529 4234 28 312623

8 423226 3931 25 282320

9 392924 3728 23 262118

10 36 27 22 34 26 21 24 19 16

20% FLOOR CAVITY REFLECTANCE

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY REFLECTANCE

WALL REFLECTANCE

DISTRIBUTION

Zone Lumens % Lamp %Luminaire

0-90 2506 50.0 68.0

90-180 1170 23.5 32.0

0-180 3677 73.5 100.0

ROOM CAVITY RATIO

Fixture Lengths & Mounting

4' (121.92cm)

8' (243.48cm)

Note: All suspension points have

6" (15.24cm) of adjustment within

each module. 12" (30.48cm) when

two modules are joined. Field

cutting of wire cover is required.

12’ 0-3/4" (367.67cm)

16’ 0-3/4" (489.59cm)

8' (243.48cm) 8' (243.48cm)

8' (243.48cm)

8' (243.48cm) 8' (243.48cm)

4' (121.92cm)

20’ 0-3/4" (611.51cm)

24’ 0-3/4" (733.43cm)

8’ 0-3/4" (245.75cm)

4’ 0-3/4"

(123.83cm)

Mounting Accessories

Power Feed Cable End Set Intermediate Cable Set

Cable length is 36" (91.44cm)

Single Cable: LFKC36

Intermediate

Cable/Cord Set

Cable length is 36" (91.44cm)

Straight Cord: LFKCC36

Ceiling Grid Kit (CGK)

Includes both standard

1" (2.54cm) Tee and Slot

Tee Clip.

Order one for every non-

powered suspension point.

Ceiling Grid Kit—

Power (CGKP)

Includes the hardware

necessary to install a

power feed above a

suspended ceiling. J-box

not included. Order one for

every powered suspension

point.

4 Wire Cord: LFKCC36X4

5 Wire Cord: LFKCC36X5

Cable length is 36" (91.44cm)

Straight Cord: LFKEC36WH

4 Wire Cord: LFKEC36WHX4

5 Wire Cord: LFKEC36WHX5
