Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Lighting Systems LSB-5

1BHFPG -ZUFTQSFBEÜ-4#1JFSDFE-VNJOPVT*OEJSFDU-JHIU51FS'PPU/PNJOBM4FDUJPO

#

Features

1. Housing: Extruded aluminum. Die-cast end cap mechanically attached with

no exposed fasteners or hardware.

2. Lamping: One T5, 28 or 54 watt (as specified) fluorescent lamp per 4-Foot

nominal section. Provided by others.

3. Reflector: Precision die-formed semi-specular aluminum.

4. Shielding: Precision die-formed, pierced 20 gauge CRS. Piercing is four rows

that extend the entire length of the lamps. The pattern is 5/8” (1.59cm) x 1/16”

(0.16cm) slot with a 3/16” (0.48cm) separation between rows.

Electrical

Ballast is <10% THD, .98 ballast factor, pre-heat start. 18 gauge wire. Color-

coded quick connectors allow ease of connection for joiner modules. Power feed

is 18 gauge white SJT. For special circuiting consult factory. Factory installed

ballast disconnect allows the ballast to be disconnected fromand reconnected to

incoming power under load without turning the entire circuit off.

Dimming: 120/277 VAC 1% dimming level, 4 wire feed required.

Emergency Battery Pack: 28 watt: 520 lumens @ 90 minutes, 54 watt: 700

lumens @ 90 minutes, 4 wire feed required.

Mountings

Finish

Powder coated baked white or aluminumfinish. Customcolors available, consult

factory.

Labels

UL, cUL and I.B.E.W.

Ordering Instructions

Individual Fixtures:

1. Order number of MODULES required.

2. Order one POWER FEED END SET per MODULE.

Continuous Rows:

1. Determine run length.

2. Order the appropriate number of MODULES for the complete run.

3. Order one POWER FEED END SET per run.

4. Order one CABLE ASSEMBLY per MODULE minus one per run.

5. For runs that exceed amperage limits, order the appropriate number of

CABLE/CORD ASSEMBLIES.

Options and Accessories

Emergency Circuiting; special circuiting; X, T & L joiner blocks - consult factory.

Complete ordering instructions below.

Cable suspension (not shown) - 4-1/2" (11.43cm) diameter canopy finished white

enamel, 1/16" (0.16cm) diameter stainless steel aircraft cable adjustable up to 36"

(91.44cm). Dual-screw draw-tight connector to create hairline seambetween joiner

modules.

Ordering Information

Family Lamps Voltage Finish

1= 1-Lamp T5 B= Pierced AL = Aluminum

WH = White

LSB 1 B

Length Shielding Ballast

1 = 120 volt

2 = 277 volt

28 = 28W T5

54 = 54W T5

5E = 54W T5 Emergency Pack

2E = 28W T5 Emergency Pack

5D = 54W T5 Dimming

4= 4-Foot

8= 8-Foot

Pierce Pattern

3-1/2" (8.89cm)

3/16"

(0.48cm)

5/8"

(1.59cm)

3-1/16"

(7.78cm)

1/16"

(0.16cm)

13 4Fixture Shown Half Scale

8-1/2” (21.59cm)

1-3/4" (4.45cm)

Job Information Type:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

Lighting Systems LSB-5

1BHFPG -ZUFTQSFBEÜ-4#1JFSDFE-VNJOPVT*OEJSFDU-JHIU51FS'PPU/PNJOBM4FDUJPO

#

Performance

CANDLEPOWER CURVE CANDLEPOWER

ZONE 0 22 45 67 90

DEG.

CANDELAS

180 549 549 549 549 549

175 548 548 549 549 551

165 526 532 537 548 540

155 490 498 515 538 544

145 428 448 484 524 537

135 347 379 439 511 537

125 276 319 427 553 576

115 182 253 435 585 629

105 93 196 376 424 419

95 23 74 50 27 25

90 3 4 5 6 6

85 2 8 9 8 9

75 13 15 15 19 22

65 22 25 28 33 35

55 43 43 51 56 57

45 53 53 59 62 63

35 69 68 70 75 76

25 78 77 78 79 79

15 84 84 84 85 83

58888888888

08787878787

REPORT NO: LRL 300-1P

CAT NO: LSB14B28

LAMPS: 1 F28T5

LUMENS: 2900

EFFICIENCY: 87.3%

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY

REFLECTANCE

80 70 50

WALL REFLECTANCE

70 50 30 70 50 30 50 30 10

0858585747474535353

1787471676462474543

2716560615652413836

3645751565045363330

4595044514439322826

5544438473933282522

6494033433529252219

7453529393126231916

8423225362823201714

9392923342520191513

10 36 26 20 31 23 18 17 13 11

20% FLOOR CAVITY REFLECTANCE

DISTRIBUTION

Zone Lumens % Lamp % Luminaire

0-90 257 8.9 10.2

90-180 2274 78.4 89.8

0-180 2531 87.3 100.0

Calculations are for 28 watt T5 lamps, for 54 watt T5 lamps multiply by 1.7

Fixture Lengths & Mounting Locations

48"

(121.92cm)

4' 5-1/8"

(134.94cm)

96" (243.84cm)

8' 5-1/8" (256.86cm)

96" (243.84cm)

96" (243.84cm) 96" (243.84cm)

96" (243.84cm) 96" (243.84cm) 96" (243.84cm)

48"

(121.92cm)

48"

(121.92cm)

12' 5-1/8" (378.78cm)

16' 5-1/8" (500.70cm)

20' 5-1/8" (622.62cm)

24' 5-1/8" (744.54cm)

4-Foot 8-Foot

12-Foot

16-Foot

20-Foot

24-Foot

Mounting Accessories

Power Feed End Set

Straight Cord: LSBEC36WH (white)

LSBEC36AL (aluminum)

4 Wire Cord*: LSBEC36WHX4 (white)

LSBEC36ALX4 (aluminum)

Cable Assembly

Single Cable: LSBC36

Ceiling Grid Kit

CGK

Includes both Standard 1” (2.54cm)

Tee Bar Clip & Slot Tee Clip

*Use for dimming, switching, and emergency battery packs.

Cable/Cord Assembly

Single Cable & Cord: LSBCC36

Single Cable & 4 Wire Cord*: LSBCC36X4

4-Foot

Module

8-Foot

Module

Cable/

Assembly

Power Feed

End Set

4-Foot Run 11

8-Foot Run 11

12-Foot Run 11 1 1

16-Foot Run 21 1

20-Foot Run 12 2 1

24-Foot Run 32 1

Table des matières

Autres manuels Lightolier Équipement d'éclairage

Lightolier

Lightolier CCM-1 Manuel utilisateur

Lightolier

Lightolier Calculite ProSpec PB1P3810 Manuel utilisateur

Lightolier

Lightolier F7000-11 Manuel utilisateur

Lightolier

Lightolier Calculite ProSpec PB3H3039 Manuel utilisateur

Lightolier

Lightolier Pendalyte 40472U Manuel utilisateur

Lightolier

Lightolier Lighting Systems EC2-13 Manuel utilisateur

Lightolier

Lightolier Lighting Systems IS_SORA-PB Manuel utilisateur

Lightolier

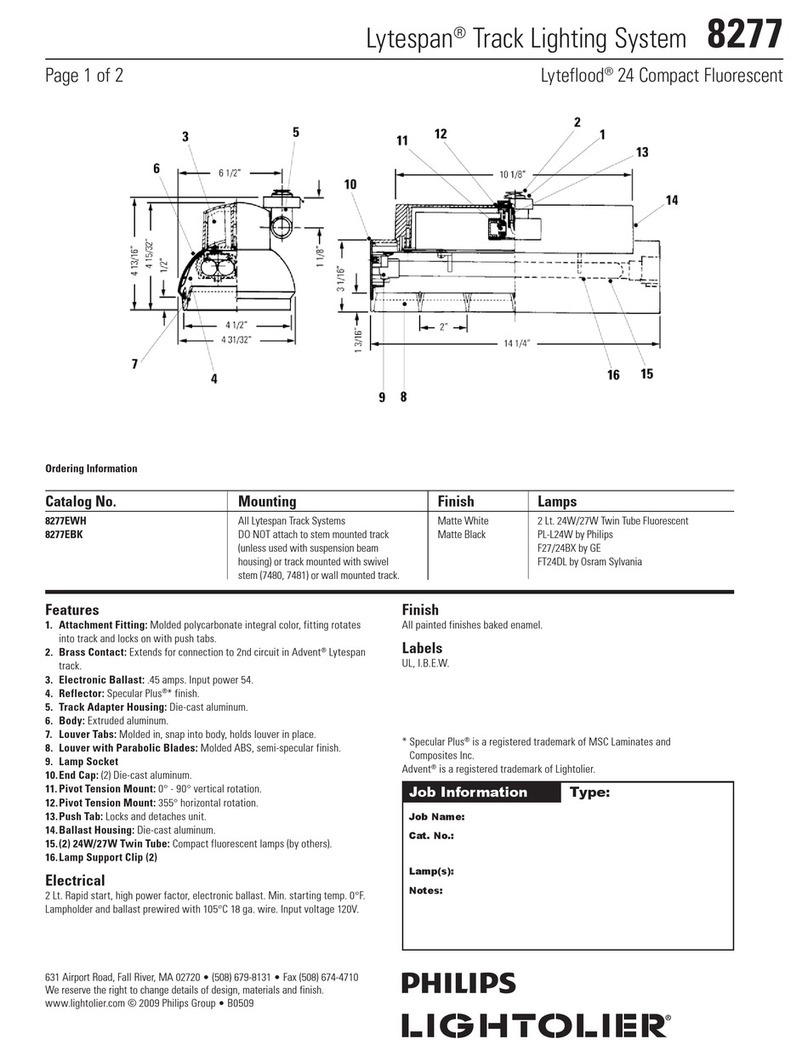

Lightolier Lytespan 8277 Manuel utilisateur
