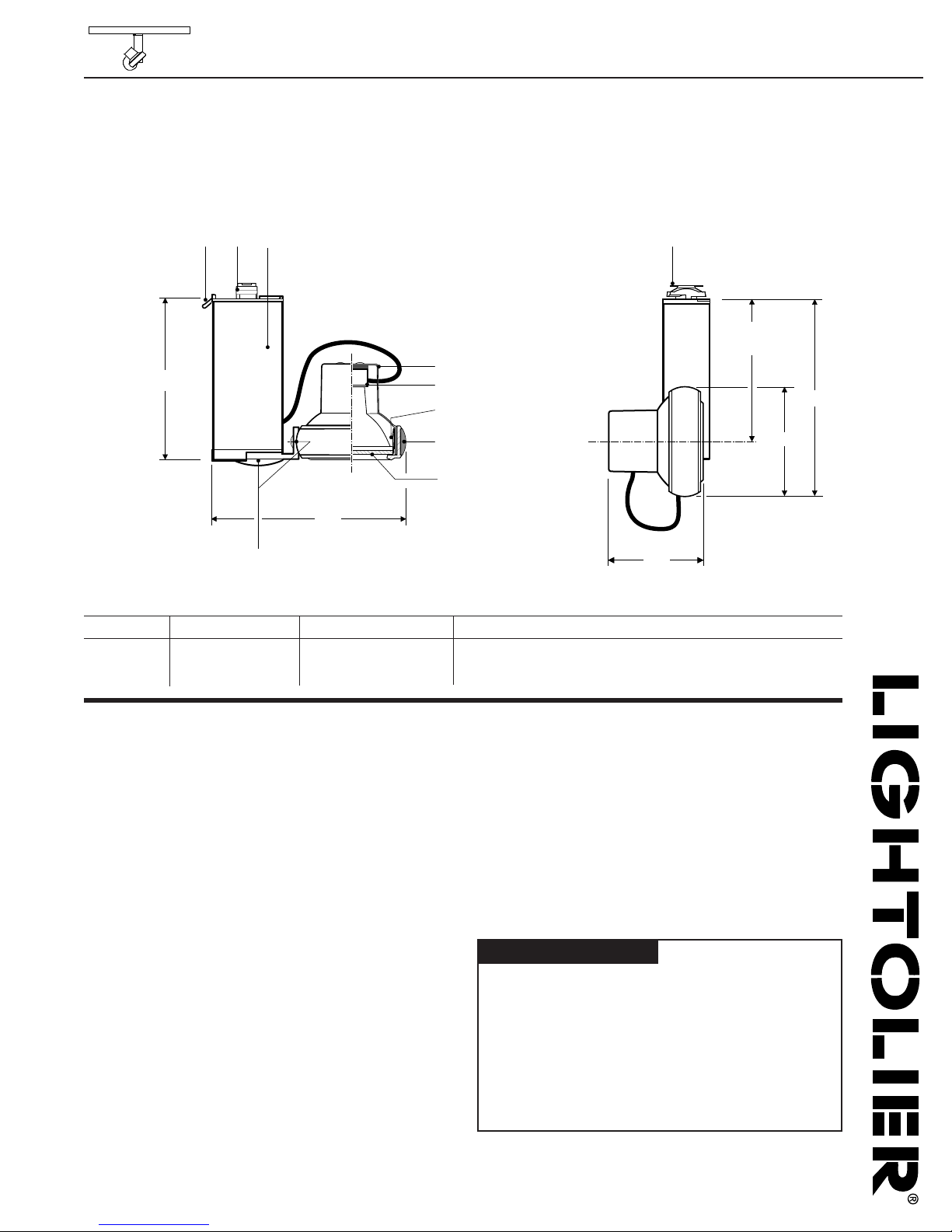

Lytespan®Track Lighting 6273B

Page 1 of 2 Sof-Tech®Low Voltage Enclosed Spot MR16

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and ﬁnish.

Features

1. Ring: Die-cast aluminum with cool grip insulation band, a high temperature

silicone rubber which allows aiming adjustments while ﬁxture is on.

2. Socket: Bi-pin ceramic socket wired with 18 ga. stranded Te on leads with

ﬁberglass outer sleeve.

3. Transformer: Electronic low voltage transformer with integral radio

frequency interference ﬁlter and anti-crossover circuit for increased

reliability; housed in extruded aluminum.

. Track Attachment Fitting: Molded polycarbonate, rotates into track and

locks on with push tab; integral polarity key guard.

5. Push Tab: Locks and detaches unit from track.

6. Brass Contacts: Extends for connection to second circuit in Advent®

Lytespan track.

7. Tension Pivot Mounts: Die-cast aluminum. Allows for 180° horizontal

rotation and 180° vertical rotation.

8. Lamp Guard: Tempered glass.

9. Spring: Steel springs hold lamp and housing in place.

10. Housing: Aluminum, fully encloses lamp back and socket. Vents dissipate

lamp heat.

Options & Accessories

Accessory Holder 7662

2” Dia. Series Lenses and Louver

Electrical/Dimming

Dimming controls: Use only dimmers speciﬁcally designed for use with

electronic transformers, like Lightolier SunriseTM and Neptune Momentum QETM

series. Low voltage ﬁxtures may produce audible sound when used with

dimmers, which may be objectionable in acoustically critical areas.

Labels

Ordering Information

Catalog No. Finishes Track Mountings Lamps

6273B WH Matte White All Lytespan Track MR16 50W Max.

6273B BK Matte Black Systems

6273B AL Metallic Aluminum

Lytespan®Track Lighting 6273B

Page 2 of 2 Sof-Tech®Low Voltage Enclosed Spot MR16

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and ﬁnish.

Job Information Type:

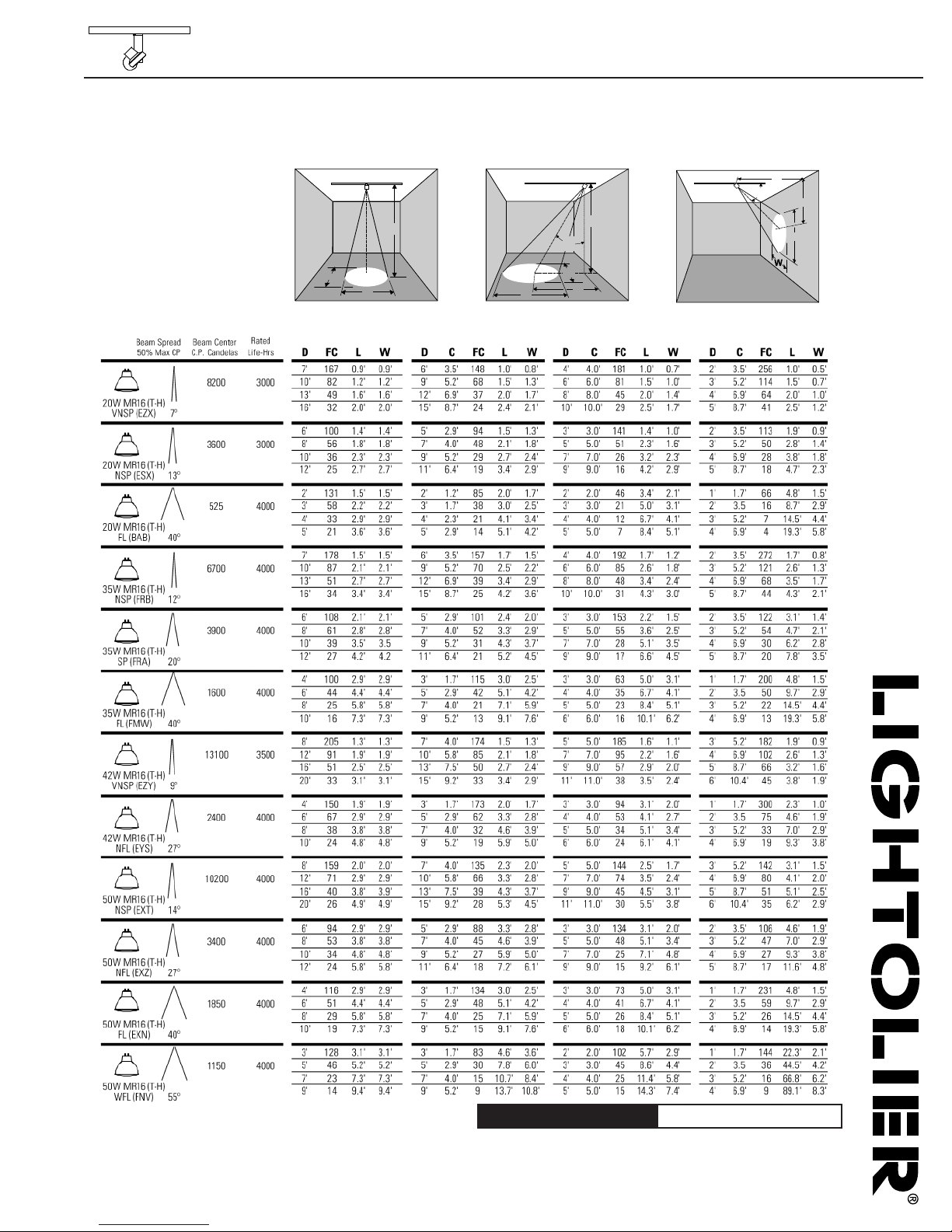

Lighting Data

FC L

LAMP 0˚ AIMING ANGLE A=30˚ AIMING ANGLE A= 5˚ AIMING ANGLE A=60˚ AIMING ANGLE

Aiming Angle 0˚ 30˚, 5˚ or 60˚ Horizontal 30˚, 5˚ or 60˚ Vertical

LBeam Length

WBeam Width

CDistance to center beam

DDistance

AAiming Angle

FC Footcandles

Land Ware the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.
