4SB115 (18) (21)

Decorative, Pendalux Suspension, Basic Canopy

Page 1 of 2

Job Information Type:

Job Name:

Cat. No.:

Notes:

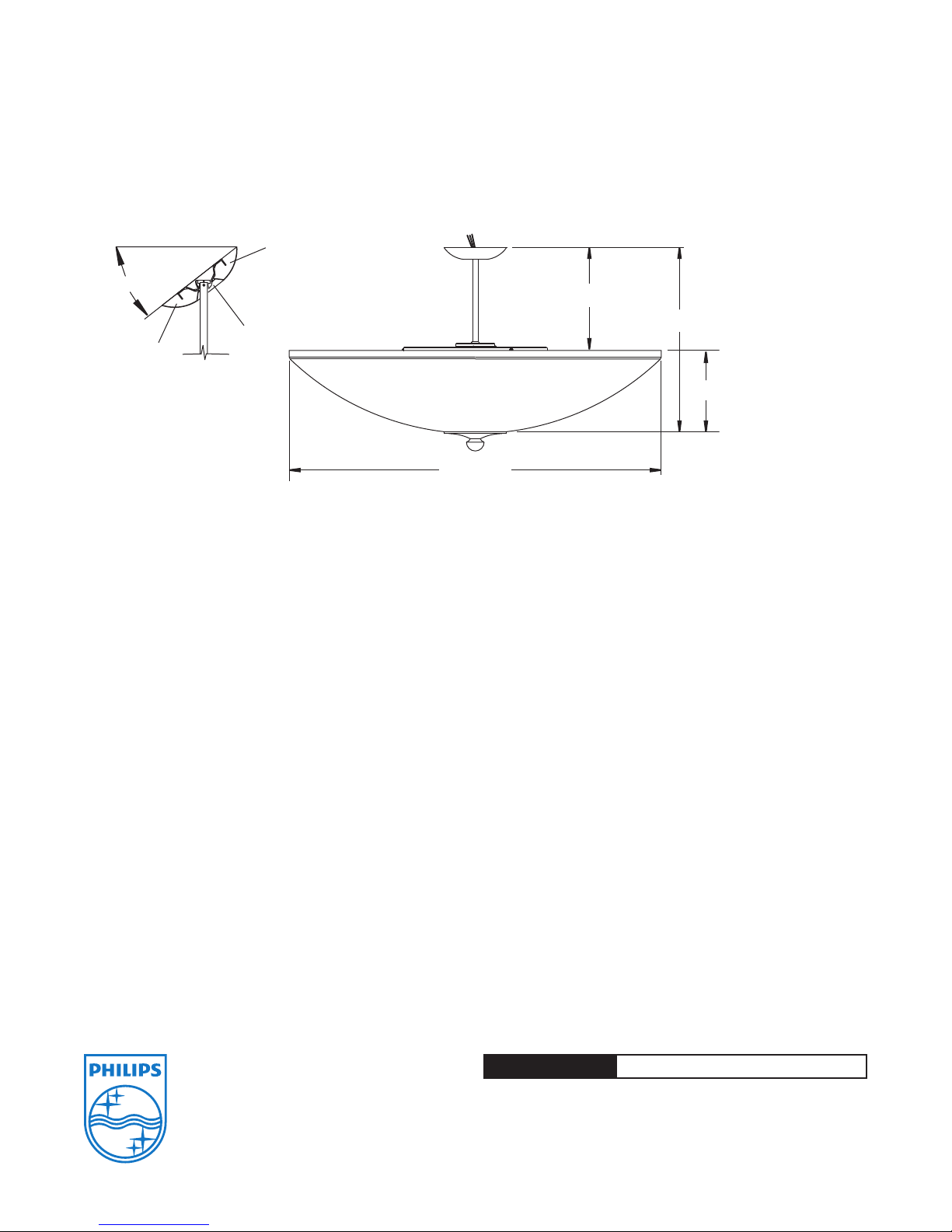

Nominal OAL

Body Diagram

45º

Complete Luminaire consists of Body and Suspension. Order each separately.

Short (Close to Ceiling) Single Stem Suspension, with Swivel, Basic Canopy.

Catalog No. Suggested Use w/Luminaire dia. Nominal Overall Length (A)* Suspension (Stem) and Canopy Finish

4SB115PB 23" or 28" 8 ⅞" Polished Brass

4SB115SB 23" or 28" 8 ⅞" Satin Brass

4SB115SN 23" or 28" 8 ⅞" Satin Nickel

4SB115WH 23" or 28" 8 ⅞" White

4SB118PB 35" 10 15 ⁄16"Polished Brass

4SB118SB 35" 10 15 ⁄16"Satin Brass

4SB118SN 35" 10 15 ⁄16"Satin Nickel

4SB118WH 35" 10 15 ⁄16"White

4SB121PB 42" 11 ⅝" Polished Brass

4SB121SB 42" 11 ⅝" Satin Brass

4SB121SN 42" 11 ⅝" Satin Nickel

4SB121WH 42" 11 ⅝" White

*Add this length (A) to Body length (C) from Body Spec Sheet(s) to get Total Luminaire Nominal OAL.

4SB115 (18) (21)

Decorative, Pendalux Suspension, Basic Canopy

Page 2 of 2

Philips Lightolier

e: [email protected]

t: (508) 679-8131

w: www.lightolier.com

4SB115 May 24, 2011

Specifications are subject to change without notice.

Job Information Type:

Nominal OAL

Body Diagram

45º

Specifications

1. Suspension Size: For optimum performance, testing

recommends luminaire total OAL (overall length) in

proportion to the body diameter. For close-to-ceiling

mounting, it is suggested to use shorter single stems as noted

on Spec Sheet SB115. Total luminaire OAL is defined from the

bottom of the diffuser to ceiling plane.

2. Stem Wires: Equipped with 120" of leads with keyed

connectors for quick connection to body wiring.

3. Suspension: Swivel (central) stem, ⅝" steel tube. Die-cast

ball hanger standard.

4. Mounting Strap (Cross Bar): Die-formed galvanized steel.

5. Canopy: Steel, 7" diameter, fastened internally, no exposed

hardware. Ball hanger on stem that fits into cross bar allows

installation on ceilings with slope up to 45 degrees. Complies

with California Earthquake Code.

6. Cutting Jig: All suspensions are equipped with a cutting jig

that simplifies cutting of center stem pipe in the field .

Options & Accessories

If a longer overall length is desired, use a suspension paired with

a larger body.

If an overall length of greater than 42" is desired, use an

extension stem. Order as a third additional component to make

complete fixture. Please see Spec Sheet No. 4SXT.

Mounting

Mounts directly to 4" outlet box, using crossbar hanger, supplied.

Note: Additional luminaire support plate provided with 35/42"

diameter body to allow luminaire to be supported independent of

the outlet box.

Labels

cULus. Suitable for damp locations.
