Lightolier Calculite GW Manuel utilisateur

Complete Fixture consists of decorative element, standard Frame-In Kit and Trimless Reflector. Select each separately.

Ordering Information

Decorative Element Dimensions

Catalog No. Finish/Color Trimless Reflector Frame-In Kit A B C D E

GW6 Clear Outer Ring For use with all Calculite For use with all Calculite 12” 4” 2 1/4” 1/4” 1 3/4”

White Inner Rings 6” Compact Fluorescent 6” Compact Fluorescent

and Incandescent open and Incandescent open

trimless downlight downlight Frame-In Kits

reflectors except ProSpec.

®except ProSpec.

®

GW7 Clear Outer Ring For use with all Calculite For use with all Calculite 13 1/2” 5” 2 1/4” 1/4” 1 3/4”

White Inner Rings 7” Compact Fluorescent 7” Compact Fluorescent

and Incandescent open and Incandescent open

trimless downlight downlight Frame-In Kits

reflectors except ProSpec.

®except ProSpec.

®

E

B

A

DC

Frame-In Kit

Circle with Wave Form

1

2

3

4

6

5

Trimless Reflector

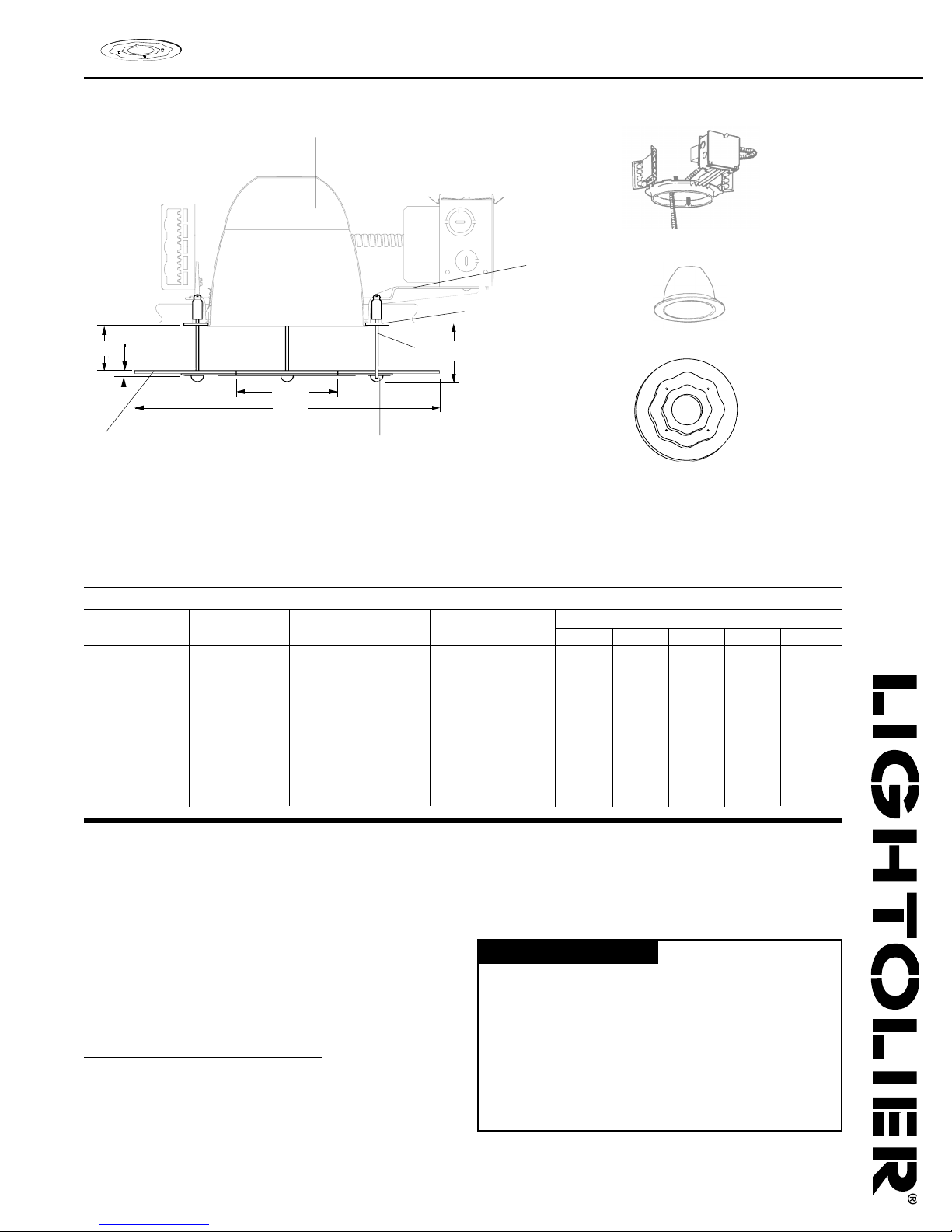

Calculite®Decorative Claritas Art Glass GW

Page 1 of 1 6" & 7" Aperture Decorative Glass Circle with Wave Form

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902

Features

1. Decor Disc: Three layers of hand fused art glass. A clear sandblasted base

fused with a white inner ring which is curved in appearance.

2. Mounting Rod: 4 stainless steel rods 1/8” diameter.

3. Decorative Fasteners: Four placed 90° apart, with matte white painted

finish.

4. Trim Ring: .090” thick aluminum ring with matte white finish.

5. Reflector: See reflector trim for Specification Sheet.

6. Frame-In Kit: See Frame-In Kit for Specification Sheet.

Lighting Data

See applicable downlight Specification Sheet for base lighting data. Multiply the

candlepower values or the coefficient of utilization by the following factors:

6” 7”

A Lamp downlights .70 .70

Compact Fluorescent lamp downlights .65 .75

PAR Lamp downlights .85 .85

Mechanical

Decorative Elements securely fastened to 4 mounting frame rods with 4 half

round decorative spheres (3/8” dia.) and 4 (1/8” dia.) stainless steel rods for

maximum security.

Labels

U.L. (Damp Location)
