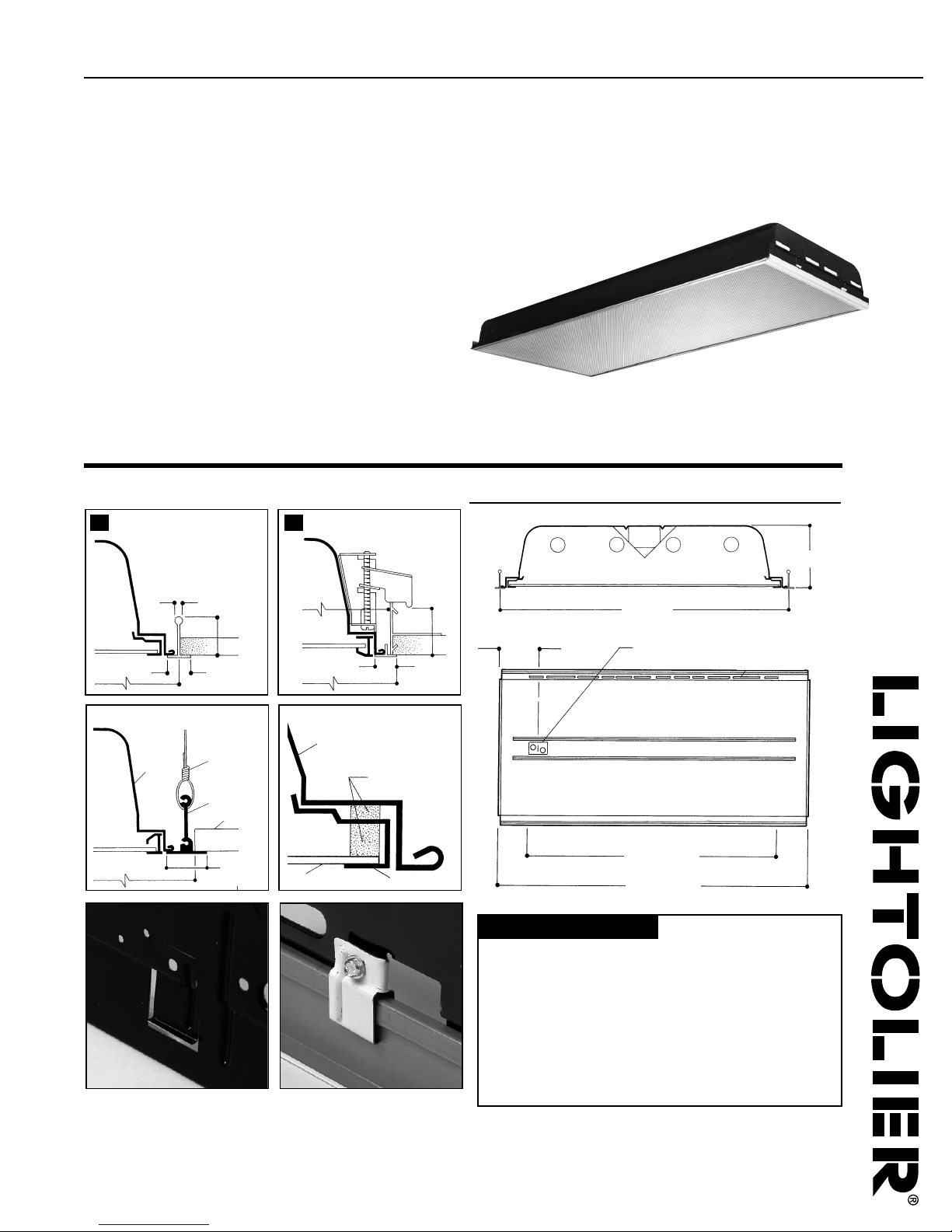

Lightolier WES SERIES 2X4 Manuel utilisateur

CLEANGUARD WET LOCATION WES SERIES 2X4

Page 1 of 2 2' x 4' RECESSED FLUORESCENT, FOR WET LOCATIONS, COVERED CEILING USE

2, 3 OR 4 LAMP, T8 OR T12

MOUNTING METHODS

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Volts/Ballast:

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A0902 SECTION 6/Folio N30-12

Features

• UL and C-UL Listed for wet or damp

locations for covered ceiling use.

• Full perimeter gasketing (closed cell Neoprene) between door frame

and lens, between housing and door frame.

• Door frame is post painted, baked

acrylic enamel.

• 5" deep body.

• 81.2% efficient (T8).

• Hemmed over side rails for maximum safety.

• Fixture ends turned-in for safe handling.

• Built-in earthquake clips.

• Slimline door frame with 475 square inch lens opening.

• Mitered corner steel lens frame.

• Spring loaded rooster head latches.

• 18 gauge steel hinges.

• Flat and regressed aluminum doors available.

DIMENSIONS

Fplaster ceiling/flanged.

Plaster

Opening

24-1/8"

1-1/8" min.

3-3/4" max.

13/16"

24-11/16"

Gexposed T-grid ceiling.

(with flat aluminum frame)

drywall kit (see options)

Type “G”

FIxture

Support

(by others)

Drywall Kit

(See Options)

Drywall

(by others)

15/16"

15/16" or 1"

1-1/2" max.

1/4" max.

24"

Ceiling Opening

24-5/16" x 48-5/16"

6" (152mm)

39-1/4" (997mm)

47-31/32" (1218mm)

2" x 2-1/2" access plate

with two K.O.s

(7/8" dia.)

24" (610mm)

5" (127mm)

earthquake clip

installed

(lay-in grid)

earthquake clip

before

installation

gasketing detail

Gasketing

(Close Cell Neoprene)

Door Frame

Fixture

Lens

VOLTAGE:

120 or 277

BALLAST TYPE:

1 & 2 Lamp Mag. T12 LE

2-2 Lamp Mag. T12 LE

<20THD <10THD

1 & 2 Lamp Elec. T8 SO* HI*

2-2 Lamp Elec. T8 SO* HI*

1-3 Lamp Elec. T8 O3* H3*

1-4 Lamp Elec. T8 O4* H4*

LOL T8 Dimming PS

*Instant Start Standard

OPTIONS:

Add appropriate suffix to

catalog no., ie: (GLR)

LAMP/

FIXTURE LENGTH:

32=T8

34=T12

(Nominal 48")

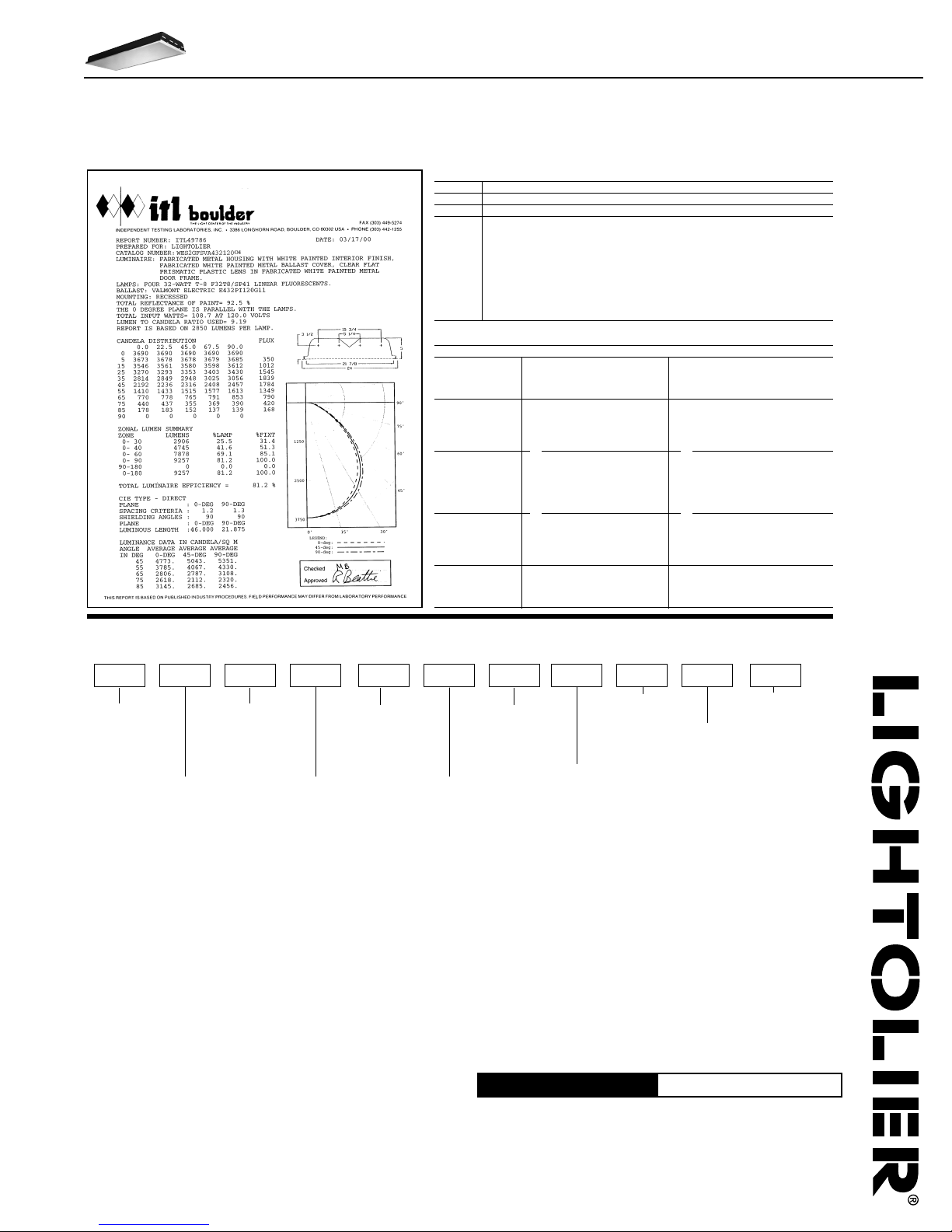

CLEANGUARD WET LOCATION WES SERIES 2X4

Page 2 of 2 2' x 4' RECESSED FLUORESCENT, FOR WET LOCATIONS, COVERED CEILING USE

2, 3 OR 4 LAMP, T8 OR T12

Lightolier a Genlyte Thomas Company www.lightolier.com

Technical Information: (978) 657-7600 • Fax (978) 658-0595

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

A0902 SECTION 6/Folio N30-12

Job Information Type:

OPTIONS & ACCESSORIES

SPECIAL LENSES: Substitute VI for VA (standard) .125" nominal pattern 12

with 6.8 oz. average weight per square foot.

PLASTER FRAME: Catalog number: PF24.

CONTINUOUS ROW INSTALLATION: For F type fixtures, half-width flanges

are required between fixtures. Order Catalog Number: S2FCTRIM (each joint).

RADIO INTERFERENCE FILTER 120 or 277 volt, 50 or 60 Hz. One per fixture

is standard. SUFFIX: RF.

FUSING: Internal fast-blow fusing. SUFFIX: GLR.

Internal slow-blow fusing. SUFFIX: GMF.

ELECTRICAL/WIRING OPTIONS: Consult factory.

DRYWALL KIT: Order Catalog Number: FK92X4. Request Folio OA30-10.

CHICAGO PLENUM: SUFFIX: CP.

SPECIFICATIONS

PERFORMANCE: In an installation of 4 lamp 32W luminaires in a room cavity

ratio of 1, reflectance 80% ceiling, 50% wall, 20% floor, the C.U. shall not be

less than .85. To prevent glare the VCP shall be not less than 43 either length-

wise or crosswise (at 100fc level) and the average brightness at 65° shall not

exceed 3108 candelas per square meter. To control veiling reflections, luminaire

output in the 30°-90° zone shall not be less than 68.6%.

MATERIALS: Chassis parts are die-formed code gauge cold rolled steel.

Housing with side rails hemmed over and housing ends turned-in for

safe handling.

FINISH: Chassis exterior—black baked polyester enamel. Cavity—white

baked polyester enamel minimum 86% reflectance. Phosphate undercoating.

LENSES: VA (standard) extruded virgin acrylic, 3/16" square based female

cones, running 45° to the panel edge, .095" nominal thickness (similar to pat-

tern 12). VI (optional) .125" nominal pattern 12 with 6.8 oz. average weight per

square foot.

ELECTRICAL: Thermally protected class “P” ballast C.B.M. approved, non PCB.

If K.O. is within 3" of ballast, use wire suitable for at least 90°.

LABELS: I.B.E.W./UL and C-UL.

PHOTOMETRY MODEL NO. WES2GFSVA432

coefficients of utilization — zonal cavity method (effective floor cavity reflectance 0.20)

RF 20 20 20

RC 80 50 30

RW 70 50 30 50 30 10 50 30 10

1898582 807876 777573

2827570 716764 686562

3756761 635854 615753

4696053 575147 555046

5645447 514541 504441

6594942 464136 454036

7554437 423632 413632

8514034 393329 383329

9483731 363026 353026

10 45 34 28 33 28 24 32 27 24

visual comfort probability (rated lumens per lamp 3150.)

room size ceiling height ceiling height

W L 8.5 10.0 13.0 16.0 8.5 10.0 13.0 16.0

20 20 57 62 69 77 57 60 67 75

20 30 49 54 59 66 52 54 58 64

20 40 45 49 54 59 49 51 54 57

20 60 41 45 49 54 46 49 51 54

30 20 59 63 68 75 59 62 66 73

30 30 50 54 58 64 53 55 57 62

30 40 45 49 52 56 49 51 53 55

30 60 41 44 47 51 46 48 49 52

30 80 39 42 43 47 44 46 47 50

40 20 61 65 69 74 61 64 68 73

40 30 52 56 59 64 54 57 59 62

40 40 47 50 53 56 50 52 54 56

40 60 42 45 47 50 46 49 49 51

40 80 39 42 43 46 44 47 47 49

40 100 38 40 41 44 43 45 46 47

60 30 54 58 60 64 55 58 59 63

60 40 48 51 53 57 51 53 54 56

60 60 43 45 47 50 47 49 49 51

60 80 40 42 43 46 44 46 47 49

60 100 38 40 40 43 43 45 45 47

100 40 51 54 56 59 53 55 56 59

100 60 46 48 49 53 49 51 51 53

100 80 42 44 44 48 46 48 48 50

100 100 40 42 42 44 44 46 46 47

room cavity ratio

luminaries lengthwise

luminaries crosswise

ORDERING INFORMATION

Explanation of Catalog Number. Example: WES2GFSVA432120O4GLR

CLEANGUARD

WET

LOCATION

STATIC

FIXTURE

WIDTH

CEILING TYPE:

G= Grid (lay-in T bar)

F=Flanged (overlap) Z spline

and plaster frame

LENS FRAME:

FS= Flat steel frame

RA=Regressed

aluminum frame

FA=Flat aluminum

frame

LENS/SHIELDING TYPE:

VA (virgin acrylic)

standard (see options and

consult factory)

LAMP

QUANTITY:

2=2 Lamp

3=3 Lamp

4=4 Lamp

Other dimming options. Consult factory.

LER = FL - 73.2 IW - 108.7 BF - 0.86

Comparative yearly lighting energy cost per 1000 lumens = $3.28
