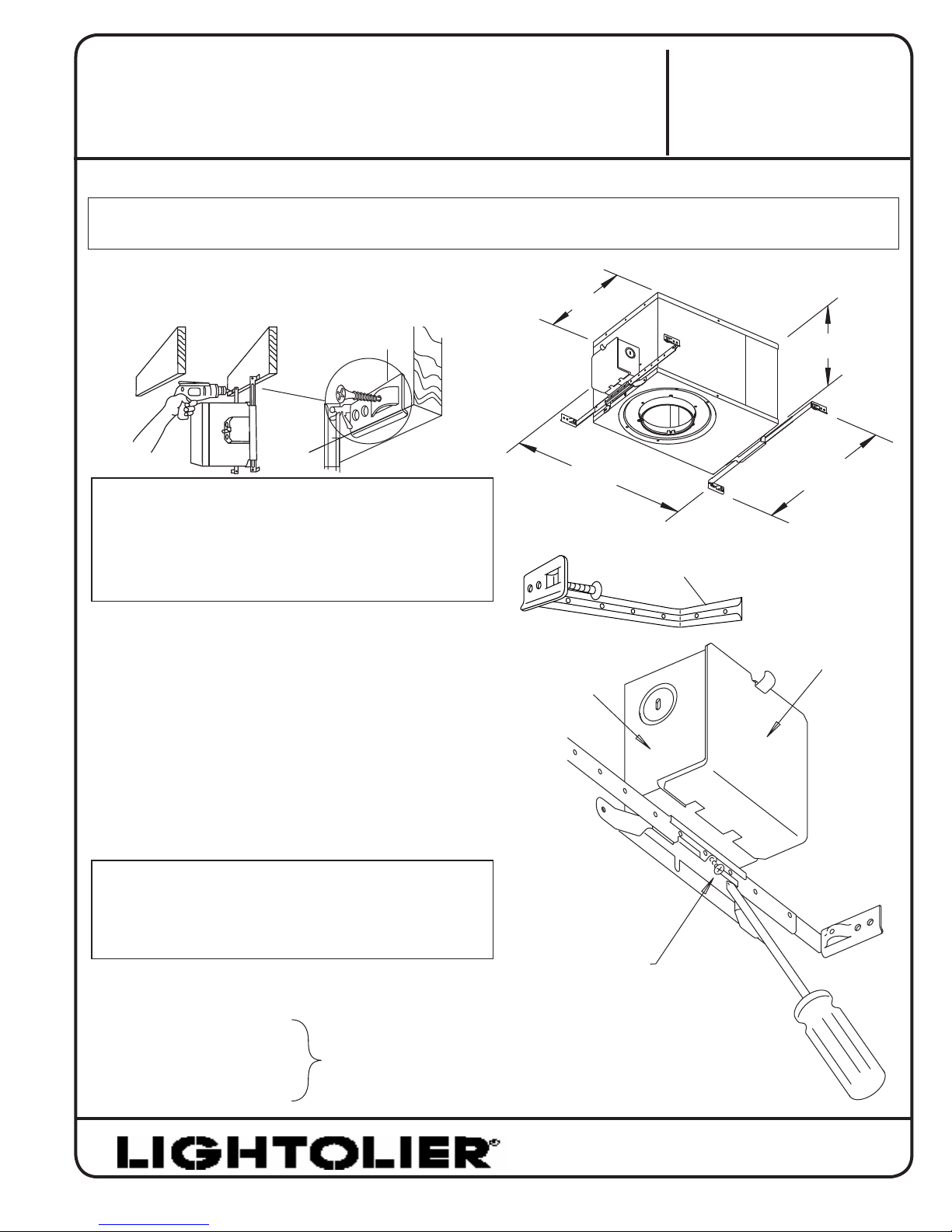

Lightolier C4AICLV Manuel utilisateur

9 1/4"

10"

18"

MAX

24" O.C.

LOCKING SCREW

J-BOX

COVER

FRAME-IN

Locate fixture along joist and line up bottom edge of HINGED

MOUNTING BAR with the bottom of joist and fasten in place.

FOR JOIST SPACING LESS THAN 16” ON CENTER

(TO 12” ON CENTER):

• MOUNTING BAR CHANNELS can be shortened and used as

nailing legs in tight places. Simply remove INNER BAR from

holed CHANNEL, bend CHANNEL at appropriate point and use

extra screw to secure it to the joist.

WIRE-IN

Wire to SUPPLY LEADS. WHITE FIXTURE LEAD to NEUTRAL

SUPPLY LEAD. BLACK FIXTURE LEAD to HOT (120v) SUPPLY LEAD.

For 277V connect RED FIXTURE LEAD to HOT SUPPLY LEAD.

BARE FIXTURE WIRE to SUPPLY GROUND. Use wirenuts (local hard-

ware item). Place all electrical connections in the J-Box and close

the J-BOX COVER.

NOTE: To inspect splices, leave min 8" of lead wire in J-Box.

SWING-UP

Extend MOUNTING BAR to reach opposite joist and fasten in place.

Adjust fixture to desired position along MOUNTING BAR and lock in

place using locking screw

AIRSEAL®INSTALLATION (optional)

Install a bead of silicone caulking compound between the

ceiling opening and edge of HOUSING. Housings are tested in

accordance with ASTM E 283 (max 2 cfm @ 75 pa) and comply

with WSEC & MEC when installed as instructed.

CLOSE-IN

Close in ceiling as required.

INSTALLING SOCKET HARNESS

INSTALLING HOUSING TRIMS

FIXTURE TRIM ADJUSTMENT

READ AND UNDERSTAND THESE INSTRUCTIONS bEFORE INSTALLING FIXTURE

This fixture is intended for installation in accordance with the National Electrical Code and local

regulations. To assure full compliance with local codes and regulations, check with your local electrical

inspector before installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

LIGHTOLIER a GENLYTE THOMAS company.

631 Airport Road, Fall River, MA 02720

INSTRUCTION SHEET NO.

IS:CICLV

A1099 Page 1 of 2

INSTALLATION PROCEDURE FOR LOW VOLTAGE

INSULATED CEILING (TYPE-1C) FRAME-IN-KITS: C4AICLV, C6AICLV

SEE SEPARATE

REFLECTOR TRIM

INSTRUCTION

SHEETS

J-BOX

COVER

CHANNEL MOUNTING BAR

HINGED

MOUNTING BAR

READ AND UNDERSTAND THESE INSTRUCTIONS bEFORE INSTALLING FIXTURE

This fixture is intended for installation in accordance with the National Electrical Code and local

regulations. To assure full compliance with local codes and regulations, check with your local electrical

inspector before installation. To prevent electrical shock, turn off electricity at fuse box before proceeding.

Retain these instructions for maintenance reference.

INSTRUCTION SHEET NO.

IS:CICLV

A1099 Page 2 of 2

LIGHTOLIER a GENLYTE THOMAS company.

631 Airport Road, Fall River, MA 02720

TRANSFORMER REPLACEMENT

• Make sure power to fixture is off.

• Remove REFLECTOR TRIM from ceiling by twisting counter-clock-

wise and pulling down.

• Disconnect & remove SOCKET HARNESS from TRANSFORMER

ASSEMBLY.

• Disconnect POWER SUPPLY HARNESS: For C4AICLV disconnect

harness at TRANSFORMER COVER. For C6AICLV disconnect har-

ness from junction box assembly (opposite side of fixture from

TRANSFORMER ASSEMBLY).

• Remove (2) THUMB SCREWS.

• Remove TRANSFORMER COVER from THUMB SCREW studs

• Pull TRANSFORMER ASSEMBLY and TRANSFORMER COVER into

FIXTURE HOUSING and out through aperture opening.

• Disconnect TRANSFORMER wiring from THERMAL PROTECTOR(S)

and TRANSFORMER CONNECTORS. Refer to TRANSFORMER

WIRING DIAGRAMS shown below for your particular MODEL AS

INDICATED.

• Remove TRANSFORMER MOUNTING HARDWARE and discard faulty

TRANSFORMER.

• Install new TRANSFORMER in reverse order of removal.

WARNING: Risk of fire. Fixture contains THERMAL PROTECTORS that

must be rewired as shown in DIAGRAMs below. Use only

replacement TRANSFORMER obtained from LIGHTOLIER

INSTALLATION PROCEDURE FOR LOW VOLTAGE

INSULATED CEILING (TYPE-1C) FRAME-IN-KITS: C4AICLV, C6AICLV

WHITE

RED

WHITE

BLUE

TRANFORMER WIRING DIAGRAM

RED

WHITE

BLACK

WHITE

RED WHITE

WHITE

RED

PRI SEC

BLACK

HARNESS CONNECTOR

POWER SUPPLY

BLACK

SECPRI

WHITE

WHITE BLACK

PROTECTORS

THERMAL

WHITE

RED

TRANSFORMER ASSEMbLY

COVER

TRANSFORMER

THUMB SCREW

MOUNTING HARDWARE

TRANSFORMER

CONNECTOR

SOCKET HARNESS

MODEL C4AICLV

TRANFORMER WIRING DIAGRAM

MODEL C6AICLV

HOUSING

TRANSFORMER

HOUSING

FIXTURE

CONNECTOR

TRANSFORMER

BLACK

PROTECTORS

THERMAL

5.5 V

CONNECTOR

HARNESS

SOCKET

12 V

CONNECTOR

HARNESS

SOCKET

(TO J-BOX)

CONNECTOR

SUPPLY

POWER

NOTE: 1. LOW VOLTAGE FIXTURES should be dimmed only

with special dimmers intended specifically for that purpose.

Use Lightolier Lytemode, Scenist, Crescendo VA, Neptune VA,

Precision VA, EasySet VA, Sunrise VA, Radiant VA or equiva-

lent products by others or variable autotransformers or elec-

tronic dimmers intended for use with low voltage fixtures.

2. Low voltage fixtures produce audible sound which may be

objectionable in acoustically critical areas.
