Lightolier Calculite C4P30D Manuel utilisateur

14 1/4"

Adjustment

(mounting bars

included)

13 3/4" to 24"

(IC AirSeal

)

C4AIC

10"

Adjustment

(mounting bars

included)

13 3/4" to 24"

O.A.

20 1/4"

8 1/2"

9 1/2" Dia.

O.A.

14 3/8"

7 3/4"

9 1/2" Dia.

O.A.

12 3/8"

7 3/4"

(Non-IC)

C4120

12 1/2"

(Non-IC AirSeal

)

C4A120

54321

Perspec. Drawing Nos.

Calculite Evolution

Calculite®Evolution Incandescent Open Downlight C4P30D

Page 1 of 2 4 1/2” Aperture PAR30 Reflector Trim

Features

1. Trim: 16 ga. aluminum, 50° visual cutoff to lamp and lamp image.

Removable from below for bottom relamping. Available with painted white

or polished flange.

2. Reflector Housing: Snaps into frame for easy tool-less installation.

Provides friction spring clips to secure aperture cone. Interchangeable with

other Evolution 4" line voltage trims.

3. Socket Harness: Bracket mounted to reflector housing insuring correct opti-

cal alignment. Medium base porcelain socket with nickel plated screw shell,

No. 18 SF-1 leads to keyed plug-in quick connector for power connection to

junction box.

4. Frame-In Kit: Compatible Frame-In Kits are listed above.

Non-IC and Non-IC AirSeal®- Thermal insulation shall not be installed

above a recessed luminaire (fixture) or within 3 in. (75 mm) of the recessed

luminaire’s (fixture’s) enclosure or wiring compartment.

IC-AirSeal®- Fixture may be in direct contact with insulation.

Options and Accessories

Reflector Finishes1

Clear: CL Gold: GD White: WH

Black: BK Pewter: CPW

Comfort Clear Diffuse: CCD

Champagne Bronze: CCZ 1

Specify desired flange: WWhite, PPolished

Labels

UL Listed (suitable for damp locations).

Ceiling Cutout: 5 1/16" (129 mm) Dia.

Reflector Trim Frame-In Kit

C4P30D CCDW Comfort Clear Diffuse, White Flange Non-IC Non-IC AirSeal®IC-AirSeal® Non-IC

C4P30D CCDP Comfort Clear Diffuse, Polished Flange Remodeler

C4P30D Add suffix. See options for other finishes. C4120 C4A120 C4AIC C4120RM

75W PAR30 75W PAR30 75W PAR30 75W PAR30

Short Neck Short Neck Short Neck

1-1/4" Max. Ceiling Thk.

* 7-3/4" min. is for up to 3/4" thick ceiling

7-3/4" min.*

8-1/4" max.

5-3/4" Dia.

4-1/2" Dia. C4P30DCCDW / C4120 or

C4P30DCCDW / C4A120

C4P30DCCDW / C4AIC

1/2" to 1" Thk. Ceiling

9-1/4"

5-3/4" Dia.

4-1/2" Dia.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

CCD is the recommended finish.

Date: Oct. 22, 2002

Prepared for

Lightolier, Fall River, MA

Tested According To IES Procedures. Test Distance Exceeds Five

Times The Greatest Luminous Opening Of Luminaire.

Coefficients of Utilization

% Effective Ceiling Cavity Reflectance

80 70 50 30 10 0

% Wall Reflectance

50 30 10 50 30 10 50 30 10 50 30 10 50 30 10 0

0 .92 .92 .92 .90 .90 .90 .86 .86 .86 .82 .82 .82 .79 .79 .79 .77

1 .88 .87 .86 .87 .85 .84 .83 .82 .82 .80 .80 .79 .78 .77 .77 .76

2 .85 .83 .81 .83 .82 .80 .81 .80 .79 .79 .78 .77 .77 .76 .75

.74

3 .82 .80 .78 .81 .79 .78 .79 .78 .77 .78 .77 .75 .76 .75 .74 .73

4 .80 .78 .76 .79 .77 .75 .78 .76 .74 .76 .75 .74 .75 .74 .73 .72

5 .78 .75 .73 .77 .75 .73 .76 .74 .72 .75 .73 .72 .74 .72 .71 .71

6 .76 .73 .72 .76 .73 .71 .75 .73 .71 .74 .72 .71 .73 .71 .70

.70

7 .74 .72 .70 .74 .72 .70 .73 .71 .69 .72 .70 .69 .72 .70 .69 .68

8 .72 .70 .68 .72 .70 .68 .71 .69 .68 .71 .69 .68 .70 .69 .67 .67

9 .71 .69 .67 .71 .69 .67 .70 .68 .67 .70 .68 .66 .69 .67 .66 .66

10 .70 .67 .65 .69 .67 .65 .69 .67 .65 .68 .66 .65 .68 .66 .65. .64

20% Floor Cavity Reflectance

Room Cavity Ratio

876

54321

Perspec. Drawing Nos.

Calculite Evolution

Calculite®Evolution Incandescent Open Downlight C4P30D

Page 2 of 2 4 1/2” Aperture PAR30 Reflector Trim

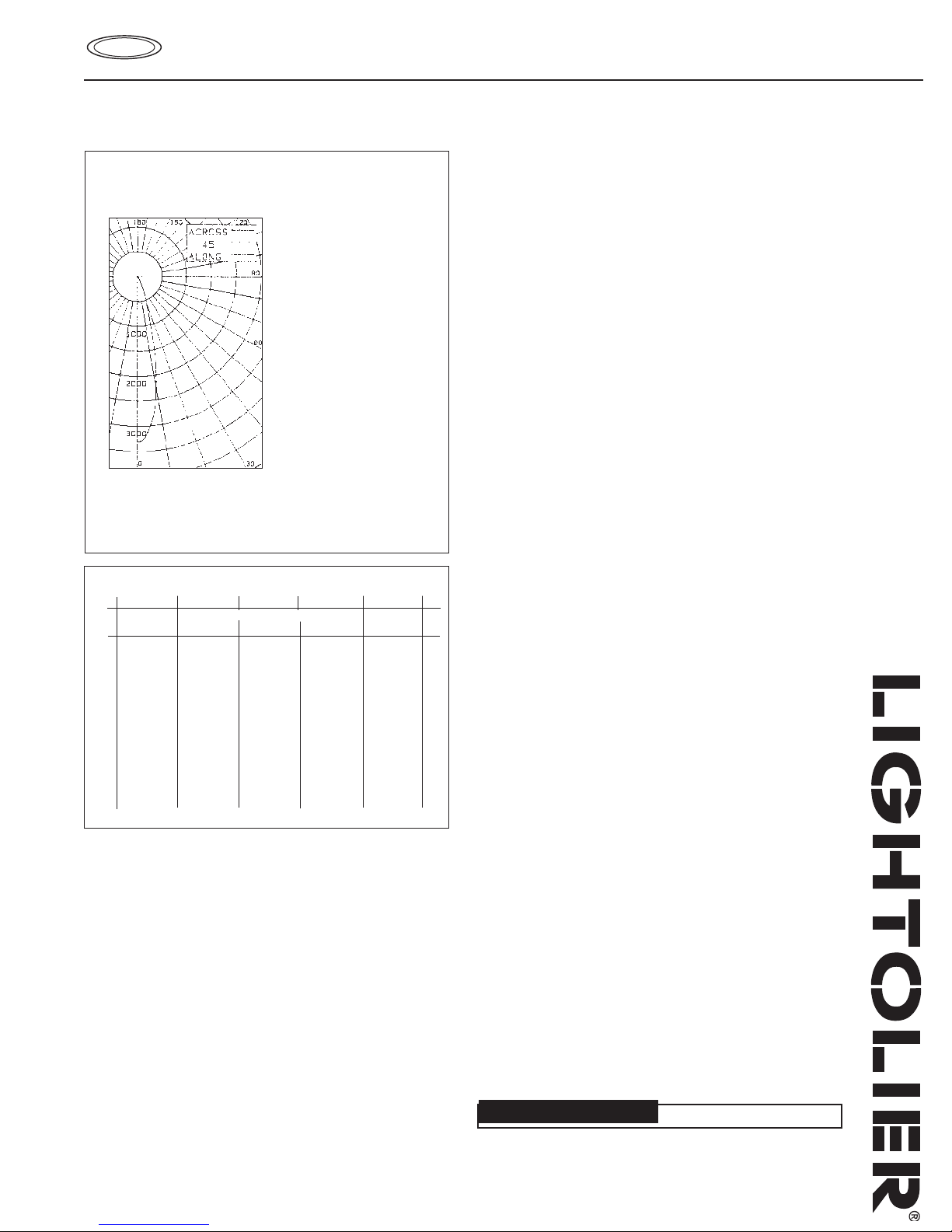

Candlepower Summary

Angle Mean CP Lumens

0 3308

5 3035 278

10 2259

15 1159 361

20 514

25 224 122

30 91

35 36 28

40 16

45 4 5

50 0

55 0 0

60 0

65 0 0

70 0

75 0 0

80 0

85 0 0

90 0

Zonal Lumens And Percentages

Zone Lumens % Lamp %Luminaire

0-30 760 73.82 95.86

0-40 788 76.54 99.39

0-60 793 77.01 100.00

0-90 793 77.01 100.00

40-90 4 .47 .61

60-90 0 .00 .00

90-180 0 .00 .00

0-180 793 77.01 100.00

** Efficiency = 77.0% **

Lightolier a Genlyte company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

CERTIFIED TEST REPORT NO. 2001FR

COMPUTED BY LSI PROGRAM **TEST-LITE**

CALCULITE 4 1/2" DIA. APERTURE OPEN DOWNLIGHT

CAT. # C4P30DCLP, SPECULAR CLEAR FINISH REFLECTOR

75W PAR30 FLOOD GE LAMP. LUMEN RATING = 1030 LMS.
