Calculite®HID Downlight C7E17VM

Page 1 of 2 7" Aperture, ED17 (Enclosed), Ceramic Metal Halide, Medium Beam

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Features

1. Reflector Trim: Clear anodized aluminum, 0.040” (16-ga.). Provides Medium

beam distribution; 50° visual cut-off to lamp and lamp image; self-flange in

painted white or polished to match cone interior. Consult factory for other

finishes.

2. Lamp Guard: High heat resistant glass (as required by code).

3. Socket Cup: Galvanized steel, pre-wired with medium base pulse rated

socket. Snaps onto upper reflector for secure attachment without tools;

assures proper lamp alignment to optics for consistent performance.

4. Mounting Ring: 0.048" (18-ga.) galvanized steel. Designed for vertical

adjustment from above or below for ceilings from 0" to 2" thick. Center-line

notches allow consistent alignment of multiple fixtures.

5. Mounting Frame: 0.048" (18-ga.) galvanized steel includes pre-installed

mounting bars.

6. Retention Springs: Rust resistant springs secure reflector in place for quick,

tool-less installation.

7. Frame Vertical Adjustment Mechanism: Vertical adjustment mechanism

accommodates mounting to virtually any ceiling system using pre-installed

mounting bars, or 1/2" EMT tubing (by others). Single locking feature secures

all adjustments. Alignment holes and markings allow fixture to be pre-set

prior to installation.

8. Mounting Bars: 0.048" (18-ga.) Pre-installed, telescoping bars extend to 30"

long and lock securely into position. Built-in locking tabs provide positive

attachment to common T-bar systems. Self-centering feature simplifies instal-

lation in 24" O.C. grid systems. Attaches to steel or wood joists without

accessories.

9. Ballast: Electronic 120V or 277V. Magnetic dual voltage (120V & 277V).

Accessible from below for inspection and/or replacement without tools.

10.Junction Box: 0.048" (18-ga.) galvanized steel. UL listed for 8 No. 12 AWG,

90°C through branch circuit conductors; allows inspection from below.

11.Thermal Protector: (Not Shown) Meets NEC and UL requirements. Do not

install insulation above nor within 3" (76mm) of any part of the luminaire.

Electrical

Electronic Ballast: 120V or 277V, 50/60 Hz., encased, high-power factor, T.H.D.

<15%, thermally and transient protected, RMI / RFI complies with FCC Part 18

non-consumer equipment, shut-down circuit at end of lamp life, sound rating

"A", -5°F minimum starting temperature, Type 1 outdoor rating.

Electrical (cont)

Ballast ANSI Code Voltage Max. Amps Input Watts

70W MH M98/M143 120/277 0.67/0.28 78

100W MH M90/M140 120/277 0.90/0.43 110

Magnetic Ballast: 120/277V dual voltage, 60 Hz., encased and potted,

HX-HPF circuit type, high power factor, sound rating “B”, -20°F minimum starting

temperature, Type 1 Outdoor rating.

Ballast ANSI Code Voltage Max. Amps Input Watts

70W MH M98/143 120/277 1.90/0.80 94

100W MH M90/140 120/277 2.40/1.10 125

Options and Accessories

Auxiliary: Add suffix Ato Frame-In Kit and Reflector Trim. See Spec.Sheet ”A“.

Emergency Lamp: Add suffix Eto Reflector Trim and Frame-In Kit. See Spec.

Sheet “E”.

Slope Ceiling Adapters: See Specification Sheet SCA.

Fuse (magnetic ballast): Add suffix F1 or F2 to Frame-In Kit (F1=120V, F2=277V)

Chicago Plenum: Consult Factory.

Labels

UL (Suitable for Damp Locations), CSA (magnetic ballast only), I.B.E.W.

For 100W electronic, install fixtures with minimum spacing: 2 feet from

center-to-center of adjacent luminaries; 1/2 inch from top of luminaire to over-

head building member;1 foot from luminaire center to side building member.

Ceiling Cutout: 8" (203mm) Dia.

Reflector Trim Frame-In Kit Lamp (Coated, Ceramic MH)

C7E17VM CLW Specular Clear, White Painted Flange.

CLP Specular Clear, Matching Flange.

CCDW Comfort Clear Diffuse, White Painted Flange.

CCDP Comfort Clear Diffuse, Matching Flange.

CCZW Champagne Bronze, White Painted Flange.

CCZP Champagne Bronze, Matching Flange.

C770MHE1 Electronic 120V 70W ED17, BD17 (Enclosed)

C770MHE2 Electronic 277V 70W ED17, BD17 (Enclosed)

C710MHE1 Electronic 120V 100W ED17, BD17 (Enclosed)

C710MHE2 Electronic 277V 100W ED17, BD17 (Enclosed)

C770MHU Magnetic 120V/277V 70W ED17, BD17 (Enclosed)

C710MHU Magnetic 120V/277V 100W ED17, BD17 (Enclosed)

7-3/8" (187 mm) Dia. 2" (50 mm) max.

Ceiling Thickness

Vertical Adjustment:

5/8" (16 mm) to

2 7/8" (73 mm)

8-5/8" (200 mm) Dia.

Flangless Trim with

9-7/8"

(251 mm)

Top View

(Magnetic Ballast)

18-5/8" (473 mm)

10-7/8"

(276 mm)

10-1/2"

(267 mm)

8-1/4"

(210 mm)

20" (508 mm) to 30" (762 mm)

9-3/4"

(248 mm)

Top View

(Electronic Ballast)

10-7/8"

(276 mm)

9-3/4"

(248 mm)

20" (508 mm) to

30" (762 mm)

11" (280 mm)

(100/150W)

Calculite®HID Downlight C7E17VM

Page 2 of 2 7" Aperture, ED17 (Enclosed), Ceramic Metal Halide, Medium Beam

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

1,500

750

2,250

3,000

2,250

4,500

30°

60°

30°

60°

70W ED17 (ENCLOSED), PHILIPS COATED MH UNSHIELDED. LUMEN RATING = 6000 LMS., AROMAT CAT, CL FINISH REFLECTOR TRIM.

ANGLE MEAN CP LUMENS

0 5184

5 4618 439

10 3993

15 3481 982

20 2899

25 2453 1117

30 1843

35 1256 808

40 787

45 407 329

50 98

55 42 48

60 32

65 23 19

70 0

75 0 0

80 0

85 0 0

90 0

ZONAL LUMENS AND PERCENTAGES

ZONE LUMENS % LAMP %LUMINAIRE

0-30 2537 42.3 67.82

0-40 3345 55.76 89.41

0-60 3722 62.04 99.48

0-90 3741 62.36 100

40-90 396 6.6 10.59

60-90 19 0.33 0.52

90-180 0 0 0

0-180 3741 62.36 100

LUMINANCE SUMMARY - CD. / SQ. M.

ANGLE MEAN CD/SQ M

45 23288

55 2932

65 2213

75 0

85 0

** EFFICIENCY = 62.4% ** CERTIFIED TEST REPORT NO. 2518FR, DATE: MAR 6, 2004

SC = .7 COMPUTED BY LSI PROGRAM **TEST-LITE**

CEILING 80% 70% 50% 30%

WALL 70 50 30 10 50 10 50 10 50 10 0

RCR0 .74 .74 .74 .74 .73 .73 .69 .69 .66 .66 .62

1 .71 .70 .68 .67 .69 .66 .66 .64 .64 .62 .59

2 .68 .66 .64 .62 .65 .61 .63 .60 .61 .59 .56

3 .65 .62 .59 .57 .61 .57 .60 .56 .58 .55 .53

4 .63 .59 .56 .54 .58 .53 .57 .53 .56 .52 .51

5 .60 .56 .52 .50 .55 .50 .54 .49 .53 .49 .48

6 .58 .53 .49 .47 .52 .47 .51 .47 .51 .46 .45

7 .55 .50 .46 .44 .49 .44 .49 .44 .48 .43 .43

8 .52 .47 .44 .42 .47 .41 .46 .41 .45 .41 .40

9 .50 .44 .41 .39 .44 .39 .44 .39 .43 .38 .38

10 .48 .42 .39 .36 .42 .36 .41 .36 .41 .36 .35

LUMINAIRE INPUT WATTS = 78.0

Coefficients of Utilization

Zonal Cavity Method - Effective Floor Cavity Reflectance = 20%

100W ED17 (ENCLOSED), PHILIPS COATED MH UNSHIELDED. LUMEN RATING = 9000 LMS., AROMAT, CL FINISH REFLECTOR TRIM.

ANGLE MEAN CP LUMENS

0 7771

5 6922 659

10 5985

15 5217 1471

20 4344

25 3675 1672

30 2760

35 1879 1208

40 1176

45 606 490

50 141

55 57 67

60 43

65 30 25

70 0

75 0 0

80 0

85 0 0

90 0

ZONAL LUMENS AND PERCENTAGES

ZONE LUMENS % LAMP %LUMINAIRE

0-30 3802 42.25 67.99

0-40 5010 55.68 89.6

0-60 5567 61.86 99.55

0-90 5592 62.14 100

40-90 581 6.46 10.4

60-90 25 0.28 0.45

90-180 0 0 0

0-180 5592 62.14 100

LUMINANCE SUMMARY - CD. / SQ. M.

ANGLE MEAN CD/SQ M

45 34641

55 4040

65 2833

75 0

85 0

** EFFICIENCY = 62.1% ** CERTIFIED TEST REPORT NO. 2519FR, DATE: MAR 6, 2004

SC = .7 COMPUTED BY LSI PROGRAM **TEST-LITE**

CEILING 80% 70% 50% 30%

WALL 70 50 30 10 50 10 50 10 50 10 0

RCR0 .74 .74 .74 .74 .72 .72 .69 .69 .66 .66 .62

1 .71 .69 .68 .67 .68 .66 .66 .64 .63 .62 .59

2 .68 .66 .63 .62 .64 .61 .62 .60 .61 .58 .56

3 .65 .62 .59 .57 .61 .57 .60 .56 .58 .55 .53

4 .63 .59 .56 .53 .58 .53 .57 .53 .55 .52 .51

5 .60 .55 .52 .50 .55 .50 .54 .49 .53 .49 .48

6 .57 .53 .49 .47 .52 .47 .51 .47 .50 .46 .45

7 .55 .50 .46 .44 .49 .44 .48 .44 .48 .43 .42

8 .52 .47 .44 .41 .46 .41 .46 .41 .45 .41 .40

9 .50 .44 .41 .39 .44 .39 .43 .39 .43 .38 .37

10 .47 .42 .39 .36 .42 .36 .41 .36 .41 .36 .35

LUMINAIRE INPUT WATTS = 110

Coefficients of Utilization

Zonal Cavity Method - Effective Floor Cavity Reflectance = 20%

1,125

3,375

Autres manuels Lightolier Luminaire

Lightolier

Lightolier Lytecaster 1001FR Series Manuel utilisateur

Lightolier

Lightolier Linear PerfLyte series Mode d’emploi

Lightolier

Lightolier Calculite 8038 Manuel utilisateur

Lightolier

Lightolier Brisa FB9314UDA Manuel utilisateur

Lightolier

Lightolier Calculite C6P30A Manuel utilisateur

Lightolier

Lightolier Lytecaster 1185 Manuel utilisateur

Lightolier

Lightolier Calculite C6AIC Manuel utilisateur

Lightolier

Lightolier Paraplus PPH1G6FW132 Manuel utilisateur

Lightolier

Lightolier Calculite 8047 Manuel utilisateur

Lightolier

Lightolier 12" PENDALYTE SERIES Manuel utilisateur

Lightolier

Lightolier Lytespan 8338 Manuel utilisateur

Lightolier

Lightolier Lytespan 8784 Manuel utilisateur

Lightolier

Lightolier Lytespan 9178 Manuel utilisateur

Lightolier

Lightolier Lytecaster 1090 Manuel utilisateur

Lightolier

Lightolier Lytecaster 1113IE Manuel utilisateur

Lightolier

Lightolier 6706S2UEM Manuel utilisateur

Lightolier

Lightolier Lytecaster 377X Manuel utilisateur

Lightolier

Lightolier Coffaire II CFH1GPF Manuel utilisateur

Lightolier

Lightolier Lytespan 6282 Manuel utilisateur

Lightolier

Lightolier Calculite S7132BU Manuel utilisateur

Lightolier

Lightolier Lytespan 8113 Manuel utilisateur

Lightolier

Lightolier Lytespan 8215WH Manuel utilisateur

Lightolier

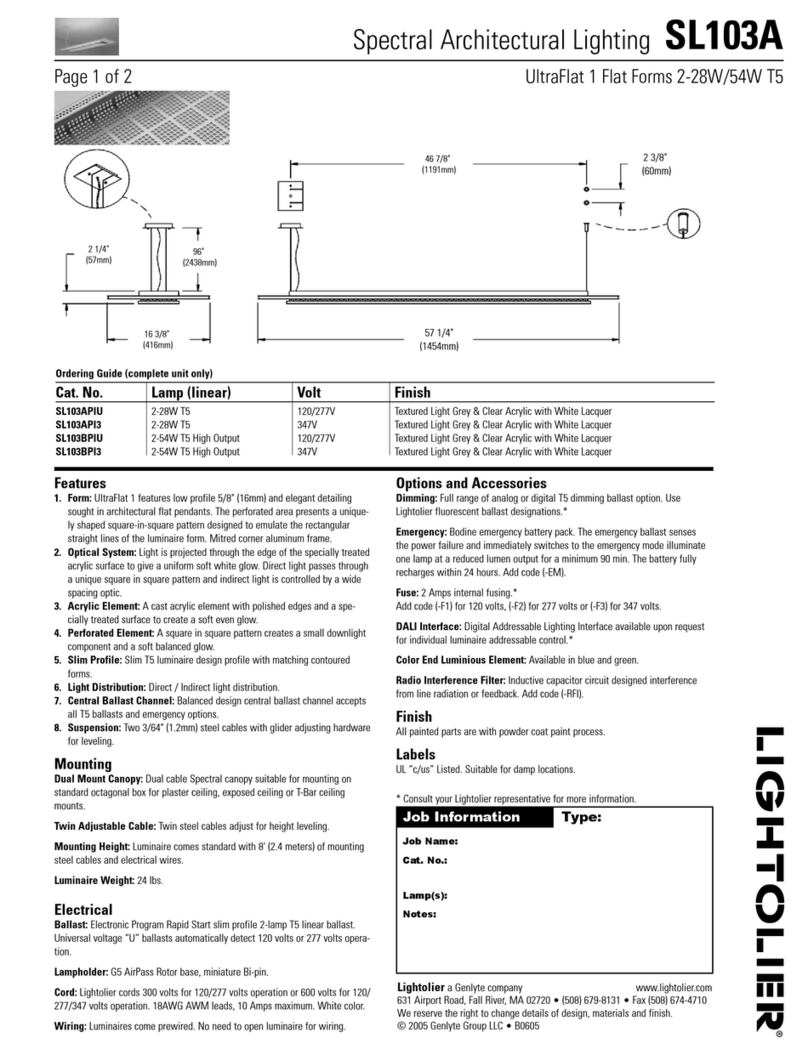

Lightolier SL103A Manuel utilisateur
