Lightolier Lytecaster 1113CFL Manuel utilisateur

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lytecaster®Recessed CFL Downlighting 1113CFL

Page 1 of 2 6 ¾" Aperture Cone Reflector Trim

Features

1. Reflector: Formed aluminum. Matte White flange.

2. Finishes: CL = Specular Clear

CD = Clear Diffuse

3. Performance Data: 70° Cutoff angle.

See attached photometric reports for distribution and efficiency data.

Go to www.lightolier.com for .IES files.

Labels

cULus Listed. Suitable for Damp Locations. I.B.E.W.

Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.

Uniframe™Compact Fluorescent Performance

Series Reﬂector Trims

Compatible Uniframe™Frame-In Kits

(See Individual Frame-In Kit Specication Sheets)

Catalog No. Description Catalog No. Installation Type Lamping

1113CFL

1113CDCFL

6-3/4” Vertical Open Downlight – Specular Clear

6-3/4” Vertical Open Downlight – Clear Diffuse

1101F18U

1101FR18U

Non-IC 120/277v

Non-IC Remodeler 120/277v

18w Quad/Triple

1101FD26L1

1101FD26L2

Non-IC Lutron Dimming 120v

Non-IC Lutron Dimming 277v

26w Quad/Triple

1101FD32L1

1101FD32L2

Non-IC Lutron Dimming 120v

Non-IC Lutron Dimming 277v

32w Triple

1101F2642U

1101FR2642U

1101F2642UEM

1101FD2642MX1

1101FD2642MX2

1101FD2642M7U

1101FR264MX1

1101FR264MX2

Non-IC 120/277v

Non-IC Remodeler 120/277v

Non-IC Emergency 120/277v

Non-IC Advance Mark10 Dimming 120v

Non-IC Advance Mark10 Dimming 277v

Non-IC Advance Mark7 Dimming 120/277v

Non-IC Advance Mark10 Dimming 120v Rem.

Non-IC Advance Mark10 Dimming 277v Rem.

26w Quad/Triple

32w Triple

42w Triple

For other finishes please consult factory.

7 7/8"

6 1/4"

7 9/16"

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Lytecaster®Recessed CFL Downlighting 1113CFL

Page 2 of 2 6 ¾" Aperture Cone Reflector Trim

Job Information Type:

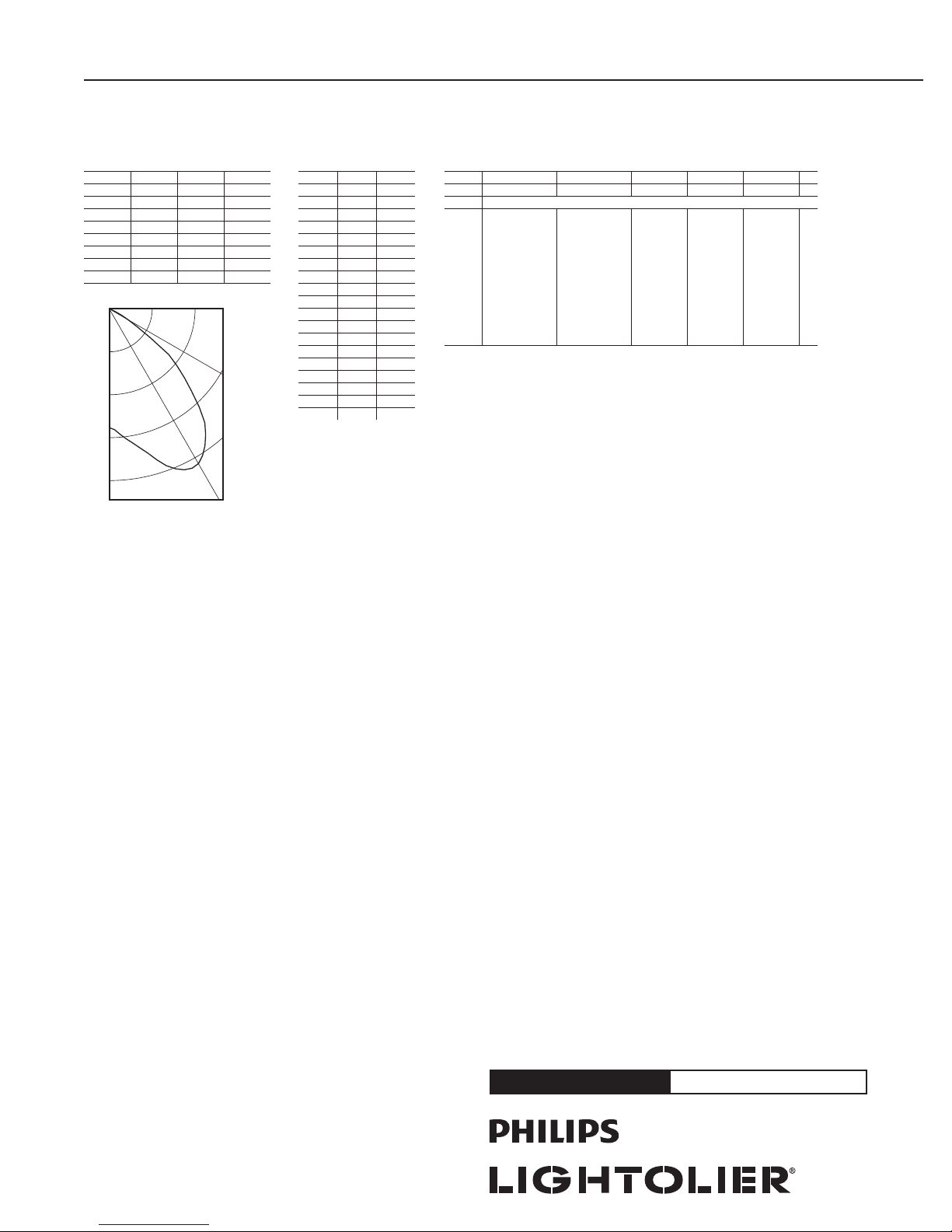

26W Sylvania Dulux T/E Triple Tube. Lumen Rating = 1800 LMS, Specular Clear Trim

375

125

60°

30°

500

250

125

250

375

500

60°

30°

Candlepower Summary

Angle Mean Cp Lumens

0346

5367 35

10 397

15 435 124

20 486

25 517 236

30 520

35 486 302

40 433

45 339 265

50 257

55 144 136

60 64

65 26 30

70 3

75 0 1

80 0

85 0 0

90 0

Zonal Lumens and Percentages

Zone Lumens % Lamp %luminaire

0-30 395 21.98 35.01

0-40 697 38.77 61.76

0-60 1098 61.05 97.27

0-90 1129 62.77 100.00

40-90 432 24.00 38.24

60-90 30 1.72 2.73

90-180 0 .00 .00

0-180 1129 62.77 100.00

** Efficiency = 62.8% **

Coefﬁcients of Utilization

CC 80 70 50 30 10

Wall 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

RCR Zonal Cavity Method – Effective Floor Cavity Reectance = .20

Room Cavity Ratio

0.75 .75 .75 .75 .73 .73 .73 .73 .70 .70 .70 .67 .67 .67 .64 .64 .64 .63

1.71 .69 .67 .65 .69 .67 .66 .64 .65 .63 .62 .62 .61 .60 .60 .59 .58 .57

2.66 .63 .60 .57 .65 .62 .59 .57 .59 .57 .55 .58 .56 .54 .56 .54 .53 .52

3.62 .57 .53 .50 .61 .56 .53 .50 .55 .52 .49 .53 .51 .48 .52 .49 .48 .47

4.58 .52 .48 .45 .57 .51 .48 .44 .50 .47 .44 .49 .46 .43 .47 .45 .43 .42

5.54 .47 .43 .40 .53 .47 .43 .39 .46 .42 .39 .44 .41 .39 .43 .41 .38 .37

6.50 .43 .38 .35 .49 .42 .38 .35 .41 .38 .35 .40 .37 .34 .40 .36 .34 .33

7.46 .39 .34 .31 .45 .38 .34 .30 .37 .33 .30 .36 .33 .30 .36 .32 .30 .29

8.43 .35 .30 .27 .42 .34 .30 .27 .34 .30 .27 .33 .29 .27 .32 .29 .26 .25

9.39 .32 .27 .24 .38 .31 .27 .24 .30 .26 .23 .30 .26 .23 .29 .26 .23 .22

10 .36 .29 .24 .21 .35 .28 .24 .21 .28 .23 .21 .27 .23 .20 .26 .23 .20 .19

Determined In Accordance with Current IES Published Procedures

Luminaire Input Watts = 29.0

SC = 1.6

Report # 3723FR
