Lightolier Lytespan 6272 Manuel utilisateur

Pivot

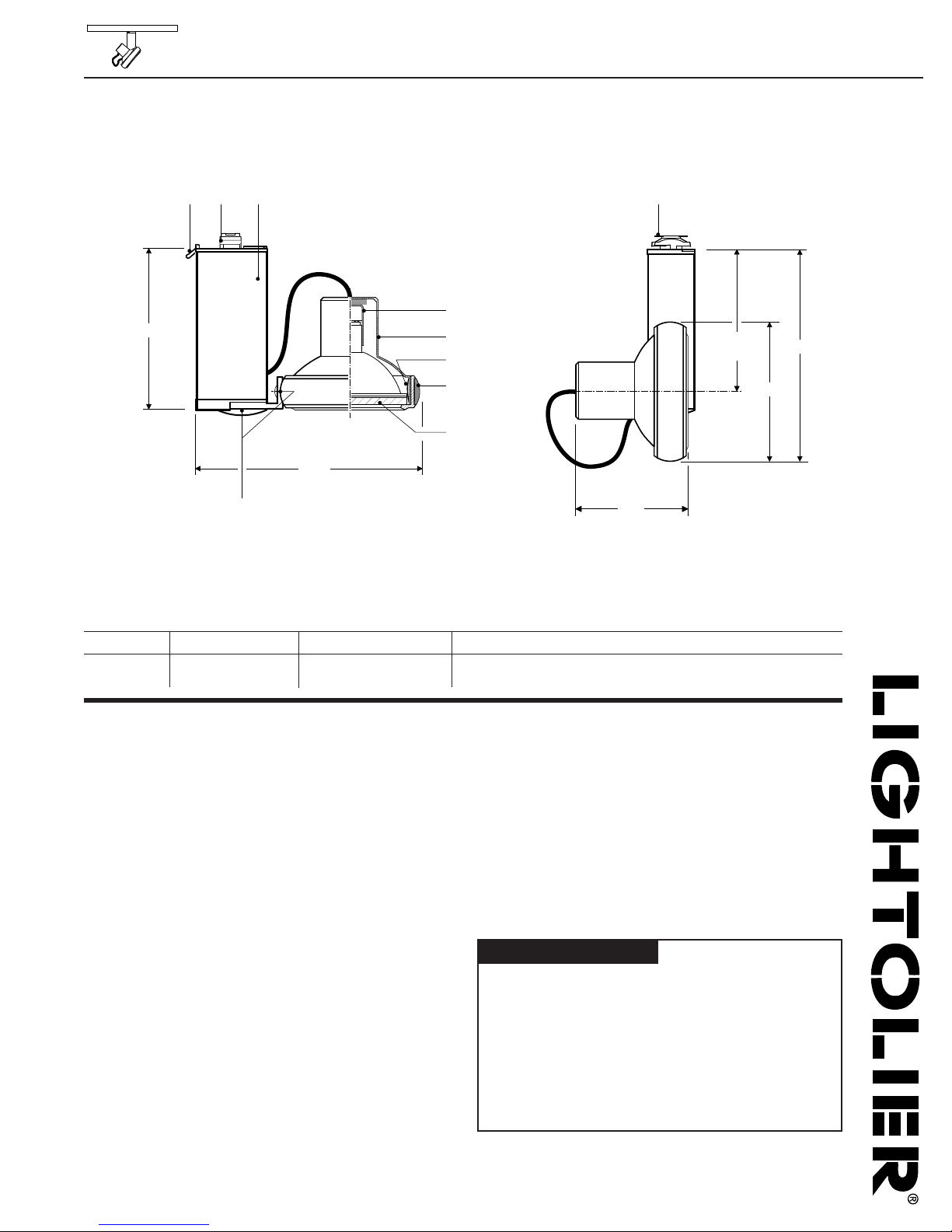

Lytespan®Track Lighting 6272

Page 1 of 2 Sof-Tech®Low Voltage Enclosed Spot AR70

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and ﬁnish.

Features

1. Ring: Die-cast aluminum with cool grip insulation band, a high temperature

silicone rubber which allows aiming adjustments while ﬁxture is on.

2. Socket: Double contact bayonet base, zinc plated steel body prewired with

18 ga. stranded Te on leads with ﬁberglass outer sleeve.

3. Transformer: Electronic low voltage transformer with integral radio

frequency interference ﬁlter and anti-crossover circuit for increased

reliability; housed in extruded aluminum.

. Track Attachment Fitting: Molded polycarbonate, rotates into track and

locks on with push tab; integral polarity key guard.

5. Push Tab: Locks and detaches unit from track.

6. Brass Contacts: Extends for connection to second circuit in Advent®

Lytespan track.

7. Tension Pivot Mounts: Die-cast aluminum. Allows for 180° horizontal

rotation and 180° vertical rotation.

8. Lamp Guard: Tempered glass.

9. Spring: Steel springs hold lamp and housing in place.

10. Housing: Aluminum, fully encloses lamp back and socket. Vents dissipate

lamp heat.

Options & Accessories

Accessory Holder 7661

2 1/2” Dia. Series Lenses and Louver

Electrical/Dimming

Dimming controls: Use only dimmers speciﬁcally designed for use with

electronic transformers, like Lightolier SunriseTM and Neptune Momentum QETM

series. Low voltage ﬁxtures may produce audible sound when used with

dimmers, which may be objectionable in acoustically critical areas.

Labels

Ordering Information

Catalog No. Finishes Track Mountings Lamps

6272 WH Matte White All Lytespan Track AR70 50W Max.

6272 BK Matte Black Systems

Lytespan®Track Lighting 6272

Page 2 of 2 Sof-Tech®Low Voltage Enclosed Spot AR70

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and ﬁnish.

Job Information Type:

2000 2000

50W AR70

FL (T-H) 30°

15000 2000

50W AR70

SP (T-H) 10°

1000 2000

20W AR70

FL (T-H) 30°

7000 2000

20W AR70

SP (T-H) 10°

DFC L

A=45∫AIMING ANGLE A=60∫AIMING ANGLE

7' 143 1.2' 1.2'

10' 70 1.7' 1.7'

13' 41 2.3' 2.3'

16' 27 2.8' 2.8'

DFCL W D CFCL W D CFCL W D CFCL W

Beam Spread

50% Max CP

Beam Center

C.P. Candelas

Rated

Life-Hrs

6' 3.5' 126 1.4' 1.2'

9' 5.2' 56 2.1' 1.8'

12' 6.9' 32 2.8' 2.4'

15' 8.7' 20 3.5' 3.0'

4' 4.0' 155 1.4' 1.0'

6' 6.0' 69 2.1' 1.5'

8' 8.0' 39 2.8' 2.0'

10' 10.0' 25 3.5' 2.5'

2' 3.5' 219 1.4' 0.7'

3' 5.2' 97 2.1' 1.0'

4' 6.9' 55 2.9' 1.4'

5' 8.7' 35 3.6' 1.7'

3' 111 1.6' 1.6'

5' 40 2.7' 2.7'

7' 20 3.8' 3.8'

9' 12 4.8' 4.8'

3' 1.7' 72 2.2' 1.9'

5' 2.9' 26 3.7' 3.1'

7' 4.0' 13 5.1' 4.3'

9' 5.2' 8 6.6' 5.6'

2' 2.0' 88 2.3' 1.5'

3' 3.0' 39 3.5' 2.3'

4' 4.0' 22 4.6' 3.0'

5' 5.0' 14 5.8' 3.8'

1' 1.7' 125 2.7' 1.1'

2' 3.5 31 5.5' 2.1'

3' 5.2' 14 8.2' 3.2'

4' 6.9' 8 10.9' 4.3'

8' 234 1.4' 1.4'

12' 104 2.1' 2.1'

16' 59 2.8' 2.8'

20' 38 3.5' 3.5'

7' 4.0' 199 1.6' 1.4'

10' 5.8' 97 2.3' 2.0'

13' 7.5' 58 3.0' 2.6'

16' 9.2' 38 3.7' 3.2

5' 5.0' 212 1.8' 1.2'

7' 7.0' 108 2.5' 1.7'

9' 9.0' 65 3.2' 2.2'

11' 11.0' 44 3.9' 2.7'

3' 5.2' 208 2.1' 1.0'

4' 6.9' 117 2.9' 1.4'

5' 8.7' 75 3.6' 1.7'

6' 10.4' 52 4.3' 2.1'

4' 125 2.1' 2.1'

6' 56 3.2' 3.2'

8' 31 4.3' 4.3'

10' 20 5.4' 5.4'

3' 1.7' 144 2.2' 1.9'

5' 2.9' 52 3.7' 3.1'

7' 4.0' 27 5.1' 4.3'

9' 5.2' 16 6.6' 5.6'

3' 3.0' 79 3.5' 2.3'

4' 4.0' 44 4.6' 3.0'

5' 5.0' 28 5.8' 3.8'

6' 6.0' 20 6.9' 4.5'

1' 1.7' 250 2.7' 1.1'

2' 3.5 63 5.5' 2.1'

3' 5.2' 28 8.2' 3.2'

4' 6.9' 16 10.9' 4.3'

13500 2000

50W AR70

SP GOLD (T-H) 10°

8' 211 1.4' 1.4'

12' 94 2.1' 2.1'

16' 53 2.8' 2.8'

20' 34 3.5' 3.5'

1800 2000

50W AR70

FL GOLD (T-H) 30°

4' 113 2.1' 2.1'

6' 50 3.2' 3.2'

8' 28 4.3' 4.3'

10' 18 5.4' 5.4'

3' 1.7' 130 2.2' 1.9'

5' 2.9' 47 3.7' 3.1'

7' 4.0' 25 5.1' 4.3'

9' 5.2' 18 6.6' 5.6'

3' 3.0' 71 3.5' 2.3'

4' 4.0' 40 4.6' 3.0'

5' 5.0' 25 5.8' 3.8'

6' 6.0' 18 6.9' 4.5'

1' 1.7' 225 2.7' 1.1'

2' 3.5 56 5.5' 2.1'

3' 5.2' 25 8.2' 3.2'

4' 6.9' 14 10.9' 4.3'

7' 4.0' 179 1.6' 1.4'

10' 5.8' 88 2.3' 2.0'

13' 7.5' 52 3.0' 2.6'

16' 9.2' 34 3.7' 3.2'

5' 5.0' 191 1.8' 1.2'

7' 7.0' 97 2.5' 1.7'

9' 9.0' 59 3.2' 2.2'

11' 11.0' 39 3.9' 2.7'

3' 5.2' 188 2.1' 1.0'

4' 6.9' 105 2.9' 1.4'

5' 8.7' 68 3.6' 1.7'

6' 10.4' 47 4.3' 2.1'

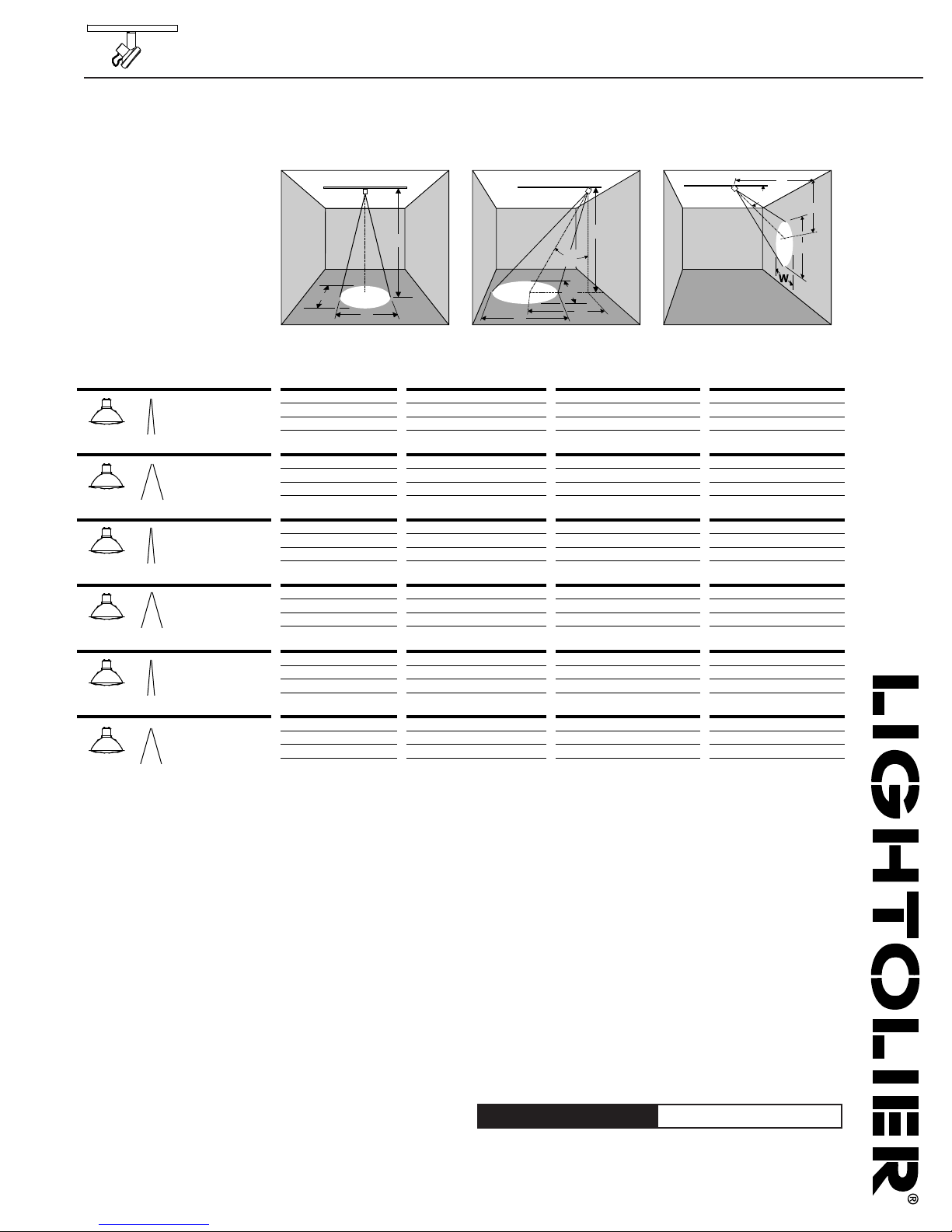

Lighting Data

LAMP 0˚ AIMING ANGLE A=30˚ AIMING ANGLE A= 5˚ AIMING ANGLE A=60˚ AIMING ANGLE

Aiming Angle 0˚ 30˚, 5˚ or 60˚ Horizontal 30˚, 5˚ or 60˚ Vertical

LBeam Length

WBeam Width

CDistance to center beam

DDistance

AAiming Angle

FC Footcandles

Land Ware the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.
