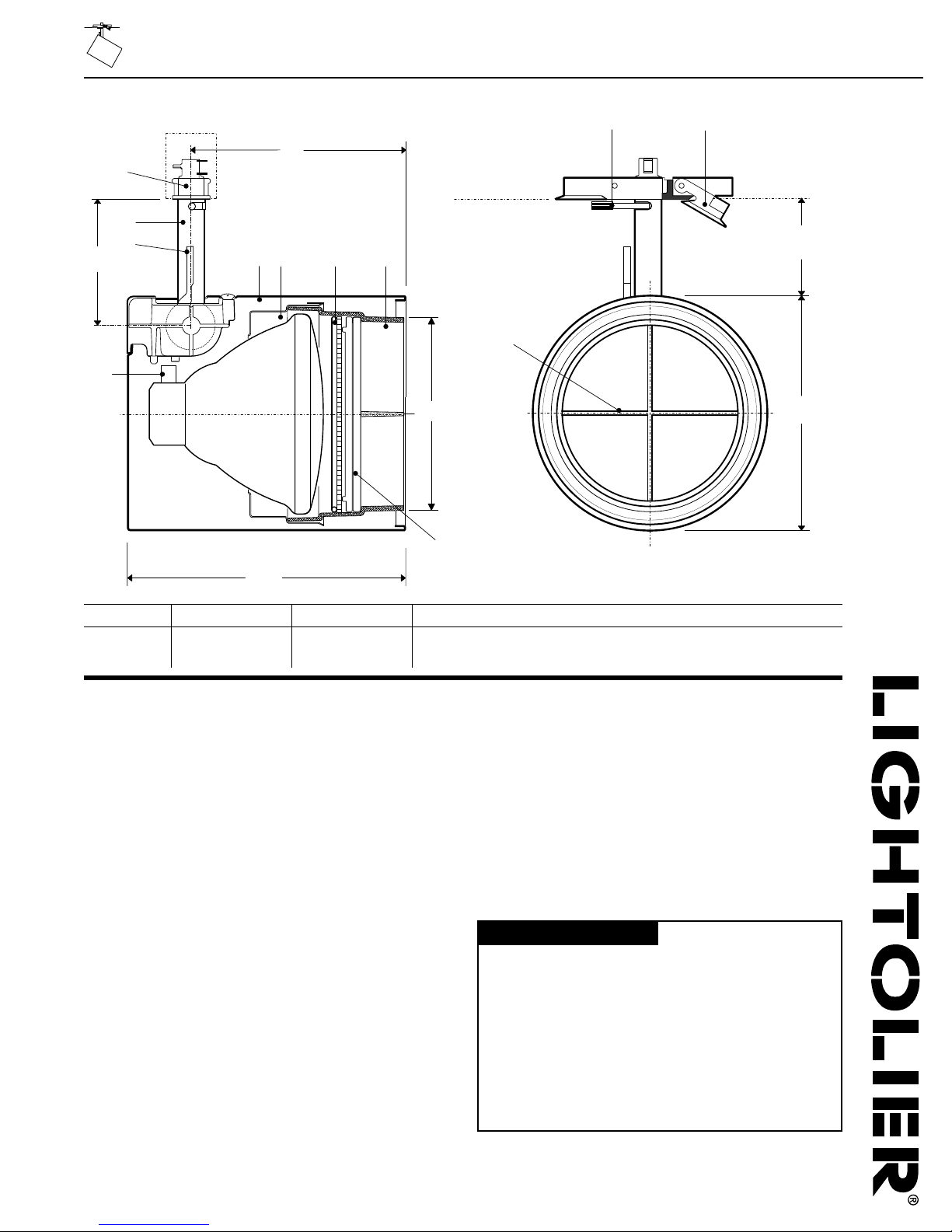

Lightolier ProSpec 26383 Manuel utilisateur

5 7/8" Dia.

5678

2 1/4"

Stem

Accessories

Ordered

Separately

4 3/8"

ProSpec Track System

3 1/4"

5 1/8"

6 .5/8"

ProSpecTM Track Lighting 26383

Page 1 of 2 Cylinder PAR38/3

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and ﬁnish.

Features

1. Track attachment ﬁtting: Die-cast aluminum with separate mechanical

and electrical functions. Fitting cannot be engaged or disengaged while

ﬁxture is powered. Polarity is not a concern with ProSpec track because of

its symmetrical positioning of circuits within the track, adapters are reversed

to access one or the other circuits.

2. Stem: 5 /8" O.D. .049" wall, stainless steel.

3. Locking feature: Die-cast aluminum mechanism permits the locking of the

horizontal and vertical positions simultaneously by clamping jaws. When the

stainless steel braking lever is released, the horizontal and vertical functions

remain fully tensioned to hold aiming positions. Adjustment range is:

Horizontal 0-340°; Vertical 0° (NADIR) - 90°.

4. Lampholder: Porcelain, medium side prong connector #18 ga. braided SF -1

leads.

5. Housing: 20 ga. (.036) steel, hemmed front edge for stiffness, prevents

chipping and enhances appearance.

6. Lamp and accessory support: .032 steel, ﬂared for easy entry of

accessory cartridge, matte black ﬁnish.

7. Lens retaining ring: .125" spring steel.

8. Accessory cartridge: Formed aluminum, installs and removes with a twist

and lock action. Holds three accessories max. and cross blade bafﬂe; black

matte ﬁnish.

Finish

All painted ﬁnishes are powder coated baked enamel.

Options & Accessories

Accessories: 4 3/4” dia. series. Filters, lenses, screens and louvers. 150W max

when using accessories. Order accessories separately.

Electrical

Electrical components: Polycarbonate moldings.

Contacts: Heavy gauge 1/2 hard brass developed for Lightolier's "U"

shaped track conductors.

Labels

UL; I.B.E.W.

Catalog No. Finishes Mountings Lamps

26383 WH Matte White ProSpecTM Track PAR38/3 150W Max.

26383 BK Matte Black Systems

ProSpecTM Track Lighting 26383

Page 2 of 2 Cylinder PAR38/3

Lightolier a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and ﬁnish.

Job Information Type:

Lighting Data

FC L

LAMP 0˚AIMING ANGLE A=30˚AIMING ANGLE A=45˚AIMING ANGLE A=60˚AIMING ANGLE

Aiming Angle 0˚30˚, 45˚or 60˚Horizontal 30˚, 45˚or 60˚Vertical

LBeam Length

WBeam Width

CDistance to center beam

DDistance

AAiming Angle

FC Footcandles

Land Ware the outer points where the candle

power drops to 50% of the maximum. FC are the

initial footcandles at the center of the beam.
