Life Span RC 80 Manuel utilisateur

RC 80

Owner’s Manual

Important Safety Information

Please keep this manual in a safe place for easy reference.

1. It is important to read this entire manual before assembling and using the equipment.

Safe and effective use can only be achieved if the equipment is assembled, maintained and used

properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings

and precautions.

2. Before starting any exercise program you should consult your doctor to determine if you have any

medical or physical conditions that could put your health and safety at risk or prevent you from using

the equipment properly. Your doctor's advice is essential if you are taking medication that affects

your heart rate, blood pressure or cholesterol level.

3. Always be aware of your body's signals. Incorrect or excessive exercise can damage your health.

Stop exercising if you experience any of the following symptoms: pain, tightness in your chest,

irregular heartbeat, and extreme shortness of breath, lightheadedness, dizziness or feelings of

nausea. If you do experience any of these conditions you should consult your doctor before

continuing with your exercise program.

4. Keep children and pets away from the equipment. The equipment is designed for adult use only.

5. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To

ensure safety, the equipment should have at least 1.65 feet of free space around it.

6. Before using the equipment, check that the nuts and bolts are securely tightened.

7. The safety of the equipment can only be maintained if it is regularly examined for damage and/or

wear and tear.

8. Always use the equipment as indicated. If you find any defective components while assembling or

checking the equipment, or if you hear any unusual noises coming from the equipment during use,

stop immediately. Do not use the equipment until the problem has been rectified.

9. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may get caught

in the equipment or that may restrict or prevent movement.

10. The equipment has been tested and certified to EN957 under class H.C. Suitable for home

use only. Maximum weight of user: 220lbs. Braking ability is independent of speed.

11. The equipment is not suitable for therapeutic use.

12. Care must be taken when lifting or moving the equipment so as not to injure your back. Always use

proper lifting techniques and/or seek assistance if necessary.

Parts List

No.

Product name Quantity

Specification

1 Main frame assembly 1

2 Rear frame assembly 1

3 Handle upright 1

4 Backboard frame assembly 1

5 Handle Bar 1

6 Magnetic board assembly 1

7 Rear leg assembly 1

8 Front leg assembly 1

9 Armrest assembly 1

10 Square neck bolt 4

11 Arc gasket 4

12 Cap nut 4

13 Rear leg end cap 2

14 Front leg end cap 2

15 Inductive connection wire 2 Length 850（15a、15b）

16 Inner hexagon cheese-head bolt 16

17 Gasket 11

18 Seat cushion 1 Vinyl bottom

19 Back cushion 1 Vinyl bottom

20 Square neck bolt 2

21 Wire-passing vent plug 1

22 Cap nut 2

23 Seat handlebar grip 2

24 Round pipe plug 2 welded pipe

25 Grip splicing 2 socket, plug

26 Cross pan head self tapping bolt 2

27 Square pipe plug 2

28 Elastic bolt 1

29 Cone nut 2

30 Cambered gasket 4

31 Inner hexagon cheese-head bolt 2

32 Spring gasket 2

33 Handlebar grip 2

34 Round pipe plug 2 welded pipe

35 Clip cover 1

36 shift tuning knob assembly 1

37 Cambered gasket 1

38 Cross pan head self tapping bolt 1

39 Electronic meter 1

40 Gasket 4

41 Cross pan head self tapping bolt 4

42 Sensor 1

43 Cross pan head self tapping bolt 2

44 Tension spring 1 16 loops

45 Hexagonal nut 2

46 Hexagonal bolt 1

47 Inductive connection wire 2 Length 1100（47a、47b）

48 Idler wheel 1

49 Round magnet 1

50 Pipe stopper 1 Round pipe plug

51 Hexagonal nut 1

52 Magnetic block positioning grid 1 PVC，9 grids，28×84

53 Square magnet 6

54 Magnetic board shaft 1

55 Shaft closing ring 2

56 Gasket 2

57 Elastic gasket 2

58 Hexagon bolt 2 full teeth

59 Inertia wheel 1

60 Inertia wheel 1

61 Bearing 2

62 Adjust bolt 2

63 Thin nut 2

64 Flange nut 2

65 Triangle belt 1 Manufacturer: Sanwei 864

66 Belt pulley 1

67 Crank 1 left and right reverse teeth

68 Bottom bracket cup 2 Nine-piece type

69 Ball rack 2

70 Shaft sleeve 2

71 Gasket 2

72 Crank hexagonal nut 1

73 Crank cover 1 7.2D

74 Foot pedal 1 L.R. with binding band.

75 Cross pan head self tapping bolt 4

76 Cross pan head self tapping bolt 6

77 Chain cover 1 7.3D

78 Floor tube bush 1

79 Inductive connection wire 3 Length 650（79a、79b、79c）

80 Micro adjusting connection wire 1

Jacketed line connecting bolt 1300,

with a thrum length of 42

Enclosed tools and spare parts list

Name Model Quantity

Thumbnail

10 Square neck

bolt 4

11 Cambered

gasket 4

12 Cap-shaped nut

28 Elastic bolt 1

20 Square neck

bolt 2

21 Gasket 2

22 High

cap-shaped nut

36 8-shift fine

tuning 1

A Inner hexagon

spanner 1

Cross head

multipurpose

spanner

Assembly Instructions

Step 2: Connect the rear leg assembly (7) to the

rear frame (2) with 2-square neck bolts

(10), cambered gaskets (11) and high

cap-shaped nuts (12).

Step 3: Connect wires (47a) and (47b) to (15a) and (15b)

respectively. Insert rear frame assembly (2) into

the main frame (1) and attached with elastic bolt

(28) as shown.

Step 1: Connect the rear leg assembly (8) to

the main frame (1) with 2-square neck

bolts (10), cambered gaskets (11) and

high cap-shaped nuts (12).

Step 6: connect inductive connection wire (79a) with

sensor wire (42a) and inductive connection

wires 79 b and c to sensor wires (47) a, b as

shown below. Insert the handle upright (3) on

the main frame (1) and lock the upright in place

with 4-inner hexagon cheese-head bolts (16)

and cambered gaskets (30).

Step 4: The backboard frame assembly (4) is

connected to the rear frame assembly (2)

by 4-inner hexagon pan head bolts (16).

The seat cushion (18) and the back cushion

(19) are attached to the backboard frame

respectively by 4-inner hexagon pan head

bolts (16) and the gaskets (17) as shown

Step 5: The armrest assembly (9) is attached to the

backboard assembly (4) by 2-square neck

bolts (20), gaskets (17) and high cap-shaped

nuts (22). Connect hand pulse wires (15a)

and (15b) to their respective cables (25a)

and 25b) on the armrest assembly (9).

WARRANTY REGISTRATION

Please visit the following link to complete the product warranty form online. Please visit

http://warrantyform.lifespanfitness.com.au/

PLEASE NOTE: YOUR WARRANTY IS ONLY VALID IF YOU CAN

PROVE YOU ARE THE ORIGINAL PURCHASER ON THIS ITEM (i.e. A copy of the receipt,

invoice, delivery date or internet confirmation。

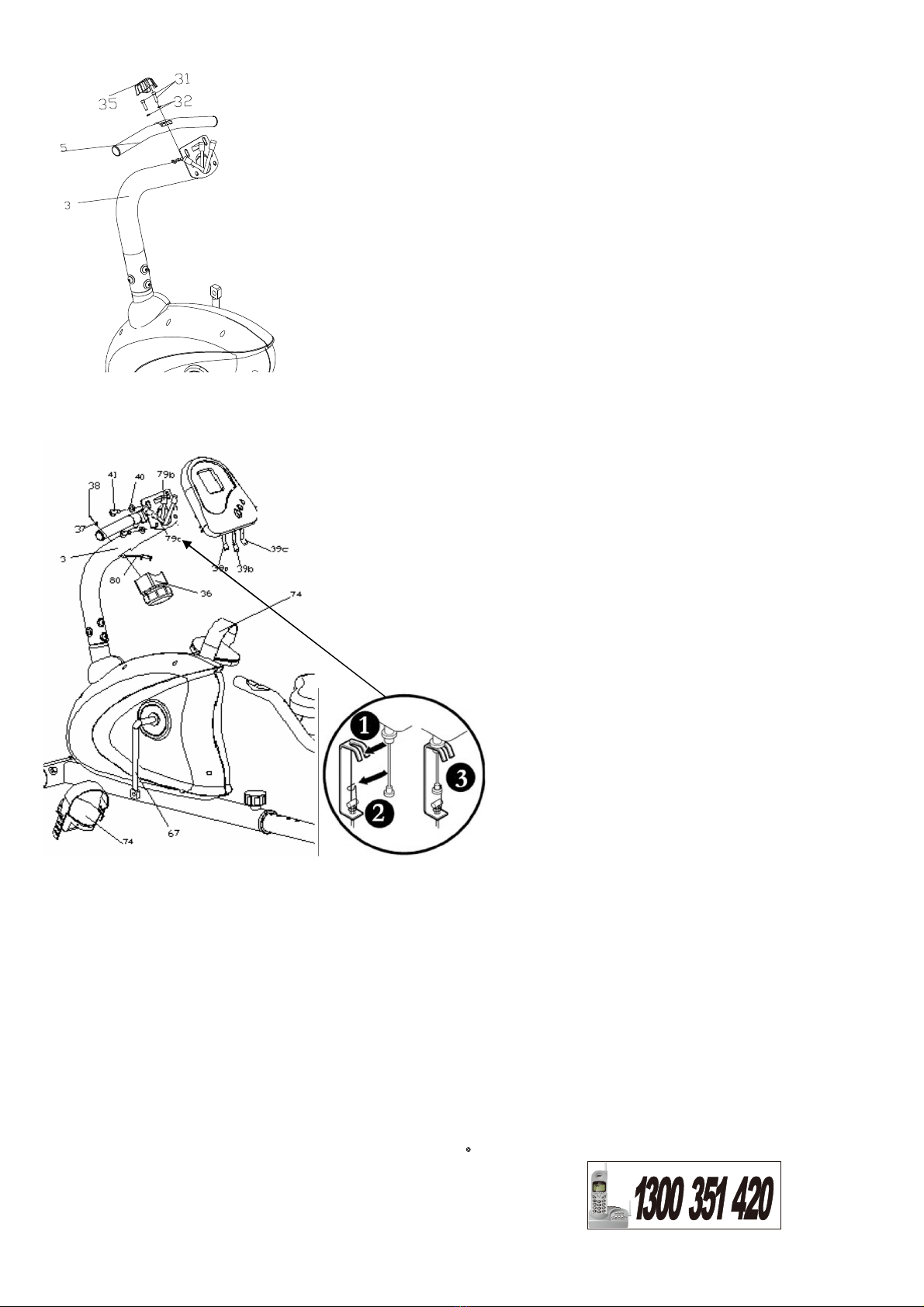

Step 8: Attach the shift tuning knob assembly (36) with the

truck line (80) as shown in the sub-figure (1), (2)

and (3). Lock the shift tuning knob assembly (36)

on the handle upright (3) with cross pan head self

tapping bolt (38) and cambered gasket (37).

Attach wires a, b and c of the electronic meter (39)

to the respective inductive connection wires (79) a,

b and c, then fix and lock the electronic meter on

the handle upright (3) by cross pan head self

tapping bolt (40) and a gasket (41). Lock the left

and right treadles (74) on the crank (67) to finish

the assembly.

Step 7: Attach handlebar (5) to handle upright (3) with

2-inner hexagon cheese head bolts (31) and

spring gaskets (32). Snap clip cover (35)

over top to protect head bolts.
