LevelOne WAP-0007 Manuel utilisateur

LevelOne

WAC-1000 / WAC-1001

Wireless LAN Controller

User’s Manual

V1. 0_20151110

Table of Contents

Introduction.............................................................................................................................................1

0.1 Manual Description......................................................................................................................1

0.2 Interface style..............................................................................................................................1

0.3 Basic conventions ........................................................................................................................1

0.4 Factory configuration ...................................................................................................................2

Chapter 1 Product Overview......................................................................................................................3

1.1 Key characteristics.......................................................................................................................3

1.2 Specifications of product...............................................................................................................3

Chapter 2 Hardware installation .................................................................................................................4

2.1 Panel description..........................................................................................................................4

2.2 Installation Guidelines..................................................................................................................5

2.3 Items Required for Installation.......................................................................................................5

2.4 Installing the Device.....................................................................................................................5

2.5 Connecting the Device..................................................................................................................6

Chapter 3 Logging to the Device............................................................................................................7

3.1...................................................................................................................................................7

3.2 Logging to the Device ..................................................................................................................8

Chapter 4 Distribution map......................................................................................................................10

4.1 Summary ..................................................................................................................................10

4.2 Details......................................................................................................................................11

4.3 Load detection...........................................................................................................................12

4.4 Interference detection.................................................................................................................12

4.5 Overlay Plots.............................................................................................................................13

4.6 Drawings ..................................................................................................................................14

Chapter 5 Statistics.................................................................................................................................16

Chapter 6 Device....................................................................................................................................17

6.1 AP Controller............................................................................................................................17

6.1.1 AP Controller Overview...........................................................................................................17

6.2 Device settings ..........................................................................................................................19

6.2.1 Batch settings..........................................................................................................................20

6.2.2 AP Settings.............................................................................................................................21

Chapter 7 Users......................................................................................................................................28

7.1 Setting online ............................................................................................................................28

7.2 Offline settings ..........................................................................................................................28

7.3 Blacklist settings........................................................................................................................29

Chapter 8 Log........................................................................................................................................30

Chapter 9 Settings ..................................................................................................................................32

9.1 Service area...............................................................................................................................32

9.1.1 Wireless settings......................................................................................................................33

9.1.2 VLAN settings........................................................................................................................34

9.1.3 Security settings ......................................................................................................................35

9.1.4 Bandwidth setting....................................................................................................................38

9.2 Radio frequency template............................................................................................................39

9.3 Load balancing ..........................................................................................................................40

9.4 Software management ................................................................................................................41

9.5 AP centralized management configuration instance........................................................................42

9.6 AP centralized management configuration instance (Three layer management)..................................44

9.6.1 Typical environment I (option43/ option60 for the application of the ACCESS port and 3 layer

switches).................................................................................................................................44

Chapter 10 System management...............................................................................................................48

10.1 Information .............................................................................................................................48

10.2 Management............................................................................................................................48

10.3 Clock......................................................................................................................................49

10.4 Systems...................................................................................................................................50

Chapter 11 FAQ.....................................................................................................................................52

Appendix A List of Common IP...............................................................................................................53

Appendix B Common service ports ..........................................................................................................54

Appendix C Figure index ........................................................................................................................55

Appendix D LICENSE STATEMENT / GPL CODE STATEMENT............................................................58

Introduction

Tip: In order to achieve the best results, it is proposed to upgrade Windows Internet Explorer browser to

Version 10.0 or above.

0.1 Manual Description

This manual applies to wireless controllers.

This manual description is applied to the features and functions of wireless controllers on the LevelOne ReOS_SE

software platform, and provides the methods and steps of WEB-based interface configuration. Users shall

guarantee the software version they use are consistent with the contents in this manual. Because of the product

version upgrade or other reasons, the content of this manual will be updated on an irregular basis.

0.2 Interface style

The WEB management interface follows the usage of browsers, as shown below:

: Selected to represent that only this function is used.

: Selected to represent that the function described in this option is selected.

: Click to execute the action of the button.

: Enter the relevant parameters.

: The list box is used to find the options to be chosen.

: The drop-down box is used to find options to be chosen.

0.3 Basic conventions

1) Icon description

Router

Switch

WAC-1000/ WAC-1001

Modem

Server

Wired client

Wireless client

PDA

2) Symbol appointment

Refers to basic parameters, describing the basic meaning of the parameters. If a parameter contains "*",

which means this parameter is a required item.

Means tips, pointing out the priorities, considerations.

Means to list the contents of parallel relationship.

0.4 Factory configuration

1) The factory configuration of interfaces are shown in the following table.

Type of interfaces

IP address/subnet mask

LAN port

192.168.1.252/255.255.255.0

Table 0- 1 Factory configuration of interfaces

2) The factory user name of the system administrator is admin, and the factory password is admin

(case-sensitive).

Chapter 1 Product Overview

This chapter focuses on the functions and features of LevelOne ReOS_SE software platform WAC-1000 /

WAC-1001.

1.1 Key characteristics

Automatically find and associate the LevelOne wireless AP, without the need to do any configuration of AP,

to achieve the centralized management of AP

Support real-time monitoring the AP status, automatically detect the AP for working correctly, and display

the status information of each AP in the admin interface

Support the DHCP server functions

Be able to configure related properties such as wireless parameters

Support the backup and import of WEB configuration files

Support HTTP remote management

UPLINK port can provide professional lightning protection chip

Added the 2.4GHz/5GHz RF template, to be in line with the IEEE802.11a/b/g/n protocol standard, be able to

support the 802.11AC protocol, and provide the wireless transmission rate up to 867 Mbps

Only support 802.11 g, 802.11 n, 802.11 g/n, 802.11 b/g/n; only 802.11 a, 802.11 a/n mixed, 802.11

vhtAC/AN/a mixed, 802.11 vhtAC/AN mixed and other wireless modes

Support wireless security mechanism control, and provide WEP, WPA Enterprise, WPA2-Enterprise,

WPA-PSK, WPA2-PSK and a variety of wireless security mechanisms

Support the SSID broadcasting control, to effectively prevent SSID broadcasting leaks

Support the Wi-Fi Multimedia (WMM) function

Support the wireless MAC address filtering function, with configurable blacklists

WEB configuration interface, an easy and quick wizard

Support the WEB upgrading mode, convenient for function extension

1.2 Specifications of product

Comply with IEEE802.3 Ethernet, IEEE802. 3u Fast Ethernet, IEEE802.3 standards

Each physical port supports automated negotiation function

Each physical port supports MDI/MDI - X adaptive switch - adapter mode

Provide status indicators

Working environment: Temperature: 0~40℃

Height: 0~4000m

Relative humidity: 10%~90%, no condensation

Chapter 2 Hardware installation

This chapter summarizes the appearance of ReOS_SE software platform WAC - 1000 / WAC - 1001, then describes

how to install the device.

2.1 Panel description

The front panel has 5 LAN ports (10/100M), an external USB interface, and the casing size is 9 inches. The front

panel is shown in the schematic diagram below.

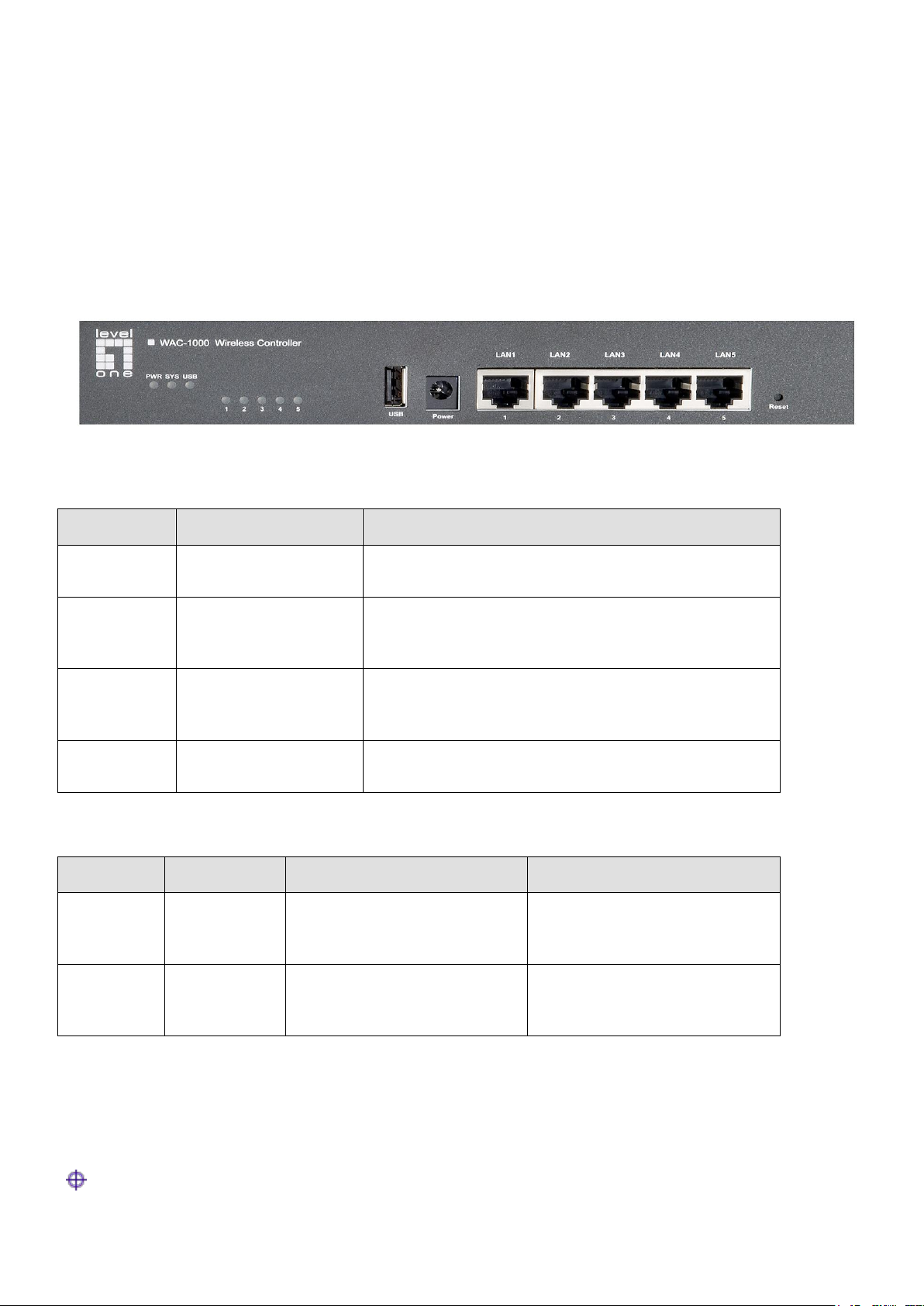

Figure 2- 1 Front Panel -- WAC-1000

2.1.1 Description of LED lights

LED lights

Description

Function

PWR

Power LED

It is constantly on when the power supply is working

properly.

SYS

System Status LED

It flashes at the frequency of 2 times per second, when the

system burden is heavy, the flashing frequency drops;

normally on or normally off in failure.

Link/Act

Port Status LED

When a device is properly connected to a port, the status

LED that corresponds to the port stays lit, and it will flash

if there is flow.

USB

USB Port Status LED

USB light is on, which means the USB interface is being

used.

Table 0-1Description of LEDs

2.1.2 Description of interfaces

Interface

Meaning

Notes

Remarks

LAN

LAN ports

Integrated with multiple

switched Ethernet ports.

LAN (RJ-45) port supports

adaptive positive and negative

lines.

USB

USB port

Provide an external USB

interface.

Connect the USB disk, to store

the software, profiles, etc.

obtained by devices.

Table 0-2Description of Ports

2.1.3 Reset button

Reset button can be used to recover the device's factory configuration when you forget the administrator password.

Method: In the process of charged operation, hold down the Reset button for more than 5 seconds, then release the

button, and the device will be returned to the factory settings, and automatically restart.

Note: The above operations will delete all the original device configuration, please use it with care!

2.2 Installation Guidelines

1) Make sure that your workbench or standard rack is level and stable.

2) Do not place heavy objects on the Device.

3) Make sure that there is proper heat dissipation and adequate ventilation around the Device.

4) Position the Device out of direct sunlight and away from sources of heat and ignition.

5) Please use the supplied power cord.

2.3 Items Required for Installation

1) Broadband Internet connection

2) Tools and equipment：

(1) Broadband modem (optional)

(2) PC with an Ethernet card and TCP/IP installed

(3) Network devices like hub, switch, wireless access point

(4) Phillips screwdriver

(5) Power outlet.

2.4 Installing the Device

Before you install the Device, make sure your Internet connection is working properly. If it is not, please contact

your ISP.

1) Installing the Device on a Flat Surface

(1) Make sure the Device is powered off.

(2) Place the Device upside down on a sturdy, flat bench with a power outlet nearby. Verify that the bench is

well grounded.

(3) Remove the adhesive backing from the supplied rubber feet. Attach the four rubber feet to the round

recessed areas on the bottom of the Device.

(4) Turn the Device over to make it right side up on the bench

2) Installing the Device in a 19-inch Standard Rack

Follow these steps to install the Device in a 19-inch standard rack:

(1) Make sure the Device is powered off.

(2) Make sure the rack is stable and well grounded.

(3) Attach the supplied rack-mount brackets to the left and right side of the Device with the supplied screws,

and secure the brackets tightly, as shown in Figure 2- 2.

Figure 2- 2 Attaching Brackets to the Device 1

(3) Insert the Device into the rack, and align the brackets in the rack.

(4) Use the supplied screws to secure the Device in the rack, as shown in Figure 2- 3.

Figure 2- 3 Mounting the Device in a Rack 2

2.5 Connecting the Device

Follow these steps to connect the Device:

1）Connect the Device to the local network

Connect one end of an Ethernet cable to one of the LAN ports on the Device, and the other end to a network port on

a PC, hub, switch or wireless access point. Repeat this step to connect more PCs or other network devices to the

Device.

2）Power on the Device.

Before you power on the Device, make sure that the power supply is normal and well grounded.

Figure 2-4 Connecting the Device to Network

Autres manuels pour WAP-0007

Table des matières

Autres manuels LevelOne Routeur réseau

LevelOne

LevelOne GSW-5150 Manuel utilisateur

LevelOne

LevelOne HomePlug Pro PLI-3210 Manuel utilisateur

LevelOne

LevelOne WGR-8031 Manuel utilisateur

LevelOne

LevelOne GSW-2010T Manuel utilisateur

LevelOne

LevelOne FBR-1413TX Manuel utilisateur

LevelOne

LevelOne FBR-1412TX Manuel utilisateur

LevelOne

LevelOne FSW-2441TX Manuel utilisateur

LevelOne

LevelOne FBR-1416 Manuel utilisateur

LevelOne

LevelOne WBR-6013 Manuel utilisateur

LevelOne

LevelOne GSW-0507 Manuel utilisateur

LevelOne

LevelOne FBR-1407 Manuel utilisateur

LevelOne

LevelOne NetCon FBR-1415TX Manuel utilisateur

LevelOne

LevelOne WAC-2003 Manuel utilisateur

LevelOne

LevelOne WBR-3406TX Manuel utilisateur

LevelOne

LevelOne IGP-0521 Manuel utilisateur

LevelOne

LevelOne FRT-2101TX Manuel utilisateur

LevelOne

LevelOne FSW-0809 Manuel utilisateur

LevelOne

LevelOne FSW-0511 Manuel

LevelOne

LevelOne FBR-1403TX Manuel utilisateur

LevelOne

LevelOne WBR-3470 Manuel utilisateur

LevelOne

LevelOne FBR-1461 Manuel utilisateur

LevelOne

LevelOne WBR-6004 Manuel utilisateur

LevelOne

LevelOne PLI-2020 Manuel utilisateur

LevelOne

LevelOne FBR-1416 Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
