User Manual

FSW-0511 / FSW-0811

5/8-Port Fast Ethernet Switch

V1.0.0-0803

FCC Certifications

This Equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment

in a residential area is likely to cause harmful interference in which case the

user will be required to correct the interference at his own expense.

This device complies with Part 15 of the FCC Rules. Operation is subject to

the following two conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any interference received;

including interference that may cause undesired operation.

CE Marking Warning

This equipment complies with the requirements relating to electromagnetic

compatibility, EN 55022 Class B for ITE, the essential protection

requirement of Council Directive 89/336/EEC on the approximation of the

laws of the Member States relating to electromagnetic compatibility.

Company has an on-going policy of upgrading its products and it may be

possible that information in this document is not up-to-date. Please check

with your local distributors for the latest information. No part of this

document can be copied or reproduced in any form without written consent

from the company.

Package Contents

•FSW-0511 or FSW-0811

•Power Adapter

•User Manual

•Wall-Mounting Kit

Installation

1. Please inspect the Power Adapter carefully, and make

sure that it is properly connected to a power source.

2. Power on. It will be automatically initialized and the LED

indicators should respond as follows:

a. All of the Link/Act LED indicators will flash

momentarily, which represent a resetting of the

system.

b. The Power LED indicators will light up.

Features & Specifications

y5/8 auto-negotiation 10/100 Mbps Ethernet ports

yAuto MDI/MDI-X at each port

ySupports IEEE802.3x flow control for Full Duplex mode and

backpressure for Half Duplex mode

yData filtering and forwarding at full wire speed

yStore-and-Forward switching technology

Standards IEEE802.3 10Base-T, IEEE802.3u 100Base-TX

Data Transfer

Rate 10Mbps (Half Duplex), 20Mbps (Full Duplex)

100Mbps (Half Duplex), 200Mbps (Full Duplex)

Network

Media

(Cable)

10BASE-T: UTP category 3, 4, 5 cable (maximum

100m) EIA/TIA-568 STP (maximum 100m)

100BASE-Tx: UTP category 5, 5e cable (maximum

100m) EIA/TIA-568 STP (maximum 100m)

Interface 5/8 10/100MbpsAuto-Negotiation ports

Power

Supply FSW-0511 AC 12V~ 0.35A/ DC 12V 0.35A

FSW-0811 AC 9V~ 0.8A/ DC 12V 1A

Temperature Operating Temperature: 0℃~40℃

Storage Temperature: -10℃~70℃

Humidity Operating Humidity: 10%~90% non-condensing

Storage humidity: 5%~95% non-condensing

LED Definition

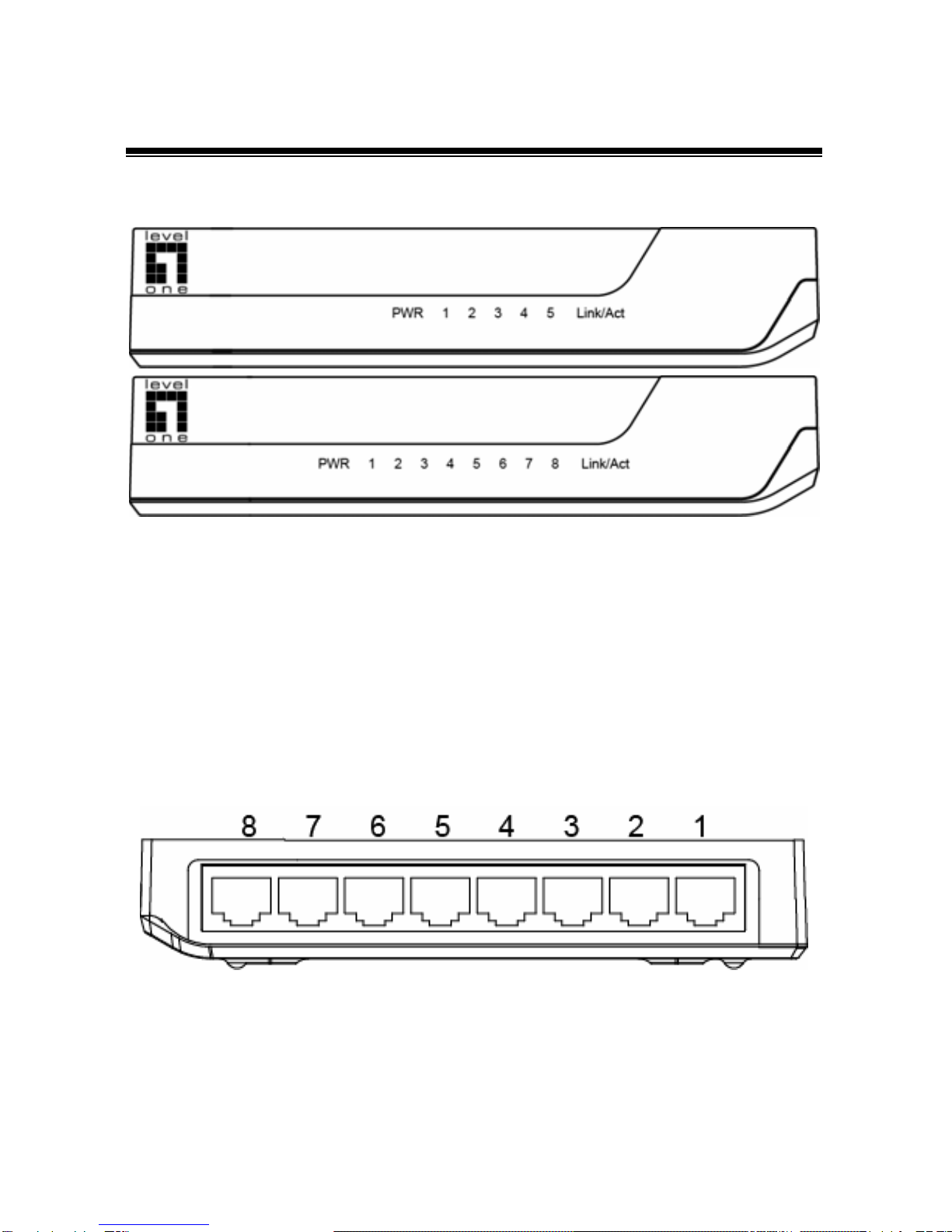

FSW-0511/FSW-0811 Front Panel

PWR This indicator will light up when the Switch powers up

Link/Act One LED indicator will light green when a device is

connected to the corresponding port. It flashes when

data is being transmitted or received on the connection.

Rear Panel

The rear panel of the FSW-0511/FSW-0811 consists of 5/8

10/100Mbps RJ45 Ports. All ports can work as the Uplink port.

Technical Support

Thank you for selecting LevelOne products. LeveOne’s website

contains the latest user documentation and soft-ware updates

for LevelOne products.

Please contact LevelOne Technical Support through our

website.

World Wide Web

http://www.level1.com
