LevelOne WBR-3470 Manuel utilisateur

WBR-3470

ADSL2+ VoIP Router 1W 4L

Quick Installation Guide

English Português

Deutsch 繁體中文

Français 한국어

Español 日本語

Nederlands Русский

Danish ไทย

Italiano ﻲﺑﺮﻋ

Ελληνικά

Front LED

LED Description

1 PWR：Lights when the power is ON.

2 SYS：Lights when the system is ready.

3-6 LAN Port

1-4：

Steady glow when connected to an Ethernet device.

Glows green for 100Mbps; Orange for 10Mbps.

Blinking light when data is Transmitted / Received.

7 WLAN：Lit green when the wireless connection is established.

Flashes when sending/receiving data.

8-9 Phone：Lit green when the phone is off-hook.

10 LINE：Lit when the inbound and outbound calls transmitted

through PSTN.

11 VoIP：Lit when SIP registration is OK.

12 PPP：Steady glow when there is a PPPoA / PPPoE connection.

13 ADSL：Lights when successfully connected to an ADSL DSLAM

(linesync).

Rear Ports

8 7 6 5 412

Port Description

1 Power

Switch Power ON/OFF switch.

2 PWR Connect the supplied power adapter to this jack.

3 RESET

After the router is powered on, press this recessed button using

the end of paper clip or other small pointed object to reset the

router or to restore it to factory default settings.

1. Recovery procedures for non-working routers (e.g. after a

failed firmware upgrade flash):

2. Recovery procedures for a lost web interface password:

4 LAN Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the

four LAN ports when connecting to a PC or an office/home

network of 10Mbps or 100Mbps.

5 Phone Connect RJ-11 cable to this port when connecting to an analog phone

set.

6 LINE Connect RJ-11 cable to this port when connecting to the telephone

wall jack

7 ADSL Connect the supplied RJ-11 (“telephone”) cable to this port when

connecting to the ADSL/telephone network.

8 Antenna Connect the detachable antenna to this port.

Package Contents

3WBR-3470

3AC-DC Power Adapter (12VDC, 1.2A)

3RJ-11 ADSL/telephone Cable

3Cat.5 Cable

3CD Manual

3Quick Installation Guide

Note

For more detailed instructions on configuring and using the ADSL2+ VoIP

Router, please refer to the User Manual

Warning

Do not use the WBR-3470 in high humidity or high temperatures.

Do not use the same power source for the WBR-3470 as other equipment.

Do not open or repair the case yourself. If the WBR-3470 is too hot, turn

off the power immediately and have it repaired at a qualified service

center.

Avoid using this product and all accessories outdoors.

Attention

Place the WBR-3470 on a stable surface.

Only use the power adapter that comes with the package. Using a

different voltage rating power adaptor may damage the router.

Connecting ADSL2+ VoIP Router

1. Connect the Router to a LAN (Local Area Network) and the ADSL/telephone (LINE) network.

2. Power on the device.

3. Make sure the PWR and SYS LEDs are lit steadily and that the relevant LAN LED is lit.

4. Connect an RJ11 cable to VoIP port when connecting to an analog phone set.

5. Connect an RJ11 cable to LINE port when connecting to the telephone wall jack

Configuring the Network Properties

Configuring PC in Windows XP

1. Go to Start / Control Panel (in Classic

View). In the Control Panel, double-click on

Network Connections

2. Double-click Local Area Connection.

3. In the Local Area Connection Status

window, click Properties.

4. Select Internet Protocol (TCP/IP) and click

Properties.

5. Select the Obtain an IP address

automatically and the Obtain DNS server

address automatically radio buttons.

6. Click OK to finish the configuration.

Configuring Your ADSL2+ VoIP Router

Note

To configure this device, you must have IE 5.0 / Netscape 4.5 or above

installed

1. Open the web browser and type

http://192.168.1.254 in the browser’s

address box. This number is the default IP

address for this router. Press Enter.

2. A username and password window will

appear. The default username and

password are admin and admin. Press

OK to proceed.

3. You will get a status report on web page.

Verifying Your Local Network Connection with the Device

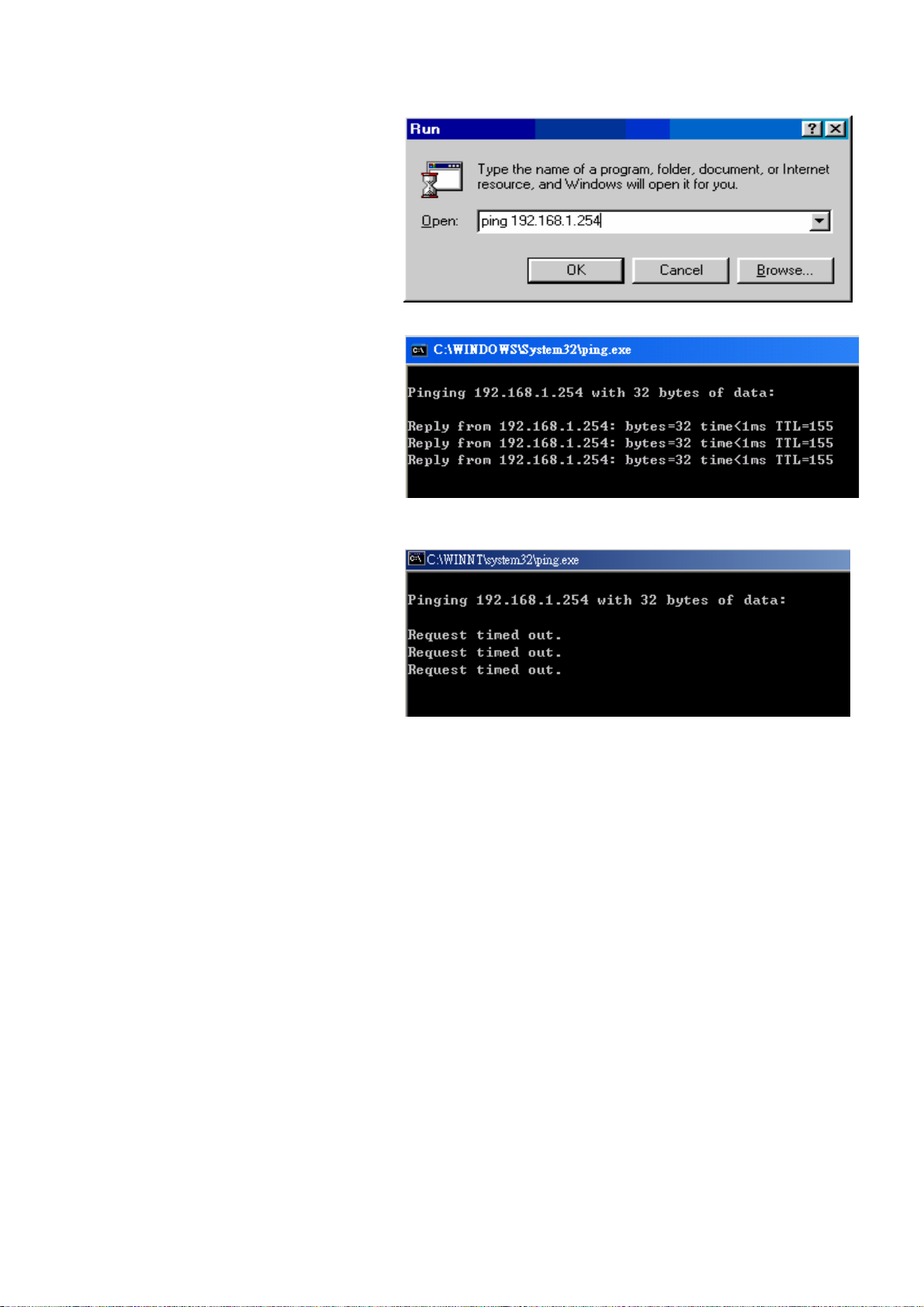

To see if this ADSL Router is

visible on the local network, go

to Start / Run.In the Run dialog

box, type “ping 192.168.1.254”

then presses OK.

A command prompt window will

pop out. If your ping is

successful which means your

local network is able to reach to

the device, then the command

prompt window will close up

automatically.

Connection fails, when you see

“Request timed out” in the

command prompt window. You

may need to check your set up.

Lieferumfang

3WBR-3470

3Netzteil (12 V Gleichspannung; 1,2 A)

3RJ-11-ADSL/Telefonkabel

3Cat.5-Kabel

3Anleitung auf CD

3Schnell-Installationsanleitung

Hinweis

Detailliertere Hinweise zur Konfiguration und zum Einsatz des

ADSL2+-VoIPs/Routers finden Sie in der Bedienungsanleitung.

Warnung

Verwenden Sie das Gerät nicht an feuchten oder heißen Orten.

Schließen Sie das Gerät an eine eigene Stromquelle an.

Öffnen Sie nicht das Gehäuse, versuchen Sie nicht, das Gerät selbst zu

reparieren. Falls sich das Gerät überhitzen sollte, schalten Sie sofort den

Strom ab und lassen das Gerät in einem qualifizierten Servicecenter

reparieren.

Setzen Sie das Produkt und sämtliche Zubehörteile nicht im Freien ein.

Achtung

Stellen Sie das Produkt auf einem stabilen Untergrund auf.

Verwenden Sie ausschließlich das mitgelieferte Netzteil. Bei Verwendung

eines Netzteils mit abweichenden Ausgangswerten kann der Router

beschädigt werden.

ADSL2+ VoIP-Router anschließen

1. Verbinden Sie den Router mit dem LAN (lokales Netzwerk) und dem

(A)DSL/Telefon-Netzwerk (LINE).

2. Schalten Sie das Gerät ein.

3. Überzeugen Sie sich davon, dass die LEDs PWR und SYS sowie die entsprechende

LAN-LED dauerhaft leuchten.

4. Verbinden Sie den VoIP-Anschluss über ein RJ11-Kabel mit einem Analogtelefon.

5. Verbinden Sie den LINE-Anschluss über ein RJ11-Kabel mit der Telefonsteckdose.
