LEGRAND SANUS VSTV2-B2 Manuel utilisateur

VSTV2-B2

Swivel TV Base

INSTRUCTION MANUAL

Our install experts are

standing by to help.

Call us at:

US: +1 (800) 359-5520

EMEA: +31 (0) 495 580 852

UK: +44 (0) 800 056 2853

Want to watch a video that

shows how easy this DIY

project will be?

Watch it now at:

SANUS.com/3093

WE’RE HERE TO HELP

Texto en español, página 16 Deutscher Text Seiten 20 Svensk text sida 24

中文文字说明请参见第 28 页

Texte français page 18 Nederlandse tekst op pagina 22

Русский текст: стр. 30

日本語は 26 ページ

Level Screwdriver

125 lbs.

(56.6 kg)

TV Weight Limit

(including accessories)

DO NOT EXCEED

Tools

Needed

If your TV (plus accessories)

weighs MORE, this mount is

NOT compatible.

Visit SANUS.com or call

customer service to find a

compatible mount.

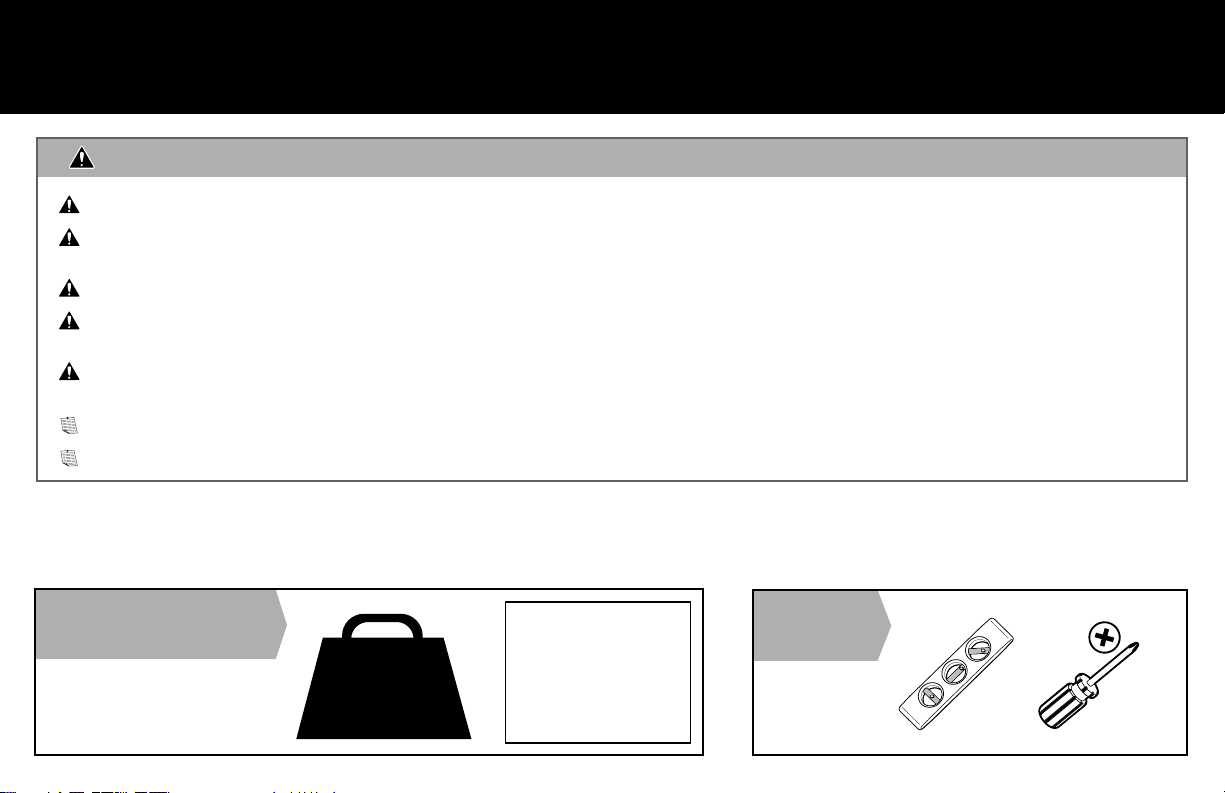

IMPORTANT SAFETY INSTRUCTIONS

– PLEASE READ MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS

Please read through these instructions completely to be sure you’re comfortable with this easy install process. Also check your TV owner’s manual to see if there are any special

requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service.

CAUTION: Avoid potential personal injuries and property damage!

CAUTION: Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

WARNING:Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the weight of the

display (including accessories) does not exceed 125 lbs (56.6 kg). Use with heavier televisions may result in instability causing tip over resulting in death or serious injury!

WARNING: Use this mounting system only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.

WARNING: Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may

encourage a child to climb on the furnishing and as a result the furnishing may tip over onto the child.

WARNING: Relocating audio and/or video equipment to furniture not specifically designed to support audio and/or video equipment may result in death or serious injury due

to the furnishing collapsing or overturning onto a child.

NOTE: This product supports TVs from 40 in. to 86 in. (diagonal).

NOTE: This product has no user serviceable parts.

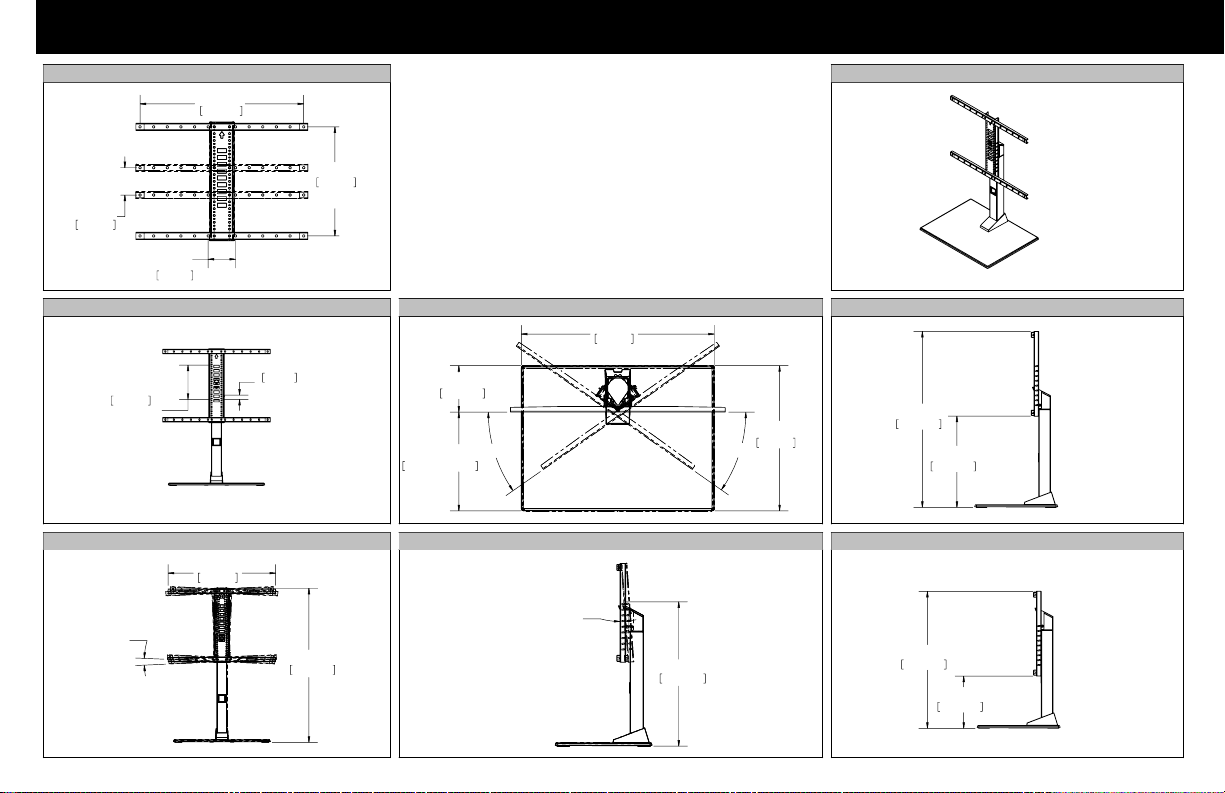

Dimensions

3.94in

100mm

MIN VESA

15.75in

400mm

MAX VESA

23.62in

600mm

MAX VESA

3.94in

100mm

MIN VESA

35deg

11.40in

289.5mm

5.37in

136.5mm

16.77in

426mm

22.28in

566mm

4deg

TILT

25.00in

635.1mm

35.57in

903.5mm

24.80in

630mm

5deg ROLL

0.98in

25mm

HEIGHT

ADJUST

7.87in

200mm

TOTAL

HEIGHT

ADJUSTMENT

18.44in

468.5mm

35.57in

903.5mm

10.57in

268.5mm

27.70in

703.5mm

TV INTERFACE

HEIGHT ADJUSTMENT

TOP VIEW - SWIVEL

3-D

SIDE VIEW - EXTENDED

SIDE VIEW - RETRACTED

SIDE VIEW - TILT

FULLY ASSEMBLED MOUNT

10-32 x 1/2 in.

M6/M8

1/4-20 x 3/8 in.

M5 x 6mm

M6 x 12mm

M8 x 50mm

M8 x 16mm

M8 x 20mm

M6 x 25mm

M8 x 40mm

M8x30 mm

NOTE: Not all hardware included will be used.

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact

Customer Service. Never use damaged parts!

Supplied Parts and Hardware

STEP 1

TV Bracket

TV Screws

Washer

Spacers

5.0 mm2.5 mm

(x4 each)

(qty. 4 each)

01 x2

01 x4

STEP 1 STEP 2 STEPS 2 and 3

5/32 in.

10-32 x 1/2 in.

M6/M8

1/4-20 x 3/8 in.

M5 x 6mm

M6 x 12mm

M8 x 50mm

M8 x 16mm

M8 x 20mm

M6 x 25mm

M8 x 40mm

M8x30 mm

06 x4

05 x1

08 x1

09 x1

11 x1

07 x3

10 x2

Vertical Height

Adjustment

Bracket

Lock Screw

Hex Key

Post

Base

Base Screw

Bracket Screw

1.1 Select TV Screw Diameter 1.2 Select TV Screw Length

CAUTION:

Verify adequate thread engagement

with your screw/washer/spacer

combination AND TV bracket.

-Too short will not hold the TV.

-Too long will damage the TV.

a:For flat-back TVs,

no spacers 02

required.

b:Spacers 02 supplied for:

●Round (irregular) back TVs

●Extra space needed (for cables or

inset mounting holes)

FLAT BACK ROUND BACK CABLES INSET HOLES

Test the three TV screw diameters (M6, or M8)

in the threaded inserts on the back of your TV to

determine which screw diameter fits your TV.

Too Short

Too Long

Correct

NOTE: If your

TV included inset

spacers or adapters,

use them UNDER the

mount hardware.

STEP 1 Attach TV Brackets to TV

a: Flat Back

b: Round Back / Extra Space

1.3 Attach Horizontal Brackets

Position your TV brackets 01 over your TV hole pattern - making sure the brackets are centered. Secure TV brackets 01 using your selection for screw/washer (a: Flat

Back) or screw/washer/spacer (b: Round Back / Extra Space).

CAUTION: Avoid potential personal injuries and property damage! DO NOT use power tools for this step. Tighten the screws only enough to secure the TV bracket to

the TV. DO NOT overtighten the screws.

IMPORTANT: Ensure TV brackets are securely fastened before moving on to the next step.

Make sure the vertical height adjustment bracket 05 is CENTERED on the TV and secure using interface screwsv.

IMPORTANT: Ensure all brackets are securely fastened before moving on to the next step.

1.4 Attach Vertical Bracket

STEP 2 Attach Post to Base

1 2

STEP 3 Attach TV to Post

Highest Position Lowest Position

Highest

TV Position

Lowest

TV Position

Examples

Determine the height from the base 08 that you would

like your TV to hang.
