LEGRAND SANUS WSSAFM1-B2 Manuel utilisateur

WSSAFM1-B2

SOUNDBAR MOUNT DESIGNED

FOR Sonos*Ray™

INSTRUCTION MANUAL

WE’RE HERE TO HELP

If you have any questions along the way, just give us a call or visit SANUS.com

US: +1 (800) 359-5520 • UK: +44 (0) 800 056 2853 • EMEA: +31 (0) 495 580 852

Texto en español, página 22 Deutscher Text Seiten 30 Svensk text sida 38

中文文字说明请参见第 54 页

Texte français page 26 Nederlandse tekst op pagina 34

Русский текст: стр. 46 日本語は 50 ページ

Testo italiano pagina 42

•Your TV, soundbar, soundbar mount, and any accessories you plan to install

DO NOT EXCEED the specified weight limit of your TV or TV wall mount.

•Refer to the documentation that came with your soundbar, your TV and

your TV wall mount for additional guidance.

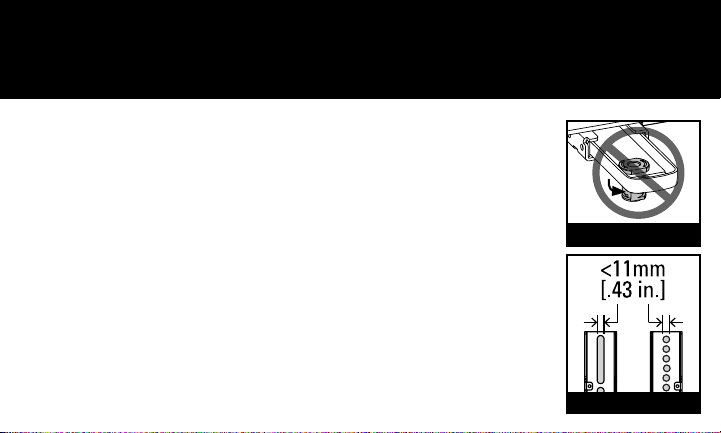

•You CANNOT use this product if your TV mount’s interface bracket:

includes built-in/integrated spacers (Figure 1), or the mounting holes/

slots are greater than 11mm [.43 in.] (Figure 2).

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

Figure 2

Figure 1

Before getting started, let’s make sure this mount is perfect for you!

Soundbar

Figure 3

WARNING:

•This soundbar mount is only designed for use with TV wall mounts that meet third party safety

certifications (UL Certified).

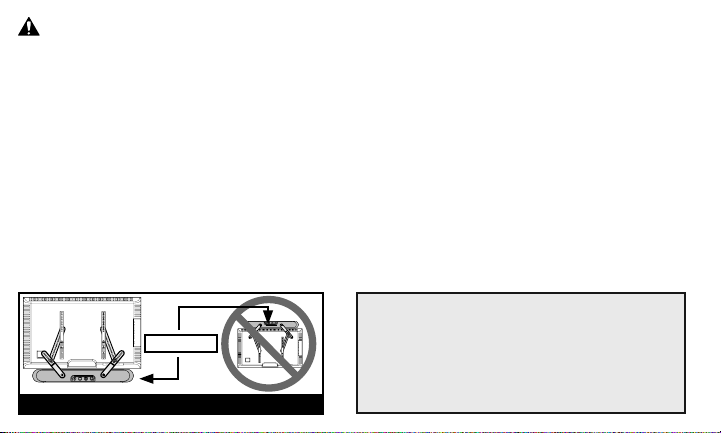

•This soundbar mount is ONLY designed to mount below the television (Figure 3).

•This soundbar mount is designed to be installed and utilized only as specified in this manual.

The manufacturer is not responsible for improper assembly, use, or handling of this product.

•For wall mounted TVs: Your wall must be capable of supporting five times the weight of your TV,

TV mount, and soundbar combined.

•Failure to follow these instructions could result in an unstable situation that may result in

property damage or personal injury.

If you have any questions,

please contact customer service.

US: +1 (800) 359-5520

UK: +44 (0) 800 056 2853

EMEA: +31 (0) 495 580 852

Weight Limit

for WSSAFM1-B2

TOTAL Weight Limit for Your TV Mount/Stand

DO NOT EXCEED

5 lbs. (2.27 kg)

for this Soundbar Mount.

5 lbs.

(2.27 kg)

CAUTION: Avoid potential personal injuries and property damage!

The weight of your TV/ this soundbar mount/your soundbar/any accessories, MUST BE LOWER than the

maximum weight rating of your TV mount.

See your TV mount's manual for maximum weight allowed.

(plus) (plus) (equals)

Soundbar

Mount ANY Other

Accessories

Sonos*Ray™

Soundbar Your TV

Total Maximum

weight for Your TV

Mount/Stand

Weight Restrictions

(plus)

(2 lbs.)

(0.9 kg) __ lbs.

(__ kg)

__ lbs.

(__ kg)

__ lbs.

(__ kg)

MAX

TOTAL

WEIGHT

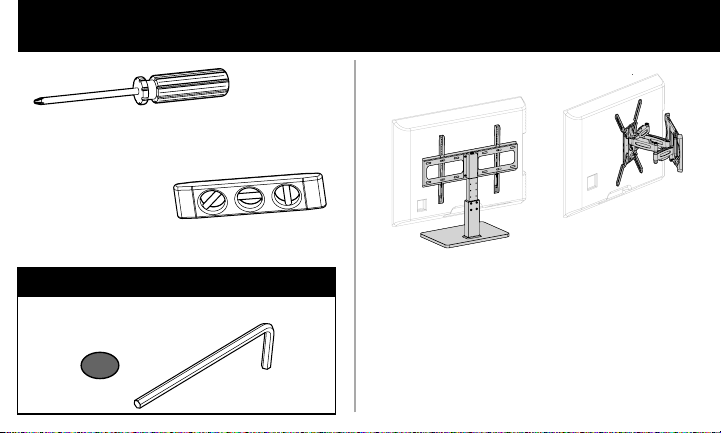

Phillips Screwdriver

Level

3rd Party Certified

TV stand or Wall Mount**

**The TV mount styles illustrated will vary, though

the install procedures are the same.

Tools Needed

3/16 in.

Hex Key

INCLUDED

Parts and Hardware for STEP 1

Soundbar

Bracket

Mount Spacer

qty. 2

NOTE: Not all hardware included will be used.

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting

assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item

to your dealer; contact Customer Service. Never use damaged parts!

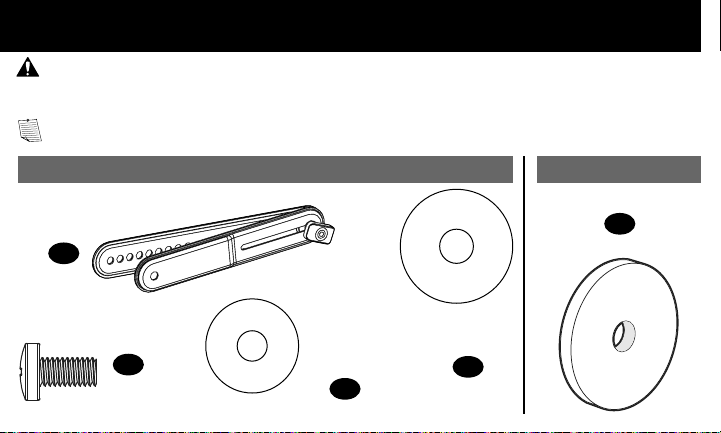

Supplied Parts and Hardware

M4 x 16mm

M5 x 16mm

M4 x 10mm

M5 x 10mm

1/4-20 x 9.53 mm (3/8”)

M6 x 16mm

M5 Washer

Spacer

qty. 2

#10

M5x10mm qty. 2

M5 x 10mm

Soundbar Screw

qty. 2

Part for STEP 3

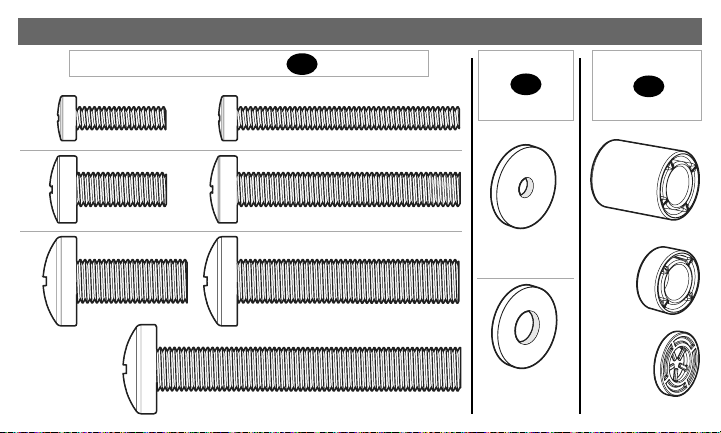

Parts and Hardware for STEP 3

M4 x 16mm

M6 x 16mm

M8 x 20mm

M4 x 40mm

M6 x 40mm

M8 x 40mm

M8 x 55mm

22mm

TV Spacer

2.5mm

5mm

M4 / M5

Washer

M6 / M8

Washer

qty. 4

qty. 4 each

qty. 4

TV Interface Screws

Washers Spacers

07 08

M4 x 16mm

M6 x 16mm

M8 x 20mm

M4 x 40mm

M6 x 40mm

M8 x 40mm

M8 x 55mm

22mm

TV Spacer

2.5mm

5mm

M4 x 16mm

M6 x 16mm

M8 x 20mm

M4 x 40mm

M6 x 40mm

M8 x 40mm

M8 x 55mm

22mm

TV Spacer

2.5mm

5mm

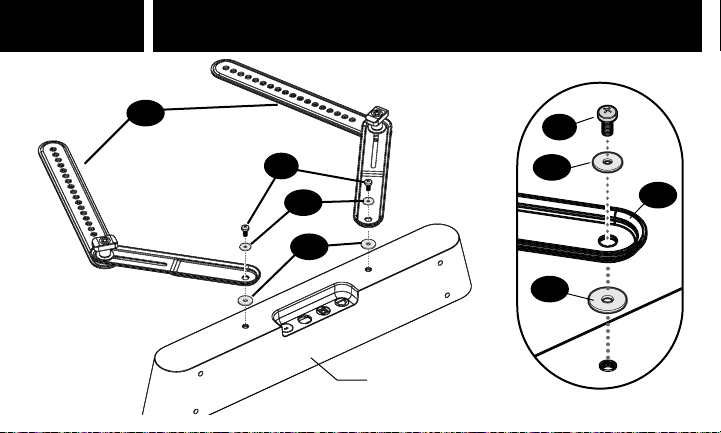

STEP 1

Install Brackets on Sonos*Ray™

Bottom of Sonos*Ray™

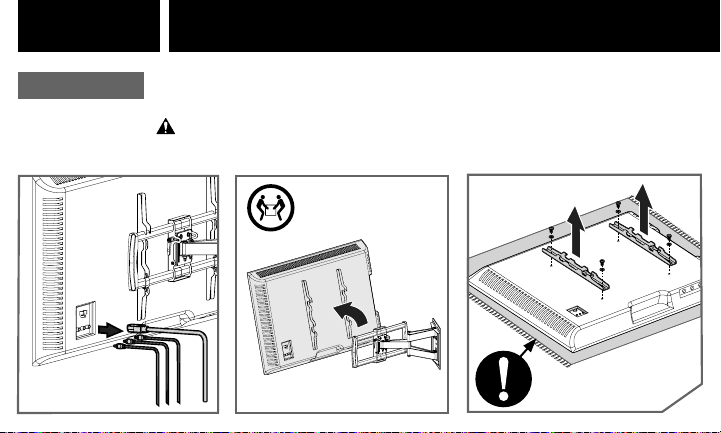

Prep Your TV (if mounted on a wall or stand)

STEP 2.1

STEP 2

Position Sonos*Ray™Soundbar

CAUTION: Follow your TV mount’s manual for instructions on how to safely

remove your TV and TV bracket.

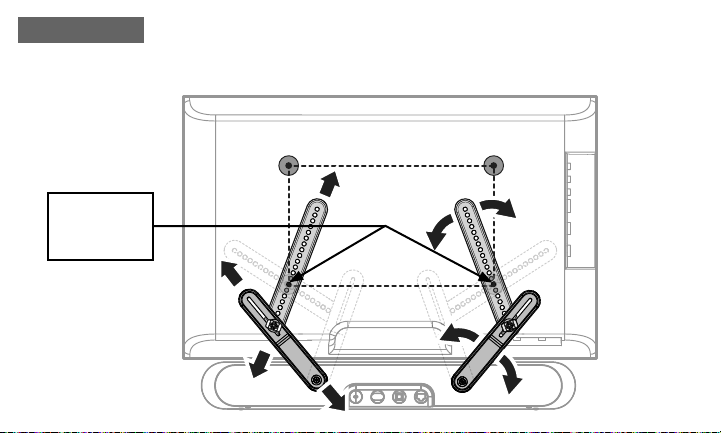

Adjust Soundbar Mount to Match Your TV (VESA) Hole Pattern

STEP 2.2

TV Hole

Pattern
