LEGRAND Sanus VDSF16 Manuel utilisateur

VDSF

INSTRUCTION MANUAL

GET IT

RIGHT

THE FIRST TIME

Follow this step-by-step

instruction manual to

speed up your installation.

Texto en español, página 23

WE’RE HERE TO HELP

Ourlive, US-based install

experts are standing by to help.

Call us at:

US: +1 (800) 359-5520

Get it right the ﬁrst time.

HeightFinder™ shows you

where to drill.

Check it out at:

SANUS.com/1172

Want to watch a video that

shows how easy this DIY

project will be?

Watch it now at:

SANUS.com/3077

Or, chat at:

SANUS.com/chatSP

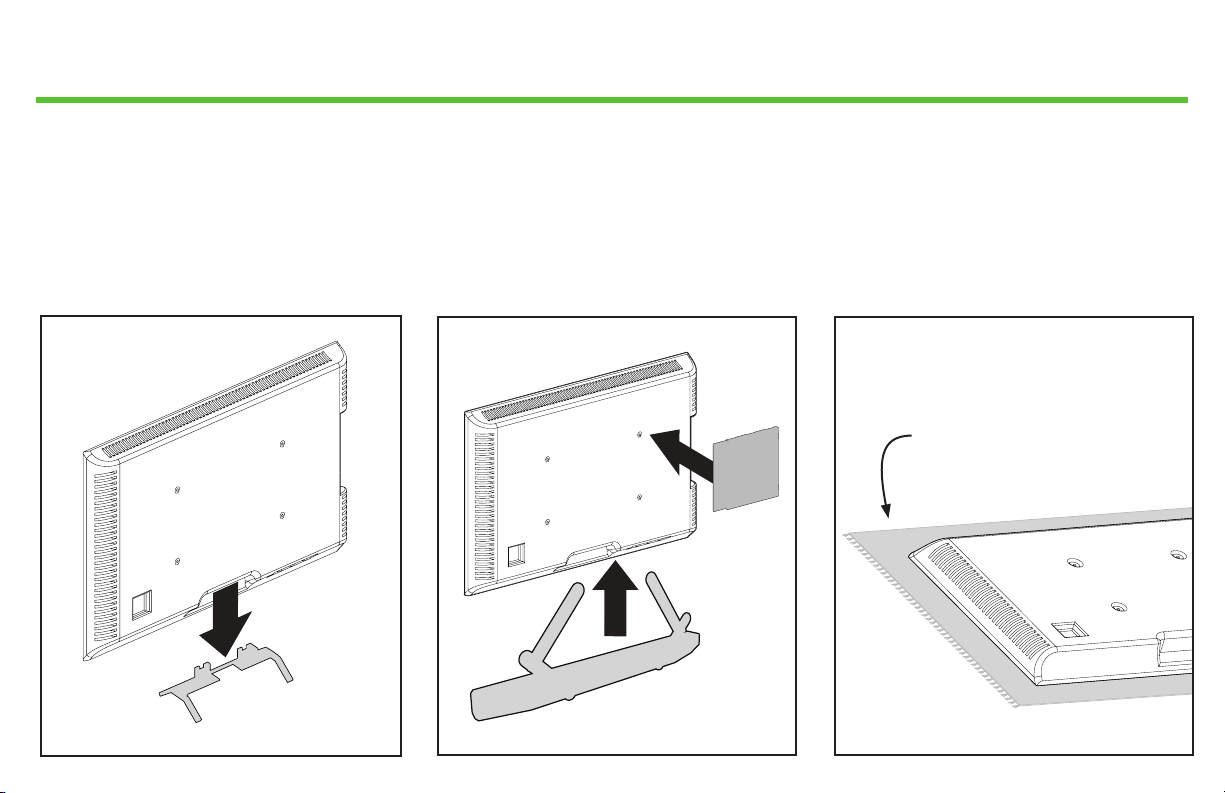

Before you begin

Soft clean surface

Remove the stand from your TV —

if attached.

Install any accessories

you may have purchased —if they require

the TV to be removed from the wall for

assembly. The TV is removable for future

accessory purchases.

Protect the face of your TV

when laying it down for installation.

35 lbs.

(15.8 kg)

IMPORTANT SAFETY INSTRUCTIONS – PLEASE READ MANUAL PRIOR TO USE – SAVE THESE INSTRUCTIONS

Please read through these instructions completely to be sure you’re comfortable with this easy install process.

Check your TV owner’s manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product,

contact Customer Service: +1 (800) 359-5520.

CAUTION: Avoid potential personal injuries and property damage!

●This product is designed ONLY to be installed into wood studs, solid concrete or concrete block.

—DO NOT INSTALL INTO DRYWALL ALONE — DRYWALL ALONE WILL NOT HOLD THE WEIGHT OF YOUR TV.

●This product is designed for INDOOR USE ONLY.

●The wall must be capable of supporting five times the weight of the TV and mount combined.

●Do not use this product for any purpose not explicitly specified by manufacturer.

●Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

TV Weight Limit

(including accessories)

DO NOT EXCEED

If your TV (including accessories) exceeds this

weight, this mount is NOT compatible.

Visit SANUS.com or call customer service to find a

compatible mount.

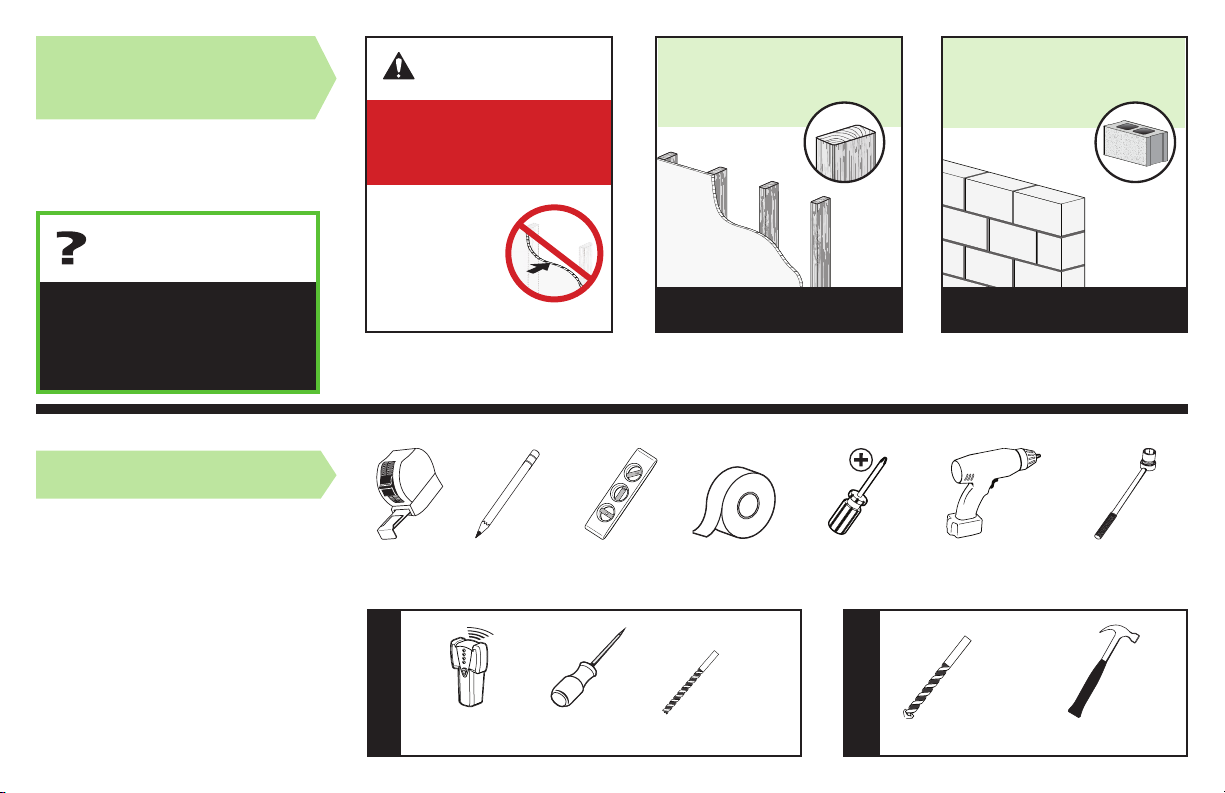

Tools Needed

Wall

Construction

Drywall alone

will NOT hold

the weight of

your TV.

wood studs Solid concrete or

concrete block

ACCEPTABLE ACCEPTABLE

Wood Stud Install

Concrete Install

Awl

Pencil Level Tape

Stud

Finder

ScrewdriverTape

Measure

1/8 in.

(3 mm)

Wood

Drill Bit

Electric

Drill

Hammer

7/16 in.

(11 mm)

Socket

Wrench

Drill Bit

3/8 in.

(10 mm)

Concrete

CAUTION:

DO NOT install

in drywall alone

ONLY install on

these acceptable

wall types.

Call Customer Service

+1 (800) 359-5520

Unsure

M8 x 35mm

M8 x 16mm

M8 x 20mm

22mm

M6 x 12mm

M4 x 12mm

M6 x 35mm

M4 x 35mm

STEP 1 Parts and Hardware

TV Bracket

TV Screws

(qty. 4 each) [Only one size fits your TV]

Washers

(qty. 4 each)

Spacers [If necessary]

(qty. 4 each)

0302

M4/M5

M6/M8

M4/M6/M8

(qty. 1)

Attach TV Bracket to TV

STEP 1

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If any parts are

missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

NOTE: Not all hardware included will be used.

02 01

Too Short Too Long Correct

If your TV included

inset spacers or wall

mount adapters, see

Troubleshooting on PAGE 21.

Inset Holes Cables Rounded Back

Only one screw size fits your TV.

M4 M8 • Flat Back TV

[TV brackets

lay flat on your TV]

NO SPACER SPACER NEEDED

• Flat Back TV with

Extra Space Needed

[for deep inset holes

or cable interference]

• Rounded or

Irregular Back TV

[TV brackets NOT

resting flat on your TV]

A B

Use short TV screws 01 .

Spacers 03 not needed.

Use long TV screws 01 and spacers 03 to create extra

space between the TV and TV bracket.

CAUTION: Verify adequate thread engagement with

your screw 01 , washer 02 , spacer 03 combination

AND TV bracket 04 .

—Too short will not hold your TV.

—Too long will damage your TV.

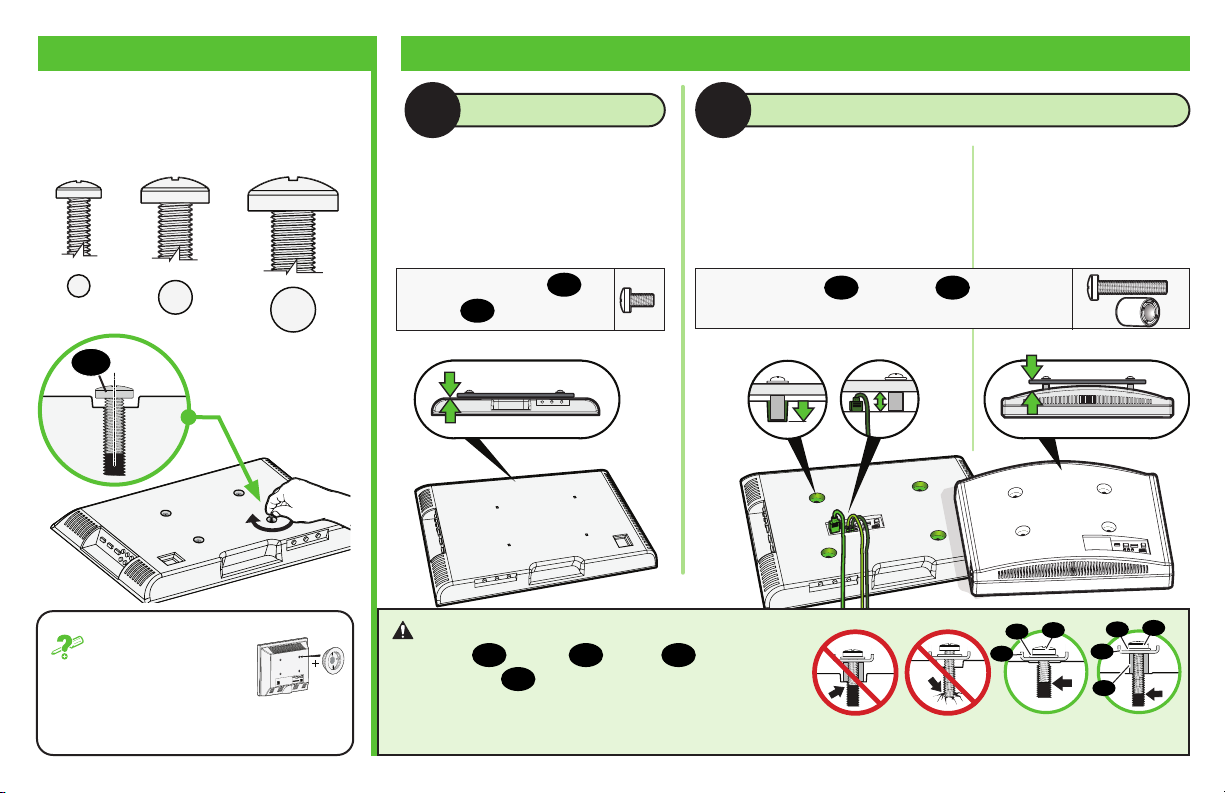

1.2 Select TV Screw Length and Spacers1.1 Select TV Screw Diameter

Top of TV

02 02

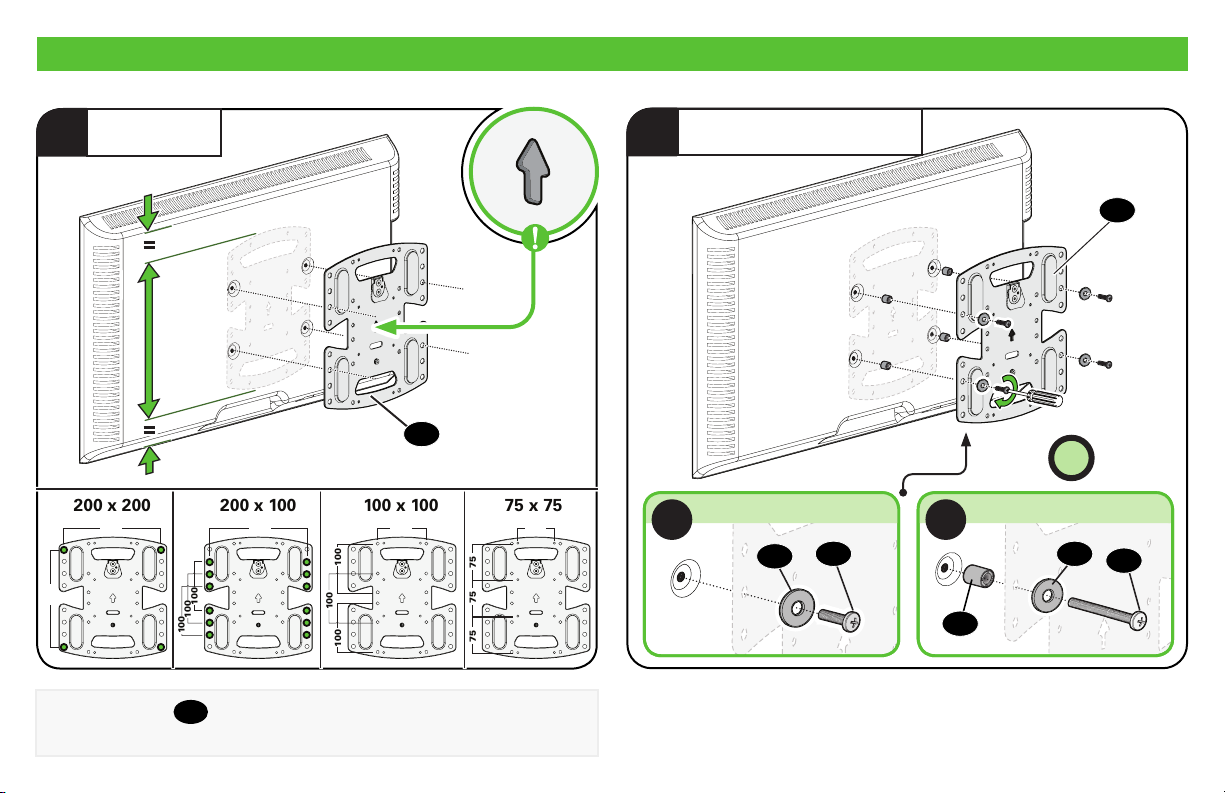

Center TV bracket 04 over your TV hole pattern as shown.

Various hole positions included for non-centered TV hole patterns.

1POSITION

200 x 200 200 x 100100 x 100 75 x 75

200

10010 0

75 75 75

200 100 75

100

1.3 Attach TV Bracket to Your TV

NO SPACER SPACER NEEDED

A B

2SECURELY TIGHTEN

Fischer UX10 x 60R

1/4 x 2¾in.

1/4 in.

07 x2

08 x2

Parts and Hardware for STEP 2

Lag Bolt Washer

Drill Template

Arm Assembly

Concrete Anchor

For concrete installations ONLY

CAUTION: Do not use in drywall or wood

CABLE COVERS

(ATTACHED)

WALL PLATE

COVER

(ATTACHED)

Attach Wall Plate to Wall

STEP 2

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts are included and undamaged. If

any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service.

Never use damaged parts!

NOTE: Not all hardware included will be used.

Min. 3 ½ in. (8.9 cm)

Min. 1 ½ in. (3.8 cm)

Max. 5/8 in. (1.5 cm)

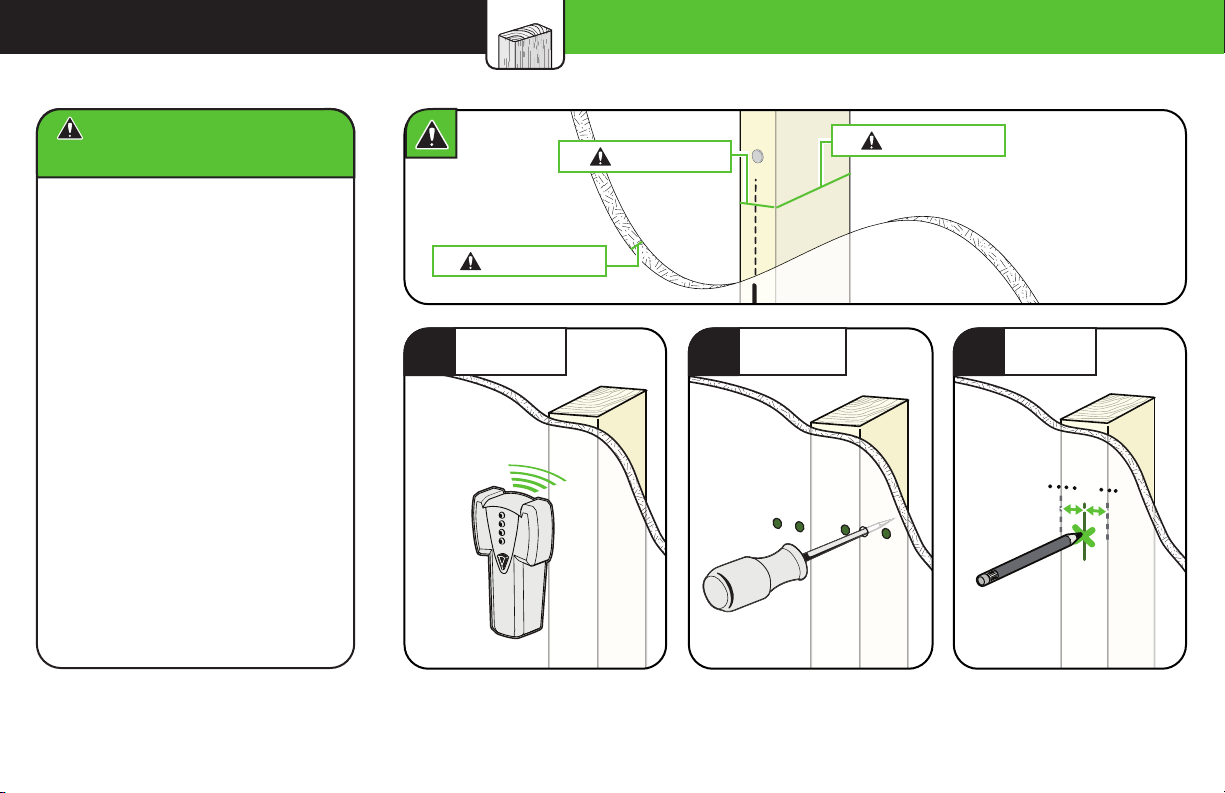

STEP 2A Attach Wall Plate Wood Stud Installation

CAUTION: Avoid potential personal

injury or property damage!

●Drywall covering the wall

must not exceed 5/8 in. (1.5 cm)

●Minimum wood stud size:

nominal 2 x 4 in. (5.1 x 10.2 cm)

actual 1 ½ x 3 ½ in. (3.8 x 8.9 cm)

●Stud center must be verified

1LOCATE 2VERIFY 3MARK
