CMS440N / CMS445N

CMS440N / CMS445N Installation Instructions

DISCLAIMER

Legrand | AV and its affiliated corporations and subsidiaries

(collectively “Legrand | AV”), intend to make this manual

accurate and complete. However, Legrand | AV makes no claim

that the information contained herein covers all details,

conditions or variations, nor does it provide for every possible

contingency in connection with the installation or use of this

product. The information contained in this document is subject

to change without notice or obligation of any kind. Legrand | AV

makes no representation of warranty, expressed or implied,

regarding the information contained herein. Legrand | AV

assumes no responsibility for accuracy, completeness or

sufficiency of the information contained in this document.

Chief® is a registered trademark of Legrand AV Inc.

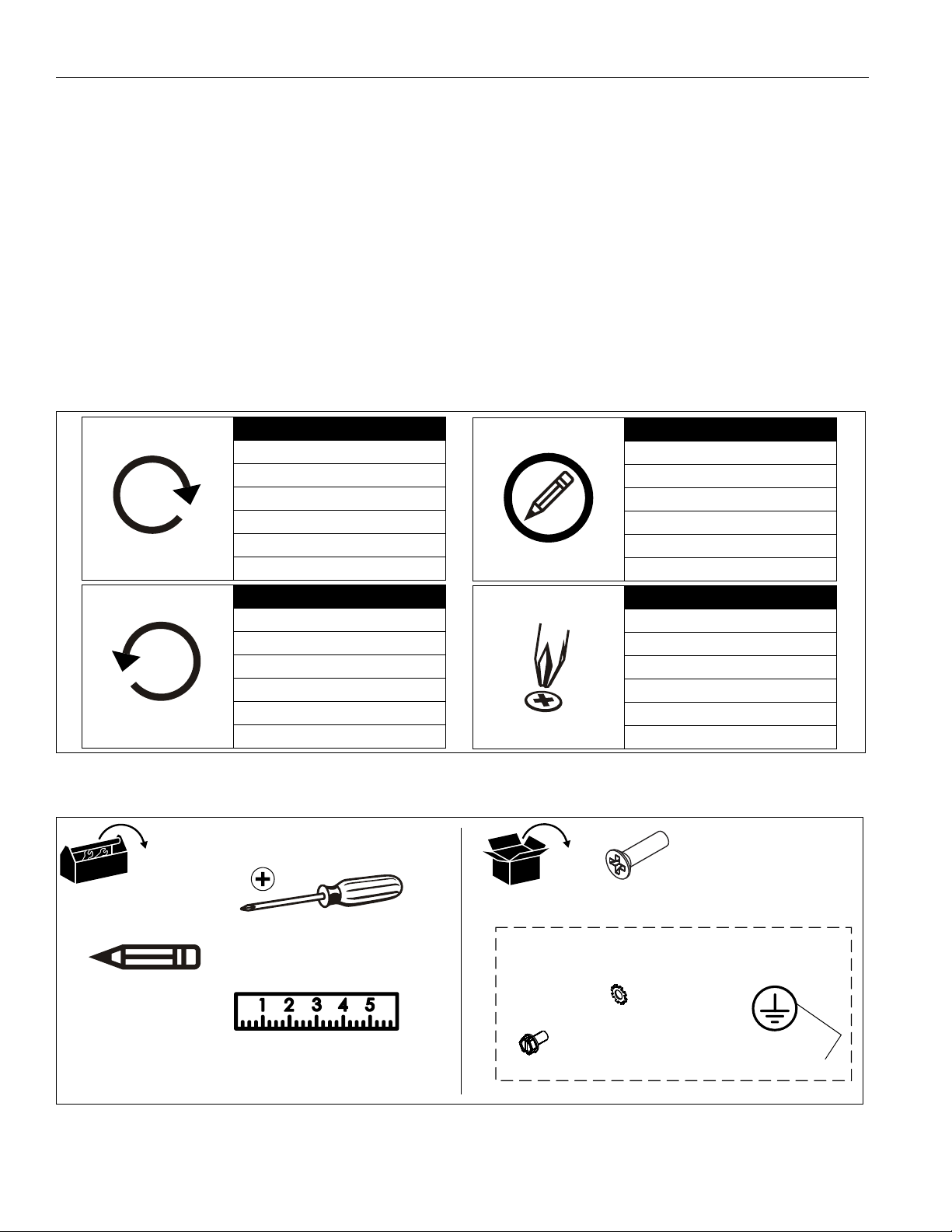

LEGEND

TOOLS REQUIRED FOR INSTALLATION / ADDITIONAL PARTS

Tighten Fastener

Apretar elemento de fijación

Befestigungsteil festziehen

Apertar fixador

Serrare il fissaggio

Bevestiging vastdraaien

Serrez les fixations

Loosen Fastener

Aflojar elemento de fijación

Befestigungsteil lösen

Desapertar fixador

Allentare il fissaggio

Bevestiging losdraaien

Desserrez les fixations

Pencil Mark

Marcar con lápiz

Stiftmarkierung

Marcar com lápis

Segno a matita

Potloodmerkteken

Marquage au crayon

Phillips Screwdriver

Destornillador Phillips

Kreuzschlitzschraubendreher

Chave de fendas Phillips

Cacciavite a stella

Kruiskopschroevendraaier

Tournevis à pointe cruciforme

A (1)

6-32 x 1/2"

10-32 x 3/8" #10

Earthing symbol IEC 60418 No. 5019

affixed adjacent to grounding terminal.

(See Figures 3 and 7)

Grounding screw and washer installed at factory

Installation Instructions CMS440N / CMS445N

WARNING: IMPROPER INSTALLATION CAN RESULT IN

DEATH OR SERIOUS PERSONAL INJURY! This accessory

should be installed by qualified personnel.

IMPORTANT ! : In addition to the CMS440 and CMS445

installation instructions accompanying the products, the

following steps must also be taken when installing the

CMS440N and CMS445N.

A 15 Amp duplex outlet (not included) may be installed into the

CMS440N and CMS445N, and the CMS440/445N must then be

connected to a 15 Amp branch circuit.

CMS440N

1. Cut a hole in the ceiling tile around the outlet side of the

electrical box so that the ceiling tile will fit over the

CMS440N. (See Figure 1)

Figure 1

2. Install a 15 Amp duplex outlet (not included) into the

electrical box.

3. Loosen two Phillips head screws on the electrical box.

4. Remove electrical box cover. (See Figure 2)

Figure 2

WARNING: IMPROPER WIRING CAN LEAD TO DEATH

OR SEVERE PERSONAL INJURY! Grounding must be

installed by qualified personnel using a UL Recognized No.

12AWG Green grounding wire connected to grounding lug on

box.

WARNING: ELECTRICAL SHOCK HAZARD! Turn off

power to device before performing service.

Figure 3

5. Wire the CMS440N as required.

6. Replace the electrical box cover. (See Figure 4)

7. Tighten two Phillips head screws in electrical box cover.

Figure 4

Cut opening in ceiling

tile around outlet side

of electrical box.

x 2

Electrical box

cover

Grounding Lug Location

Green Grounding

Wire

x 2

CMS440N / CMS445N Installation Instructions

8. Attach face plate (not included) using one 6-32 x 1/2"

Phillips flat head screw (A) after the CMS440N has been

installed. (See Figure 5)

Figure 5

CMS445N

1. Install a 15 Amp duplex outlet (not included) into the

electrical box.

2. Loosen two Phillips head screws on the electrical box.

3. Remove electrical box cover. (See Figure 6)

Figure 6

WARNING: IMPROPER WIRING CAN LEAD TO DEATH

OR SEVERE PERSONAL INJURY! Grounding must be

installed by qualified personnel using a UL Recognized No.

12AWG Green grounding wire connected to grounding lug on

box.

WARNING: ELECTRICAL SHOCK HAZARD! Turn off

power to device before performing service.

Figure 7

4. Wire the CMS445N as required.

5. Replace the electrical box cover. (See Figure 8)

6. Tighten two Phillips head screws in electrical box cover.

Figure 8

(A) x 1

Face plate

(not included)

x 2

Electrical box

cover

Grounding Lug Location

Green Grounding

Wire

x 2

Electrical box

cover

Installation Instructions CMS440N / CMS445N

7. Attach face plate (not included) using one 6-32 x 1/2"

Phillips flat head screw (A) after the CMS445N has been

installed. (See Figure 9)

Figure 9

(A) x 1

Face plate

(not included)
