LEGRAND SANUS WSWME11-W2 Manuel utilisateur

WSWM

E31

and WSWM

E32

Tilt & Swivel Speaker Wall Mount

For SONOS®Era 300™

INSTRUCTION MANUAL

Texto en español, página 20 Deutscher Text Seiten 24 Svensk text sida 28 中文文字说明请参见第 32 页

Texte français page 22 Nederlandse tekst op pagina 26 Русский текст: стр. 30 日本語は 34 ページ

We’ll Make It Stress-Free

If you have any questions along the way, just give us a call.

US: +1 (800) 359-5520 • EMEA: +31 (0) 495 580 852 • UK: +44 (0) 800 056 2853

We’re ready to help!

CAUTION: Avoid potential personal injuries and property damage!

•Check your speaker owner’s manual to see if there are any special requirements for mounting your speaker.

•Please read through these instructions completely to be sure you’re comfortable with this easy install process.

• Do not use this product for any purpose not explicitly specified by manufacturer.

• Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

• The wall must be capable of supporting five times the weight of the speaker and mount combined.

• If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product,

contact Customer Service at +1 (800) 359-5520 (EMEA: +31 (0) 495 580 852; UK: +44 (0) 800 056 2853).

10 lbs.

(4.5 kg)

Speaker Weight Limit

DO NOT EXCEED

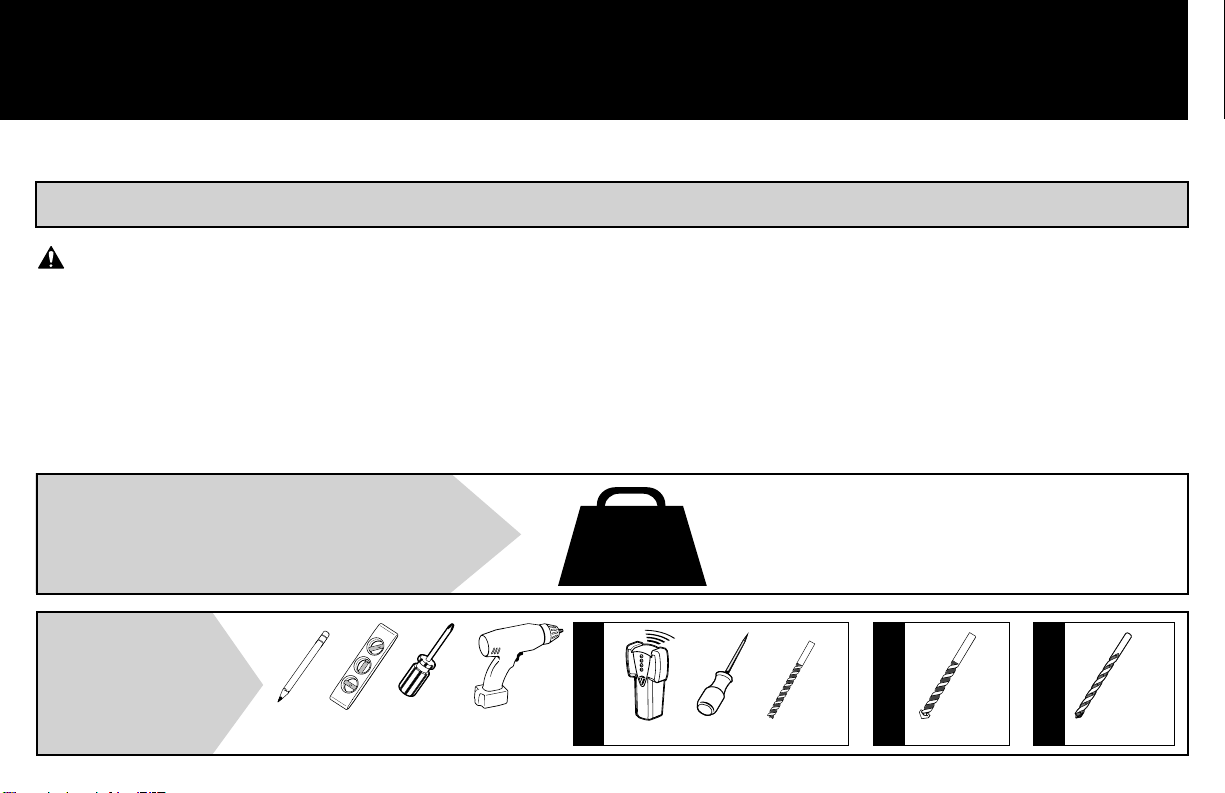

Tools

Needed

Wood Stud Install

Concrete Install

Awl

Pencil Level Stud Finder

Screwdriver Drill Bit

Electric Drill

Drill Bit

3/8 in.

(10 mm)

Masonry

3/8 in.

(10 mm)

1/8 in.

(3 mm)

Wood

Drywall Install

Drill Bit

This mount is designed to support only Sonos® Era 300™ speakers.

Before getting started, let’s make sure this product is perfect for you!

IMPORTANT SAFETY INSTRUCTIONS

—PLEASE READ ENTIRE MANUAL PRIOR TO USE —SAVE THESE INSTRUCTIONS



















4 deg

UP TILT

32 deg

DOWN TILT

4.04in

102.6mm

32deg

4.82in

122.4mm

4.91in

124.8mm

6.89in

175.1mm

2.32in

59mm

1.97in

50mm

0.84in

21.3mm

1.17in

29.8mm

3.00in

76.1mm

0.26in

6.6mm

1.73in

44mm

0.22in

5.6mm

3.50in

88.9mm

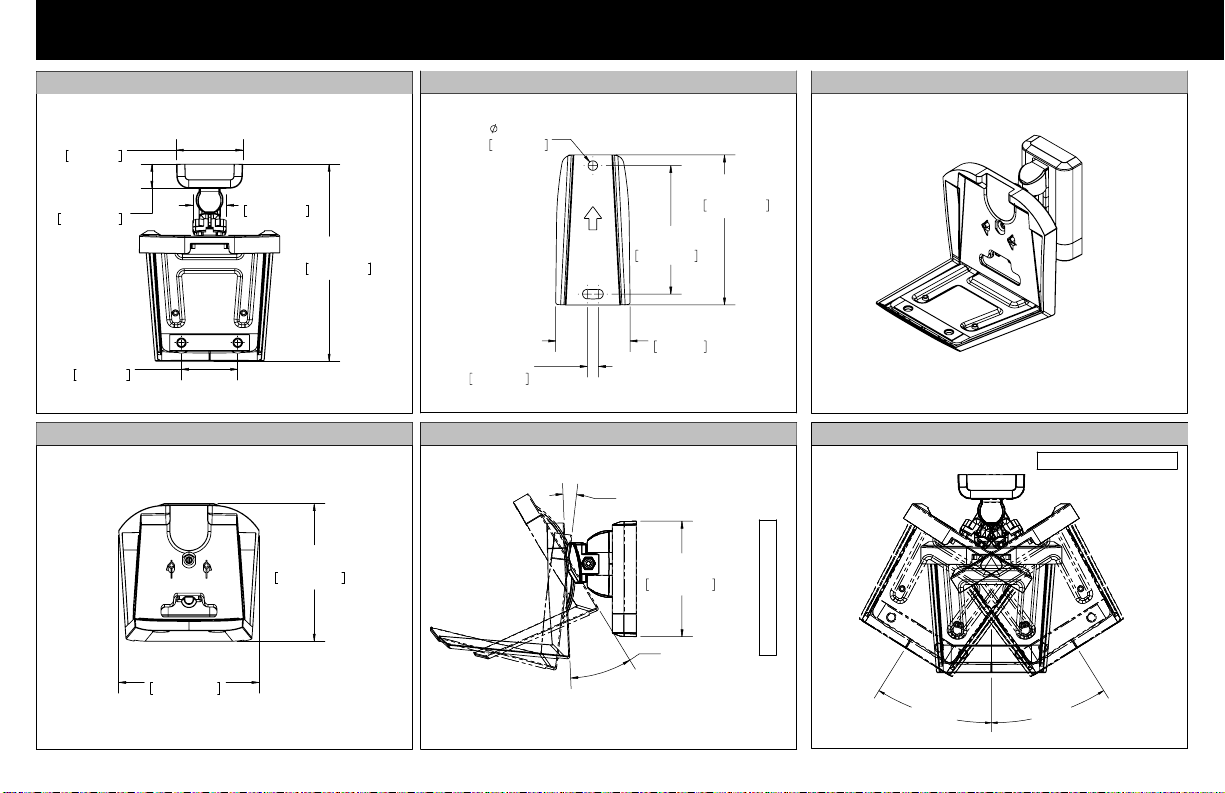

Dimensions

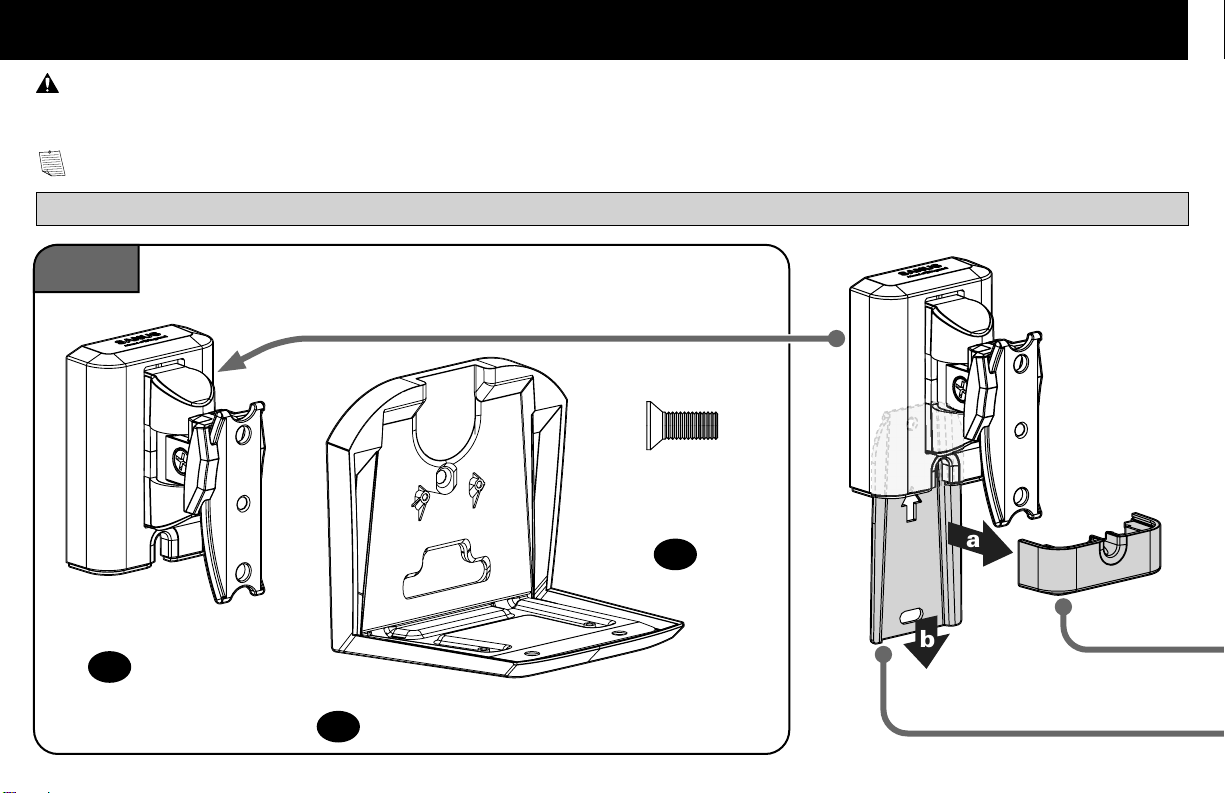

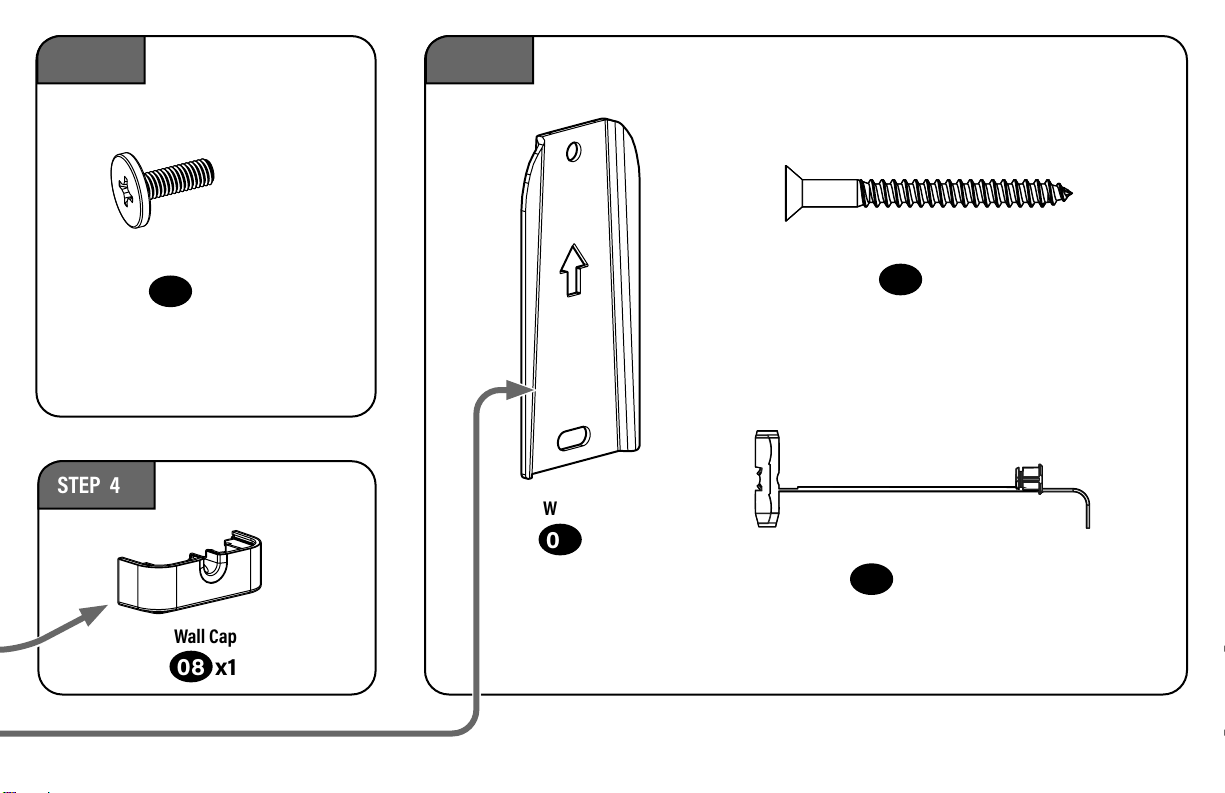

Supplied Parts and Hardware









STEP 1

Wall Mount

Speaker Bracket

Bracket Assembly

Screw

01 x1

02 x1

03 x1

Quantities shown are for one speaker mount.

NOTE: Not all hardware included will be used.

WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact

Customer Service. Never use damaged parts!









STEP 4

Wall Plate Screw

Wall Cap

Speaker Screw

Wall Plate

Drywall / Concrete Anchor

06 x2

05 x1

07 x2

08 x1

04 x2

STEP 3STEP 2

Assemble Brackets

STEP 1

02 01

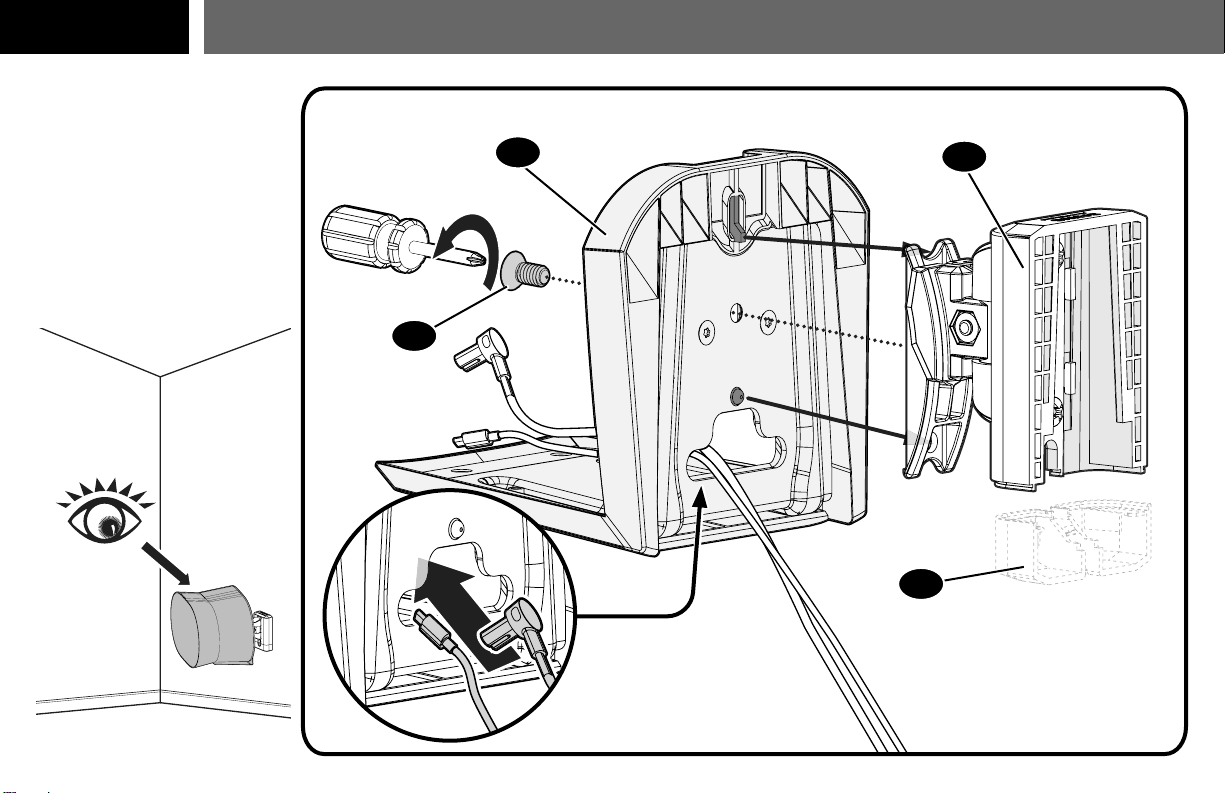

BELOW

Eye Level

Installation

Assemble Brackets

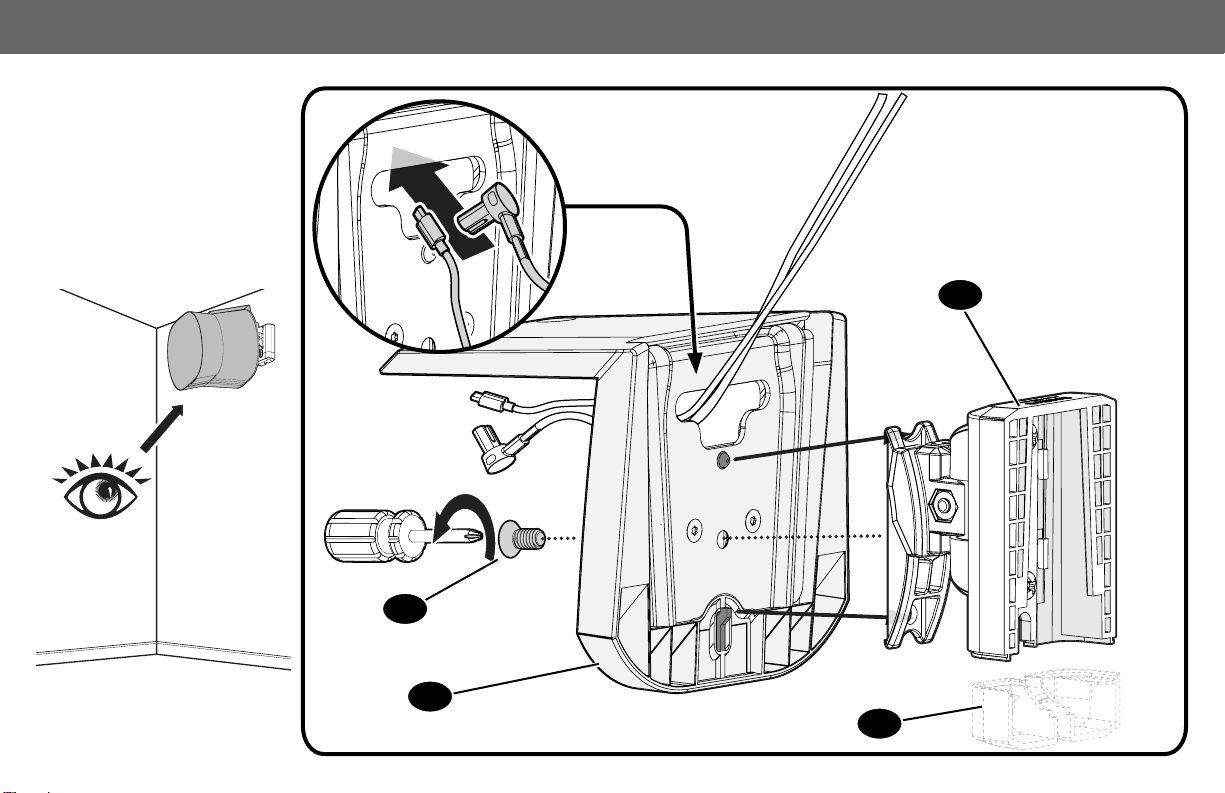

ABOVE

Eye Level

Installation

(Speaker Upside Down)

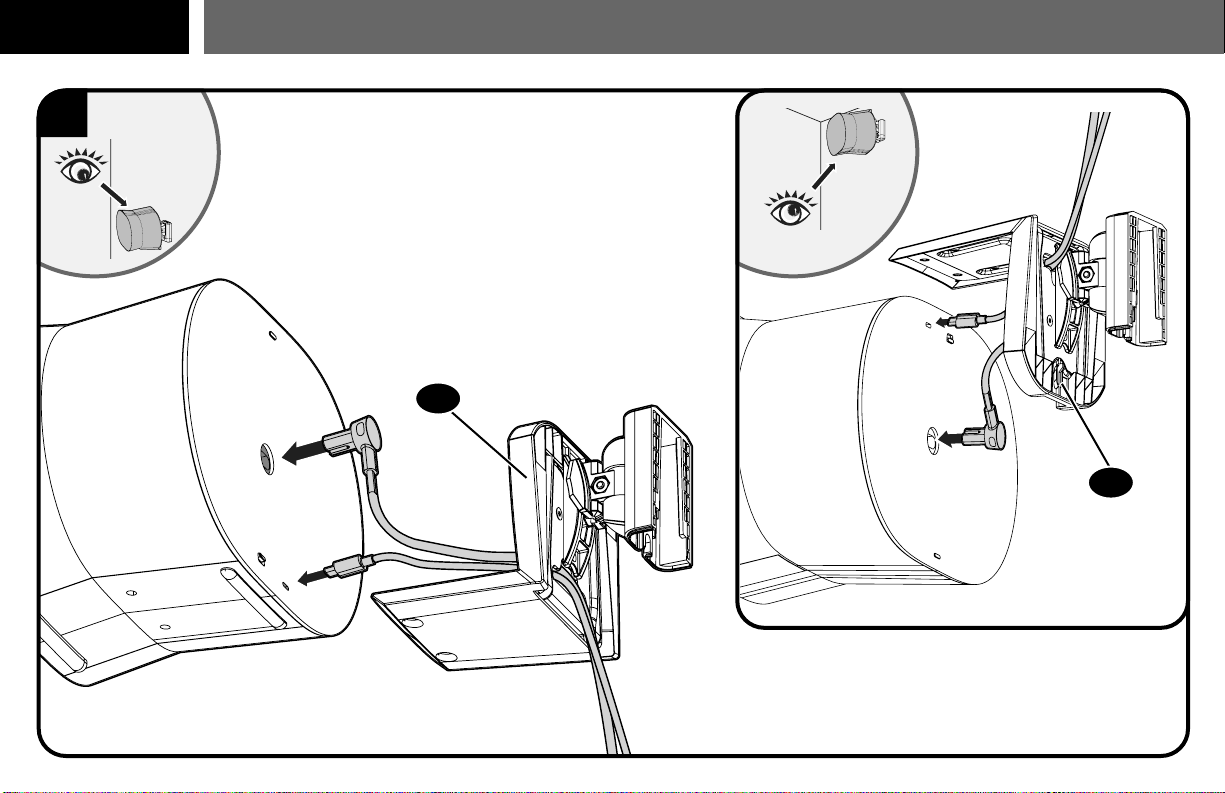

Attach Speaker to Bracket

STEP 2

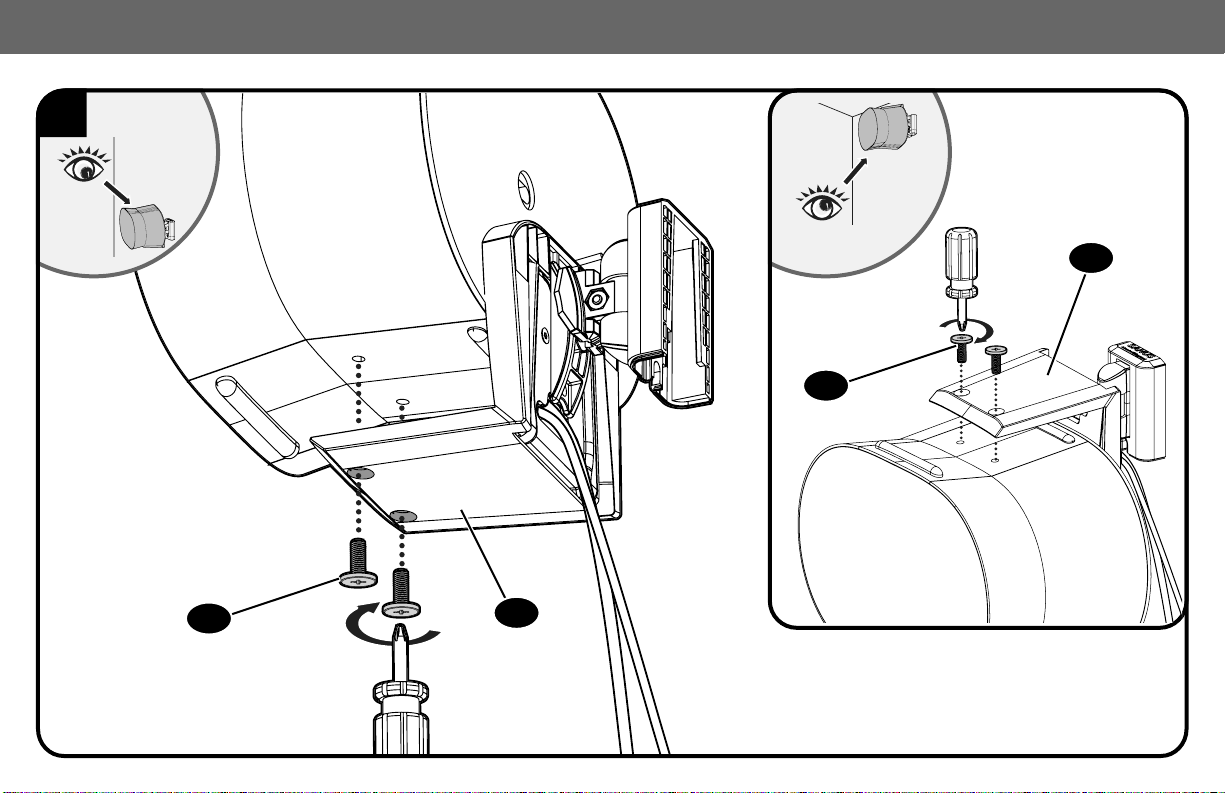

Attach Speaker to Bracket

CAUTION: Avoid potential personal injury or property damage!

●Drywall covering the wall, must not be less than 1/2 in. (12.7 mm)

Min. 1/2 in.

(12.7 mm)

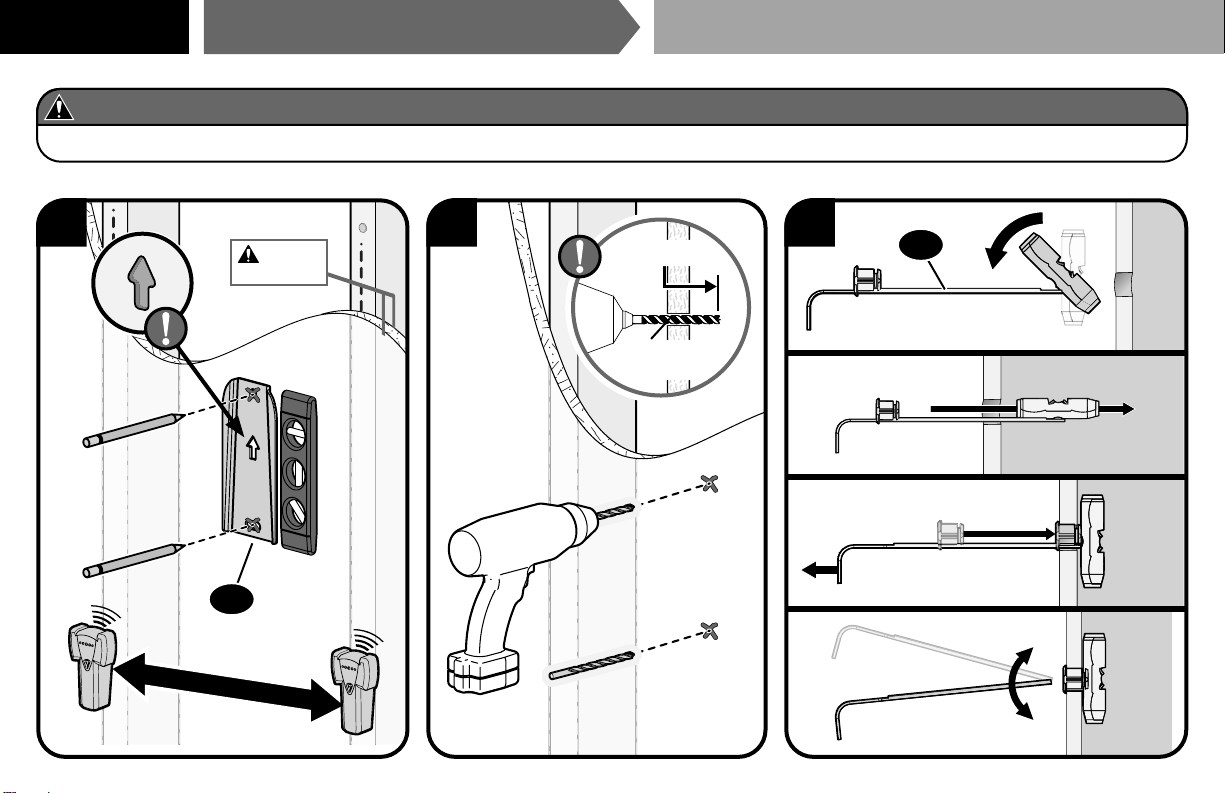

STEP 3-A

Drywall Only InstallationAttach Wall Plate to Wall

1 2

3/8 in.

(10 mm)

1 in. (2.5 cm) 3
