Ledj LEDJ01 Manuel utilisateur
www.prolight.co.uk
Colour Burst
Order code: LEDJ01
USER MANUAL
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
CAUTION!
Keep this equipment away from rain,
moisture and liquids.
SAFETY INSTRUCTIONS
Every person involved with the installation, operation & maintenance of this
equipment should:
- Be competent
- Follow the instructions of this manual
CAUTION! TAKE CARE USING THIS EQUIPMENT!
HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!
Before your initial start-up, please make sure that there is no damage caused during
transportation. Should there be any, consult your dealer and do not use the
equipment.
To maintain the equipment in good working condition and to ensure safe operation, it is necessary
for the user to follow the safety instructions and warning notes written in this manual.
Please note that damages caused by user modications to this equipment are not
subject to warranty.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused
by the non-observance of this manual or any unauthorised modication to the
equipment.
• Never let the power-cable come into contact with other cables. Handle the power-cable
and all mains voltage connections with particular caution!
• Never remove warning or informative labels from the equipment.
• Do not open the equipment and do not modify the equipment.
• Do not connect this equipment to a dimmer-pack.
• Do not switch the equipment on and off in short intervals, as this will reduce the
system’s life.
• Only use the equipment indoors.
• Do not expose to ammable sources, liquids or gases.
• Always disconnect the power from the mains when equipment is not in use or before
cleaning! Only handle the power-cable by the plug. Never pull out the plug by pulling the
power-cable.
• Make sure that the available voltage is between 220v/240v.
• Make sure that the power-cable is never crimped or damaged. Check the equipment and
the power-cable periodically.
• If the equipment is dropped or damaged, disconnect the mains power supply immediately.
Have a qualied engineer inspect the equipment before operating again.
• If the equipment has been exposed to drastic temperature uctuation (e.g. after
transportation), do not switch it on immediately. The arising condensation might damage
the equipment. Leave the equipment switched off until it has reached room temperature.
• If your product fails to function correctly, discontinue use immediately. Pack the unit
securely (preferably in the original packing material), and return it to your Prolight dealer
for service.
• Only use fuses of same type and rating.
• Repairs, servicing and power connection must only be carried out by a qualied
technician. THIS UNIT CONTAINS NO USER SERVICEABLE PARTS.
• WARRANTY; One year from date of purchase.
OPERATING DETERMINATIONS
If this equipment is operated in any other way, than those described in this manual,
the product may suffer damage and the warranty becomes void.
Incorrect operation may lead to danger e.g.: short-circuit, burns, electric shocks,
lamp failure etc.
Do not endanger your own safety and the safety of others!
Incorrect installation or use can cause serious damage to people and property.
Introduction
CONTROL FEATURES
• 4-channel DMX-512 LED can
• Blackout/Dimmer/Strobe/sound activation
• Individual control of Red, Green and Blue LED’s
Features
• 84 LEDs: - 27 red, 27 green, 30 blue
• Ultra bright 5mm LED’s
• RGB colour mixing
• Built-in colour change programmes
• Power consumption: 10W
• Up to 100,000-hour LED life span
• Master/Slave mode
• Programmable: Any universal DMX-512 controller
OPTIONS
DMX Channel Summary

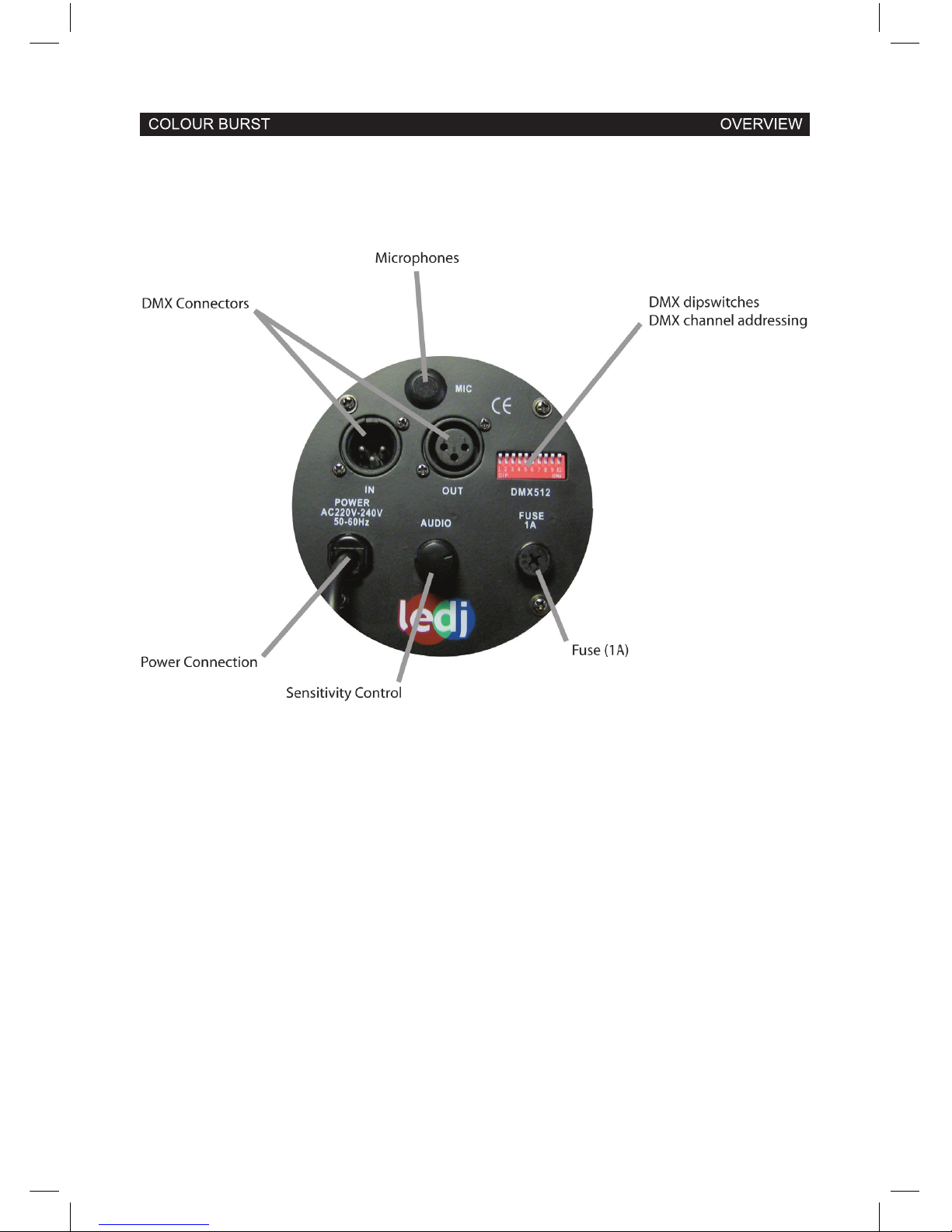

Product Overview
Setup
Operating Instructions
The Colour Burst is a DMX-512 controllable, full RGB colour mixing Par Can made up of high
ef ciency and super bright LED’s. There are three colour groups (red, blue and green) whose
intensity can be controlled individually allowing the creation of an unlimited range of colours.
The Colour Burst will operate in stand-alone, Master/Slave, sound activated and via DMX-512 control.
Master/Slave
The Master/Slave mode will allow you to link up as many units as you want in a daisy chain
fashion. In this mode, the rst unit in the daisy chain will control the following units.
1) Connect all units in a daisy chain as described in the section following.
2) For master unit in Auto mode: Set dip switch 8 to ON and all others to OFF
3) For master unit in Sound Activation mode: Set dip switch 8+9 to ON and all others to OFF
4) For Slave mode: set dip switches 10+1 to ON and all others to OFF
Stand-Alone Mode
• You can run the xtures in an automatic stand-alone mode by simply setting all xtures
to run as master units. (set dip switch #8 to on and all others off).
Sound Activation
The Colour Burst has a built-in microphone which enables it to operate in Sound to Light mode.
Set the sensitivity control to the desired level, and the Colour Burst will change colour to the beat
of the music. Set dip switch 8+9 to ON to activate Sound Mode.
Daisy Chain Connection
1) Connect the (male) 3 pin connector side of the DMX cable to the output (female) 3 pin
connector of the rst xture
2) Connect the end of the cable coming from the rst xture which will have a (female) 3 pin
connector to the input connector of the next xture consisting of a (male) 3 pin connector.
Proceed to connect from the output as stated above to the input of the following xture
and so on.
on
DMX512
IN OUT
on
DMX512
IN OUT
MASTER SETTING SLAVE SETTING
on
Dip switches 1-8
(programmes)
POWER
IN
AC
LINE
INPUT FROM DMX CONTROLLER
(OPTIONAL) Use 3 pin XLR DMX cable
Continue
FUSE
1A
POWER
IN
FUSE
1A
POWER
IN
FUSE
1A
POWER
IN
FUSE
1A
ON ON ON ON
IN OUT IN OUT IN OUT IN OUT
Manual Control Options
Colour Selection
• With Dip Switch 1 only set to ON you obtain static RED
• With Dip Switch 2 only set to ON you obtain static GREEN
• With Dip Switch 3 only set to ON you obtain static BLUE
You can have any combination of switches 1,2,3 to obtain static colour mix.
Flashing Mode
Once you have selected a static colour you can make it ash by using Dip Switches 4,5,6, 4 is
slow ash, 4&5 is medium ash and 4,5 & 6 is fast ash.
For example if you wish to obtain a purple wash with a medium speed ash you would put dip
switches 1 and 3 (red & blue) to ON to obtain purple, and the Dip switches 4 & 5 to ON to
obtain a medium speed ash.
With all the Dip switches set to off this activates an internal slow colour mixing change and fade
programme.
Blackout Mode
With only dip switch #10 set to ON the Colour Burst will blackout.
DMX Control Mode
Operating in a DMX control mode environment gives the user the greatest exibility when it comes
to customising or creating a show. In this mode you will be able to control each individual trait of
the xture and each xture independently. The Colour Burst uses 4 channels of control.
Enable the DMX control by setting dip switch No: 10 to the ON position. Use dip switches 1 – 9 to
address each xture accordingly.
Setting the DMX address
The DMX mode enables the use of a universal DMX controller. Each xture requires a “start
address” from 1- 511. A xture requiring one or more channels for control begins to read the data
on the channel indicated by the start address. For example, a xture that occupies or uses 7
channels of DMX and was addressed to start on DMX channel 100, would read data from
channels: 100,101,102,103,104,105 and 106. Choose a start address so that the channels used
do not overlap. E.g. the next unit in the chain starts at 107.
DMX Control Mode
Set the start address using the group of dip switches located usually on the back of the xture.
Each dip switch has an associated value. Adding the value of each switch in the ON position will
provide the start address. Determining which switches to toggle ON given a specic start address
can be accomplished in the following manner. By subtracting the largest switch value possible
from the selected start address until zero is achieved.
on
on
EXAMPLE STARTING ADDRESS
Address 10
Pin NO: 4 = 8
Pin NO: 2 = 2
Total = 10
Address 24
Pin NO: 5 = 16
Pin NO: 4 = 8
Total = 24
DMX address using
simple maths
233 - (128 = 105,Turn on dip No: 8
105 - (64) = 41,Turn on dip No:7
41 - (32) = 9,Turn on dip No: 6
9 - (8) = 1,Turn on dip No: 4
1 - (1) = 0,Turn on dip No:1
You will most likely use the first available
number which maybe Number 1.This
number was selected for
example purposes
DIP SWITCH (DMX VALUE)
1
2
3
4
5
6
7
8
9
10
1
2
4
8
16
32
64
128
256
DMX-512:
• DMX (Digital Multiplex) is a universal protocol used as a form of communication between
intelligent xtures and controllers. A DMX controller sends DMX data instructions form the
controller to the xture. DMX data is sent as serial data that travels from xture to xture via the
DATA “IN” and DATA “OUT” XLR terminals located on all DMX xtures (most controllers only have
a data “out” terminal).
DMX Linking:
• DMX is a language allowing all makes and models of different manufactures to be linked
together and operate from a single controller, as long as all xtures and the controller are DMX
compliant. To ensure proper DMX data transmission, when using several DMX xtures try to use
the shortest cable path possible. The order in which xtures are connected in a DMX line does not
inuence the DMX addressing. For example; a xture assigned to a DMX address of 1 may be
placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a
xture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to
address 1 to that unit, no matter where it is located in the DMX chain.
DATA Cable (DMX cable) requirements (for DMX operation):
• The Colour Burst can be controlled via DMX-512 protocol. The DMX address is set on the back
of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data
input/output (gure 1).
Figure 1
Also remember that DMX cable must be daisy chained and cannot be split.
Notice:
• Be sure to follow gures 2 & 3 when making your own cables. Do not connect the cable’s shield
conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer
casing. Grounding the shield could cause a short circuit and erratic behaviour.
Special Note: Line termination:
• When longer runs of cable are used, you may need to use a terminator on the last unit to
avoid erratic behaviour.
Using a cable terminator (part number CABL90) will decrease the possibilities of erratic
behaviour.
5-Pin XLR DMX Connectors:
• Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-Pin
XLR xtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin
XLR connectors in to a 3-pin line a cable adaptor must be used. The chart below details the
correct cable conversion.
Termination reduces signal transmission problems
and interferance. it is always advisable to connect a
DMX terminal, (resistance 120 Ohm 1/4 W) between
pin 2 (DMX-) and pin 3 (DMX+) of the last fixture.
Autres manuels pour LEDJ01
1
Table des matières
Autres manuels Ledj Projecteur
Ledj
Ledj PERFORMER 54 RGBW Manuel utilisateur
Ledj
Ledj Spectra Led Flood (Exterior) Manuel utilisateur
Ledj
Ledj INTENSE 12D4 CW Manuel utilisateur
Ledj
Ledj LEDJ252B Manuel utilisateur
Ledj
Ledj STAGE WASH U.V. 36 LEDJ106 Manuel utilisateur
Ledj
Ledj Xterior Wash 131 Manuel utilisateur
Ledj
Ledj HEX Par 7 Manuel utilisateur
Ledj
Ledj Eco LED 64 Manuel utilisateur
Ledj
Ledj LEDJ98 Manuel utilisateur
Ledj
Ledj Omni WA-36 Manuel utilisateur
Ledj
Ledj Stage Wash 36 Manuel utilisateur
Ledj
Ledj Stage Wash 18 Manuel utilisateur
Ledj
Ledj LEDJ280 Manuel utilisateur
Ledj
Ledj PERFORMER 36 RGB Manuel utilisateur
Ledj
Ledj UV 100W COB Flood LEDJ185 Manuel utilisateur
Ledj
Ledj Q Pix Batten LEDJ97 Manuel utilisateur
Ledj
Ledj STAGE COLOUR 24 TRI Manuel utilisateur
Ledj
Ledj Quad illuminator Manuel utilisateur
Ledj
Ledj Spectra Par 6HEX10 Manuel utilisateur
Ledj
Ledj Slimline 229 Manuel utilisateur
Manuels Projecteur populaires d'autres marques
VIZULO
VIZULO Micro Martin Guide de l'utilisateur
EuroLite
EuroLite LED IP FL-100 SMD Manuel utilisateur
Cooper Wheelock
Cooper Wheelock XB12 Manuel utilisateur
Allen + Roth
Allen + Roth 17624-000 Manuel utilisateur
ADJ
ADJ 4 STAGE PAK Manuel utilisateur
Cooper Lighting
Cooper Lighting EGL91SW233 Manuel utilisateur
