LaserLiner SuperCross SCL 2 Manuel utilisateur

Bedienungsanleitung

Operating instructions

Gebruiksaanwijzing

Betjeningsvejledning

Mode d´emploi

Instrucciones para su uso

Istruzioni d'uso

Instrukcja Obsługi

Käyttöohje

Instruções de uso

Bruksanvisning

Kullanma kılavuzu

Инструкция по

использованию

3-6

7-10

11-14

15-18

19-22

23-26

27-30

31-34

35-38

39-42

43-46

47-50

51-54

55-58

FIN

081.120A / Rev 1206

SuperCross-Laser SCL 2

Laserliner

Innovation in Tools

RUS

Anleit_SCL-2_Rev1206_NEU.qxp 08.12.2006 14:13 Seite 1

SuperCross-Laser SCL 2

Anleit_SCL-2_Rev1206_NEU.qxp 08.12.2006 14:13 Seite 2

ENGLISH 7

SuperCross-Laser SCL 2

The automatic cross-line laser for professional do-it-yourself enthusiasts

The laser for interior-finishing work that has 2 laser lines (635 nm). Readily visible laser lines are

outstanding for aligning tiles, wall studding, windows, doors, etc. Simple to use by virtue of its

magnetic-dampened pendulum system - the unit aligns itself automatically in seconds. Its height-

adjustable bracket makes the SCL 2 truly versatile - on the tripod, on the wall and on magnetic-res-

ponsive objects. The slope-mode feature is an extra that permits gradients to be laid out. An integra-

ted transport restraint protects the pendulum system against damage. Accuracy, 5 mm / 10 m.

Includes: Tripod/wall bracket, soft case and batteries (4 x type AA).

General safety instructions

Caution: Do not look directly into the beam. Lasers must be kept out of reach of children. Never

intentionally aim the device at people. This is a quality laser measuring

device and is 100% factory adjusted within the stated tolerance. For rea-

sons of product liability, we must also draw your attention to the follo-

wing: Regularly check the calibration before use, after transport and after

extended periods of storage. We also wish to point out that absolute calibration is only possible in a

specialist workshop. Calibration by yourself is only approximate and the accuracy of the calibration

will depend on the care with which you proceed.

Warranty:

The warranty period is 2 years from the date of purchase. The warranty covers all material or manu-

facturing defects occurring during this time. The following are excluded from warranty: Damage due

to improper use (e.g. operation with wrong type of current/voltage, connection to unsuitable power

source, fall onto hard surface, etc.) or improper storage, normal wear and tear, and defects which

only insignificantly impair the value or suitability for use. Any tampering by unauthorised persons will

render this warranty void. In the event that you need to claim warranty, please take the complete

device together with all information and the invoice to one of our dealers or send it in to Umarex-

Laserliner.

LASER LIGHT

DO NOT LOOK INTO

THE BEAM!

CLASS 2 M LASER

EN60825-1:2003-10



Note:

This is a precision instrument product which must be handled with care. Avoid impacts and jarring.

Always turn off all lasers and latch the pendulum in place before transporting, ON/OFF switch in

its "OFF" position! Clean with a soft cloth and glass cleaner.

Laserliner

Innovation in Tools

Anleit_SCL-2_Rev1206_NEU.qxp 08.12.2006 14:13 Seite 7

SuperCross-Laser SCL 2



ENGLISH8

1Laser output windows

2Battery compartment (SCL 2

underside)

3Tripod/wall bracket with 63 mm

height adjustment

4ON / OFF switch, transport retainer

5Laser line selection button

6Height adjustment knob

7Magnetic pin for unit centring

8Special pins for direct attachment to

a wall

9Holding magnets on the back-side for

attachment to magnetic-responsive

objects

10 5/8" tripod threads with threaded

bush insert for 1/4" photo-tripod

threads

Attention:

Always rotate the special pins (8) into

their parked position for transport, see

illustration below. Otherwise there is

danger of injury.

parking fixing

Anleit_SCL-2_Rev1206_NEU.qxp 08.12.2006 14:13 Seite 8

ENGLISH 9

SuperCross-Laser SCL 2

Technical Data

Automatic levelling range +4,5°

Accuracy +5 mm / 10 m

Operating range (depending on room illumination) 20 m

Laser wavelength 635 nm

Laser class 2M / < 5 mW

Power supply 3 x1,5V AA / ca. 60 h

Weight 0,5 kg

Operating temperature 0°C ... +50°C

Storage temperature -10°C ... + 70°C

Order number 081.120A

Subject to technical changes without notice 12/2006

Horizontal and vertical levelling:

Open the battery compartment (2) and insert batteries according to the symbols. Be sure to pay

attention to polarity. Release the transport restraint, put the ON/OFF switch (4) into its "ON" positi-

on. The cross laser will appear. The desired laser lines can be selected with the selection button (5).

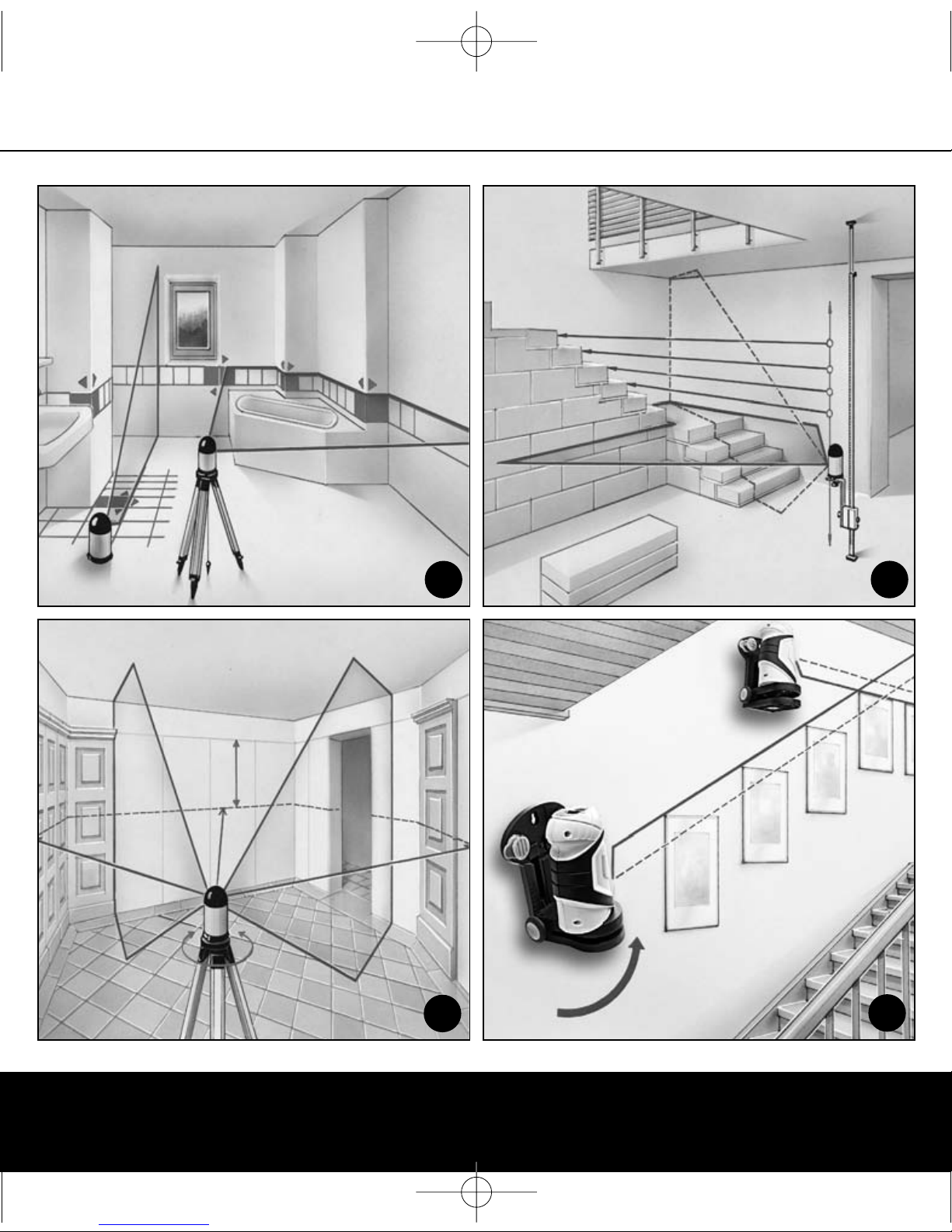

Refer to Figures A, B and C on page 2 for application examples.

Slope mode:

Do not release the transport restraint, put the ON/OFF switch into its "OFF" position. Select and

switch on the laser with the selection button (5). Now slopes can be laid out. Refer to the applicati-

on example in Figure D on page 2. IMPORTANT: This mode cannot be used to perform horizontal

or vertical levelling because the laser lines are no longer automatically aligned.



Important: The tilt function must be activated to perform horizontal and vertical levelling. Activate

this by releasing the transport restraint, put the ON/OFF switch (4) into its "ON" position. The tilt func-

tion will produce an alarm when the unit is outside its automatic levelling range of 4.5°. The alarm sig-

nal is audible and the lasers will shut off. When this happens, place the unit on a more even surface.



Note: Regularly check the calibration before use, after transport and after extended periods of

storage.

Laserliner

Innovation in Tools

Anleit_SCL-2_Rev1206_NEU.qxp 08.12.2006 14:13 Seite 9

ENGLISH10

SuperCross-Laser SCL 2

Checking the vertical line: Position the device about 5 m from a wall. Fix a plumb bob with a line

of 2.5 m length on the wall, making sure that the bob can swing freely. Switch on the device and

align the vertical laser to the plumb line. The precision is within the specified tolerance if the deviati-

on between the laser line and the plumb line is not greater than ± 1.5 mm.

Checking the horizontal line: Position the device about 5 m from a wall and switch on the cross

laser. Mark point B on the wall. Turn the laser cross approx. 2.5 m to the right and mark point C.

Check whether the horizontal line from point C is level with point B to

within ± 2 mm. Repeat the process by turning the laser to the left.

Performing the calibration check:

3. Position the device as near as possible to

the wall at the height of point A1.

4. Turn the device through 180° and mark

point A3. The difference between points

A2 and A3 is the tolerance.

Preparing the calibration check:

It is possible for you to check the calibration of the laser. To do this, position the device midway

between 2 walls, which must be at least 5 metres apart. Do this by turning the unit on, thus

releasing the transport restraint (cross laser on). Please use a tripod.

1. Mark point A1 on the wall.

2. Turn the device through 180° and mark

point A2. You now have a horizontal

reference between points A1 and A2.

180°



Note:

If points A2 and A3 are more than 5 mm / 10 m, the device is in need of calibration. Contact

your authorised dealer or else the UMAREXLASERLINER Service Department.

180°

<5 mm / 10 m = OK

2,5 m

<2 mm = OK

Anleit_SCL-2_Rev1206_NEU.qxp 08.12.2006 14:13 Seite 10

www.laserliner.com

Laserliner

Innovation in Tools

Zubehör (optional)

Accessories (optional)

Accessoires (optioneel)

Tilbehør (ekstra-udstyr)

Accessoires (en option)

Accesorios (opcional)

Accessori (optional)

Akcesoria (opcja)

Art.-Nr: 090.120

Art.-Nr: 080.29

max. ca. 330 cm

Art.-Nr: 023.61A

min. 57 cm

max. 122 cm

max. 126 cm

Lisämahdollisuuksia

valinnaisvarusteilla

Acessórios (opcional)

Tillbehör

Tilbehør

Faydalı aksesuarları

Полезные принадлежности

FIN

RUS

Anleit_SCL-2_Rev1206_NEU.qxp 08.12.2006 14:16 Seite 59

SuperCross-Laser SCL 2

GmbH & Co KG

Donnerfeld 2

59757 Arnsberg, Germany

Tel.: +49 2932 638-300, Fax: -333

www.laserliner.com

Laserliner

Innovation in Tools

Service- und Versand-Anschrift

Service- and Shipping Address

Service- en verzendadres

Service- og Postadresse

Livraison et expédition

Dirección de servicio y de envío

Indirizzo di assistenza e di

spedizione

Serwis i sprzedaż

Service- og Postadresse

Endereço de serviço e envio

Service- och leveransadress

Service- og forsendelsesadresse

Servis ve gönderi adresi

Адрес службы сервиса и для

отправки

FIN

RUS

Umarex GmbH & Co KG

– Laserliner –

Möhnestraße 149, 59755 Arnsberg, Germany

Tel.: +49 2932 638-300, Fax: +49 2932 638-333

laserliner@umarex.com

LASERSTRAHLUNG

NICHT IN DEN

STRAHL BLICKEN!

LASER KLASSE 2 M

EN60825-1:2003-10

LASER LIGHT

DO NOT LOOK INTO

THE BEAM!

CLASS 2 M LASER

EN60825-1:2003-10

Anleit_SCL-2_Rev1206_NEU.qxp 08.12.2006 14:16 Seite 60
