LaserLiner AutoCross-Laser ACL 4P RX Manuel utilisateur

AutoCross-Laser ACL 4P RX

Bedienungsanleitung

Operating instructions

Gebruiksaanwijzing

Betjeningsvejledning

Mode d´emploi

Instrucciones para su uso

Istruzioni d'uso

Instrukcja Obsługi

Käyttöohje

Instruções de uso

3-8

9-14

15-20

21-26

27-32

33-38

39-44

45-50

51-56

57-62

FIN

033.00.00A / Rev. 07.06

max.

50 m

AutoCross-Laser ACL 4P RX

ENGLISH 9

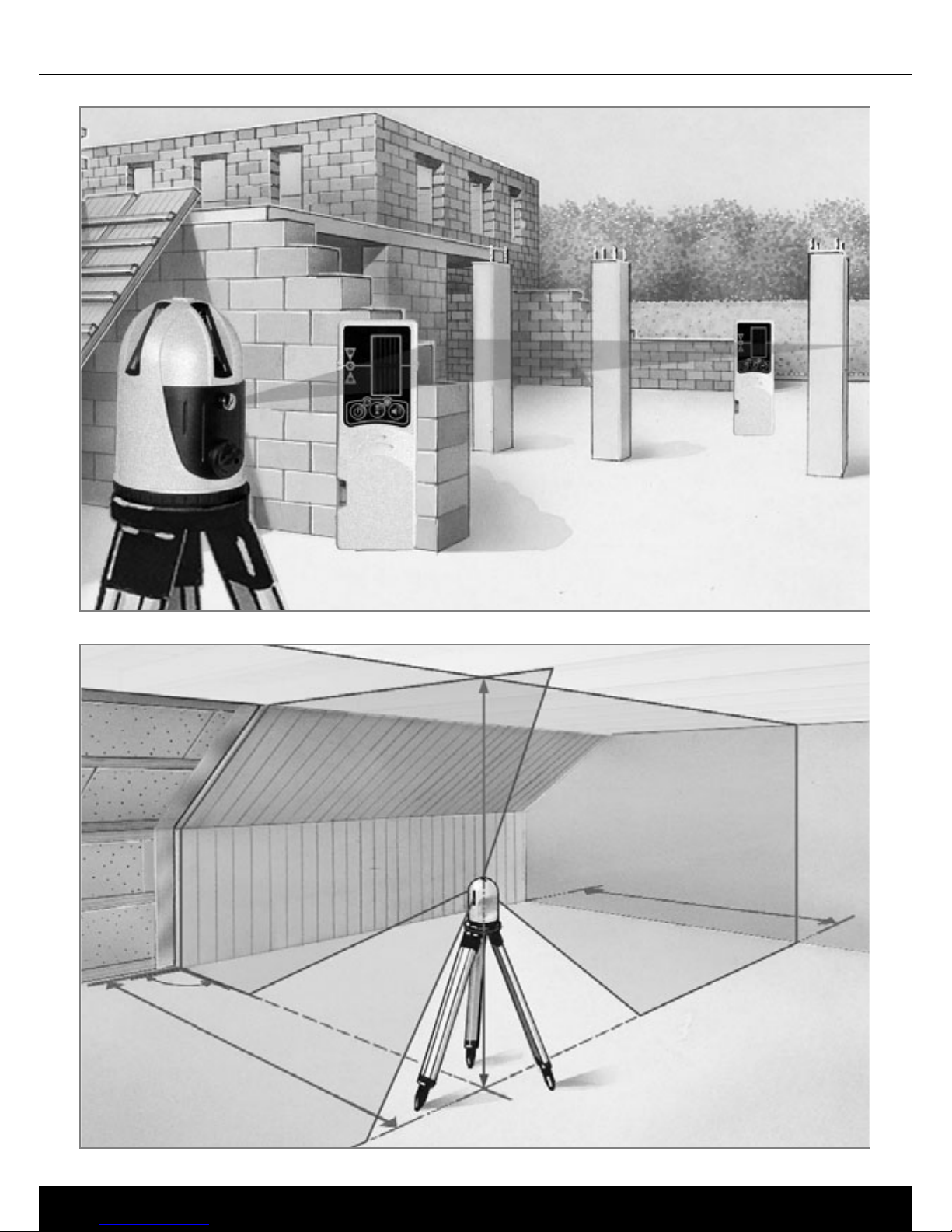

The universal cross-line laser with Laserreceiver

The cross-line laser with 4 line lasers and additional plumb laser, 635 nm. With

the laser receiver, the laser lines can be seen in any light – so ideal for all

indoor and outdoor applications. The special arrangement of the laser beams

generates continuous laser lines on walls, floors or ceilings. Through the laser

cross at the top and the plumb laser, a plumb line can be drawn from the

ceiling to the floor. 3° self-levelling range with magnetic damping.

Precision: 2 mm / 10 m, maximum range of laser receiver: 50 m.

Includes: RX 50 laser receiver, tripod adapter, carrying case and batteries.

General safety instructions

Caution: Do not look directly into the beam. Lasers must be kept out of

reach of children. Never intentionally aim the device

at people. This is a quality laser measuring device

and is 100% factory adjusted within the stated tole-

rance. For reasons of product liability, we must also

draw your attention to the following: Regularly check the calibration before

use, after transport and after extended periods of storage. We also wish to

point out that absolute calibration is only possible in a specialist workshop.

Calibration by yourself is only approximate and the accuracy of the

calibration will depend on the care with which you proceed.



Note: This product is a precision instrument that must be handled and

treated with care. Avoid shocks and impact. Always keep and carry in the

case! Switch all lasers off and secure the pendulum. For cleaning, use a soft

cloth and glass cleaner.

LASER LIGHT

DO NOT LOOK INTO

THE BEAM!

CLASS 2 M LASER

EN60825-1:2003-10

Warranty:

The warranty period is 2 years from the date of purchase. The warranty

covers all material or manufacturing defects occurring during this time. The

following are excluded from warranty: Damage due to improper use (e.g.

operation with wrong type of current/voltage, connection to unsuitable

power source, fall onto hard surface, etc.) or improper storage, normal wear

and tear, and defects which only insignificantly impair the value or suitability

for use. Any tampering by unauthorised persons will render this warranty

void. In the event that you need to claim warranty, please take the complete

device together with all information and the invoice to one of our dealers or

send it in to Umarex-Laserliner.

AutoCross-Laser ACL 4P RX

ENGLISH10

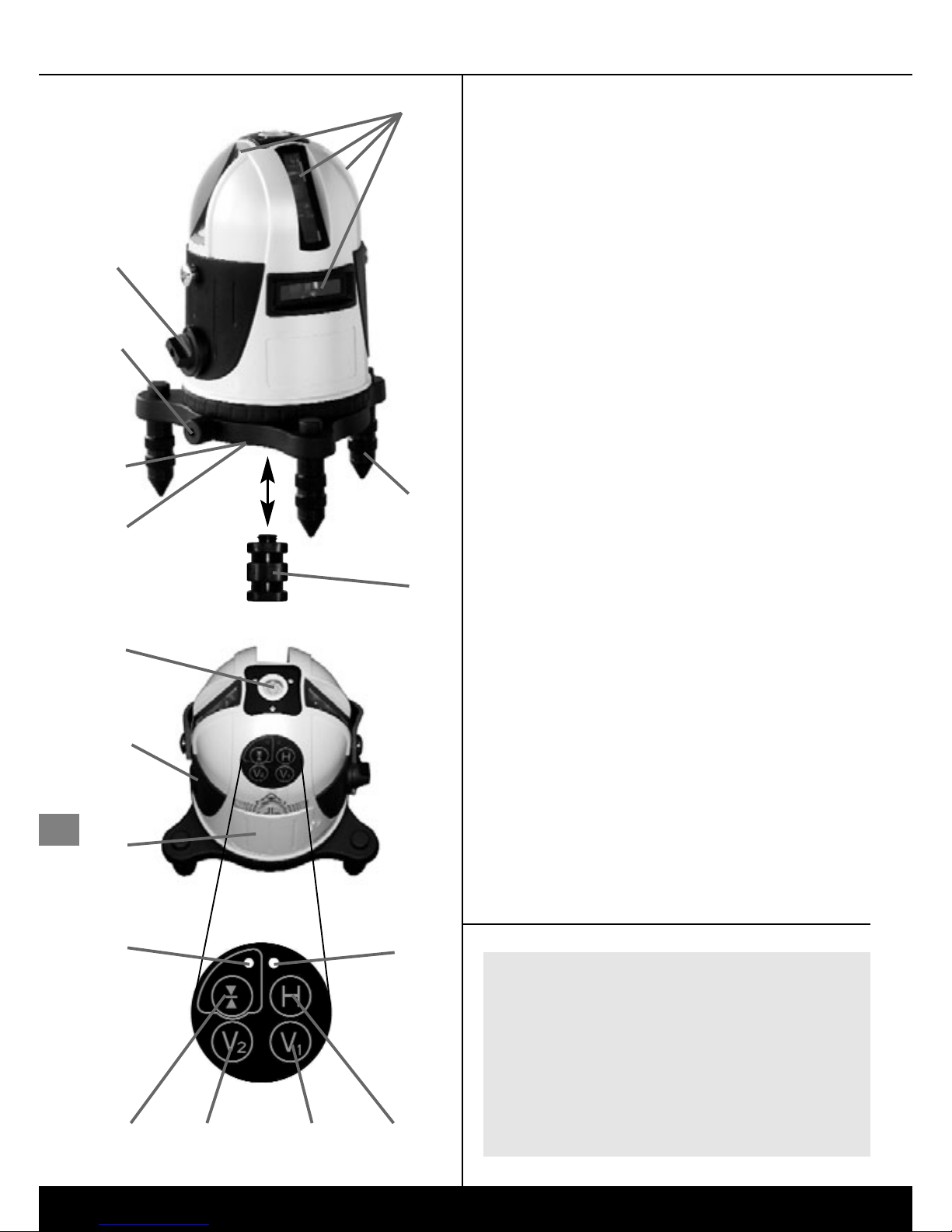

13 161514

11 12

Windows for line lasers

ON / OFF switch Transport

securing device

Knob for precision adjustment

5/8” thread (underside)

Window for plumb laser

(underside)

Adjustable feet

Tripod adapter

Round vial for rough adjustment

Socket for power supply (6V)

Battery compartment

Indicator hand receiver mode

Power indicator

Hand receiver mode

Vertical line laser (side)

Vertical line laser (front)

Horizontal line laser



Note:

For transport, the ACL 4P RX must

always be switched off with the

transport securing device (2) so as

to protect device from damage.

Inserting the batteries ACL 4P RX and Laserreceiver RX 50:

Open the battery compartment (10, I) and insert the batteries in accordance

with the installation symbols, ensuring the correct polarity. Close the cover.

Aligning the ACL 4P RX

For approximate adjustment of the lasers, the top part of the ACL 4P RX can

be turned on the base. Precise positioning can then be done with the

precision adjustment knob (3). The adjustable feet (6) allow the device to be

positioned on sloping surfaces.

Switching on the ACL 4P RX:

Turn the ON/OFF switch (2) to the right, thereby releasing the transport

securing device. The lasers can now be individually activated via buttons

14, 15, 16. To obtain maximum visibility of the laser line, the hand receiver

mode must be switched off (button 13). In this case, it is not possible to work

with the laser receiver.



Note:

If the device is too far off the horizontal (more than 3°), the lasers will blink.

Align the device using the adjustable feet (6) or place on a more level

surface. The round vial (8) is provided as an aid to alignment.

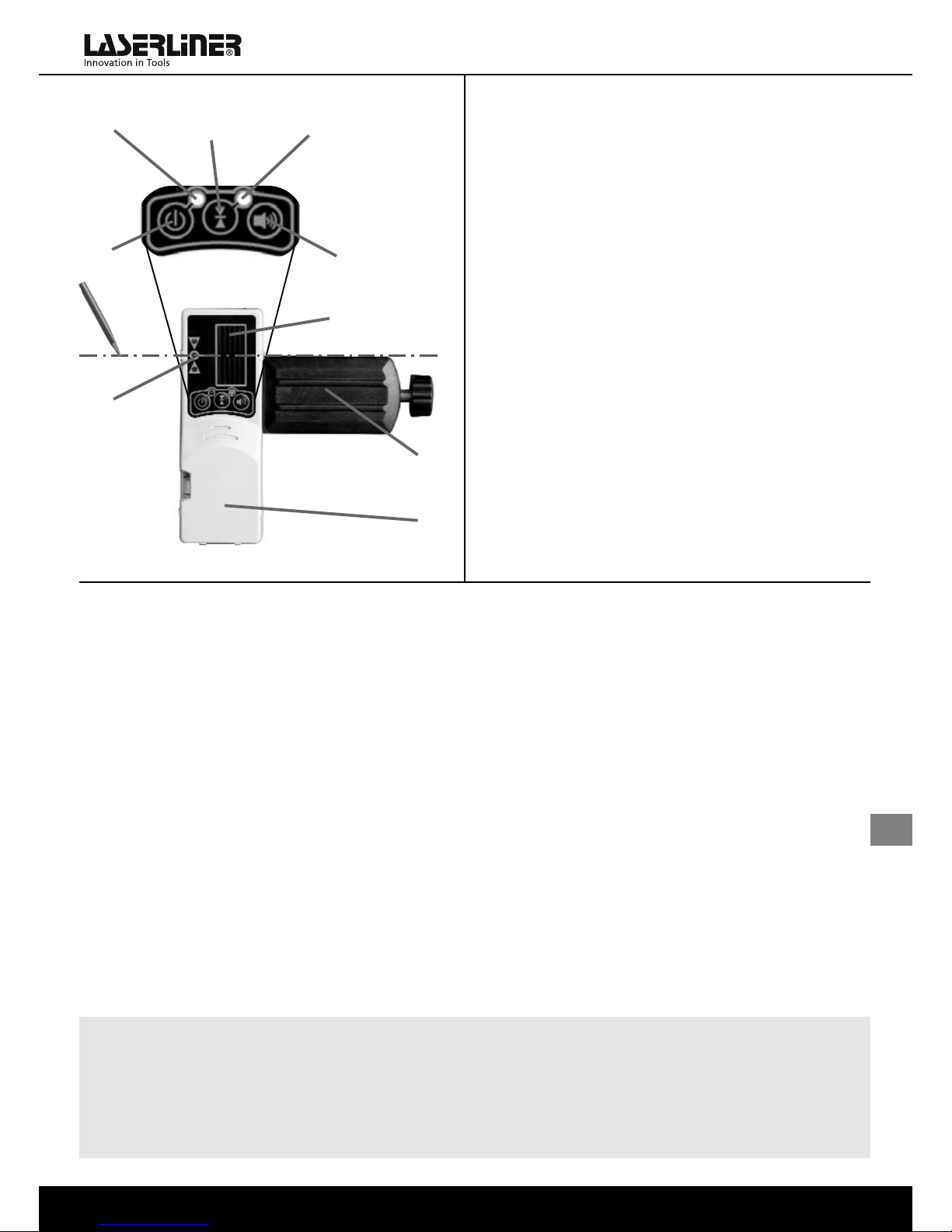

AutoCross-Laser ACL 4P RX

Power indicator

Switch accuracy

short range / long range

LED for accuracy

green / red

ON / OFF switch

Sound ON / OFF

Receiver field for laser beam

LED’s for Laserindication (front,

side, backside)

Universal mount

Battery compartment

(backside)

ENGLISH 11

Working with the laser receiver RX 50:

For levelling over longer distances or in conditions

of bright light, use the laser receiver RX 50.

Switch on with button D; control lamp A will light

up.

IMPORTANT: Set the ACL 4P RX to hand receiver

mode (button 13). The laser lines will now pulsate

with high frequency (10 kHz), making the laser

lines darker. The laser receiver can detect these

pulsating laser lines up to a maximum distance of

50 m.

Now move the receiver field (F) of the laser

receiver through the laser lines upwards and

downwards (horizontal laser line) and/or sideways

(vertical laser line) until the centre LED (G) lights

up. Now mark the horizontal and/or vertical

reference dimension.

Adjust the sensitivity of the laser receiver with

button B. Green LED (C) for close-range working

up to max. 15 m, red LED (C) for distance-range

working up to max. 50 m. The sound can be

switched on or off with button E.

AutoCross-Laser ACL 4P RX

ENGLISH12

Universal mount:

The laser receiver RX 50 can be fitted on

measuring staffs with the universal mount. The

Flexi measuring staff (Art. No. 080.50) is always

recommended when measuring from floor

heights. It also allows you to determine heights

directly without any need for calculation.



Note:

The light intensity of the laser lines is highest in the middle and lessens

towards the edges. The maximum range of the laser receiver therefore also

changes accordingly: Green LED max. 7 – 15 m, red LED max. 30 – 50 m.

AutoCross-Laser ACL 4P RX

ENGLISH 13

Technical data

Self-levelling range +3°

Precision +2 mm / 10 m

Working range with laser receiver max. 50 m

Laser wavelength 635 nm

Laser class / Laser output rating line lasers 2M / < 5 mW

Laser class / Laser output rating plumb laser 2 / < 1 mW

Power supply ACL 4P RX / battery life 3 x 1,5V AA / ca. 15 h

Power supply laser receiver RX 50 1 x 9V Block

Weight ACL 4P RX 1,1 kg

Operating temperature 0°C ... +50°C

Storage temperature -10°C ... + 70°C

Order number 033.00.00A

Subject to technical alterations 07/2006



Note:

Regularly check the calibration before use, after transport and after

extended periods of storage.



Information on precision:

Precision 2 mm / 10 m: Adjust the device using the adjusting screws

(6) in such a way that the bubble of the circular level (8) is exactly in

the middle.

Precision 3 mm / 10 m: Adjust so that the bubble of the circular level

is within the ring.

Checking the vertical line: Position the device about 5 m from a wall. Fix a

plumb bob with a line of 2.5 m length on the wall, making sure that the bob

can swing freely. Switch on the device and align the vertical laser to the plumb

line. The precision is within the specified tolerance if the deviation between the

laser line and the plumb line is not greater than ± 1.5 mm.

Checking the horizontal line:

Position the device about 5 m from a wall and

switch on the cross laser. Mark point B on the wall.

Turn the laser cross approx. 2.5 m to the right and

mark point C. Check whether the horizontal line

from point C is level with point B to within ± 2 mm.

Repeat the process by turning the laser to the left.

AutoCross-Laser ACL 4P RX

ENGLISH

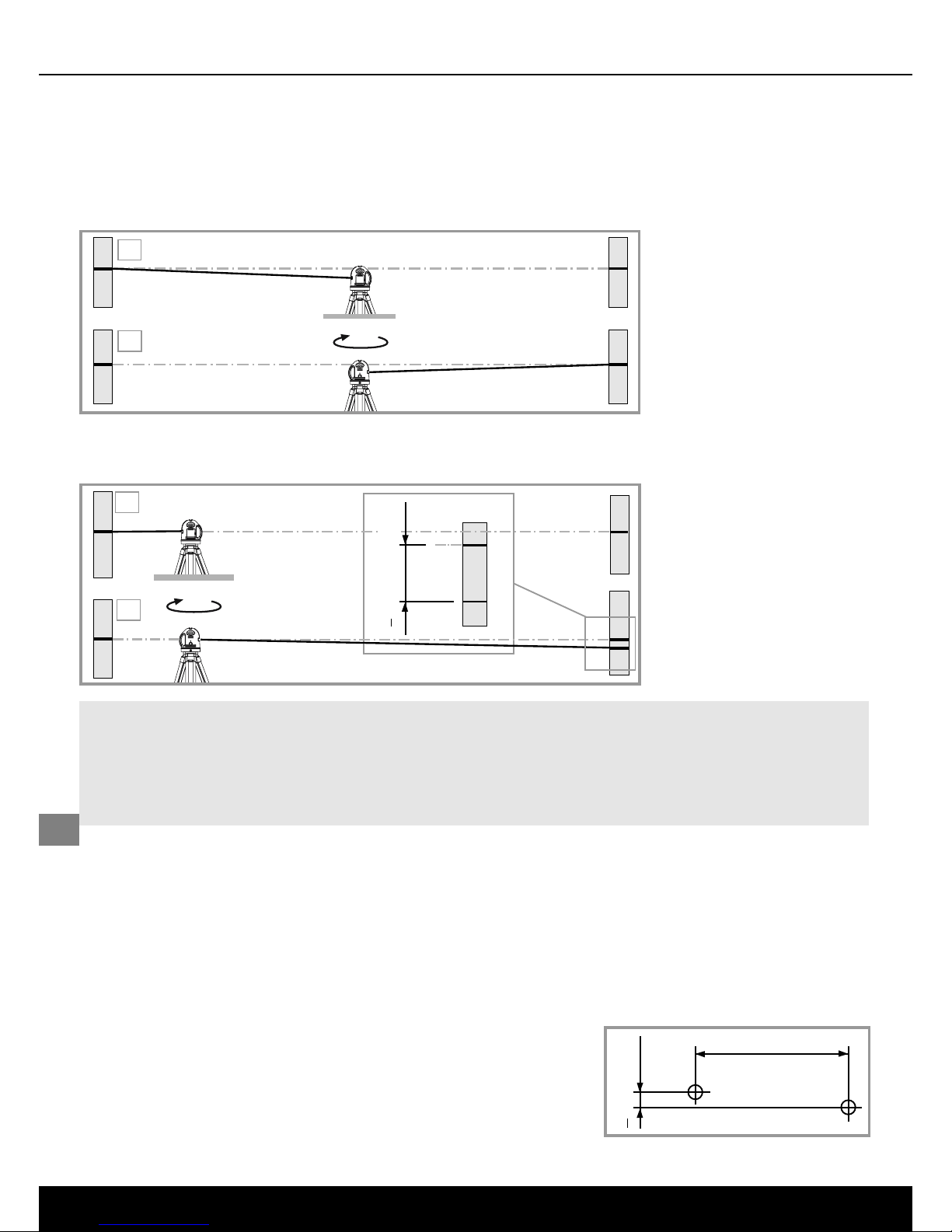

Performing the calibration check:

3. Position the device as near as possible to the wall at the height of

point A1.

4. Turn the device

through 180° and

mark point A3. The

difference between

points A2 and A3 is

the tolerance.

Preparing the calibration check:

It is possible for you to check the calibration of the laser. To do this, position

the device midway between 2 walls, which must be at least 5 metres apart.

Switch the device on (Laser cross ON). The best calibration results are achie-

ved if the device is mounted on a tripod. 1. Mark point A1 on the wall.

2. Turn the device

through 180° and

mark point A2.

You now have a

horizontal reference

between points A1

and A2.

180°



Note: If points A2 and A3 are more than 2 mm / 10 m, the device is in

need of calibration. Contact your authorised dealer or else the UMAREX-

LASERLINER Service Department.

2,5 m

<2 mm = OK

180°

<2 mm / 10 m = OK

AutoCross-Laser ACL 4P RX

Art.-Nr: 090.120

Art.-Nr: 080.30

75°

max. 160 cm

min. 93 cm

max. 154 cm

www.laserliner.com

max. ca. 330 cm

Art.-Nr: 023.61A

Zubehör (optional)

Accessories (optional)

Accessoires (optioneel)

Tilbehør (flere typer)

Accessoires (en option)

FIN

Accesorios (opcional)

Accessori (optional)

Akcesoria (opcja)

Lisämahdollisuuksia

valinnaisvarusteilla

Acessórios (opcional)

AutoCross-Laser ACL 4P RX

LASERSTRAHLUNG

NICHT IN DEN

STRAHL BLICKEN!

LASER KLASSE 2 M

EN60825-1:2003-10

GmbH & Co KG

Donnerfeld 2

59757 Arnsberg, Germany

Tel.: +49 2932 638-300, Fax: -333

www.laserliner.com

Dirección de envío y de servicio

post-venta:

Telefon: +49 2932 638-300

Fax +49 2932 638-333

Indirizzo servizio manutenzione

- Indirizzo di spedizione

Telefono +49 2932 638-300

Fax +49 2932 638-333

Adres serwisu i wysyłki:

Telefon Serwisu+49 2932 638-300

Fax +49 2932 638-333

Huolto- ja lähetysosoite:

Puhelin +49 2932 638-300

Fax +49 2932 638-333

Endereço de serviço e envio:

Telefone +49 2932 638-300

Fax +49 2932 638-333

Service- und Versand-Anschrift:

Service-Telefon +49 2932 638-486

Fax +49 2932 638-489

Service- and Shipping Address:

Service phone +49 2932 638-300

Fax +49 2932 638-333

Service- en verzendadres:

Servicetelefoon +49 2932 638-300

Fax +49 2932 638-333

Service- og Postadresse

Service-Telefon +49 2932 638-486

Fax +49 2932 638-489

Livraison et expédition:

Telefon: +49 2932 638-300

Fax +49 2932 638-333

Umarex GmbH & Co KG

– Laserliner –

Möhnestraße 149, 59755 Arnsberg, Germany

laserliner@umarex.de

FIN

Table des matières

Autres manuels LaserLiner Niveau laser

LaserLiner

LaserLiner MultiBeam-Laser MBL 3 Manuel utilisateur

LaserLiner

LaserLiner AutoCross-Laser 2 Plus Manuel utilisateur

LaserLiner

LaserLiner HandyLaser Magnum Manuel utilisateur

LaserLiner

LaserLiner TITANIUM Manuel utilisateur

LaserLiner

LaserLiner HandyLaser Manuel utilisateur

LaserLiner

LaserLiner PCL 6P RX Manuel utilisateur

LaserLiner

LaserLiner SuperPlane-Laser 3D Manuel utilisateur

LaserLiner

LaserLiner DigiLevel Pro 30 Manuel utilisateur

LaserLiner

LaserLiner AutoLine-Laser 3D Manuel utilisateur

LaserLiner

LaserLiner AutoCross Laser 2 Manuel utilisateur

LaserLiner

LaserLiner SuperCross-Laser 2 Manuel utilisateur

LaserLiner

LaserLiner Greenline-Laser 3P Manuel utilisateur

LaserLiner

LaserLiner ArcoMaster 40 Manuel utilisateur

LaserLiner

LaserLiner SuperCross-Green 3 Manuel utilisateur

LaserLiner

LaserLiner SmartLine-Laser G360 Manuel utilisateur

LaserLiner

LaserLiner DuraMax Manuel utilisateur

LaserLiner

LaserLiner SmartCross-Laser Manuel utilisateur

LaserLiner

LaserLiner LaserCube Manuel utilisateur

LaserLiner

LaserLiner MasterLevel Box Manuel utilisateur

LaserLiner

LaserLiner PowerCross-Laser 8 S Manuel utilisateur

LaserLiner

LaserLiner AutoCross-Laser 2C PowerBright Manuel utilisateur

LaserLiner

LaserLiner X3-Laser Manuel utilisateur

LaserLiner

LaserLiner SuperLine 2D Manuel utilisateur

LaserLiner

LaserLiner EasyCross-Laser Green Manuel utilisateur

Manuels Niveau laser populaires d'autres marques

Nedo

Nedo ET-5 Manuel utilisateur

geo-FENNEL

geo-FENNEL Maxi-Liner FL 65 HP Manuel utilisateur

Spectra

Spectra LL300N Manuel utilisateur

geo-FENNEL

geo-FENNEL Selection PRO FLG 40-PowerCross GREEN SP Manuel utilisateur

Nedo

Nedo Crossliner 4 Manuel utilisateur

Lasertec

Lasertec FX360G Manuel utilisateur

Flex

Flex ALC 8 Manuel utilisateur

Black & Decker

Black & Decker LZR5 Manuel utilisateur

Johnson

Johnson 40-6692 Manuel utilisateur

Cocraft

Cocraft HL 20-SG Manuel utilisateur

Zircon

Zircon iLine Manuel utilisateur

HWH

HWH 310 SERIES Manuel utilisateur

Leica

Leica iCON robot 60 Manuel utilisateur

DeWalt

DeWalt DW082 Manuel utilisateur

imex

imex EL20 Manuel utilisateur

Fixturlaser

Fixturlaser NXA D I-0912 Manuel utilisateur

Wacker Neuson

Wacker Neuson PAL450 Manuel utilisateur

Metrica

Metrica 33806 Manuel utilisateur
