Lantech IGS-0208GSFP Manuel utilisateur

Lantech

I(P)GS-0208GSFP

8 10/100/1000T + 2 1G SFP (w/8 PoE at/af)

Industrial Unmanaged Switch

User Manual

Aug 2021

Recommendation for Shielded network cables

STP cables have additional shielding material that is used to reduce external interference. The

shield also reduces the emission at any point in the path of the cable. Our recommendation is

to deploy an STP network cable in demanding electrical environments. Examples of

demanding indoor environments are where the network cable is located in parallel with

electrical mains supply cables or where large inductive loads such as motors or contactors are

in close vicinity to the camera or its cable. It is also mandatory to use an STP cable where the

power device (like IP camera) is used outdoors or where the network cable is routed outdoors.

Content

Overview............................................................3

Introduction .............................................................. 3

Packing List.............................................................. 3

Safety Precaution.....................................................3

Hardware Description.........................................4

Front Panel...............................................................4

Top View .................................................................. 5

Dimensions .............................................................. 5

Wiring the Power Inputs...........................................6

LED Indicators..........................................................8

RJ-45 Pin Assignments............................................9

Cabling...................................................................11

Mounting Installation........................................15

DIN-Rail Mounting.................................................. 15

Wall-Mount Plate Mounting....................................17

Hardware Installation .......................................18

Installation Steps.................................................... 19

Troubleshooting ...............................................20

Overview

Introduction

Lantech I(P)GS-0208GSFP is a high performance all Gigabit switch

with 8 10/100/1000T + 2x 1G SFP (w/8 PoE 802.3af/at Injectors.)

For latest product specifications, please refer to Lantech official site.

Packing List

1 x Industrial Ethernet Switch

1 x Terminal Block

1 x Quick Installation Guide

Safety Precaution

Attention

If DC voltage is supplied by an external circuit, please use a

protection device on the power supply input.

Hardware Description

In this paragraph, we will introduce the Industrial switch’s dimensions,

port, cabling information, and wiring installation.

Front Panel

The Front Panel of the switch is shown as below.

Front Panel of the Industrial Switch

Top View

The top panel of the Industrial Switch is equipped one terminal block

connector of two DC power inputs.

Top panel of the Industrial Switch Converter

Dimensions

. The dimensions are 74 x 152 x 105 mm (W x H x D). The figure below

gives the dimensions and views of each side of the Industrial Switch.

Wiring the Power Inputs

Voltage of Power Input

IPGS-0208GSFP-12V

12V model:

The power input voltage can

be from 9.5V to 56VDC to

feed power on both the

802.3af and 802.3at

standardized devices.

IPGS-0208GSFP-48V

48V model:

The power input voltage can

be from 45V to 56VDC to feed

power on both 802.3af/at

standardized devices.

IGS-0208GSFP

The power input voltage can

be from 9.5V to 60VDC

Please make sure that the external power supply unit you use

to provide the PoE voltage meet the following criteria: The

power consumption can satisfy the total power request from all

PD devices required.

Please follow the steps below to insert the power wire.

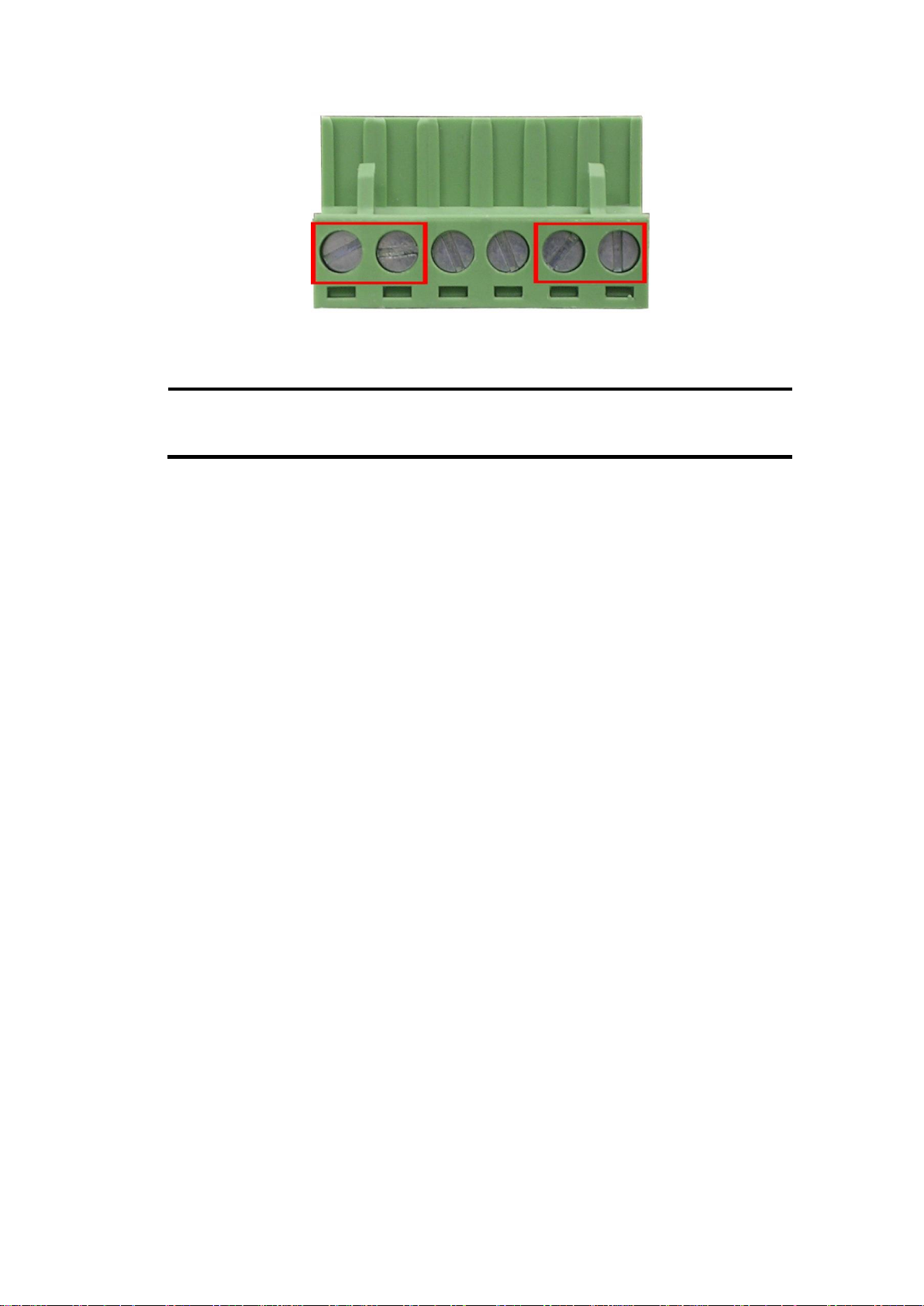

1. Insert the positive and negative wires into the V+ and V- contacts on the

terminal block connector.

2. To tighten the wire-clamp screws for preventing the DC wires to loose.

Note

The wire gauge for the terminal block should be in the range

between 12~ 24 AWG.

LED Indicators

The LED indicators located on the front panel display the power status

and network status of the Industrial switch; each has their own specific

meaning as the table shown below.

LED

Color

Description

Green

Power input 1 is active

Off

Power input 1 is inactive

Green

Power input 2 is active

Off

Power input 2 is inactive

Fault

Red

Power input 1 or 2 is inactive

Off

Power input 1 and 2 are both functional, or no power

inputs

1 ~ 8

LNK/ACT

(Upper LED)

Green

Connected to network

Flashing

Networking is active

Off

Not connected to network

1 ~ 8

Speed

(Lower LED)

Yellow

Connected to network at speed of 1000Mbps

Off

Not connected to network or not working at speed of

1000Mbps

9 ~ 10

LNK/ACT

Green

A network device is detected.

Blinking

The port is transmitting or receiving packets from

the TX device.

PoE

(IPGC only)

Green

Link to PD(PoE device)

Off

Link to none PoE device
