Lantech TGS-R6616XFT Manuel utilisateur

User Manual (Hardware)

T(P)GS-R6616XFT

16 10/100/1000T + 4 10G Copper + 2 10G SR Fiber Q-ODC (w/ PoE at/af)

EN50155 OS4 Managed Ethernet Switch

T(P)GS-R6616XT

16 10/100/1000T + 6 10G Copper (w/ PoE at/af) EN50155 OS4 Managed

Ethernet Switch

Jul. 2019

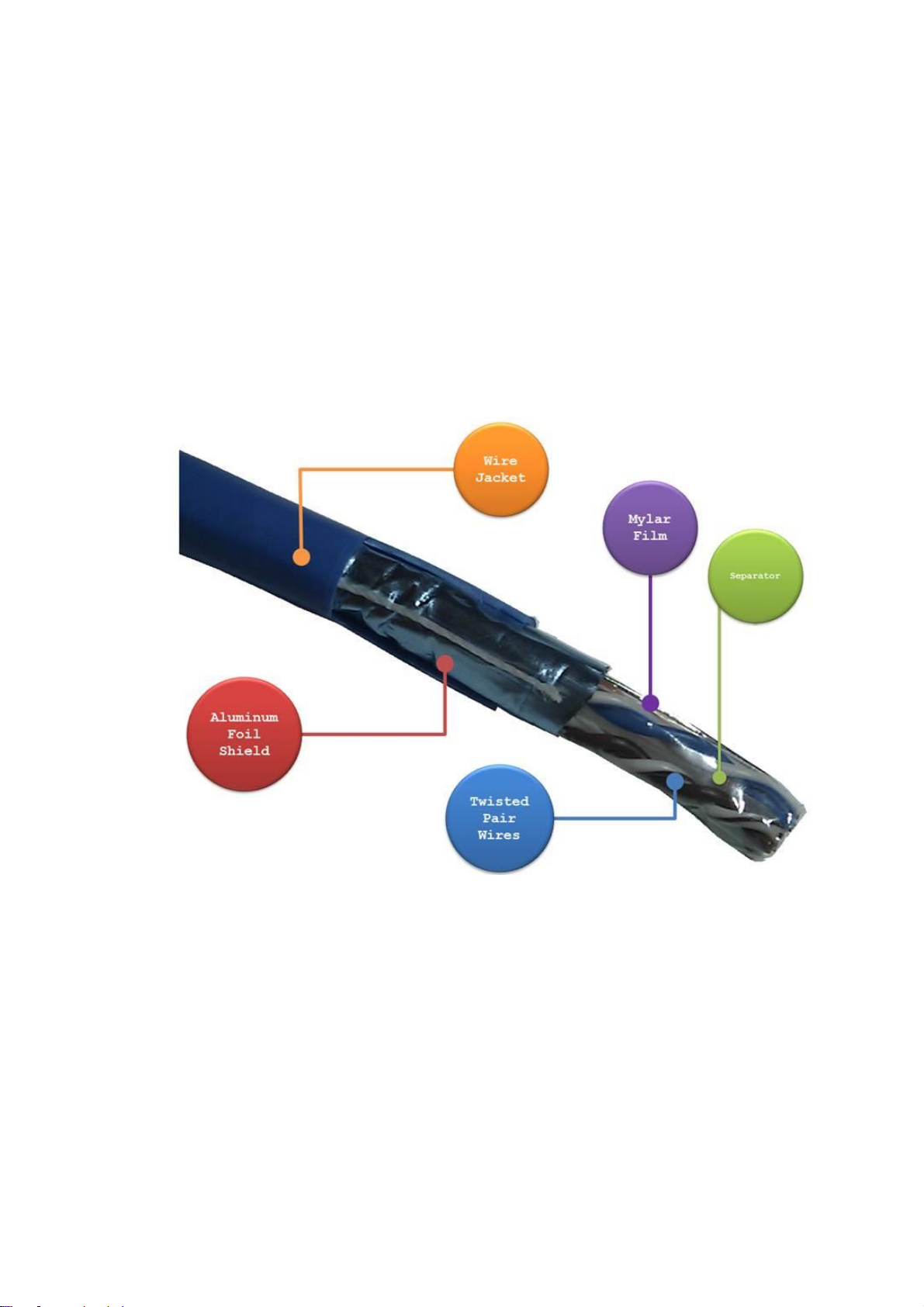

Recommendation for Shielded network cables

STP cables have additional shielding material that is used to reduce external interference.

The shield also reduces emissions at any point in the path of the cable. Our

recommendation is to deploy an STP network cable in demanding electrical environments.

Examples of demanding indoor environments are where the network cable is located in

parallel with electrical mains supply cables or where large inductive loads such as motors

or contactors are in close vicinity to the camera or its cable. It is also mandatory to use an

STP cable where a power device (like an IP camera) is used outdoors or where the

network cable is routed outdoors.

Important Notice

Lantech Communications Global, Inc. reserves the right to modify the

equipment, its specification or this manual without prior notice, in the interest

of improving performance, reliability, or servicing. At the time of publication

all data is correct for the operation of the equipment at the voltage and/or

temperature referred to. Performance data indicates typical values related to

the particular product.

No part of this documentation or information supplied may be divulged to any

third party without the express written consent of Lantech Communications

Global Inc. Products offered may contain software which is proprietary to

Lantech Communications Global Inc. The offer or supply of these products

and services does not include or infer any transfer of ownership.

Interference Issues

This Equipment has been tested and has been found to comply with the

limits for a Class A digital device, pursuant to Part 15 of the FCC rules.

These limits are designed to provide reasonable protection against harmful

interference in a commercial or industrial installation. This equipment

generates, uses, and can radiate radio frequency energy. It may cause

harmful interference to radio communications if the equipment is not installed

and used in accordance with the instructions.

FCC Warning

This Equipment has been tested and found to comply with the limits for a

Class-A digital device, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy. It may cause harmful interference to radio

communications if the equipment is not installed and used in accordance

with the instructions. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may

cause radio interference in which case the user may be required to take

adequate measures.

Content

Chapter 1 Hardware Description............................ 5

1.1 Physical Dimension.................................... 5

1.2 Package Content:........................................ 6

1.3 IP Protection................................................ 7

1.4 LED Indicators............................................10

1.5 Bypass design............................................11

Charter 2. Hardware Installation............................ 13

2.1 Wall mount installation..............................13

Chapter 3 Connect Cable..................................... 16

3.1 Power input M12 connector. .....................16

3.2 Console & USB dongle M12 connector ....18

3.3 10/100/1000T interface M12 connector .....19

3.4 10G interface M12 connector ....................20

3.5 Fiber interface Q-ODC connector .............21

3.6 Ground interface M6 connector................23

Chapter 4 Maintenance......................................... 24

Chapter 5 Console Management.......................... 25

5.1 Connecting to the Console Port................25

5.2 Login in to the Console Interface..............25

Chapter 1 Hardware Description

Lantech T(P)GS-R6616XFT / T(P)GS-R6616XT are high performance OS4 EN50155

10G uplink Ethernet switches with 16 10/100/1000T (with up to 16 PoE at/af injectors) by

M12 connectors which provides L2 wire speed and advanced security function for

connecting PD network.

In this paragraph, it will describe the Industrial switch’s hardware spec, port, cabling

information, and wiring installation.

1.1 Physical Dimension

T(P)GS-R6616XFT

Aluminum case. IP-21,

390 (W) x 195 (D) x 112 (H) mm

T(P)GS-R6616XT

Aluminum case. IP-21,

390 (W) x 195 (D) x 105.3 (H) mm

1.2 Package Content:

Product

Console cable

1.3 IP Protection

The IP Code, Ingress Protection Rating, sometimes also interpreted as International

Protection Rating, classifies and rates the degree of protection provided against the

intrusion (including body parts such as hands and fingers), dust, accidental contact, and

water in mechanical casings and with electrical enclosures. It is published by the

International Electrotechnical Commission (IEC)

Solid particle protection

The first digit indicates the level of protection that the enclosure provides against access

to hazardous parts (e.g., electrical conductors, moving parts) and the ingress of solid

foreign objects.

Level

Object size

protected against

Effective against

—

No protection against contact and ingress of objects

>50 mm

Any large surface of the body, such as the back of a

hand, but no protection against deliberate contact

with a body part

>12.5 mm

Fingers or similar objects

>2.5 mm

Tools, thick wires, etc.

>1 mm

Most wires, screws, etc.

Dust protected

Ingress of dust is not entirely prevented, but it must

not enter in sufficient quantity to interfere with the

satisfactory operation of the equipment; complete

protection against contact

Dust tight

No ingress of dust; complete protection against

contact

Liquid ingress protection

The second digit indicates the level of protection that the enclosure provides against

harmful ingress of water.

Level

Protected

against

Testing for

Details

Not

protected

—

Dripping

water

Dripping water (vertically

falling drops) shall have no

harmful effect.

Test duration: 10 minutes

Water equivalent to 1 mm

rainfall per minute

Dripping

water when

tilted up to

15°

Vertically dripping water

shall have no harmful effect

when the enclosure is tilted

at an angle up to 15°from

its normal position.

Test duration: 10 minutes

Water equivalent to 3 mm

rainfall per minute

Spraying

water

Water falling as a spray at

any angle up to 60°from

the vertical shall have no

harmful effect.

Test duration: 5 minutes

Water volume: 0.7 litres per

minute

Pressure: 80–100 kPa

Splashing

of water

Water splashing against

the enclosure from any

direction shall have no

harmful effect.

Test duration: 5 minutes

Water volume: 10 litres per

minute

Pressure: 80–100 kPa

Water jets

Water projected by a

nozzle (6.3 mm) against

enclosure from any

direction shall have no

harmful effects.

Test duration: at least

15 minutes

Water volume: 12.5 litres per

minute

Pressure: 30 kPa at distance

of 3 m

Powerful

water jets

Water projected in powerful

jets (12.5 mm nozzle)

against the enclosure from

any direction shall have no

harmful effects.

Test duration: at least

3 minutes

Water volume: 100 litres per

minute

Pressure: 100 kPa at

distance of 3 m

Immersion

up to 1 m

Ingress of water in harmful

quantity shall not be

possible when the

enclosure is immersed in

water under defined

conditions of pressure and

time (up to 1 m of

submersion).

Test duration: 30 minutes

Immersion at depth of at

least 1 m measured at

bottom of device, and at least

15 cm measured at top of

device

Immersion

beyond 1 m

The equipment is suitable

for continuous immersion in

water under conditions

which shall be specified by

the manufacturer.

Normally, this will mean

that the equipment is

hermetically sealed.

However, with certain types

of equipment, it can mean

that water can enter but

only in such a manner that

it produces no harmful

effects.

Test duration: continuous

immersion in water

Depth specified by

manufacturer

Powerful

high

temperature

water jets

Protected against close-

range high pressure, high

temperature spray downs.

—
