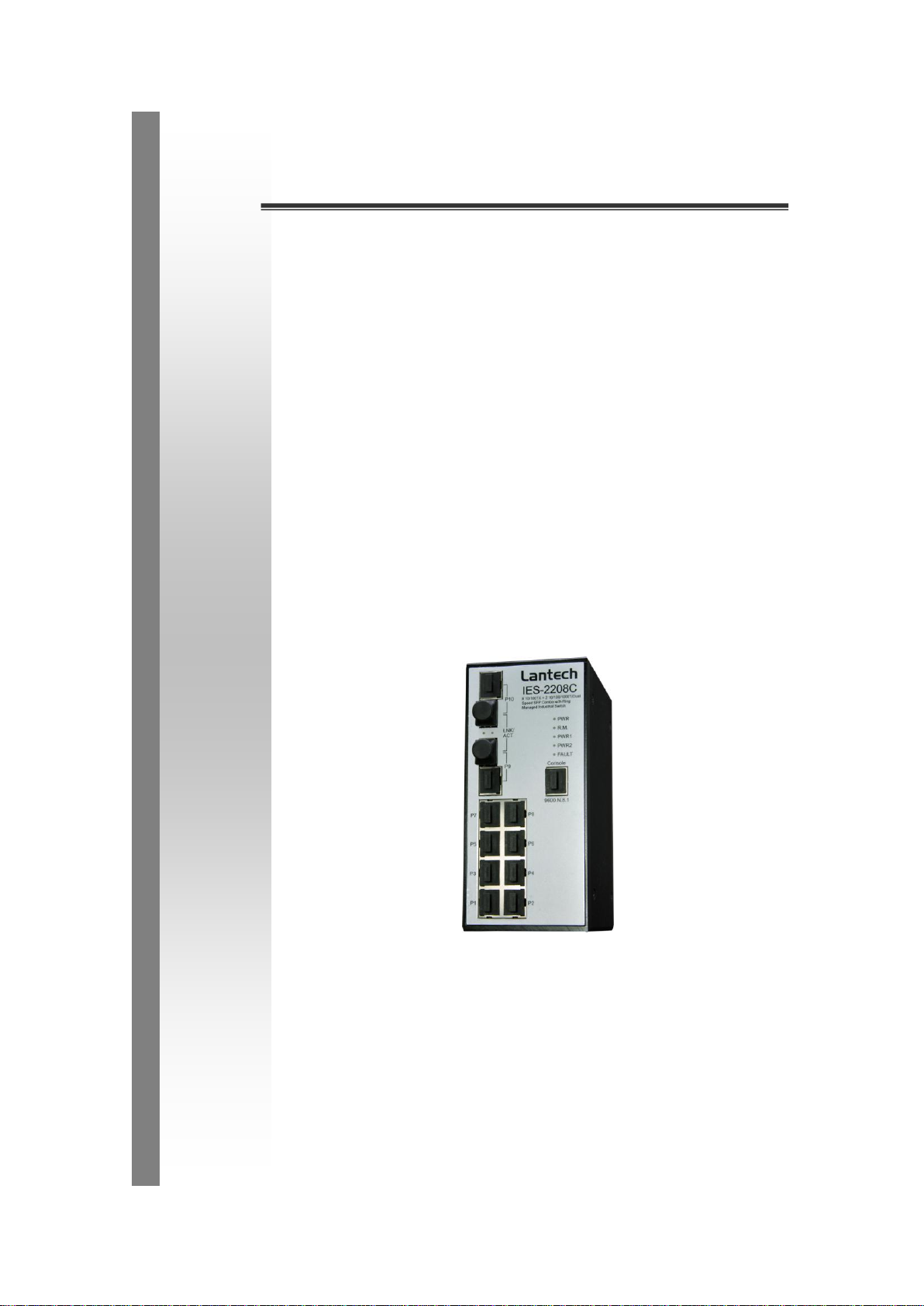

Lantech

IES-2208C/E

8 10/100TX + 2 10/100/1000T/Mini-GBIC

Combo with X-Ring L2 anaged Industrial

Switch

User Manual

This manual contents are based on the below table listing

software kernel version, hardware version, and firmware version.

If the switch functions have any different from the manual

contents description, please contact the local sale dealer for

more information.

Firmware Version

V1.13

Kernel Version

V1.40

Hardware Version

----------

FCC Warning

This Equipment has been tested and found to comply with the limits for a

Class-A digital device, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates uses and can radiate

radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause

radio interference in which case the user may be required to take adequate

measures.

Content

Introduction................................................................ 1

Features................................................................... 1

Package Contents.................................................... 3

Hardware Description ............................................... 4

Physical Dimension.................................................. 4

Front Panel .............................................................. 4

Top View.................................................................. 5

LED Indicators ......................................................... 5

Ports......................................................................... 7

Cabling................................................................... 12

Wiring the Power Inputs......................................... 13

Wiring the Fault Alarm Contact.............................. 14

Mounting Installation .............................................. 15

DIN-Rail Mounting.................................................. 15

Wall Mount Plate Mounting.................................... 17

Hardware Installation .............................................. 18

Installation Steps.................................................... 18

Network Application................................................ 19

X-Ring Application ................................................. 20

Coupling Ring Application...................................... 21

Dual Homing Application........................................ 22

Console Management ............................................. 23

Connecting to the Console Port............................. 23

Pin Assignment...................................................... 23

CLI Management ................................................... 25

Commands Level............................................................ 26

Commands Set List......................................................... 27

System Commands Set.................................................. 27

Port Commands Set........................................................ 30

Trunk Commands Set..................................................... 32

VLAN Commands Set..................................................... 33

Spanning Tree Commands Set....................................... 35

QOS Commands Set...................................................... 38

IGMP Commands Set..................................................... 39

Mac / Filter Table Commands Set................................... 39

SNMP Commands Set.................................................... 40

Port Mirroring Commands Set......................................... 42

802.1x Commands Set ................................................... 43

TFTP Commands Set..................................................... 45

SystemLog, SMTP and Event Commands Set................ 46

SNTP Commands Set..................................................... 48

X-ring Commands Set..................................................... 49

Web-Based Management........................................ 51

About Web-based Management............................ 51

Preparing for Web Management............................ 51

System Login ......................................................... 52

Main interface ........................................................ 53

System Information................................................ 54

IP Configuration ..................................................... 54

DHCP Server –System configuration.................... 55

DHCP Client –System Configuration.................... 56

DHCP Server - Port and IP Bindings ..................... 57

TFTP - Update Firmware ....................................... 57

TFTP –Restore Configuration............................... 58

TFTP - Backup Configuration ................................ 58

System Event Log –Syslog Configuration............. 59

System Event Log - SMTP Configuration.............. 60

System Event Log - Event Configuration............... 62

Fault Relay Alarm .................................................. 64

SNTP Configuration............................................... 64

IP Security.............................................................. 67

User Authentication................................................ 68

Port Statistics......................................................... 69

Port Control............................................................ 70

Port Trunk .............................................................. 71

Aggregator setting .......................................................... 71

Aggregator Information................................................... 72

State Activity................................................................... 73

Port Mirroring ......................................................... 73

Rate Limiting.......................................................... 74

VLAN configuration................................................ 76

VLAN configuration - Port-based VLAN.......................... 76

802.1Q VLAN.................................................................. 79

Rapid Spanning Tree............................................. 81

RSTP - System Configuration......................................... 81

RSTP - Port Configuration.............................................. 83

SNMP Configuration.............................................. 84

System Configuration...................................................... 84

Trap Configuration.......................................................... 85

SNMPV3 Configuration................................................... 86

QoS Configuration ................................................. 89

QoS Policy and Priority Type.......................................... 89

Port Base Priority............................................................ 90

COS Configuration.......................................................... 91

TOS Configuration.......................................................... 91

IGMP Configuration ............................................... 91

X-Ring.................................................................... 93

Security.................................................................. 95

802.1X/Radius Configuration.......................................... 95

MAC Address Table........................................................ 98

Factory Default..................................................... 100

Save Configuration .............................................. 101

System Reboot .................................................... 101

Troubles shooting ................................................. 102

Technical Specification......................................... 103

Introduction

The 8 10/100TX + 2 10/100/1000T/Mini-GBIC Combo with X-Ring L2 Managed

Industrial Switch is a cost-effective solution and meets the high reliability requirements

demanded by industrial applications. The 8 10/100TX + 2 10/100/1000T/Mini-GBIC

Combo with X-Ring L2 Managed Industrial Switch can be easily managed through the

Web GUI. Using fiber port can extend the connection distance that increases the

network elasticity and performance. It also provides the X-Ring function that can prevent

the network connection failure.

Features

System Interface/Performance

RJ-45 port support Auto MDI/MDI-X Function

SFP (mini-GBIC) supports 100/1000 Dual Mode

Store-and-Forward Switching Architecture

Back-plane (Switching Fabric): 5.6Gbps

1Mbits Packet Buffer

8K MAC Address Table

Power Supply

Wide-range Redundant Power Design

Power Polarity Reverse Protect

Overload Current Protection

VLAN

Port Based VLAN

Support 802.1 Q Tag VLAN

GVRP

Double Tag VLAN (Q in Q)

Private VLAN

Port Trunk with LACP

QoS (Quality of Service)

Support IEEE 802.1p Class of Service,

Per port provides 4 priority queues

Port Base, Tag Base and Type of Service Priority

Port Mirror: Monitor traffic in switched networks.

TX Packet only

RX Packet only

Both of TX and RX Packet

Security

Port Security: MAC address entries/filter

IP Security: IP address security management to prevent unauthorized intruder.

Login Security: IEEE802.1X/RADIUS

IGMP with Query mode for Multi Media Application

Case/Installation

IP-30 Protection

DIN Rail and Wall Mount Design

Spanning Tree

Support IEEE802.1d Spanning Tree

Support IEEE802.1w Rapid Spanning Tree

X-ring

X-ring, Dual Homing, and Couple Ring Topology

Provide redundant backup feature and the recovery time below 300ms

Supports IEEE 802.1ab LLDP**

Bandwidth Control

Ingress Packet Filter and Egress Rate Limit

Broadcast/Multicast Packet Filter Control

System Event Log

System Log Server/Client

SMTP e-mail Alert

Relay Alarm Output System Events

SNMP Trap

Device cold start

Power status

Authentication failure

X-ring topology changed

Port Link up/Link down

TFTP Firmware Update and System Configuration Restore and Backup

Package Contents

Please refer to the package content list below to verify them against the checklist.

8 10/100TX + 2 10/100/1000T/Mini-GBIC Combo with X-Ring L2 Managed

Industrial Switch

User manual

RS-232/RJ-45 cable

Block connector

2 wall mount plates and 6 screws

One DIN-Rail (attached on the switch)

8 10/100TX + 2 10/100/1000T/Mini-GBIC Combo User Manual

With L2 Managed Industrial Switch

RS-232/RJ-45 connector cable block connector

Wall Mount Plate Screws DIN-Rail

Compare the contents of the industrial switch with the standard checklist above. If any

item is damaged or missing, please contact the local dealer for service.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Lantech Changer

Lantech

Lantech IPES-0008B Series Manuel utilisateur

Lantech

Lantech IES-5416T Series Manuel utilisateur

Lantech

Lantech IPES-3408GSFP Manuel utilisateur

Lantech

Lantech LPES-2224C Manuel utilisateur

Lantech

Lantech IGS-0016 Manuel utilisateur

Lantech

Lantech LES-2400-RPS Manuel utilisateur

Lantech

Lantech 2204F Series Manuel utilisateur

Lantech

Lantech IES-22812F-2P Manuel utilisateur

Lantech

Lantech IGS-2404 Manuel utilisateur

Lantech

Lantech IES-5216DF Manuel utilisateur

Lantech

Lantech IPGS-5008T Series Manuel utilisateur

Lantech

Lantech IPGS-0204DSFP Manuel utilisateur

Lantech

Lantech IPES-3424DSFP-2P Manuel utilisateur

Lantech

Lantech IPES/IES-0008B Series Manuel utilisateur

Lantech

Lantech IPES/IES-5416DFT Series Manuel utilisateur

Lantech

Lantech IPES-3424DSFP-2P-PT Manuel utilisateur

Lantech

Lantech IES-0005B Series Manuel utilisateur

Lantech

Lantech LPES-2208CA Manuel utilisateur

Lantech

Lantech IPES-0208 Series Manuel utilisateur

Lantech

Lantech LGS-1104 Manuel utilisateur

Lantech

Lantech IGC-0101DSFP Manuel utilisateur

Lantech

Lantech IGS-2206C Manuel utilisateur

Lantech

Lantech IPES-5208T-X Series Manuel utilisateur

Lantech

Lantech IPES-5416DF Series Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
