Lantech IPES-0008A Series Manuel utilisateur

IPES/IES-0008A Series

8 10/100TX (w/8 PoE at/af) Industrial Un-Managed Switch

User Manual

IP-67

IP-43

Apr. 2014

Important Notice

Lantech Communications Global, Inc. reserves the right to modify the

equipment, its specification or this manual without prior notice, in the interest

of improving performance, reliability, or servicing. At the time of publication

all data is correct for the operation of the equipment at the voltage and/or

temperature referred to. Performance data indicates typical values related to

the particular product.

No part of this documentation or information supplied may be divulged to any

third party without the express written consent of Lantech Communications

Global Inc. Products offered may contain software which is proprietary to

Lantech Communications Global Inc. The offer or supply of these products

and services does not include or infer any transfer of ownership.

Interference Issues

This Equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to Part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference in a

commercial or industrial installation. This equipment generates, uses, and

can radiate radio frequency energy. It may cause harmful interference to

radio communications if the equipment is not installed and used in

accordance with the instructions.

FCC Warning

This Equipment has been tested and found to comply with the limits for a

Class-A digital device, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy. It may cause harmful interference to radio

communications if the equipment is not installed and used in accordance

with the instructions. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may

cause radio interference in which case the user may be required to take

adequate measures.

Content

Chapter 1 Introduction ........................................... 4

Specification........................................................... 4

Chapter 2 Hardware Description............................ 7

2.1 Physical Dimension....................................... 7

2.2 Package Content: ......................................... 9

2.3 IP Protection................................................10

2.4 LED Indicators .............................................13

Chapter 3 Hardware Installation .......................... 14

Chapter 1 Introduction

Lantech IES-0008A & IPES-0008A (IP67/IP43) series is a high performance IP67/IP43

industrial switch with 8x10/100TX (w/8 PoE at/af injectors-IPES model)by M12

connectors which provides L2 wire speed and advanced security function for connecting

PD network.

Specification

IES-0008A series

Hardware Specification

IEEE

Standard

IEEE802.3 10BASE-T Ethernet

IEEE802.3u 100BASE-T Ethernet

IEEE802.3x Flow Control and Back

Pressure

Transfer

Rate

14,880pps for Ethernet port

148,800pps for Fast Ethernet port

Mac

Address

8K MAC address table

Connector

10/100T: 8 x M12, 4-pole D-coded,

Female with auto MDI/MDI-X function

Power connector: 1 x M12, 5-pole A-

coded, Male

Protocol

CSMA/CD

LED

Per unit: Power 1 (Green), Power 2

(Green),

Ethernet: Link/Activity (Green)

Power

Supply

Redundant power DC 12V ~72V

HV model power

85~265VAC/110V~300VDC

Power

Consumpti

6Watts

Operating

Humidity

5% to 95% (Non-condensing)

Operating

Temperatu

-40°C ~ 75°C (-40°F ~ 167°F)

Storage

Temperatu

-40°C ~ 85°C (-40°F ~ 185°F)

Case

Dimension

Aluminum case. IP-67,

215mm(W)x185mm(H)x71mm(D)

Aluminum case, IP-43

202mm(W)x172mm(H)x62.5mm(D)

Weight

IP67:2kgs ; IP43: 750gs

Installation

Din Rail, Wall Mount Design

EMC

FCC Class A,

CE EN61000-4-2 (ESD),

CE EN61000-4-3 (RS),

CE EN-61000-4-4 (EFT),

CE EN61000-4-5 (Surge),

CE EN61000-4-6 (CS),

CE EN61000-4-8 (Magnetic Field),

CE EN61000-6-2,

CE EN61000-6-4

Stability

Testing

IEC61373 (Shock),

IEC60068-2-32 (Free fall),

IEC61373 (Vibration)

Standard

EN50155 Compliant*

EN50121-3-2 Compliant*

EN50121-4 Compliant*

NEMA TS2 Compliant*

E-Mark*

Warranty

5 years

*Pending

IPES-0008A series

Hardware Specification

IEEE

Standard

IEEE802.3 10BASE-T Ethernet

IEEE802.3u 100BASE-T Ethernet

IEEE802.3x Flow Control and Back

Pressure

IEEE802.3at/af Power over Ethernet

Transfer

Rate

14,880pps for Ethernet port

148,800pps for Fast Ethernet port

Mac

Address

8K MAC address table

Connector

10/100T: 8 x M12, 4-pole D-coded,

Female with auto MDI/MDI-X function

Power connector: 1 x M23, 5-pole A-

coded, Male

Relay contact : 1 x M12 5-pole A-coded

Protocol

CSMA/CD

LED

Per unit: Power 1 (Green), Power 2

(Green),

Ethernet: Link/Activity (Green)

PoE Pin

Assignme

RJ-45 port # 1~#8 support IEEE

802.3af/at End-point, Alternative A mode.

Per port provides 15.4W/30W ability.

Positive (VCC+): RJ-45 pin 1,2.

Negative (VCC-): RJ-45 pin 3,6.

Power

Supply

12~56VDC for Ethernet Data

12~56VDC for PoE feeding

-48VDC is available for single power input

72VDC for Data (10W); PoE (100W)

Power

Consumpti

10W

Power

Budget

240W for 802.3at 54V input

120W for 802.3af 48V input

90W for 12V input

120W for 24V input

100W for 72V Input

Operating

Humidity

5% to 95% (Non-condensing)

Operating

Temperatu

-40°C ~ 75°C (-40°F ~ 167°F)

Storage

Temperatu

-40°C ~ 85°C (-40°F ~ 185°F)

Case

Dimension

Aluminum case. IP-67,

215mm(W)x185mm(H)x71mm(D)

Aluminum case, IP-43

202mm(W)x172mm(H)x62.5mm(D)

Weight

IP67:2kgs ; IP43: 750gs

Installation

Din Rail, Wall Mount Design

EMC

FCC Class A,

CE EN61000-4-2 (ESD),

CE EN61000-4-3 (RS),

CE EN-61000-4-4 (EFT),

CE EN61000-4-5 (Surge),

CE EN61000-4-6 (CS),

CE EN61000-4-8 (Magnetic Field),

CE EN61000-6-2,

CE EN61000-6-4

Stability

Testing

IEC61373 (Shock),

IEC60068-2-32 (Free fall),

IEC61373 (Vibration)

Standard

EN50155 Compliant

EN50121-3-2 Compliant

EN50121-4 Compliant

NEMA TS2 Compliant*

E-Mark*

Warranty

5 years

*Pending

Chapter 2 Hardware Description

In this paragraph, it will describe the Industrial switch’s hardware spec, port, cabling

information, and wiring installation.

2.1 Physical Dimension

Aluminum case. IP-67,

285 (W) x 201.4 (D) x 84.4 (H) mm

Port description of IP-67 series switch

Aluminum case. IP-43,

273 (W) x 188.4(D) x 84.4 (H) mm

**The port description of IP-43 model is the same as of IP-67 one.

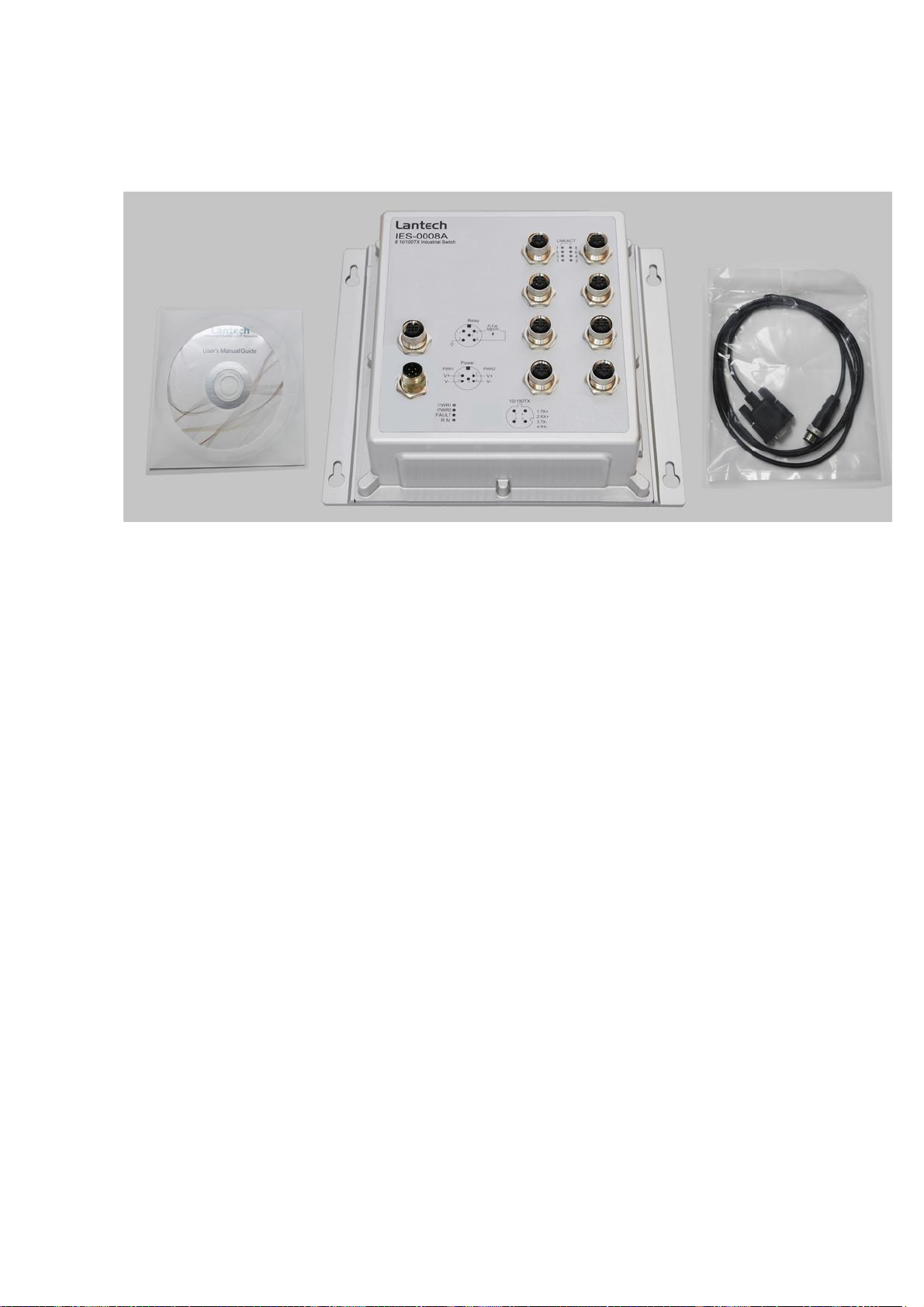

2.2 Package Content:

Manual CD Product Console cable
