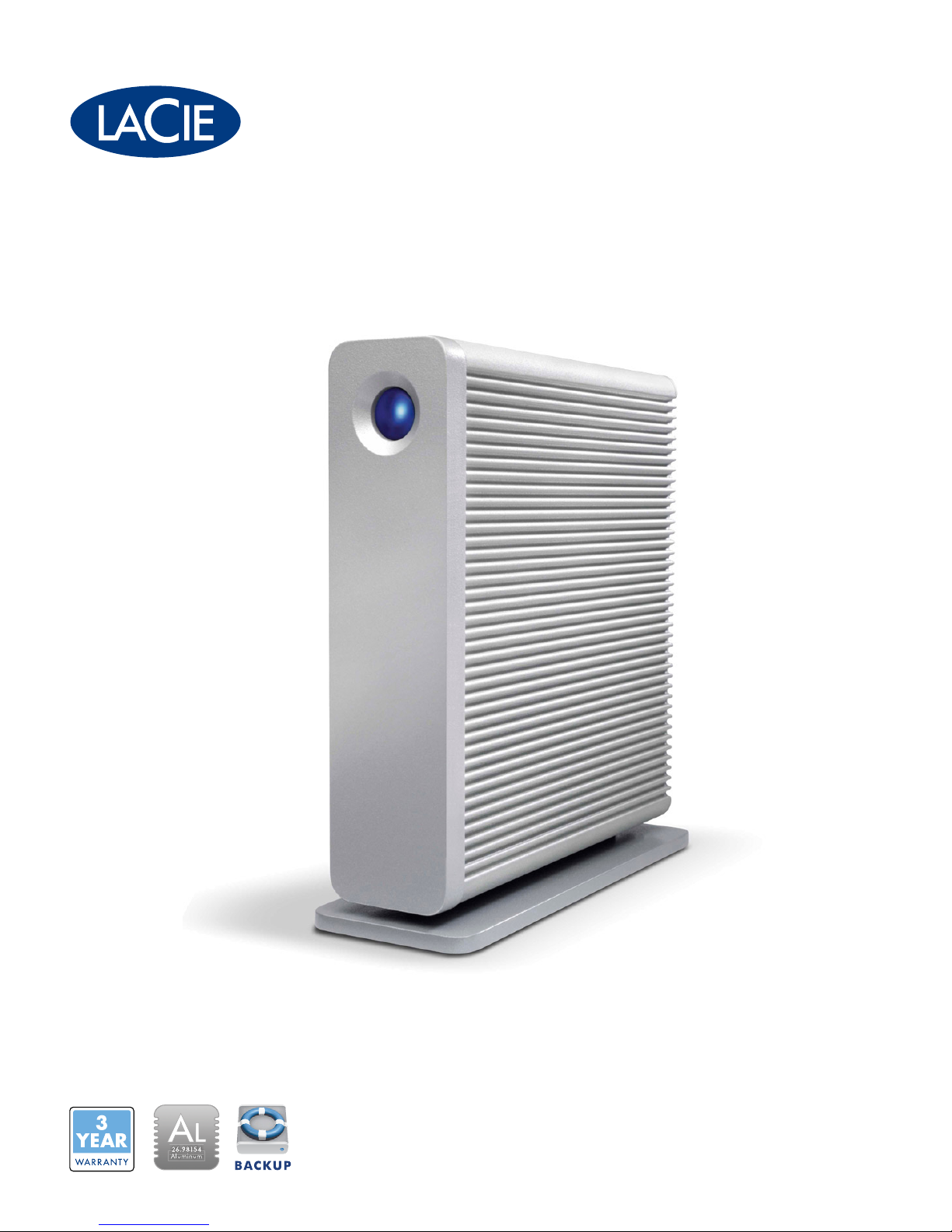

d2 quadra

DESIGN BY NEIL POULTON

Quadruple Interface Hard Disk

For Professional Use

eSATA 3Gb/s | FireWire 800 & 400 | USB 2.0

Clever, Advanced Design

The LaCie d2 Quadra Hard Disk’s new design is sturdy,

compact and versatile, making it ideal for intensive

professional use. The unique, fanless aluminum heat sink

design with 60% more surface area for heat dissipation keeps

it quiet and as safe as possible at all times. The LaCie d2

Quadra can stand upright, be stacked horizontally with other

drives or rackmounted to save desktop space.

High-End Features

With fast burst transfer rates of up to 105-115MB/s** via eSATA,

this industry-leading hard disk delivers superior performance.

Setup and use is quick and easy; the preloaded LaCie Setup

Assistant helps format the hard disk according to your needs. With

the LaCie Shortcut Button*, you can easily launch any application

with one push such as the included Genie®Backup Assistant

software with data restore for Windows®users or Intego®Backup

Assistant software with data restore for Mac users.

The Professional Choice

Perfect for digital content creation, audio/video editing, DVD

authoring, web animation, etc., the LaCie d2 Quadra Hard Disk

can handle multiple demanding professional tasks. It can be

daisy-chained via FireWire or connected to your DV camera and

is even bootable in FireWire for Mac®and in eSATA for Mac/PC.

Advanced features include 3-level power management (Auto/On/

Off)* and software RAID 0/RAID 1 potential when daisy-chained

with other drives.

Perfect All-In-One Solution

The LaCie d2 Quadra Hard Disk provides up to an incredible

3TB capacity in a relatively compact device. Fully loaded with

all the best interfaces – eSATA 3Gb/s, FireWire 800, FireWire

400, and USB 2.0 – it offers complete universal connectivity for

PC and Mac users. Use it to easily store all of your ﬁles or back

up your computer or small server regularly, whether at home or

the ofﬁce.

• Quadruple interface for full PC/Mac compatibility

• Superior burst transfer rates up to 105-115MB/s (eSATA 3Gb/s)

• Space-saving versatility: stack, rackmount or stand upright

• Sturdy, aluminum d2 heat sink design

Power switch

FireWire 400 port

FireWire 800 ports

USB 2.0 port

eSATA port

Power adaptor connection

Chain lock option

Heat Sink

Design

Standard

Design

100GB***=

7 hours of DV video or

35,000 songs or

100,000 photosq

MEGABYTES PER SECOND

BURST READ TRANSFER RATE BENCHMARK**

PERFORMANCE COMPARISON

0306090120

USB 2.0

FIREWIRE 400

FIREWIRE 800

eSATA 3Gb/s

Apple® Time Machine® and Leopard Compatible

The LaCie d2 Quadra Hard Disk is compatible with Mac OS X 10.5 Leopard,

including Time Machine, making it an ideal partner for your Mac. Time

Machine automatically backs up your Mac’s system ﬁles, applications, accounts,

preferences, music, photos, movies, and documents to an external hard drive

and you can easily go back in time to recover anything.

Features

• eSATA, FireWire 800, FireWire 400, and USB 2.0

• Superior heat dissipation

• Triple (Auto/On/Off) power management*

• Stack, rackmount, or stand upright

• Daisy-chainable (FireWire)

• Plug & play

• LaCie Shortcut Button*

• Advanced backup software

Box Content

• LaCie d2 Quadra Hard Disk

• eSATA-to-eSATA cable

• FireWire 800 (9-pin) cable

• FireWire 400 (6-pin) cable

• USB 2.0 cable

• Drive stand for upright use

• External power supply

• Utilities with User Manual (preloaded on the drive):

- LaCie Setup Assistant

- SilverKeeper for automatic backup and ﬁle veriﬁcation (Mac)

- Genie Backup Assistant software with data restore for Windows XPqq, Vista, 7

- Intego Backup Assistant software with data restore for Mac OS X 10.5, 10.6

• Quick Install Guide

Minimum System Requirements

• Computer with an eSATA, FireWire 800, FireWire 400, or USB 2.0 port

• Latest version of Windows XP, Windows Vista®, Windows 7/

Mac OS X 10.5, 10.6

• Minimum free disk space: 600MB recommended

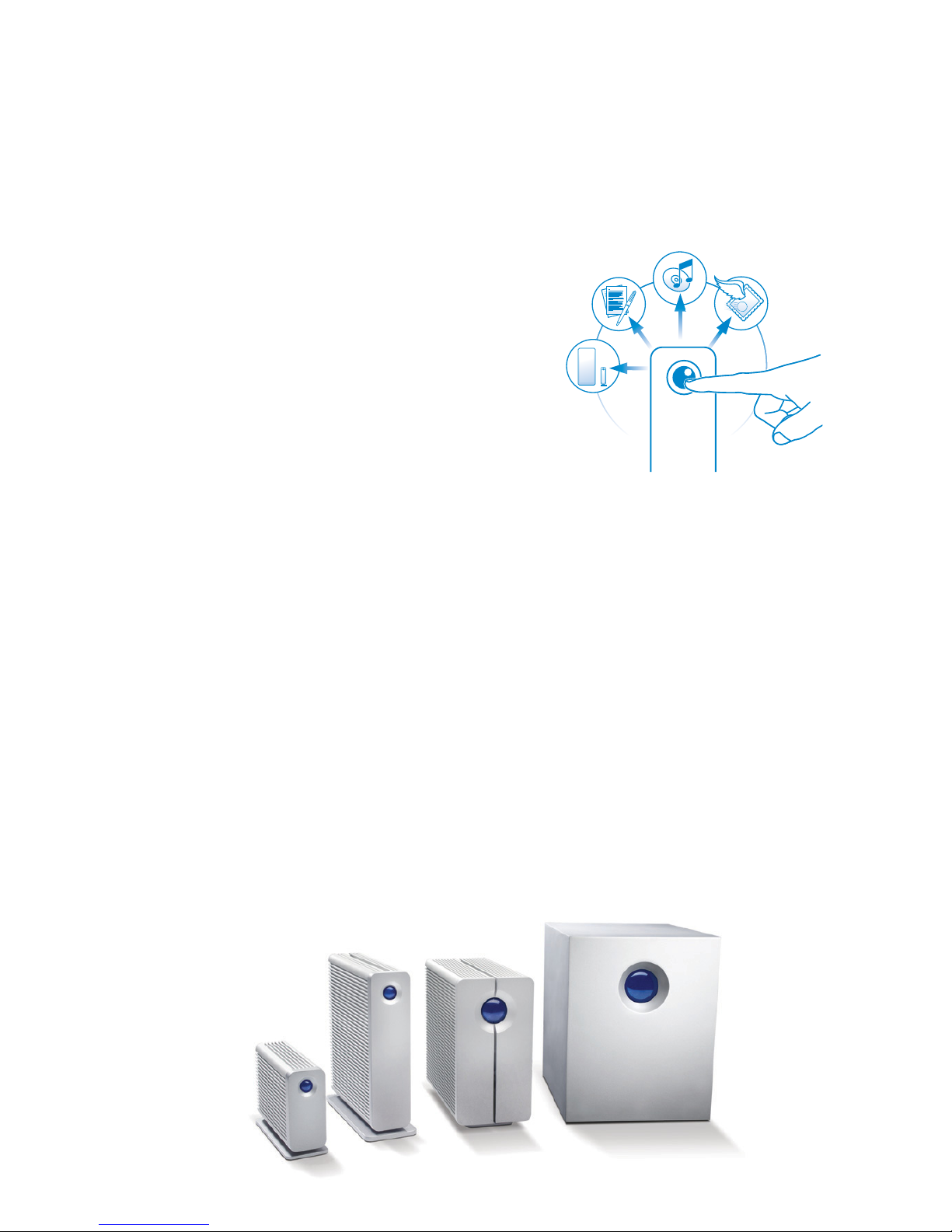

LaCie 2big Quadra

LaCie d2 Quadra

LaCie Little Big Disk Quadra

LaCie 4big Quadra

*The Shortcut Button and Auto/On/Off features are available via FireWire and USB but are not available from an eSATA bus.

**Burst transfer rates vary from one computer to another and may vary slightly from one drive to another. Average speed is usually

lower, depending on host conﬁguration.

***1TB = 1,000,000,000 bytes. Total accessible capacity varies depending upon operating environment (typically 5–10% less).

qCalculations are based on approximately 13GB/hour of DV video, 2.85MB/MP3 song, and 1MB/JPEG photo.

qqWindows XP does not recognize volumes of more than 2TB.

be trademarks or registered trademarks of their respective owners. Speciﬁcations and appearance are given as

guidelines and may change without notice. www.lacie.com 110128

Premium 3 Year Warranty

The d2 Quadra Hard Disk comes with a 3 Year Limited Warranty.

For superior service, it also comes with the LaCie Advance Care

Option, which can be purchased separately online within 30 days

of the purchase date. Under the Advance Care Option, LaCie will

immediately swap out the product without it needing to be returned ﬁrst

for minimal interruption of your workﬂow. LaCie covers all freight costs.

Availability depends on the sales area. See www.lacie.com for details.

d2 quadra

DESIGN BY NEIL POULTON

301442 301425 301500 301560

1TB 1.5TB 2TB 3TB

1 x eSATA 3Gb/s port

2 x FireWire 800 ports (9-pin)

1 x FireWire 400 port (6-pin)

1 x USB 2.0 port (USB 1.1-compatible)

eSATA: up to 3Gbits/s (300MB/s)

FireWire 800: up to 800Mbits/s (100MB/s)

FireWire 400: up to 400Mbits/s (50MB/s)

USB 2.0: up to 480Mbits/s (60MB/s)

eSATA: up to 105-115MB/s

FireWire 800: up to 75-85MB/s

FireWire 400: up to 35-40MB/s

USB 2.0: up to 30-35MB/s

7200rpm

16MB or greater

Launch any application with one push

“Auto” for energy efﬁciency; “On” for instant access; “Off” for data protection

60 x 168 x 183 mm / 2.3 x 6.6 x 7.2 in.

1.7 kg / 3.7 lbs.

3-year limited

Item Number

Capacity***

Interface

Interface Transfer Rates

(maximum bus speed)

Read Burst Transfer Rates:**

(maximum theoretical bus speed)

Rotational Speed

Cache Size

Shortcut Button*

Triple Power Management*

Dimensions (WxDxH)

Weight

Warranty
