Kramer VS-401YC Manuel utilisateur

Kramer Electronics, Ltd.

USER MANUAL

Model:

VS-401YC

4x1 s-Video / Audio Switcher - DA

Contents

Introduction 1

Getting Started 1

2.1

Quick Start 1

Overview 3

Your VS-401YC

4x1 s-Video /

Audio Switcher - DA 4

Connecting the VS-401YC 4x1 s-Video / Audio Switcher - DA 6

5.1

Connecting a PC 8

Flash Memory Upgrade 9

6.1

Downloading from the Internet 9

6.2

Connecting the PC to the RS-232 Port 9

6.3

Upgrading Firmware 9

Technical Specifications 15

VS-401YC Communication Protocol 16

Figures

Figure 1: VS-401YC 4x1 s-Video / Audio Switcher - DA 4

Figure 2: VS-401YC 4x1 s-Video / Audio Switcher - DA Underside view 5

Figure 3: Connecting the VS-401YC 4x1 s-Video / Audio Switcher - DA 7

Figure 4: Connecting a PC without using a Null-modem Adapter 8

Figure 5: Splash Screen 10

Figure 6: Atmel – Flip Window 10

Figure 7: Device Selection Window 11

Figure 8: Selecting the Device from the Selection Window 11

Figure 9: Loading the Hex 12

Figure 10: RS-232 Window 12

Figure 11: Atmel – Flip Window (Connected) 13

Figure 12: Atmel – Flip Window (Operation Completed) 14

Tables

Table 1: Features and Functions of the VS-401YC 4x1 s-Video / Audio Switcher - DA 4

Table 2: VS-401YC 4x1 s-Video / Audio Switcher - DA Underside Features 5

Table 3: VS-401YC 4x1 s-Video / Audio Switcher - DA Technical Specifications 15

Table 4: Protocol Definitions 16

Table 5: Instruction Codes for Protocol 2000 17

Introduction

1 Introduction

Welcome to Kramer Electronics (since 1981): a world of unique, creative and

affordable solutions to the infinite range of problems that confront the video,

audio and presentation professional on a daily basis. In recent years, we have

redesigned and upgraded most of our line, making the best even better! Our

500-plus different models now appear in 8 Groups

, which are clearly defined

by function.

Congratulations on purchasing your Kramer VS-401YC 4x1 s-Video / Audio

Switcher - DA, which is ideal for the following applications:

 Video duplication studios

 Broadcasting, production, or presentation systems requiring high quality

signal distribution

 Schools, retail outlets, sports bars, or other point-of-sale and CCTV

The package includes the following items:

 VS-401YC 4x1 s-Video / Audio Switcher - DA

 Power adapter (12V DC Input)

 This user manual

2 Getting Started

We recommend that you:

 Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

 Review the contents of this user manual

 Use Kramer high performance high resolution cables

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.

1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:

Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;

GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors

2 Download up-to-date Kramer user manuals from our Web site: http://www.kramerelectronics.com

3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

s-Video

Display

s-Video

Recorder

s-Video

Camera

Set Top Box

Source

DVD Player

s-Video Player

Overview

3 Overview

The VS-401YC is a 4x1 switcher and distribution amplifier for s-Video and

stereo audio signals, that lets you switch and distribute any of the four inputs

to two identical outputs.

In particular, the VS-401YC:

 Features video input and output signals on 4p connectors and audio input

and output signals on RCA connectors

 Has four selector buttons for selecting the input to switch to the two

identical outputs

 Lets you disconnect the input

from the outputs by pressing a selected

button a second time

To achieve the best performance:

 Connect only good quality connection cables, thus avoiding interference,

deterioration in signal quality due to poor matching, and elevated noise

levels (often associated with low quality cables)

 Avoid interference from neighboring electrical appliances that may

adversely influence signal quality and position your Kramer VS-401YC

away from moisture, excessive sunlight and dust

Caution – No operator-serviceable parts inside unit.

Warning – Use only the Kramer Electronics input power

wall adapter that is provided with this unit

Warning – Disconnect power and unplug unit from wall

before installing or removing device or servicing unit.

1 Except for the sync signal on input 1, resulting in a black screen display

2 For example: model number AD2512C, part number 2535-000251

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your VS-401YC 4x1 s-Video / Audio Switcher - DA

4 Your VS-401YC

4x1 s-Video /

Audio Switcher - DA

Figure 1 and Table 1 define the VS-401YC:

Figure 1: VS-401YC 4x1 s-Video / Audio Switcher - DA

Table 1: Features and Functions of the VS-401YC 4x1 s-Video / Audio Switcher - DA

# Feature Function

1 POWER Switch Illuminated switch for turning the unit ON or OFF

2 INPUT SELECT Buttons Press to select the input to switch to the output

3 s-VIDEO IN 4p Connectors Connect to the s-Video sources (from 1 to 4)

4 s-VIDEO OUT 4p Connectors Connect to the s-Video acceptors (OUT 1 and OUT 2)

5 R RCA connector Connect to the right audio sources (from 1 to 4)

AUDIO IN

L RCA Connector Connect to the left audio source (from 1 to 4)

7 R RCA Connectors Connect to the right audio acceptor (OUT 1 and OUT 2)

AUDIO

OUT L RCA Connectors Connect to the left audio acceptor (OUT 1 and OUT 2)

9 RS-232 DB 9F Port Connects to the PC or the Remote Controller

10 12VDC +12V DC connector for powering the unit

1 Via a null-modem connection

Your VS-401YC 4x1 s-Video / Audio Switcher - DA

Figure 2 and Table 2 define the underside of the VS-401YC:

Figure 2: VS-401YC 4x1 s-Video / Audio Switcher - DA Underside view

Table 2: VS-401YC 4x1 s-Video / Audio Switcher - DA Underside Features

# Feature Function

1 PROGRAM ON / OFF Switch Select OFF for normal operation (the factory default), and ON to

upgrade to the latest Kramer firmware (see section 6)

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Connecting the VS-401YC 4x1 s-Video / Audio Switcher - DA

5 Connecting the VS-401YC 4x1 s-Video / Audio Switcher - DA

To connect

the VS-401YC 4x1 s-Video / Audio Switcher - DA, as the

example in Figure 3 illustrates, do the following:

1. Connect up to

four s-Video sources to the s-VIDEO IN 4p connectors:

 An s-Video player to IN 1

 An s-Video camera to IN 2

 A DVD player to IN 3

 A set top box source to IN 4

2. Connect

the respective

audio sources to the L (left) and R (right) AUDIO IN

RCA connectors (from IN 1 to IN 4).

3. Connect the s-VIDEO OUT 4p connectors

 OUT 1 to an s-Video display

 OUT 2 to an s-Video recorder

4. Connect the respective L (left) and R (right) AUDIO OUT RCA connectors to

the appropriate audio inputs on the s-Video acceptors

5. Connect the 12V DC power adapter to the power socket and connect the

adapter to the mains electricity.

1 Switch OFF the power on each device before connecting it to your VS-401YC. After connecting your VS-401YC, switch on

its power and then switch on the power on each device

2 You do not have to connect all the inputs

3 Not shown in Figure 3

4 You do not have to connect all the outputs

Connecting the VS-401YC 4x1 s-Video / Audio Switcher - DA

Audio Connections

are not Shown

s-Video

Display

s-Video

Recorder

s-Video

Camera

Set Top Box

Source

DVD Player

s-Video Player

Figure 3: Connecting the VS-401YC 4x1 s-Video / Audio Switcher - DA

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Connecting the VS-401YC 4x1 s-Video / Audio Switcher - DA

5.1 Connecting a PC

You can connect a PC (or other controller) to the VS-401YC via the RS-232

port.

To connect using the Null-modem adapter provided with the machine

(recommended method):

 Connect the RS-232 DB9 rear panel port on the VS-401YC to the

Null-modem adapter and connect the Null-modem adapter with a 9-wire

flat cable to the RS-232 DB9 port on your PC

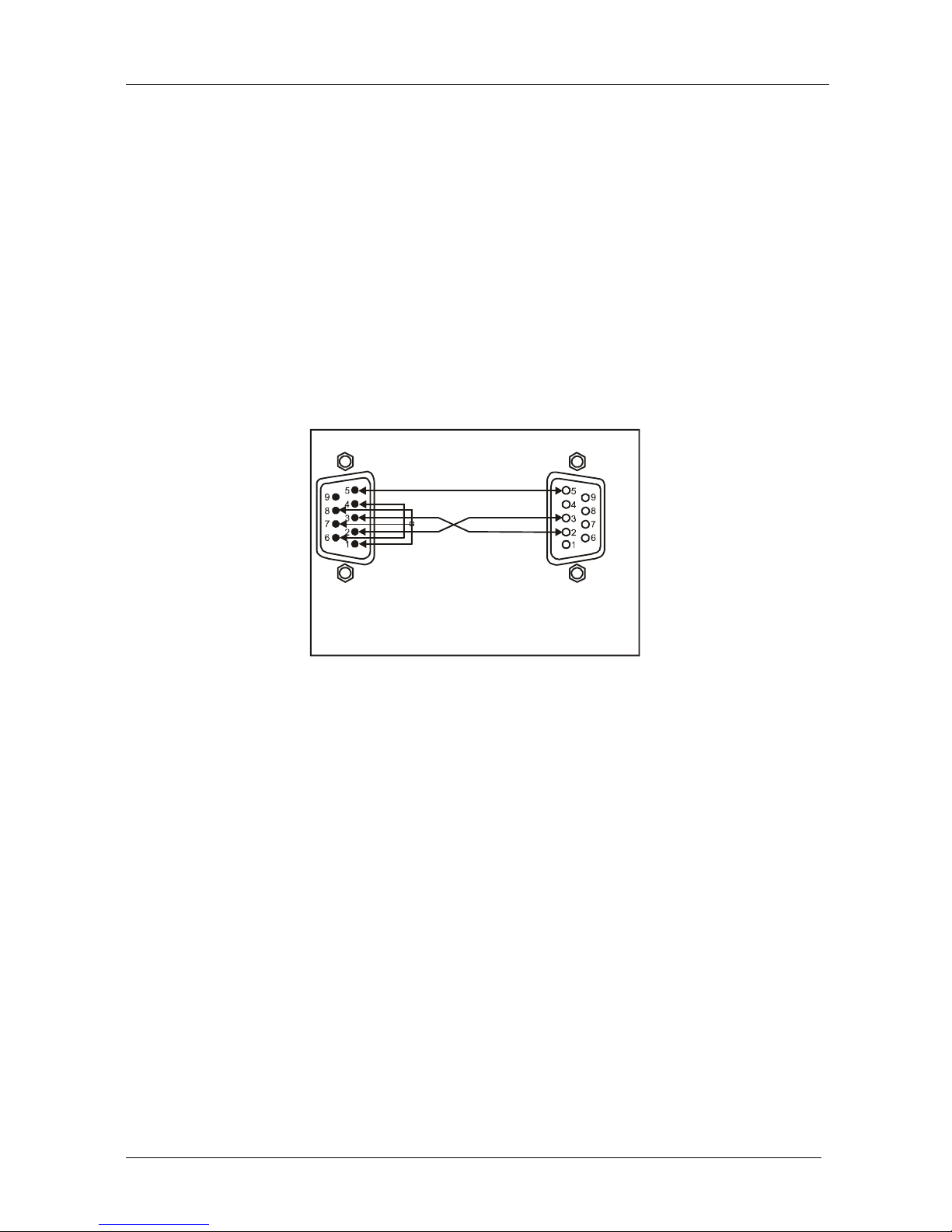

To connect without using a Null-modem adapter:

 Connect the RS-232 DB9 port on your PC to the RS-232 DB9 rear panel

port on the VS-401YC, as Figure 4 illustrates

Female DB9 (From PC)

PIN 4 Connected to PIN 6

PINS 8, 7, 1 Connected together

If a Shielded cable is used, connect the shield to PIN 5

PIN 5 Connected to PIN 5 (Ground)

PIN 3 Connected to PIN 2

PIN 2 Connected to PIN 3

Male DB9

Figure 4: Connecting a PC without using a Null-modem Adapter
