Kramer VP-8x8TP Manuel utilisateur

Kramer Electronics, Ltd.

USER MANUAL

Model:

VP-8x8TP

8x8 UXGA/Audio Matrix Switcher

Contents

1Introduction 1

2Getting Started 1

2.1 Quick Start 1

3Overview 3

3.1 TerminologyUsed in this User Manual 4

3.2 Shielded Twisted Pair and Unshielded Twisted Pair 4

3.3 Defining the EDID 5

3.4 The Power Connect™ Feature in the VP-8x8TP 5

4Defining theVP-8x8TP 8x8 UXGA/Audio Matrix Switcher 6

5Installing the VP-8x8TP in a Rack 9

6Connecting and Configuring the VP-8x8TP8x8 UXGA/Audio Matrix Switcher 10

6.1 Connecting the VP-8x8TP 8x8 UXGA/Audio Matrix Switcher 10

6.2 Connecting to the VP-8x8TP 8x8 UXGA/Audio Matrix Switcher via RS-485 11

6.2.1 Setting the RS-485 Bus Termination 12

6.2.2 Setting the RS-485 Bus Machine Number 12

6.3 Connecting to VP-8x8TP via the RS-232 Port 12

6.4 Configuring the Ethernet Port 12

6.4.1 Connecting via the Ethernet Port 12

6.4.2 Ethernet Port Configuration 14

6.5 Operating the VP-8x8TP 8x8 UXGA/Audio Matrix Switcher Remotely 16

6.6 Setting the Switching Delay Time 16

7Operating theVP-8x8TP 8x8 UXGA/Audio Matrix Switcher 17

7.1 Switching Inputs and Outputs 17

7.1.1 Switching an Input to an Output 17

7.1.2 Switching an Input to all Outputs 17

7.1.3 Disconnecting an Input from an Output 17

7.1.4 Disconnecting all Inputs from Outputs 18

7.2 The 7-Segment Status Display Modes 18

7.2.1 Status Display Immediately After Power is Turned On 18

7.2.2 Status Display During Normal Operation 18

7.2.3 Status Display During Audio Level Setting 19

7.3 Confirming Settings 19

7.3.1 Toggling between the At Once and Confirm Modes 19

7.3.2 Confirming a Switching Action 20

7.4 Storing/Recalling Input-Output Configurations 20

7.4.1 Storing an Input-Output Configuration 20

7.4.2 Recalling an Input-Output Configuration 21

7.5 Locking the Front Panel 21

7.6 Choosing the Audio-Follow-Video or Breakaway Option 21

7.6.1 Setting the Audio-Follow-Video Option 22

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Contents

7.6.2 Setting the Breakaway Option 22

7.7 Setting the Audio Input Gain 22

7.8 Using the IR Transmitter 23

8Operating MultipleVP-8x8TP Units Remotely via RS-232 23

9Operating theVP-8x8TP Remotely via your Web Browser 24

9.1 Connecting to the VP-8x8TP via your Browser 25

9.2 The Main Switching Matrix Page 26

9.2.1 Switching an Input to an Output 27

9.2.2 Setting the AFV Mode 28

9.2.3 Operating in the Offline Mode 28

9.2.4 Storing and Recalling Setups 29

9.2.5 Locking the Front Panel Buttons 31

9.3 Audio Input Gain Control Page 31

9.4 The Configuration Page 32

10 EDID 33

11 Firmware Upgrade 33

11.1 Wiring the TP RJ-45 Connectors 34

12 Technical Specifications 35

13 Default Communication Parameters 35

14 Default EDID 36

15 Tables of Hex CodesforSerial Communication (Protocol 2000) 38

16 Kramer Protocol 39

16.1 Switching Protocols 40

16.1.1 Switching Protocols via the Front Panel Buttons 40

16.1.2 Switching Protocols via Protocol Commands 40

16.2 Kramer Protocol 3000 40

16.2.1 Protocol 3000 Syntax 40

16.2.2 Command Parts Details 41

16.3 Kramer Protocol 2000 47

Figures

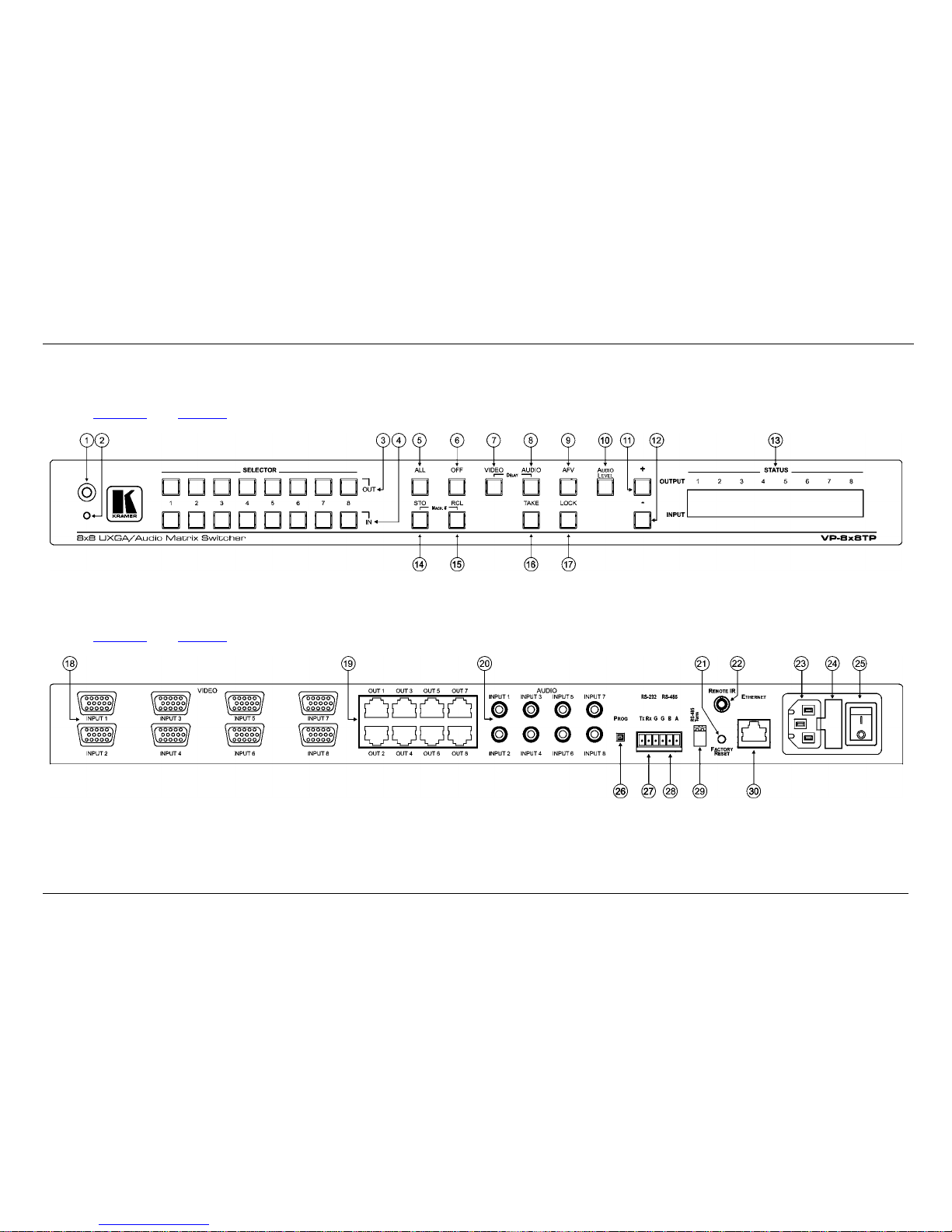

Figure 1: VP-8x8TP 8x8 UXGA/Audio Matrix Switcher Front Panel 6

Figure 2: VP-8x8TP 8x8 UXGA/Audio Matrix Switcher Rear Panel 6

Figure 3: Connecting the VP-8x8TP 8x8 UXGA/Audio Matrix Switcher 10

Figure 4: The RS-485 TERM Dipswitch 12

Figure 5: Local Area Connection Properties Window 13

Figure 6: Internet Protocol (TCP/IP) Properties Window 14

Figure 7: Connect Window 15

Figure 8: Device Properties Window 16

Figure 9: Status Display Five Seconds After Turn On 18

Figure 10: Status Display During Normal Operation 18

Figure 11: Status Display Showing INPUT 3, Gain -4.5 19

Contents

iii

Figure 12: Storing and Recalling using the Input-Output Buttons 20

Figure 13: Status Display Showing Audio Gain for Input 3, Gain -4.5 22

Figure 14: Control Configuration via RS-232 and RS-485 24

Figure 15: Java Test Page Success Message 24

Figure 16: Entering the IP Number in the Address Bar 25

Figure 17: The Loading Page 25

Figure 18: First Time Security Warning 26

Figure 19: Main Switching Matrix Page 26

Figure 20: Selecting a Switching Point on the Matrix 27

Figure 21: Switching an Input to an Output 27

Figure 22: AFV Mode Warning 28

Figure 23: AFV Mode Audio Channels Switched 28

Figure 24: Switching Audio in the Offline Mode 29

Figure 25: Exiting Offline Warning 29

Figure 26: Selecting Preset 07 30

Figure 27: Selecting Preset 03 30

Figure 28: Recalling a Preset in Offline Mode 31

Figure 29: Audio Gain Control Page 31

Figure 30: Selecting Audio Input Gain for Channel 2 32

Figure 31: Configuration Page 32

Figure 32: TP Pinout Wiring 34

Tables

Table 1: Terminology Used in this Manual 4

Table 2: VP-8x8TP Front and Rear Panel Features 7

Table 3: Technical Specifications of the VP-8x8TP 8x8 UXGA/Audio Matrix Switcher 35

Table 4: Default Communication Parameters 35

Table 5: VP-8x8TP Video Signal Codes 37

Table 6: VP-8x8TP Audio Signal Codes 38

Table 7: VP-8x8TP Audio Input Gain Codes 38

Table 8: VP-8x8TP Hex Codes for Switching Video Channels 38

Table 9: VP-8x8TP Hex Codes for Switching Audio Channels 38

Table 10: VP-8x8TP Hex Codes for Increasing/Decreasing the Audio Input Gain 39

Table 11: VP-8x8TP Hex Codes for Setting the Audio Input Gain 39

Table 12: Instruction Codes for Protocol 3000 42

Table 13: Protocol Definitions 47

Table 14: Instruction Codes for Protocol 2000 48

Introduction

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been

providing a world of unique, creative, and affordable solutions to the vast range of

problems that confront the video, audio, presentation, and broadcasting

professional on a daily basis. In recent years, we have redesigned and upgraded

most of our line, making the best even better! Our 1,000-plus different models now

appear in 11 groups1

Congratulations on purchasing your VP-8x8TP 8x8 UXGA/Audio Matrix Switcher,

which is ideal for the following typical applications:

that are clearly defined by function.

•Professional display systems requiring a true 8x8 computer graphics and

audio matrix operation

•Long range multimedia and presentation source and acceptor selection

The package includes the following items:

•VP-8x8TP 8x8 UXGA/Audio Matrix Switcher

•K-Router Windows®-based Kramer control software2

•Kramer RC-IR3Infrared Remote Control Transmitter (including the required

battery and a separate user manual

•Power cord3and this user manual4

2 Getting Started

We recommend that you:

•Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

•Review the contents of this user manual

•Use Kramer high performance high-resolution cables5

2.1 Quick Start

This quick start chart summarizes the steps for basic setup and operation.

1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers; GROUP 3: Control Systems; GROUP 4: Format/Standards

Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scan Converters and Scalers;

GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra

Products

2 Downloadable from our Web site at http://www.kramerelectronics.com

3 We recommend that you use only the power cord that is supplied with this machine

4 Download up-to-date Kramer user manuals from http://www.kramerelectronics.com

5 The complete list of Kramer cables is available at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

Overview

3 Overview

The VP-8x8TP is a high performance 8x8 computer graphics video and audio

matrix switcher for high resolution video and stereo audio signals. The VP-8x8TP

is HDTV compatible and lets you route any combination of inputs and outputs over

TP (Twisted Pair) cable to compatible TP receivers.

In particular, the VP-8x8TP 8x8 UXGA/Audio Matrix Switcher features:

•Kramer’s innovative integrated sync processing Kr-isp®technology that lets

you achieve a sharp, stable image when the sync level is too low, by restoring

the sync signal waveform

•Resolution up to UXGA (1600 x 1200), 1080p

•Support for component video with suitable breakout cables1

•16 preset memory locations for quick access to common video and audio

configurations and audio gain status for each output

•Automatic detection of the connected input signals (the respective button

lights)

•A delayed switching mode (ranging from 0 to 3.5sec2

•DC-coupled video inputs and outputs

) for clean transitions

(seamless switching) when switching between non-genlocked sources

•Audio-follow-video and breakaway options

•Eight stereo unbalanced audio input signals on 3.5mm mini jacks

•Eight RJ-45 STP/UTP output connectors

•Over 100m (330ft) transmission range between the switcher and the TP

receiver

•Audio level control buttons for adjusting the signal level of each input

•Measurement and indication of the audio level for each input and output, in

relative dB

•A TAKE button, which allows you to place multiple switches in a queue and

then activate them simultaneously with one touch of this button

•A LOCK button to prevent tampering with the front panel

The VP-8x8TP can be controlled using the front panel buttons, or remotely via:

•RS-485 or RS-232 serial commands (using Kramer 2000 and 3000 Protocols)

transmitted by a touch screen system, PC, or other serial controller

•The Kramer infrared remote control transmitter or infrared remote extension

cable transmitter (optional)

•A Web browser over Ethernet

The VP-8x8TP is dependable, rugged, and fits into one vertical space (1U) of a

standard 19” professional rack.

1 For example, C-GM/5BM. The complete list of Kramer cables is available at http://www.kramerelectronics.com

2 In increments of 0.5sec

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Overview

To achieve the best performance:

•Use only good quality connection cables1

•Avoid interference from neighboring electrical appliances that may adversely

influence signal quality and position your Kramer VP-8x8TP away from

moisture, excessive sunlight and dust

to avoid interference, deterioration

in signal quality due to poor matching, and elevated noise levels (often

associated with low quality cables)

3.1 Terminology Used in this User Manual

Table 1 defines some terms that are used in this user manual.

Table 1: Terminology Used in this Manual

Term

Definition

802.3 The standard specification for Ethernet that is maintained by the Institute of Electrical

and Electronics Engineers (IEEE).

Dynamic Host Configuration

Protocol (DHCP) Allows the network administrator to distribute IP addresses from a central point and

automatically send a new IP address when an Ethernet point is plugged into a different

network location.

Gateway A network position serving as an entry to another network. On the Internet, a node or

stopping point can be either a gateway node or a host (end-point) node.

IP Address A 32-binary digit number that identifies each sender or receiver (within a network via a

particular server or workstation) of data (HTML pages or e-mails) that is sent in packets

across the Internet. Every device connected to an IP network must have a unique IP

address. This address is used to reference the specific unit.

Local Area Network (LAN) Computers sharing a common communications line or wireless link, which often share a

server within a defined geographic area.

Media Access Control (MAC)

Address

A computer's unique hardware number (or address) in a LAN or other network. On an

Ethernet LAN, the (MAC) address is identical to the Ethernet address.

Transmission Control

Protocol/Internet Protocol

(TCP/IP)

The basic communication language or protocol of the Internet that breaks the message

into appropriately sized packets for the network, and can be used as a communications

protocol in an intranet or an extranet.

3.2 18BShielded Twisted Pair and Unshielded Twisted Pair

We recommend that you use Shielded Twisted Pair (STP) cable. There are

different grades of STP cable available, and we advise you to use the best quality

STP cable that you can afford. Our non-skew-free cable, Kramer BC-STP is

intended for digital signals and for analog signals where skewing is not an issue.

For cases where skewing occurs, our UTP skew-free cable, Kramer BC-XTP, may

be used. Bear in mind, though, that we advise using STP cables where possible,

since the compliance to electromagnetic interference has been tested using STP

cables.

Although Unshielded Twisted Pair (UTP) cable might be preferred for long range

applications, UTP cable should be installed as far as possible from electric cables,

motors, and so on, as these devices tend to create electromagnetic interference.

However, since the use of UTP cable might not conform to electromagnetic

standards, Kramer does not commit to meeting the standard with UTP cable.

1 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com

Overview

3.3 Defining the EDID

The Extended Display Identification Data (EDID1

3.4 The Power Connect™ Feature in the VP-8x8TP

) is a data-structure, provided by

a display, to describe its capabilities to a graphics card (that is connected to the

display’s source). The EDID enables the PC or laptop to “know” what kind of

monitor is connected to the output. The EDID includes the manufacturer’s name,

the product type, the timing data supported by the display, the display size,

luminance data and (for digital displays only) the pixel mapping data.

The Power Connect feature applies as long as the cable can carry power. This

feature is available when using STP cable and the distance does not exceed 50m

(164ft) on standard CAT 5 cable. For longer distances, heavy gauge cable should

be used (CAT 5 cable is still suitable for the video/audio transmission, but not for

feeding the power at these distances). For units which are connected via RJ-45

connectors, make sure that the shield of the STP cable is connected to the metal

casing of the connectors on both ends of the cable. For units which are connected

via terminal block connectors, the shield of the STP cable must be connected to a

ground terminal on the units at both ends (use the ground terminal of the power

supply connection if necessary).

For a CAT 5 cable exceeding a distance of 50m, separate power supplies should be

connected to the receivers simultaneously.

Note: The transmitter can supply power to the receiver but not visa versa.

1 Defined by a standard published by the Video Electronics Standards Association (VESA)

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Defining the VP-8x8TP 8x8 UXGA/Audio Matrix Switcher

4 Defining the VP-8x8TP 8x8 UXGA/Audio Matrix Switcher

Figure 1 and Table 2 define the front panel of the VP-8x8TP 8x8 UXGA/Audio Matrix Switcher.

Figure 1: VP-8x8TP 8x8 UXGA/Audio Matrix Switcher Front Panel

Figure 2 and Table 2 define the rear panel of the VP-8x8TP 8x8 UXGA/Audio Matrix Switcher.

Figure 2: VP-8x8TP 8x8 UXGA/Audio Matrix Switcher Rear Panel

Autres manuels pour VP-8x8TP

Table des matières

Autres manuels Kramer Commutateur matriciel

Kramer

Kramer XL 1608V2S Manuel utilisateur

Kramer

Kramer Sierra Video 4864V5Sxl Manuel utilisateur

Kramer

Kramer Sierra Pro XL 1208V5S Manuel utilisateur

Kramer

Kramer VP-26 Manuel utilisateur

Kramer

Kramer Sierra Video 3216V3 Manuel utilisateur

Kramer

Kramer VS-88H2 Manuel utilisateur

Kramer

Kramer VS-88HDCPxl Manuel utilisateur

Kramer

Kramer VS-88DTP Manuel utilisateur

Kramer

Kramer VS-48HDCPxl Manuel utilisateur

Kramer

Kramer Sierra Video 1208V5 Manuel utilisateur

Kramer

Kramer VP-772T Manuel utilisateur

Kramer

Kramer Sierra Video 1608V3 Manuel utilisateur

Kramer

Kramer VS-3232DVI Manuel utilisateur

Kramer

Kramer VP-211DS Manuel utilisateur

Kramer

Kramer MTX3-34-M Manuel utilisateur

Kramer

Kramer MTX3-88-SE Manuel utilisateur

Kramer

Kramer VP-747 Manuel utilisateur

Kramer

Kramer VP-729 Manuel utilisateur

Kramer

Kramer 3216HD Manuel utilisateur

Kramer

Kramer VS-3232DN-EM Manuel utilisateur

Kramer

Kramer VS-82HDxl Manuel utilisateur

Kramer

Kramer Sierra Video 6432V5xl Manuel utilisateur

Kramer

Kramer VP-32x1 Manuel utilisateur

Kramer

Kramer XL 3216VS Manuel utilisateur

Manuels Commutateur matriciel populaires d'autres marques

Broadcast Tools

Broadcast Tools SS 8.2 Manuel utilisateur

Altimium

Altimium MATF32 Manuel utilisateur

ALFAtron

ALFAtron ALF-MUK44N Manuel utilisateur

Monoprice

Monoprice Blackbird 15377 Manuel utilisateur

PTN

PTN FMX12 Manuel utilisateur

CYP

CYP nT15GX01 Manuel utilisateur

TESmart

TESmart HMA0402A40 Manuel utilisateur

Octava

Octava HD4XSTPMX Manuel utilisateur

Intelix

Intelix FLX-88 Mode d'emploi

Roland

Roland XS-1HD Manuel utilisateur

Atlona

Atlona AT-HDMI-22M Manuel utilisateur

Link

Link HD8X8 Manuel utilisateur

AMX

AMX AVS-OP-2020-117 Instructions et recettes

Lindy

Lindy 38042 Manuel utilisateur

Extron electronics

Extron electronics MTPX Plus Series Manuel utilisateur

Key Digital

Key Digital Champion KD-16x16CS Manuel utilisateur

Shinybow USA

Shinybow USA SB-8811 Manuel utilisateur

Optimus

Optimus Compact Manuel utilisateur
