Introduction

1 Introduction

Welcome to Kramer Electronics (since 1981): a world of unique, creative and

affordable solutions to the infinite range of problems that confront the video,

audio and presentation professional on a daily basis. In recent years, we have

redesigned and upgraded most of our line, making the best even better! Our

500-plus different models now appear in 8 Groups

, which are clearly defined

by function.

Congratulations on purchasing your VP-8x8 8x8 VGA / UXGA Matrix

Switcher, which is ideal for the following typical applications:

Any professional display system requiring a true 8x8 computer graphics

matrix operation

Multimedia and presentation source, and acceptor selection

The package includes the following items:

VP-8x8 8x8 VGA / UXGA Matrix Switcher

Windows®-based Kramer control software

Windows®-based Configuration Manager XPort software and Com Port

Redirector

Kramer RC-IR2 Infra-Red Remote Control Transmitter (including the

required battery and a separate user manual

)

Power cord, Null-modem adapter and this user manual

2 Getting Started

We recommend that you:

Unpack the equipment carefully and save the original box and packaging

materials for possible future shipment

Review the contents of this user manual

Use Kramer high performance high resolution cables

2.1 Quick Start

This quick start chart summarizes the basic setup and operation steps.

1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:

Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;

GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors

2 Downloadable from our Web site at http://www.kramerelectronics.com

3 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com

4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Getting Started

Overview

3 Overview

The VP-8x8 is a high performance 8x8 RGBHV Matrix Switcher for high

resolution video. The VP-8x8 lets you simultaneously route any or all of the

8 inputs to any or all of the 8 outputs.

The VP-8x8 8x8 VGA / UXGA Matrix Switcher:

Has a video bandwidth of 400MHz that ensures transparent performance

even in the most critical applications

Has 16 preset memory locations for quick access to common configurations

Has a delayed switching mode (ranging from 0 to 3.5sec

) for clean

transitions (seamless switching) when switching between non-genlocked

sources

Has DC coupled inputs and outputs

Includes a TAKE button, which allows you to place multiple switches in a

queue and then activate them simultaneously with one touch of this button

Consists of a LOCK button to prevent tampering with the front panel

Automatically detects connected input signals (respective button illuminates)

Control the VP-8x8 using the front panel buttons, or remotely via:

RS-485 or RS-232 serial commands transmitted by a touch screen

system, PC, or other serial controller

The Kramer Infra-Red remote control transmitter

Ethernet

The VP-8x8 is dependable, rugged, and fits into one vertical space (1U) of a

standard 19” professional rack

. To achieve the best performance:

Connect only good quality connection cables, thus avoiding interference,

deterioration in signal quality due to poor matching, and elevated noise

levels (often associated with low quality cables)

Avoid interference from neighboring electrical appliances that may

adversely influence signal quality and position your Kramer VP-8x8

away from moisture, excessive sunlight and dust

1 In increments of 0.5sec

2 The RGBHV signals are connected on HD15 pin connectors to reduce enclosure size

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your VP-8x8 8x8 VGA / UXGA Matrix Switcher

3.1 Terminology Used in this User Manual

Table 1 defines some terms that are used in this user manual:

Table 1: Terminology Used in this User Manual

Term Definition

802.3 The standard specification for ETHERNET that is maintained by the Institute of Electrical

and Electronics Engineers (IEEE).

Dynamic Host

Configuration

Protocol (DHCP)

Allows the network administrator to distribute IP addresses from a central point and

automatically send a new IP address when an Ethernet point is plugged into a different

network location

Gateway A network position serving as an entry to another network. On the Internet, a node or

stopping point can be either a gateway node or a host (end-point) node.

IP Address A 32-binary digit number that identifies each sender or receiver (within a network via a

particular server or workstation) of data (HTML pages or e-mails) that is sent in packets

across the Internet. Every device connected to an IP network must have a unique IP

address. This address is used to reference the specific unit.

Local Area Network

(LAN) Computers sharing a common communications line or wireless link, which often share a

server within a defined geographic area.

Media Access

Control (MAC)

Address

A computer's unique hardware number (or address) in a LAN or other network. On an

Ethernet LAN, the (MAC) address is identical to the Ethernet address.

Transmission

Control

Protocol/Internet

Protocol (TCP/IP)

The basic communication language or protocol of the Internet that breaks the message

into appropriately sized packets for the network, and can be used as a communications

protocol in an intranet or an extranet.

4 Your VP-8x8 8x8 VGA / UXGA Matrix Switcher

Figure 1, Table 2 and Table 3 define the VP-8x8 8x8 VGA / UXGA Matrix

Switcher.

Your VP-8x8 8x8 VGA / UXGA Matrix Switcher

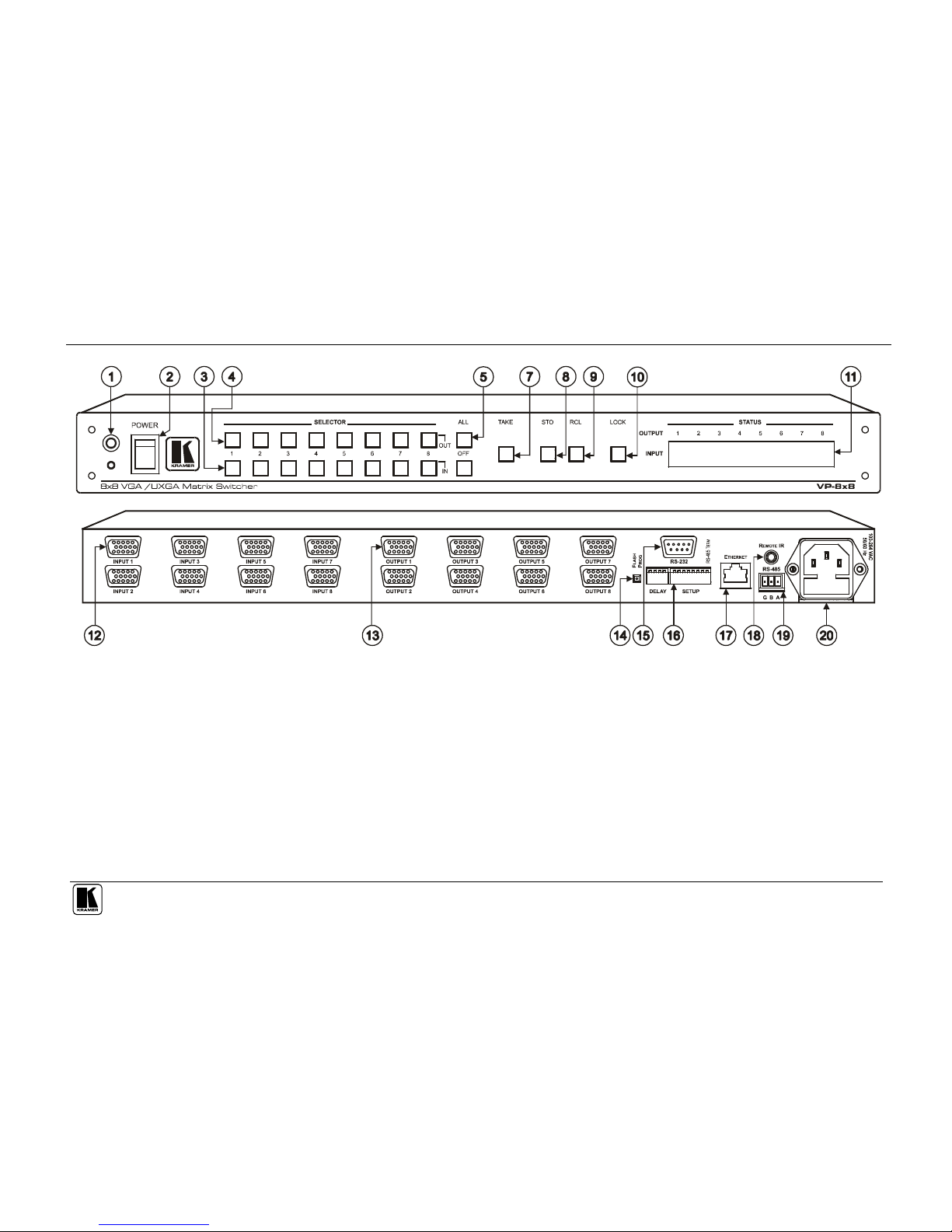

Figure 1: VP-8x8 8x8 VGA / UXGA Matrix Switcher – Front and Rear View

KRAMER: SIMPLE CREATIVE TECHNOLOGY

Your VP-8x8 8x8 VGA / UXGA Matrix Switcher

Table 2: Front Panel VP-8x8 8x8 VGA / UXGA Matrix Switcher Features

# Feature Function

1 IR Receiver The red LED is illuminated when receiving signals from the Infra-red remote

control transmitter

2 POWER Switch Illuminated switch for turning the unit ON or OFF

3 IN SELECTOR

Buttons Select the input to switch to the output.

When a signal is detected, the input button illuminates in green

4 OUT SELECTOR

Buttons Select the output to which the input is switched

5 ALL Button Pressing ALL followed by an INPUT button, connects that input to all outputs

6 OFF Button Press an OUT SELECTOR button and then an OFF button to disconnect that

output from the inputs

Press the ALL button and then the OFF button to disconnect all the outputs

7 TAKE Button Pressing TAKE toggles the mode between the Confirm mode

and the

At Once mode (user confirmation per action is unnecessary)

8 STO (Store) Button Pressing STO followed by an input/output button stores the current setting

9 RCL (Recall) Button Pressing the RCL button and the corresponding IN/OUT button recalls a

setup from the non-volatile memory. The stored status blinks. Pressing a

different IN/OUT button lets you view

another setup. After making your

choice, pressing the RCL button again implements the new status

10 LOCK Button Disengages the front panel switches

11 STATUS 7-segment

Display

Displays the selected input switched to the output (marked above each

input)

Table 3: Rear Panel VP-8x8 8x8 VGA / UXGA Matrix Switcher Features

# Feature Function

12 HD15F INPUT Connectors Connect to the video sources (from 1 to 8)

13 HD15F OUTPUT Connectors Connect to the output acceptor (from 1 to 8)

14 FLASH PROG Button Push in for “Program” to upgrade to the latest Kramer firmware

(see section 8), or release for Normal (the factory default)

15 RS-232 DB 9F Port Connects to the PC or the Remote Controller

16 DELAY and SETUP Dipswitches

Dipswitches for setup of the unit (DELAY dips 1, 2, 3 are for

setting the delay time; SETUP dips 1, 2, 3, 4 are for setting

machine #; 8 is for RS-485 Termination)

17 ETHERNET Connector Connects to the PC or other Serial Controller through computer

networking

18 RS-485 Terminal Block Port Pin G is for Ground connection; Pins B (-) and A (+) are for RS-485

19 REMOTE IR 3.5mm Mini Jack Connect to an external IR receiver unit for controlling the machine via

an IR remote controller (instead of using the front panel IR receiver)

20 Power Connector with Fuse AC connector enabling power supply to the unit

1 For example, press ALL and then Input button # 2 to connect input # 2 to all the outputs

2 When in the Confirm mode, the TAKE button illuminates

3 For example, press STO and then the Output button # 3 to store in Setup # 3

4 Only view, nothing is implemented at this stage

5 Also displays the number of IN and OUT ports, the firmware version number, and the MACHINE #. Refer to section 7.1

6 The FLASH PROG “Reset” button is located on the underside of the unit

7 Optional. Can be used instead of the front panel (built-in) IR receiver to remotely control the machine (only if the internal

IR connection cable has been installed)

Your VP-8x8 8x8 VGA / UXGA Matrix Switcher

Figure 2 illustrates the underside of the VP-8x8 unit, and Table 4 defines the

underside features.

Table 4: VP-8x8 Underside Panel Features

Feature Function

RESET FOR

PROGRAM Button Press to reset unit prior to

firmware upgrade (see

section 8.3)

Figure 2: VP-8x8 8x8 VGA /

UXGA Matrix Switcher –

Underside View

4.1 Using the IR Transmitter

You can use the RC-IR2 IR transmitter to control the machine via the built-in

IR receiver on the front panel or, instead, via an optional external IR

receiver

. The external IR receiver can be located 15 meters away from the

machine. This distance can be extended to up to 60 meters when used with

three extension cables

Before using the external IR receiver, be sure to arrange for your Kramer

dealer to insert an internal IR connection cable

, which is required so that the

REMOTE IR 3.5mm connector can be used. Connect the external IRreceiver

to the REMOTE IR 3.5mm connector.

Control the matrix switcher using the front panel buttons, or remotely via the

Kramer RC-IR2 Infra-Red Remote Control Transmitter, via an external

remote IR receiver (optional), or via RS-485 or RS-232 serial commands

transmitted by a touch screen system, PC, or other serial controller.

1 P/N: C-A35M/IRR-50

2 P/N: C-A35M/A35F-50

3 P/N: 505-70434010-S

Autres manuels pour VP-8x8

Table des matières

Autres manuels Kramer Commutateur matriciel

Kramer

Kramer Sierra Video 1608V3S Manuel utilisateur

Kramer

Kramer Sierra Pro XL 1608V3S Manuel utilisateur

Kramer

Kramer Cobra MX-1616 Manuel utilisateur

Kramer

Kramer Sierra Video 3232V5S Manuel utilisateur

Kramer

Kramer Sierra Pro XL 1208V3S Manuel utilisateur

Kramer

Kramer VS-88DTP Manuel utilisateur

Kramer

Kramer VP-885 Manuel utilisateur

Kramer

Kramer 84V5 Manuel utilisateur

Kramer

Kramer Sierra Video 1608V5 Manuel utilisateur

Kramer

Kramer VSM-4x4X Manuel utilisateur

Kramer

Kramer 3216S Manuel utilisateur

Kramer

Kramer VP-2x2 Manuel utilisateur

Kramer

Kramer VS-4228 Manuel utilisateur

Kramer

Kramer VP-720DS Manuel utilisateur

Kramer

Kramer VS-2616 Manuel utilisateur

Kramer

Kramer VS-48HDCPxl Manuel utilisateur

Kramer

Kramer VS-88DVI Manuel utilisateur

Kramer

Kramer VS-3232A Manuel utilisateur

Kramer

Kramer Sierra Video 4848V5xl Manuel utilisateur

Kramer

Kramer VS-62DT Manuel utilisateur

Kramer

Kramer VS-88HDCPxl Manuel utilisateur

Kramer

Kramer 20-04400030 Manuel utilisateur

Kramer

Kramer VS-44FO Manuel utilisateur

Kramer

Kramer VP-885 Manuel utilisateur

Manuels Commutateur matriciel populaires d'autres marques

Broadcast Tools

Broadcast Tools SS 8.2 Manuel utilisateur

Altimium

Altimium MATF32 Manuel utilisateur

ALFAtron

ALFAtron ALF-MUK44N Manuel utilisateur

Monoprice

Monoprice Blackbird 15377 Manuel utilisateur

PTN

PTN FMX12 Manuel utilisateur

CYP

CYP nT15GX01 Manuel utilisateur

TESmart

TESmart HMA0402A40 Manuel utilisateur

Octava

Octava HD4XSTPMX Manuel utilisateur

Intelix

Intelix FLX-88 Mode d'emploi

Roland

Roland XS-1HD Manuel utilisateur

Atlona

Atlona AT-HDMI-22M Manuel utilisateur

Link

Link HD8X8 Manuel utilisateur

AMX

AMX AVS-OP-2020-117 Instructions et recettes

Lindy

Lindy 38042 Manuel utilisateur

Extron electronics

Extron electronics MTPX Plus Series Manuel utilisateur

Key Digital

Key Digital Champion KD-16x16CS Manuel utilisateur

Shinybow USA

Shinybow USA SB-8811 Manuel utilisateur

Optimus

Optimus Compact Manuel utilisateur
