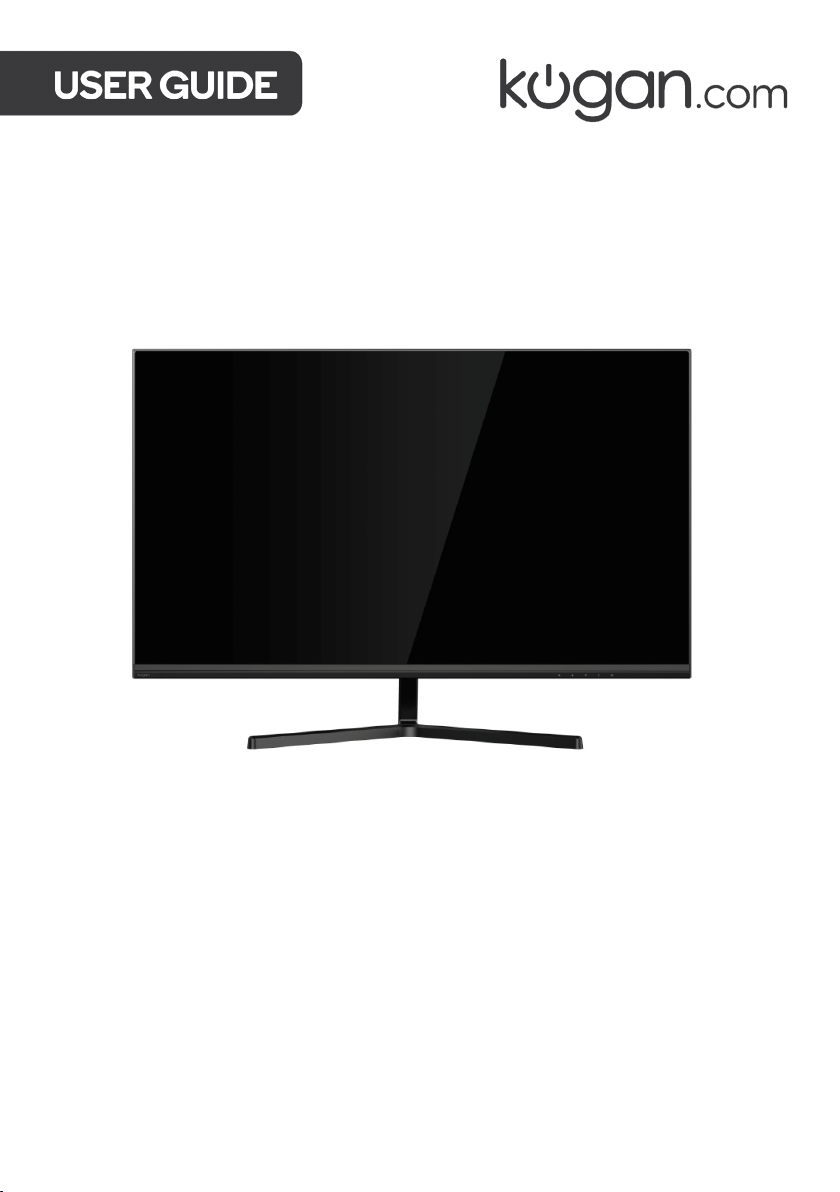

Kogan KAMN27PQFTA Manuel utilisateur

27" QHD IPS FREESYNC

FRAMELESS MONITOR

(2560 x 1440)

KAMN27PQFTA

Read all instructions before using the appliance and retain for reference.

•Unplug the monitor before cleaning it with a slightly damp, clean cloth.

•Wiping the screen once it has been turned off with a dry microfiber cloth is

recommended.

•Do not use cleaning alcohol or ammonia-based liquids or other harsh cleaners.

•This monitor is designed with ventilation holes on the back of the casing. Do not

cover or block them.

•Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat,

as well as in rooms lacking in adequate ventilation.

•Do not insert any objects or spray any liquids into the vents.

•Do not position the monitor in unsafe locations. If the monitor falls, it may be

damaged and may injure nearby people.

•Unplug the monitor if it is not going to be used for an extended period.

•Do not place heavy objects on the monitor, its power cord or any connected cables.

•Do not open the back panel of the monitor, as it contains a high-voltage current

even when not plugged in.

SAFETY & WARNINGS

BC D

E F G

A Monitor

B Stand Connector

CStand Base

D M4 x 20mm Screws (x2)

M2 x 12mm Screws (x1)

E Power Adapter

FHDMI Cable

GUser Guide

OVERVIEW

Built-in stand

1. Lay the monitor on a cloth with the LCD panel facing down to prevent the LCD

panel from being damaged. Install the bracket body to the stand base with

screws.

2. Attach the stand base by pressing it on to the LCD panel.

ASSEMBLY

Angle adjustment

The viewing angle of the built-in stand can be adjusted forward 5° or backward 15° for a

comfortable viewing experience.

Note:

•The above illustrations are for reference only.

•Take care not to touch the screen area when adjusting the angle of the monitor.

VESA mount

Consult a professional technician for wall mount installations. Kogan accepts no liability for

installations not performed by a professional technician.

Before installing this monitor on a desk or wall mount, make sure to detach the stand.

To ensure sufficient ventilation, install the monitor at least 10cm away from the wall and

leave about 10cm of space at each side of the monitor.

1. Place a clean, dry and lint-free cloth on a flat, stable surface.

2. Gently lay the monitor on the cloth with the LCD screen facing down.

3. Identify the four wall mounting screw holes on the back of the monitor.

4. Install the wall mounting bracket (not supplied) on the back of the monitor and

attach the monitor to the wall according to the mounting bracket's instructions.

5. Make sure that all screws (not supplied) are tightened and secured properly.

NOTE:

Ensure the wall mounting bracket and screws conform to VESA standards.

For more information, refer to the user manual provided with the wall mounting

bracket.

Turn off the PC and the monitor before connecting them.

HDMI

Connect an HDMI cable from your PC to the monitor.

DisplayPort

Connect a DisplayPort cable from your PC to the monitor.

CONNECTIVITY

3.5mm Audio Out

Earphones or speakers can be connected to receive sound output from your monitor. Note

that the sound output on your PC must be set to the monitor.

USB

You can connect a charging device to the USB (output 5VDC/500mA) port on the monitor.

Power Cable

Connect the included power cable to the monitor power port, then connect the other end

into a power outlet.

Setup

1. Connect your PC to the monitor using the included HDMI cable.

2. Connect the power cable to your monitor then connect the other end to your

power source. It is recommended that you use a surge protector with adequate

voltage if a wall outlet cannot be reached directly.

3. Locate the power button on the monitor and press it to turn the monitor on.

FreeSync

The feature itself is on by default when setting 75Hz refresh rate. In order to use this feature,

note you must have hardware with FreeSync capability, an HDMI cable and the latest

graphic drivers.

Connect to the monitor using an HDMI cable. After connecting, you may receive a prompt

to enable the feature on your computer. If you do not receive the prompt, you may need to

enable the function in your graphics card menu. See your graphics card manufacturer' s

documentation for instructions on how to turn on and/or enable FreeSync.

OPERATION
