Kogan KAHUDA5CARA Manuel utilisateur

CAR HEAD UP DISPLAY

KAHUDA5CARA

Head up display (HUD)

Charging cable

Non-slip mat

Reflective film

User guide

COMPONENTS

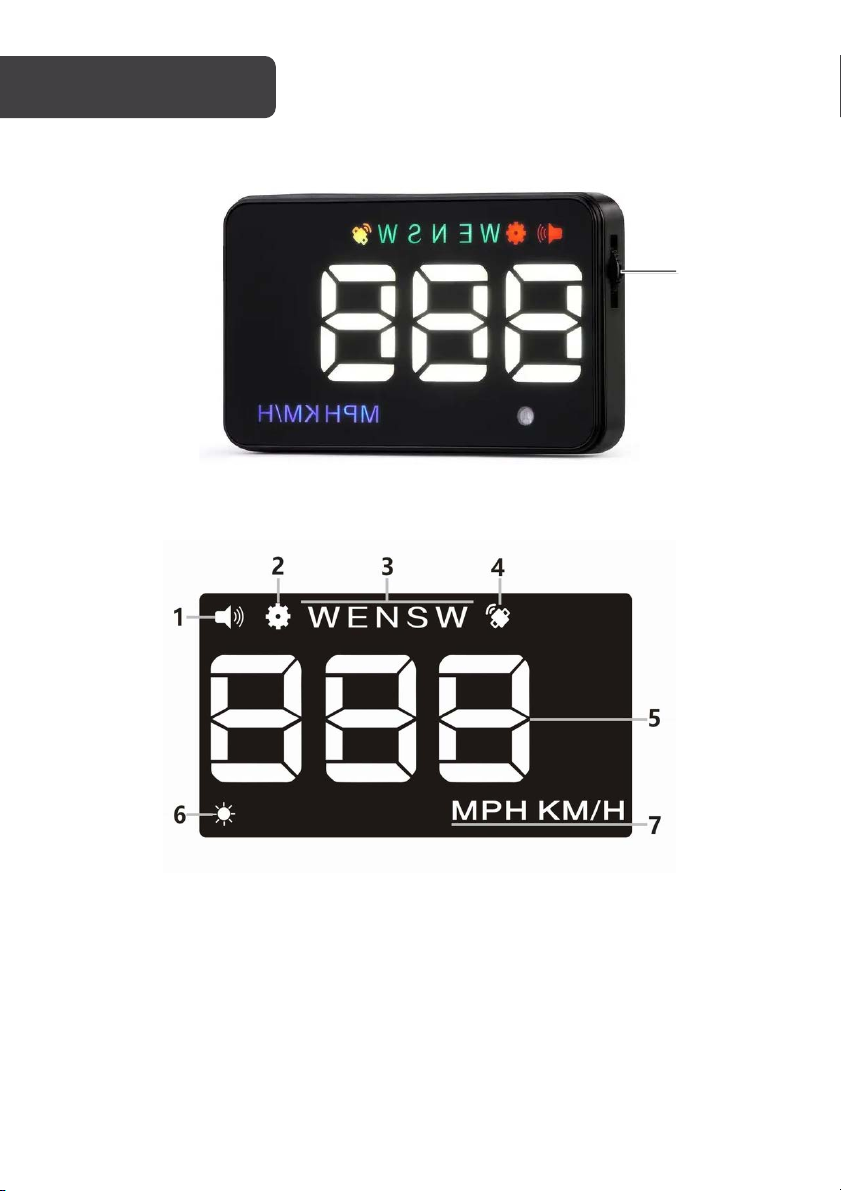

Display (as viewed on windscreen)

1. Buzzer

2. Setting

3. Compass

4. Satellite

5. Speed

6. Light sensor

7. Speed unit (MPH/ Km/h)

OVERVIEW

Input

button

Before First Use

1. Place the non-slip mat on the driver’s side corner of the dashboard and then place

the head up display (HUD) on it.

2. Connect charger to vehicle’s 12V socket.

3. Connect the cable to the OBDII input on the unit.

4. Start the engine and the HUD will power on.

5. The RED satellite icon will flash when charged and begin searching for a satellite

connection. When the satellite indicator turns GREEN, the HUD is ready for use.

Reflective Film

The HUD projects information up onto the windscreen. Due to the construction of your

windscreen, the HUD may create a double reflection on the windscreen, which will make it

difficult to read. If this occurs, install the reflective film.

1. Spray some water onto the inside of your windscreen above where the HUD is

installed. Clean the area with a dry cloth.

2. Remove the backside (marked 1) of the film and apply to the windscreen.

3. Ensure the film is installed in the correct location and adjust if necessary.

4. Use a flat plastic object (credit card) to squeeze out any water or bubbles from

behind the reflective film.

5. Remove the protective film (marked 2).

6. If the reflective film isn’t positioned to display all the vehicle information, adjust the

position of the HUD and non-slip mat until it is correctly aligned.

INSTALLATION

Input button:

The Input button is a three-way button used to navigate the HUD’s menu and adjust the

settings.

• Up: push the button towards the windscreen

• Ok: press the button inwards

• Down: pull the button towards the driver

Using the input button

Press and hold the input button for 5 seconds to enter the menu. When finished adjusting

the settings, press and hold the input button for 5 seconds to save changes and exit.

• Up: increases setting value

• Down: decrease setting value

• Down and hold: turn alarm tone on or off

• Ok: short press to change menu selection

Factory Reset

Long pull up and hold. When all LEDs are illuminated, the HUD has been restored to

factory settings.

OPERATION

Down

Settings menu

Since the HUD receives data from satellites, the data will vary slightly from the information

displayed on the vehicle dashboard. If you find the value on your dashboard is different to

the value displayed by the HUD, you can change it through the following procedure.

Parameter

Adjustment

range

Explanation

Default

Display

Speed

80-120

Up or down to adjust

107

Over-speed

alarm

10-180

Sounds alarm when

speed is exceeded

117

Brightness

0-5

1 (darkest) – 5 (brightest)

0 = Automatic

100

Speed unit

0-1

0= Km/h

1= MPH

Power on/off

voltage

100-150

Change to 13.2V-14V if

HUD does not turn off

automatically

Display mode

0-1

0 = reflect on windshield

1 = HUD screen

Working voltage

DC8-18V

Current

Working: 40mA

Standby: 15mA

Speed range

0-400km

Satellite positioning time

Cold start: 4 mins

Hot start: 45 seconds

Compass precision

±1°

12V car charger

1000mA

Weight

40g

Dimensions

90x54x12mm

SPECIFICATIONS

Issue

Solution

HUD has no display/power

• Ensure the power cable is properly connected

• Press the input button down multiple times

• Connect the HUD to a different 12V socket or

another vehicle to ensure the 12V is functioning

correctly

Inaccurate speed

• Ensure the speed unit is correct (MPH/Km/h)

• Adjust the speed value in the settings menu

HUD is not visible in sunlight

• Ensure the reflective film is installed

• Adjust the brightness in the settings menu

TROUBLESHOOTING

NOTES
