Kogan KAMN29UHWLA Manuel utilisateur

29” CURVED ULTRAWIDE 100Hz

FREESYNC GAMING MONITOR

(2560 x 1080)

KAMN29UHWLA

• Read all instructions before using the appliance and retain for reference.

• Unplug the monitor before cleaning it.

• Use a clean, slightly-dampened cloth to wipe the main monitor body.

• To c l e a n t h e s c r e e n : t u r n i t o f f , u n p l u g i t a n d w a i t f o r i t t o c o o l c o m p l e t e l y, t h e n

wipe it with a dry microfibre cloth.

• Do not use cleaning alcohol, ammonia-based liquids or other harsh cleaners.

• This monitor is designed with ventilation holes on the back of the casing. Do not

cover or block them.

• Do not insert any object or spray any liquid into the vents.

• Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat,

as well as in rooms lacking adequate ventilation.

• Do not position the monitor in unsafe locations. If the monitor falls, it may be

damaged and may injure nearby people.

• Unplug the monitor if it is not going to be used for an extended period.

• Do not place heavy objects on the monitor, its power cord or any connected cable.

• Do not open the back panel of the monitor, as it contains a high-voltage current

even when not plugged in.

• This monitor is designed with ventilation holes on the back of the casing. Do not

cover or block them.

The terms HDMI and HDMI High-Definition Multimedia

Interface and the HDMI Logos are trademarks or registered

trademarks of HDMI Licensing Administrator, Inc. in the

United States and other countries.

SAFETY & WARNINGS

Monitor

Stand stem

Stand base

Stand trim cover

M4x12mm Screws (x3)

VESA screws (x4)

Power adapter

DP cable

User guide

COMPONENTS

Controls

Ports

Menu button

Exit button

Down button

Power button

Up button

LED indicator

Audio out (3.5mm jack)

HDMI input (x2)

DisplayPort

Power input

OVERVIEW

Monitor stand

1. Open the package, remove the monitor with the foam still attached and gently place

it on a soft, clean surface.

2. Attach the stand stem to the stand base and secure it in place using an M4x12

screw.

ASSEMBLY

Note:

Keep the foam underneath the monitor before attaching the stand.

Stand stem

Foam

Monitor

Stand base

M4x12 screw

3. Remove the upper foam and attach the assembled stand to the rear of the monitor

using an M4x12 screw.

4. Attach the stand trim cover to the assembled stand

Stand trim cover

M4x12 screw

5. Using both hands, carefully remove the monitor from the foam and place it on a flat

surface.

Note:

To a v o i d d a m a g i n g t h e m o n i t o r, d o not press on or hold the LCD screen during

assembly.

To ensure sufficient ventilation, install the monitor at least 10 cm away from the wall and

leave approximately 10 cm of space at either side of the monitor.

1. Open the box, remove the monitor keeping the protection foam attached and

gently place it on a desktop or table.

2. Remove the foam covering the rear of the monitor. Remove the stand plate. If the

monitor is already attached to the stand, remove the stand.

Monitor

Stand plate

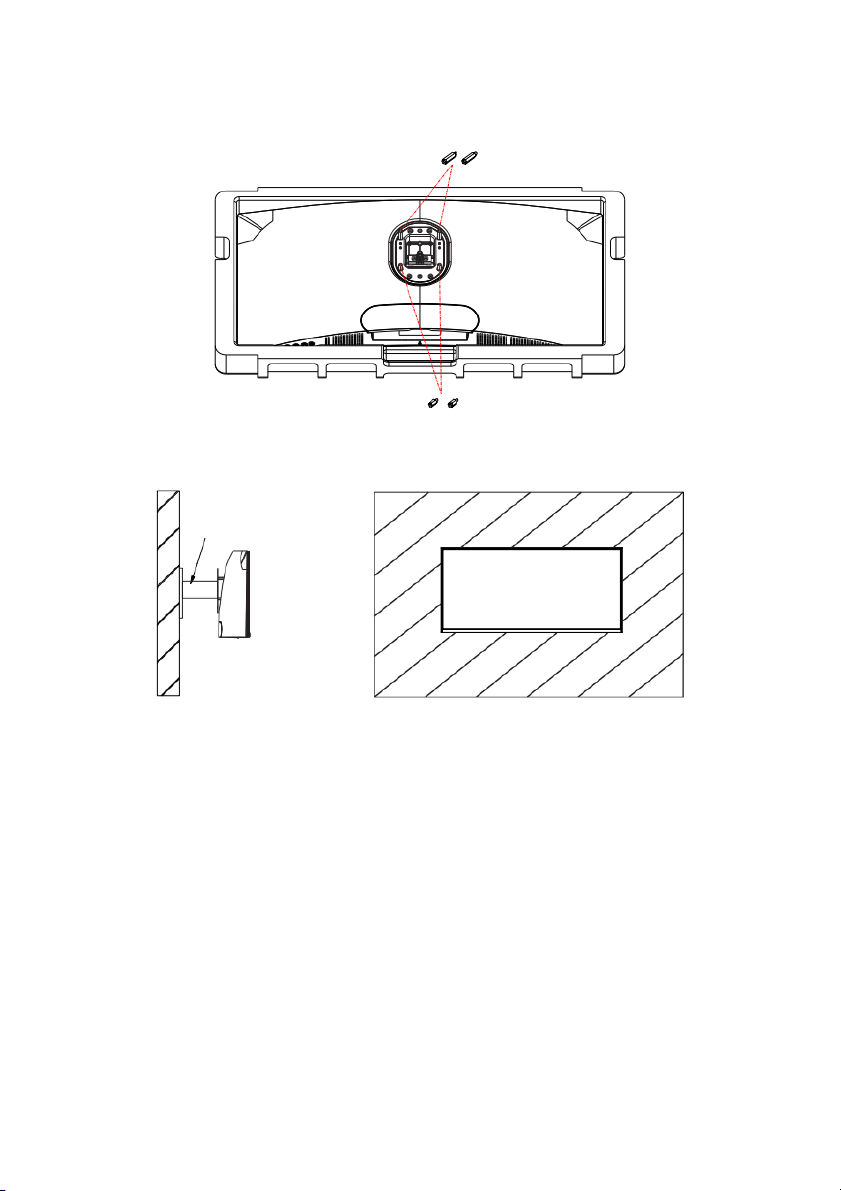

VESA MOUNT

Note:

VESA mount or mounting accessories are not included.

3. Insert the x2 27.5mm VESA screws into the upper holes on the rear of the monitor

and the x2 17mm VESA screws into the lower holes.

4. Assemble the monitor mount following the instructions provided with the mount.

Mount (not included)

27.5mm VESA screws

17mm VESA screws
