Kogan KAMN27F7USA Manuel utilisateur
27” FULL HD 75HZ USB-C
FREESYNC MONITOR
(1920 x 1080)
KAMN27F7USA
• Read all instructions before using the appliance and retain for reference.
• Unplug the monitor before cleaning it.
• Use a clean, slightly dampened cloth to wipe the main monitor body.
• To clean the screen, turn it off unplug it and wait for it to cool completely, then wipe it
with a dry micro-fibre cloth.
• Do not use cleaning alcohol, ammonia-based liquids or other harsh cleaners.
• This monitor is designed with ventilation holes on the back of the casing. Do not cover
or block them.
• Do not insert any object or spray any liquid into the vents.
• Avoid placing the monitor near heaters, stoves, fireplaces or other sources of heat, as
well as in rooms lacking adequate ventilation.
• Do not position the monitor in unsafe locations. If the monitor falls, it may be damaged
and may injure nearby people.
• Unplug the monitor if it is not going to be used for an extended period.
• Do not place heavy objects on the monitor, its power cord or any connected cable.
• Do not open the back panel of the monitor, as it contains a high-voltage current even
when not plugged in.
The terms HDMI and HDMI High-Definition Multimedia
Interface and the HDMI Logos are trademarks or registered
trademarks of HDMI Licensing Administrator, Inc. in the United
States and other countries.
SAFETY & WARNINGS
Monitor
Stand arm
Base
Stand screw
(M6x14mm) (x1)
VESA screws (x4)
HMDI cable
USB-C cable
Power cable
User guide
COMPONENTS
Button
Function
1
Power
a. Press and hold the “Power” button for 6 seconds to turn the monitor
on/off.
b. When the monitor is on, press the "Power " to wake up the main
menu for one second.
c. Select "direction key" to select the items to be adjusted up and
down in the main menu. After selecting the items, click " Power " to
adjust. Click " Power " again to save and return to the upper menu.
2
Directional
Use to navigate menus. Pressing left and right while on a progress bar
will reduce and increase the functions respectively.
Shortcut button
a. Press the “Power” button right: source selection menu. Select the
signal source using the directional buttons and then press "Power"
button to confirm.
b. Press the “Power” button left: display mode menu. Select the
display mode using the directional buttons and then press "Power"
button to confirm.
c. Press the “Power” button up: Gameplus timer shortcut. Select the
desired timing length and then press "Power" button to confirm. To
exit, repeat the "Power" button up.
d. Press the “Power” button down: Gameplus sight shortcut. Select
the desired sight and then press "Power" button to confirm. To exit,
repeat the "Power" button up.

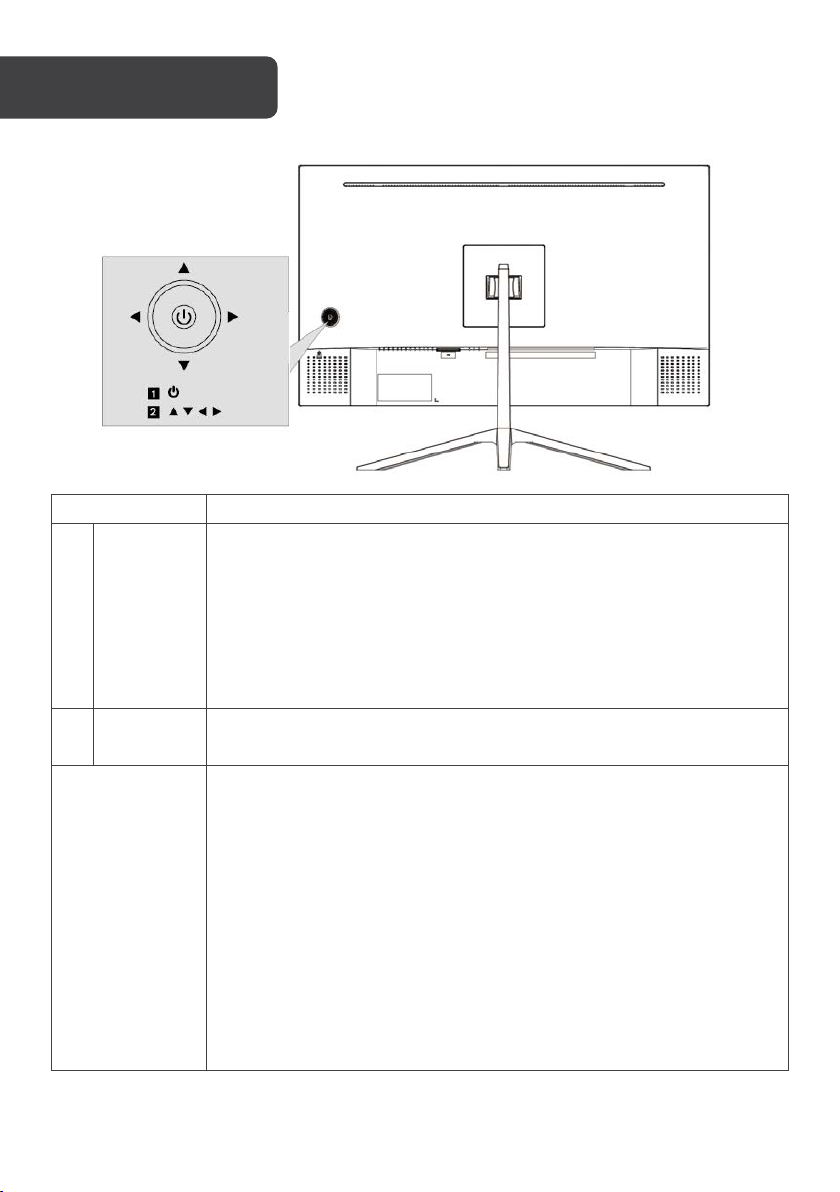

OVERVIEW
Button
Function
3
HDMI input
4
USB-C input
5
Audio out
6
Power input
1. Carefully remove the monitor, stand
arm and stand base from the box.
2. Attach the stand base to the stand
arm using the supplied M6 screw.
3. Insert the connection block into the
back cabinet and push down until
firmly connected.
4. Lift monitor up straight and remove
the bottom foam. Stand the monitor
up on the installed base.
ASSEMBLY
WARNING: The panel of the monitor is fragile. Keep the foam
underneath the monitor screen while assembling the stand.
VESA mounting pattern 75 x 75mm, screw size M4.
Note: VESA mount or mounting accessories are not included.
1. Open the box, take out the monitor with protection form attached and gently place
it on a desktop or table. Remove the extra parts and the foam covering the back of
the monitor. Press the release button to remove the stand plate. If the monitor was
already attached to the stand, remove the stand.
2. Assemble the mount as per the instructions provided with the mount.
Note: To prevent the monitor on the mount from failing, please install it firmly and protect it
fully. Do not place or hang any object on the mount. Ensure the height of the mount is less
than 2 meters.
VESA MOUNT
Stand base
Monitor
Stand plate
Button
Mount (not included)
Foam
Stand connector
Power cable
Connect the included power cable to the monitor power port, then connect the other end to
a power outlet.
Earphones (Audio Out)
Connect an audio cable to the 3.5mm audio port on the monitor (Audio In) and the 3.5mm
audio port on your computer.
CONNECTIVITY
USB-C
In order for the monitor to receive USB-C signals from the computer, use the USB-C cable to
connect the monitor to the computer.
HDMI
In order for the monitor to receive HDMI signals from the computer, use the HDMI cable to
connect the monitor to the computer.
