Kodak Ektalite 1000 Manuel utilisateur

KODAK EKTALITE Slide Projectors 43

english

Table of Contents

1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

2 Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Start-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Loading the Slide Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Operating the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Clearing a Gate Jam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

3 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Changing the Projection Lamp . . . . . . . . . . . . . . . . . . . . . . . 70

Cleaning the Condenser and Mirror . . . . . . . . . . . . . . . . . . . . 72

4 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Self-check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

5 Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

6 How to Obtain Service . . . . . . . . . . . . . . . . . . . . . . . . . 81

Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Shipping Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

7 Special Application Receptacle . . . . . . . . . . . . . . . . . . 82

Twelve-Pin Receptacle Specifications(Model 2000) . . . . . . 82

KODAK EKTALITE Slide Projectors

Important Safety Instructions

When operating your projector, always follow basic safety precautions:

1. Read and understand all instructions before operating your projector.

2. Before you switch on your projector, ensure that the mains voltage input is correct or is

correctly adjusted for Models 2000, 1500, and 1000! Incorrect voltage can lead to malfunction

in the projector.

3. Close supervision is necessary when any appliance is used by or near children, or others who

may not understand the need for these precautions. Do not leave the projector unattended

during use.

4. Be careful not to touch hot parts. For lamp replacement, allow the module to cool before

touching the lamp. Do not place the lamp module on heat-sensitive surfaces.

5. Do not operate your projector if the cord is damaged or if the projector has been dropped or

damaged (see “How to Obtain Service” on page 81).

6. Position the cord so that it is not tripped over, pulled, or placed in contact with hot surfaces.

7. If an extension cord is necessary, use a cord with a current rating at least equal to that of the

projector. Cords rated for less amperage than the projector may overheat.

8. Always unplug the projector from the electrical outlet before cleaning and servicing and when

it is not in use.

9. Allow the project to cool before storing.

10. Do not immerse this equipment in water or other liquids.

11. Do not disassemble this projector. Use a qualified service technician when service or repair is

required. Incorrect reassembly can cause electric shock the next time the projector is used.

12. Use only safety electrical low-voltage (SELV) devices.

13. The use of an accessory attachment not recommended by the manufacturer may increase risk

of damage.

14. Connect this projector to a grounded outlet.

15. Keep the air-flow vents unobstructed.

Electrical Approvals and CE Mark

This projector complies with International Safety requirements of IEC 335-/-2-56 and bears the

following safety marks:

•CE

• SGS Australian Standard

• TÜV

• VDE (Pending)

KODAK EKTALITE Slide Projectors 45

english

1Overview

FRONT RIGHT

1. Tray

2. Lock Ring/Cover

3. Transformer Module

4. Elevating Foot

5. Elevating Adjustment Wheel

6. Quick Release Button (Models

2000, 1500, 1000)

7. Projection Lens

8. Lens Focus and Release Knob

9. Autofocus (Models 2000, 1500)

10. Select Bar

11. Gate Index

12. Timer (Models 2000, 1500)

13. Reverse

14. Forward

15. Power (NO LIGHT/LO/HI—

Models 2000, 1500, 1000)

(NO LIGHT/ON—Model 500)

A098_0069AC

A098_0069ACA

Overview

KODAK EKTALITE Slide Projectors

BACK RIGHT

16. Alignment Mark

17. Index Mark

18. Lamp Module

19. Leveling Foot

20. Reading Light Cover

(Models 2000, 1500, 1000)

21. Internal/External Switch

(Model 2000)

22. Twelve-Pin (Dissolve)

Receptacle (Model 2000)

23. AC Power Main Receptacle

24. Six-Pin Remote Control

Receptacle (Models 2000, 1500,

1000)

BASE

25. Voltage Selector

(Models 2000, 1500, 1000)

26. Fixing Holes (6 mm thread)

(Models 2000, 1500, 1000)

27. Serial Number Label

28. Power Cord Retainer

A098_0070AC

A098_0070ACA

2019

A098_0071AC

25 26

A098_0071ACA

KODAK EKTALITE Slide Projectors 47

english

2Operation

Start-up Models 2000, 1500, and 1000 only

Caution

Before you turn on your new KODAK EKTALITE Slide Projector, it is

critical to set the voltage selector to the proper setting.

The voltage selector is located on the base of the projector. You can set

the voltage selector for the proper voltage (100, 115, 130, 220, 230, and

240 V, 50/60 Hz) by turning the selector until the arrow of your main

voltage lines up with the arrow on the projector housing.

A098_0046AC

A098_0046ACA

Voltage selector

Fuse storage door

Power BASE

Operation

KODAK EKTALITE Slide Projectors

A 220, 230, or 240 main requires a 2.5 A H/250 V fuse. The 100, 115

or 130 V main requires a 5 A slow blow/250 V fuse. To fit or check the

fuse, pull out the fuse holder located beneath the power main.

At manufacture, the voltage selector is set at 240 V with a 2.5A

slow blow/250 V fuse fitted in the fuse holder. A spare fuse for

replacement is provided in the first compartment of the fuse holder.

Important

Countrieswith100,115,or130Vmainwillrequireremovalofthetwo

fuses in the fuse holder. Use the 5 A slow blow/250 V fuse, provided.

Set the voltage selector for your main voltage.

After you have set the correct voltage and fitted the required fuse, you

can safely plug the projector into your power main and switch it on.

Model 500 only

Operating Voltage Range: Minimum 207V

Maximum 254 V

50/60Hz

Operation

KODAK EKTALITE Slide Projectors 49

english

All Models

Plug the 6-pin cable remote connector into the remote-control

receptacle, aligning the raised arrow with the notched side of the socket.

This receptacle also accepts plugs for accessories, such as a KODAK

EKTALITE IR Remote Control.

A098_0079AC

control

Remote

receptacle

Remote control

A098_0079ACA

Operation

KODAK EKTALITE Slide Projectors

Loading the

Slide Tray The KODAK EKTAPRO 80 Slide Tray (with transparent cover) and

the KODAK EKTAGRAPHIC Universal Slide Tray are designed to

hold up to 80 slides. Be sure that your slide mounts are in good

condition; frayed or bent mounts or mounts with loose tape may fail to

drop into the projector. A variety of slide trays are available with

capacity up to 140 slides. See your dealer in Kodak products for a

complete list of Kodak trays and accessories.

Place the tray over the center post of the projector. Align the “0” slot

with the gate index; the tray will drop into position.

If your slide tray does not drop easily, rotate the metal plate on the

bottom of the tray until it locks into position.

80 - Slide Tray

Metal plate

80 - Slide Tray

Operation

KODAK EKTALITE Slide Projectors 51

english

Place the loaded slide tray on the projector. Align the gate index at the

zero slide position. The tray will drop.

Front-Screen Projection

Remove the tray’s transparent cover (or the lock ring) by turning it

counterclockwise and lifting it off.

Check each slide’s orientation (horizontal or vertical) and arrange them

in the order you wish to show them. Then turn the slides upside down.

Number each mount in the upper right-hand corner.

Gate index

Lock ring

Operation

KODAK EKTALITE Slide Projectors

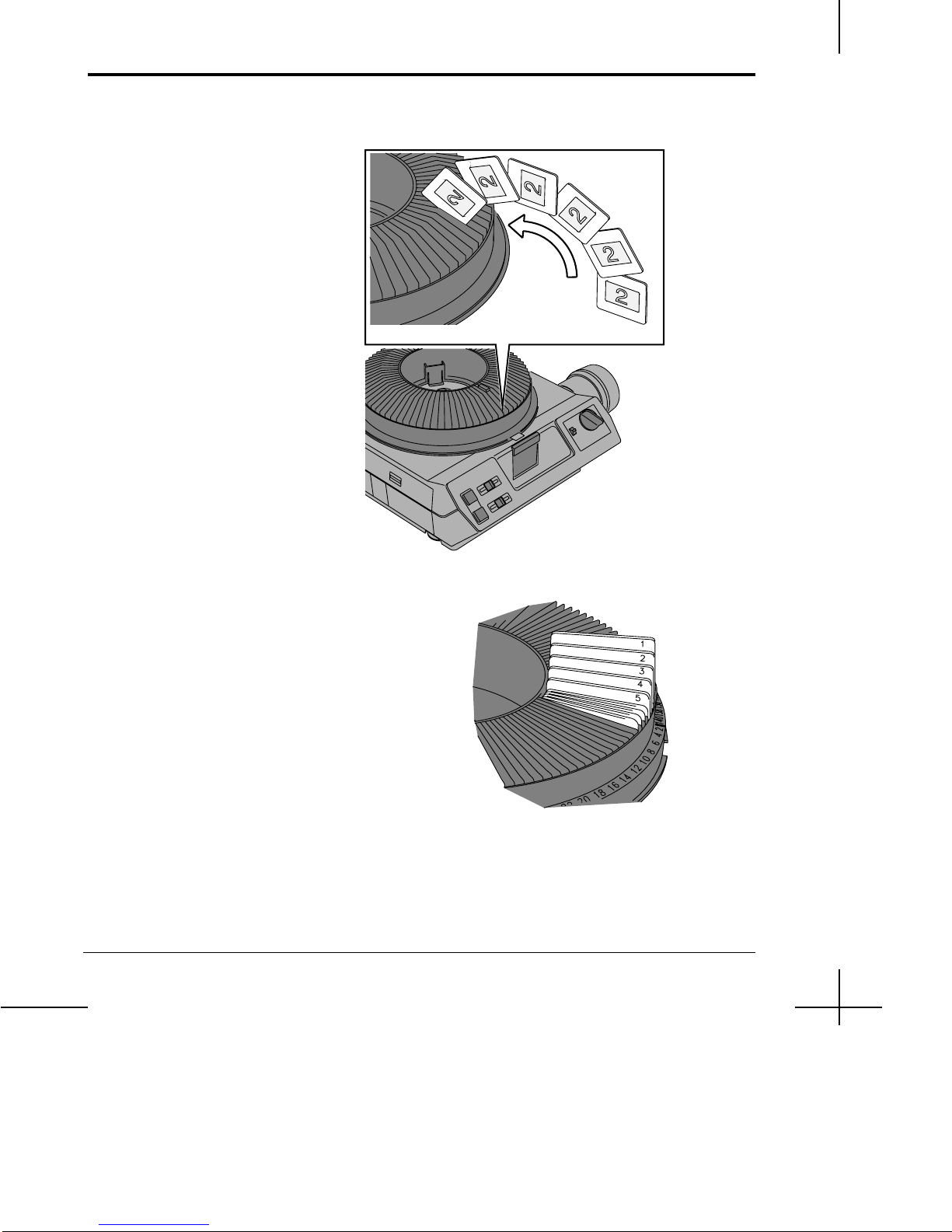

Insert your first slide into the first slot in the tray so that the number is

visible on the outer circumference of the tray.

A098_0050GC

Front Projection

A098_0051AC
