Kodak DP1050 ULTRA Manuel utilisateur
Page 1
1
Before you start.........................................................................................2
Important information...............................................................................5
Connecting a computer to the KODAK DP1050 ULTRA........................6
Connecting a video source to the KODAK DP1050 ULTRA................10
Connecting a TV-source to the KODAK DP1050 ULTRA ....................12
Using the KODAK DP1050 ULTRA ........................................................14
Using the menus .....................................................................................19
Maintenance ............................................................................................34
What do I do if (Trouble shooting).........................................................35
1.
2.
3.
4.
5.
6.
7.
8.
9.
CONTENTS
1332 (ELEK). KODAK ENG 15.07.98 13:33 Side 1
Thank you for choosing the
KODAK DP1050 ULTRA projector
The KODAK DP1050 ULTRAwill display high bright-
ness images with vivid colors, even under normal light
conditions. As input for your presentation you can use
CD-I, (ask your dealer for the KODAK CD-I player) CD-
ROM, Photo CDs, Laser Disks, DVD, normal VCRs or
computers. You can have multiple input connected
simultaneously for high impact multimedia presentation.
Thanks to the unique KODAK Graphical User Interface,
the KODAK DP1050 ULTRAoffers true plug and play
operation from remote control, which by the way also
can control your computer.
1.1 Color coding for ease of use
All connectors, plugs and buttons on the product are
colored to make the connection and use as easy and
intuitive as possible. The following colors are used:
◆Computer- gray (PC) /black (MAC)
◆TV/channel - purple
◆Video (Composite)- yellow
◆S-video- dark blue
◆Stand by- red
◆Auto setup - green
◆Audio - red/white
Contents
2
1 Before you start
1332 (ELEK). KODAK ENG 15.07.98 13:33 Side 2
Contents
3
1.2 Accessories
Please take a few minutes to make sure that your
KODAK DP1050 ULTRAcontains all the necessary
parts:
1.2.1Computer accessories for
external PC/MAC
◆Computer cable Enhanced Video Connector (EVC),
male at both ends, 3 m/9.8 ft.
◆Cable for PC / MAC audio (Stereo jack, 0.3m/1 ft.)
◆PC adapter
◆RS-232 mouse cable for PC
◆PS/2 mouse cable for PC
◆MAC adapter
◆Apple Desktop Bus (ADB) mouse cable for MAC
1.2.2Video accessories
◆Super-video cable
◆Composite video cable
◆Audio cable
1.2.3Other cables/accessories
◆Dual soft bag
◆Power cable, 4m/12 ft.
◆Remote control including batteries
(type AAA/LR03)
1.2.4Optional cables and accessories
◆EVC cable, 10-15m
◆Ceiling mount kit
1332 (ELEK). KODAK ENG 15.07.98 13:33 Side 3
Contents
4
CHAN
FOCUS
ZOOM
S-V
V
TV
PC
Batteries
Softbag
Interactive
Remote
Control
EVC cable
Super-video cable
Composite video cable
Audio cable
Stereo jack cable
PC adapter
Mac adapter
PS/2 mouse for PC
RS232 mouse for PC
ADB mouse for Macintosh
Figure 1: Product and accessories
Cable organizerbag
1332 (ELEK). KODAK ENG 15.07.98 13:33 Side 4
1.3 Insert batteries in the remote
control
Figure 2 shows the remote control with the battery
lid removed. Slide off the battery lid and insert the
batteries with the + and - poles correct. Slide the
battery lid back on again.
The warranty card or copy of invoice is your proof of
purchase. Please make sure that the warranty card is
returned in order to get the warranty service you are
entitled to.
Failure to return the warranty card may void your
warranty.
NOTE!
Please use caution when transporting the unit.
2.Important information
Contents
5
Figure 2: Inserting batteries in remote control
WARNING!
Tampering with or opening the
KODAK DP1050 ULTRA can be dangerous.
Leave maintenance to authorized KODAK
service personnel.Please contact your local
dealer with any service or maintenance
questions you may have.
1332 (ELEK). KODAK ENG 15.07.98 13:33 Side 5
Contents
6
The procedure for connecting a
computer to the KODAK DP1050
ULTRA is the same for all types
of computers.
1.Make sure the computer, monitor and KODAK
DP1050 ULTRAare switched off.
2.Identify the RGB out connector on the back of your
computer (where you connect a monitor to the
computer).
3.Connect the computer to the KODAK DP1050
ULTRAusing the EVC cable and the adapter for
the computer you are using. See figures 3 and 4.
4.If you have a desktop computer and want to display
the image on your computer monitor, connect the
cable from your monitor to the adapter.
See figure 5 and 6.
5.If you want to use the remote control to control your
computer, connect the correct mouse cable from
the computer to the adapter box. See figures 7 and
8. When your computer is connected to the KODAK
DP1050 ULTRAwith the EVC cable (with EVC con-
nector on the computer), the remote mouse control
will automatically function as a regular mouse on
your PC or MAC.
6.If you want to use sound with your computer,
connect the stereo jack cable to the computer audio
connection and to the PC or MAC adapter box.
7.Turn on the KODAK DP1050 ULTRAand then
the computer. The computer image should now be
projected from the KODAK DP1050 ULTRAand the
remote control should now work as a regular
mouse. If the computer’s image is not displayed
simultaneously on the monitor, or the mouse is not
working, see the section ‘What do I do if’.
3.Connecting a computer to the KODAK DP1050 ULTRA
1332 (ELEK). KODAK ENG 15.07.98 13:33 Side 6
Contents
7
Connecting to a laptop, notebook
Figure 3: Connecting to a laptop, notebook
Connecting to an Apple PowerBook
Figure 4: Connecting to an Apple PowerBook
PC adapter
Back panel of
computer
EVC cable
MAC adapter
Back panel of
computer
EVC cable
1332 (ELEK). KODAK ENG 15.07.98 13:33 Side 7
Contents
8
Connecting to a desktop PC
with standard RGB
Figure 5: Connecting to a desktop PC
with standard RGB
Connecting to an Apple Macintosh
desktop computer
Figure 6: Connecting to an Apple Macintosh
desktop computer
PC adapter
PC monitor PC monitor
Back panel of
computer
EVC cable
MAC adapter
Back panel of
computer
EVC cable
1332 (ELEK). KODAK ENG 15.07.98 13:33 Side 8
Contents
9
Connecting the mouse cable
and stereo jack (PC)
Figure 7: Connecting the mouse cable and
stereo jack (PC)
Connecting the mouse cable and
stereo jack (MAC)
Figure 8: Connecting the mouse cable and
stereo jack (MAC)
PC adapter
PC monitor PC monitor
Back panel of
computer
EVC cable
MAC adapter
Back panel of
computer
EVC cable
Stereo jack cable
PS/2 mouse for PC
RS232
mouse for PC
Stereo jack cable
ADB mouse for
Macintosh
1332 (ELEK). KODAK ENG 15.07.98 13:33 Side 9
Contents
10
4. Connecting a video source to the KODAK DP1050 ULTRA
The procedure for connecting a video
source to the KODAK DP1050 ULTRA
is the same for S-video and Composite
video
SECAM, PAL N and PAL M modes are manually
selected by pressing “Green Button“. If the right format
is not found first time, press again. The video format is
stored separately for each connector.
1. Make sure that the video source and the
KODAK DP1050 ULTRA are switched off.
2. Connect the video cable from the Video out connector
of the video source to the correct video connector on
the KODAK DP1050 ULTRA plug panel.
3. Connect the audio cable from the Audio out
connectors of the video source to the Audio in
connectors on the KODAK DP1050 ULTRA.
Connect the red plug to the red connector, and the
other plug to the white connector. Red is the right
stereo channel.
4. When all the connections are done and verified,
switch on the video source and the KODAK
DP1050 ULTRA.
5. The KODAK DP1050 ULTRA will now automatically
display the pictures from the video source. If not,
see the section ‘What do I do if’.

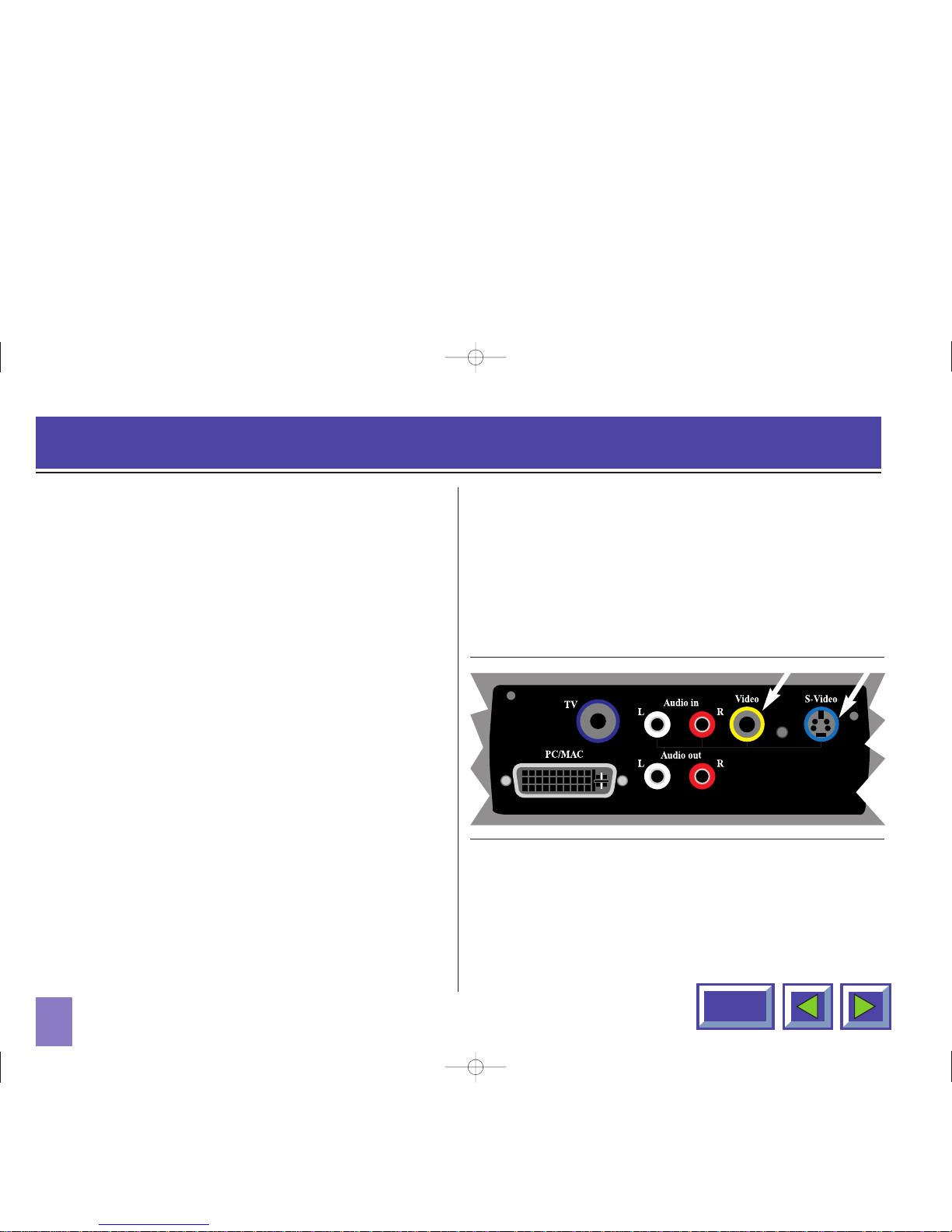

Figure 9: Connecting to video sources
1332 (ELEK). KODAK ENG 15.07.98 13:33 Side 10
