Kodak EKTAGRAPHIC III Dimensions

KODAK EKTAGRAPHIC III

AFT Projector

PRODUCT DESCRIPTION

Congratulations on the purchase of your KODAK EKTAGRAPHIC III AFT Projector.

Please review this product sheet and the important maintenance instructions enclosed.

The KODAK EKTAGRAPHIC III AFT Projector is a standard KODAK EKTAGRAPHIC III

A Projector with fade and timer controls added. This projector was specifically designed

for cinema applications and therefore does not include a slide tray, lamp, lens, user manual, or

remote control.

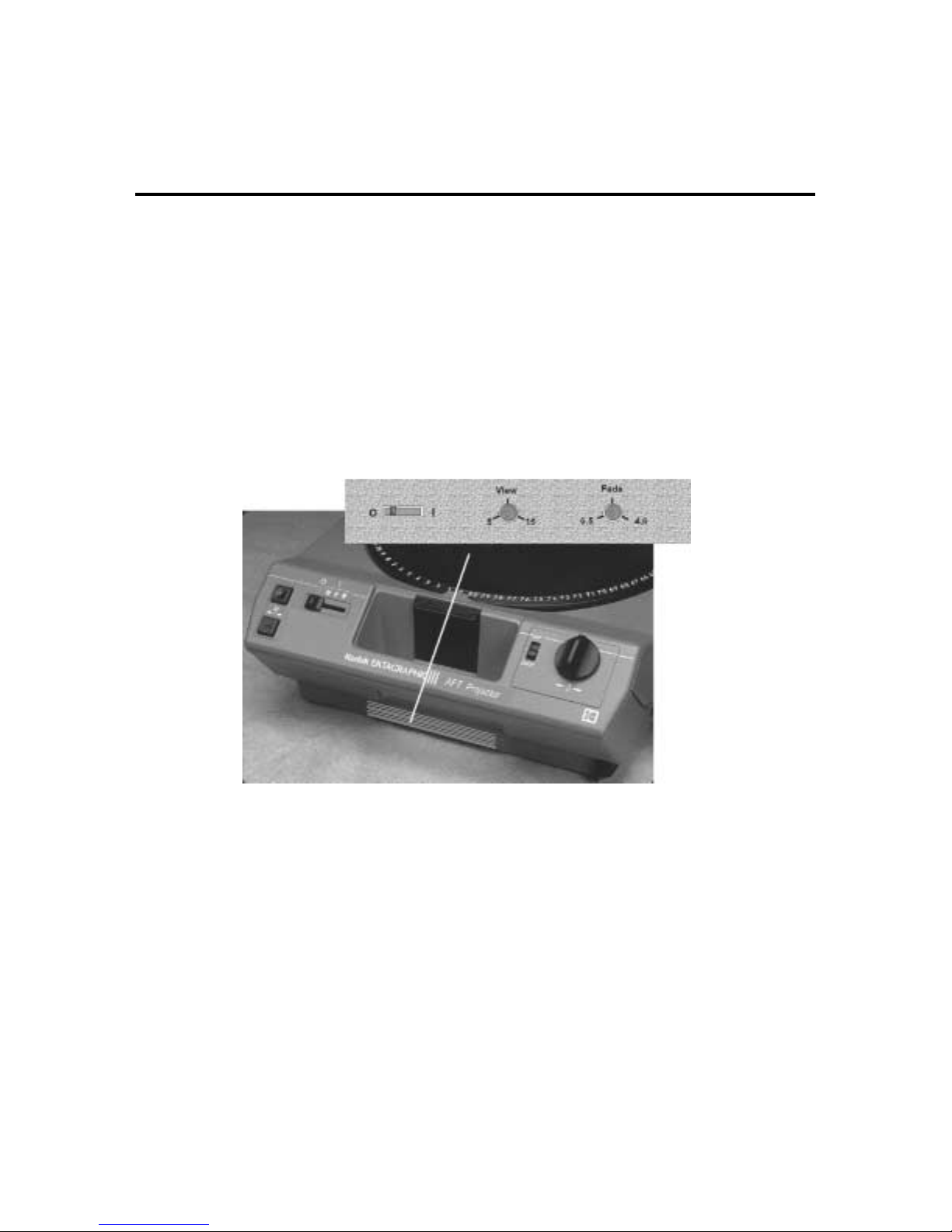

FADE and VIEW controls

There are three controls for the special features of the AFT Projector. They are located under

the projector handle.

1. Automatic AFT mode (ON / OFF)

When this switch is ON ( I ), slides will advance automatically using the VIEW and

FADE times selected.

2. VIEW adjustment screw

Allows you to select the amount of time the slide is displayed on the screen, from

5 to 15 seconds.

3. FADE adjustment screw

Allows selection of the time it takes to fade up and down between slides, from 0.5

to 4 seconds.

NOTE: The operation will sequence as follows: fade up, change slide, fade down.

Selection of 0.5 second, for example, will fade up 0.5 seconds, change slide

1 second and fade down 0.5 seconds for a total of 2 seconds per slide change.

Important Safety Instructions

IMPORTANT:

Your KODAK EKTAGRAPHIC III AFT Projector is supplied with a 3-wire grounding

power cord to comply with UL122 and CSA222 Safety Electronics Standards.

We urge you to provide a permanent, properly installed 3-wire receptacle as the source

of power for this projector. Your projector is designed to operate with 110 to 125 volts,

60 Hz current only. Incorrect voltage could cause the projector to malfunction. Inputs in

excess of

125 volts will adversely affect lamp life.

When using your projector, always follow these basic safety precautions:

1. Read and understand all instructions before using this equipment.

2. Operate this projector with 110-125 volt 60 Hz current only. Incorrect voltage can

cause projector malfunction.

3. Close supervision is necessary when any appliance is used by or near children,

or others who may not understand the need for these precautions. Do not leave

the projector unattended during use.

4. Be careful not to touch hot parts. For lamp replacement, allow the module to

cool before touching the lamp and the surrounding area. Do not place the lamp

module on heat-sensitive surfaces.

5. Do not operate your projector if the power cord is damaged or if the projector

has been dropped or damaged.

6. Position the cord so that it is not tripped over. pulled, or placed in contact with

hot surfaces.

7. If an extension cord is necessary, use a cord with a current rating at least equal

to that of the projector. Cords rated for less amperage than the projector may

overheat.

8. Always unplug the projector from the electrical outlet before cleaning and

servicing and when not in use.

9. Allow the projector to cool before storing.

10. Do not immerse this equipment in water or other liquids.

11. Do not disassemble this projector. Use a qualified service technician when

service or repair is required. Incorrect reassemble can cause electric shock the

next time the projector is used.

12. Use only safety electrical low-voltage (SELV) devices.

13. The use of an accessory attachment not recommended by the manufacturer

may increase the risk of damage.

14. Keep the airflow vents unobstructed.

Troubleshooting Guide

PROBLEM CAUSE CORRECTION

Projector does not operate

No illumination on screen with

slide in projector gate

Slide not in proper focus on

screen

Uneven edge-to-edge focus

Autofocus motor runs

continuously

Slide fails to drop into projection

position

Uneven illumination on screen

Projector won’t cycle to next slide

Program does not start with the

correct slide

No power to projector

Power switch on Off or Fan

Lamp burned out

Lamp not sealed in socket

Slide itself not sharp

First slide in tray not properly

focused

Slide in different type of mount

from others

Projection lens installed improperly

Slide itself is not sharp

Curved-field lens used with glass,

plastic, or non-embossed mounts

Curved field lens used for rear

projection

Multi-aperture slides or matte-

surface write-on slides in tray

Tray base plate not properly

indexed

Tray not properly positioned on

projector

Slide mount warped or frayed at

corners

Projector not level or tilted too high

Projection lamp not fully seated

Condenser lens not installed or not

positioned properly in mount

Slide mount not seated properly in

projector gate

Tray not properly positioned

Slide or foreign object stuck in gate

Tray number is not aligned with the

raised index mark.

Plug power cord into suitable

electrical outlet. Set power switch

to LAMP.

Set switch to LAMP.

Install new lamp or lamp module.

Check lamp.

Examine slide for proper focus.

Focus center of first slide manually.

Focus manually.

Be sure the lens gear teeth on the

lens barrel line up with the notch on

the projector.

Examine slide.

Try a flat-field lens.

Use a flat-field lens.

Turn off autofocus.

Rotate the tray base plate until it

locks into position.

Reposition tray on projector.

Straighten mount or remount slide.

Set projector on a stand equal with

center of screen.

Check lamp.

Check condenser lens.

Check slide position and slide-

mount condition.

Reposition tray.

Remove foreign object from gate.

Reposition tray.

Warranty

Kodak warrants this KODAK EKTAGRAPHIC Slide Projector to function properly for four

years from the date of purchase.

If this KODAK EKTAGRAPHIC Slide Projector does not function properly within the

warranty period, upon submission of dated proof of purchase, Kodak will repair it without

charge, except for worn-out projector lamps. If Kodak is unable to repair the projector,

the option of replacement or refund of the purchase price will be available.

See an audiovisual products dealer for the KODAK EKTAGRAPHIC III AFT Slide

projector’s warranty coverage.

Limitations

This warranty does not cover circumstances beyond Kodak’s control, projector lamps, or

problems caused by failure to follow the care and operating instructions in the manual.

Any modification to the original design of this projector nullifies this warranty.

Warranty service will not be provided without dated proof of purchase.

Kodak makes on other express warranty for this product. Repair or replacement

is Kodak’s only obligation. Kodak will not be responsible for any consequential or

incidental damages resulting from the sale or use of this projector, regardless of

the cause of such damages.

Your Rights Under State Law

Some states do not allow the exclusion or limitation of incidental or consequential

damages, so the above limitation or exclusion may not apply to you. This warranty gives

you specific legal rights, and you may also have other rights that vary from state to

state.

How To Obtain Service Assistance

To obtain service or assistance in using your KODAK EKTAGRAPHIC Slide Projector,

see an audiovisual products dealer in your area. If one is not available, call the Kodak

Information Center at 1-800-242-2424, Monday through Friday, 8 a.m. to 7 p.m. Eastern

time. In Canada, call 1-800-465-6325, Monday through Friday, 8:30 a.m. to 5 p.m.

Eastern time. Or call Kodak in your country.

Part No. 2H2270 New 2/98. Minor revision 7/99

Printed in U.S.A.

Kodak and Ektagraphic are trademarks.

www.kodak.com/go/projectors
