OVEN PARTS
1
For Models: KEBC147KBL08,KEBC147KWH08,KEBC147KSS08
(Black) (White) (Stainless)
05−08 Litho in U.S.A. (amd)(bay) Part No. W10203840 Rev. A
24" BUILT−IN
ELECTRIC OVEN
SELF CLEAN
OVEN PARTS
2
For Models: KEBC147KBL08,KEBC147KWH08,KEBC147KSS08
(Black) (White) (Stainless)
W10203840
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10045010
Installation
Instructions
8304062 Owners Manual
W10185218
Tech Sheet
8301928 Installation,
MWO Trim Kit
4449264 Easy Set Guide
Safer Cooking Tips
3191638 English
9759133 French
2 Trim, Side
Right
4455377 Black
4455428 White
W10163502
Stainless
Left
4455376 Black
4455429 White
W10163503
Stainless
3 Hinge Receiver
4455605 Left
4455606 Right
4
W10105790
Bumper, Door
6 8281236 Screw
7 4455863 Top Chassis
8 Deflector, Vent
Box
4455807 Black
4452489 White/Stainless
9 4452158 Tube, Vent
10
W10169756
Lens, Light
11
W10009940
Assembly, Oven
Light
12
W10169757
Bulb, Light
13 4450118 Nut
14 9760754 Frame, Front
15 4455380 Gasket, Door
16 4449743 Screw
17 3196176 Screw
18 4449040 Screw
19 4451476 Support, Insulation
20 4451605 Cap, Spacer
21 Rail, Side
4450579 Right
4450580 Left
22 9760888 Latch, Motorized
23 4449154 Screw
24 4448444 Grommet
25 4455641 Side, Chassis
26 4452232 Back, Chassis
27 Liner, Oven
(Not serviceable)
28 3400832 Screw
29 4455636 Sensor
30 4449748 Screw
31 4452152 Bracket, Bottom
Vent Trim
32 4450038 Screw
33 9760675 Deflector, Vent
37 9759242 Thermostat (130c)
38 4450525 Base, Chassis
39 4448933 Retainer, Gasket
40 4451747 Cover, Back
41 4449809 Screw
42 4449845 Support, Bracket
43 Assembly, Vent
Bottom Trim
8300828 Black
8300829 White
8302366 Stainless
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
4449314 Insulation, Wrap
4450363 Insulation, Back
CONTROL PANEL PARTS
3
For Models: KEBC147KBL08,KEBC147KWH08,KEBC147KSS08
(Black) (White) (Stainless)
W10203840
Illus. Part
No. No. DESCRIPTION
1 Panel, Control
8300815 Black
8300816 White
W10166935
Stainless
2 3400832 Screw
3 8303017 Assembly, Control
4 4449745 Screw
5 Switch, Membrane
8302648 Black
8302645 White
8302637 Stainless
INTERNAL OVEN PARTS
4
For Models: KEBC147KBL08,KEBC147KWH08,KEBC147KSS08
(Black) (White) (Stainless)
W10203840
Illus. Part
No. No. DESCRIPTION
1 9760772 Element, Broil
2 4449154 Screw
3
W10116351
Fan Blade,
Convection
4
W10116349
Nut
6 4448716 Rack, Oven
7 9760768 Element, Bake
8 4449809 Screw
9 9760769 Element, Convect.
10
W10116228
Motor, Convection
11 4448418 Cover, Fan
12 9755547 Lock Washer
13 9755543 Jack, Meat Probe
14 9755546 Hex Nut
15 4455035 Tray, Bake
16 9755542 Probe − Meat
17 4450039 Cover, Bake Tray

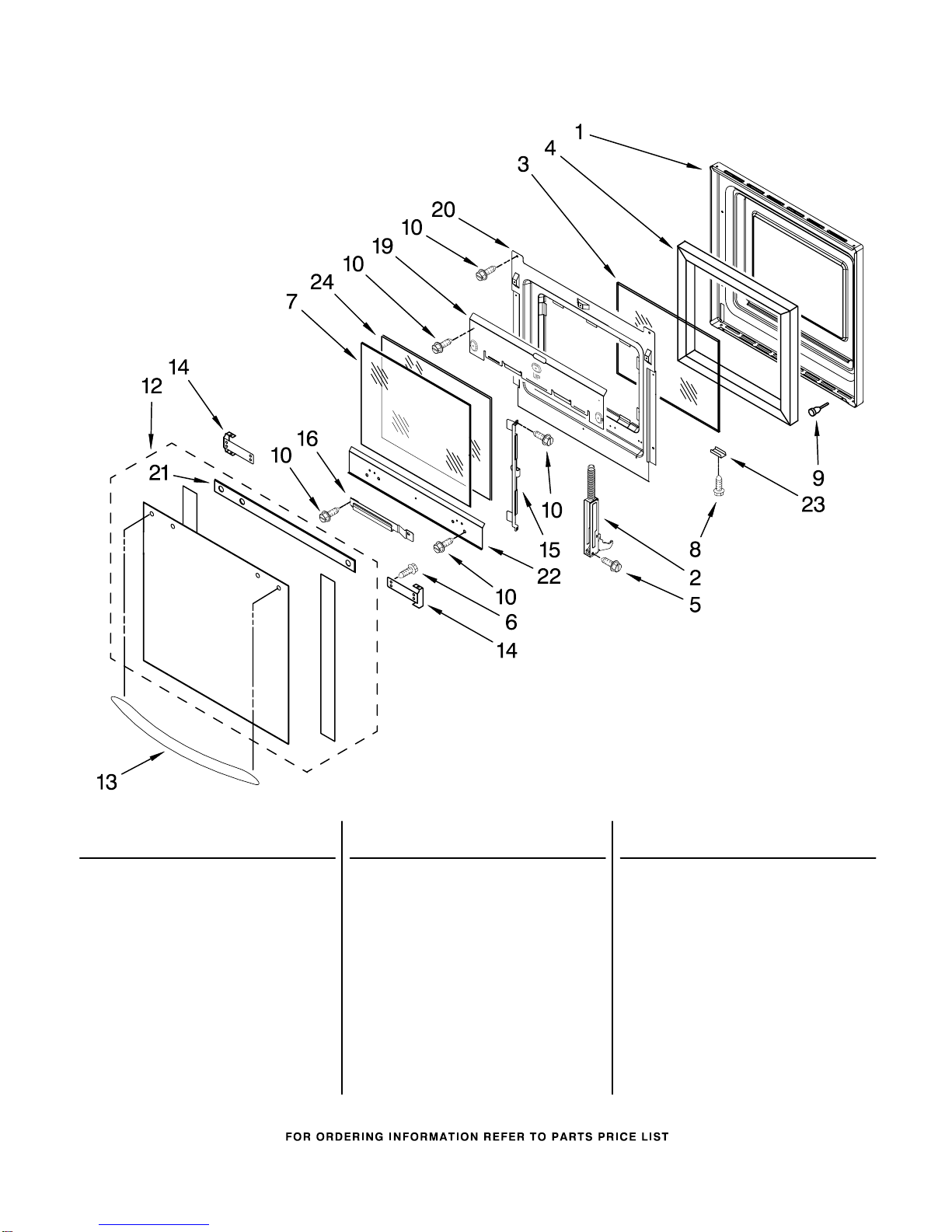

OVEN DOOR PARTS
5
For Models: KEBC147KBL08,KEBC147KWH08,KEBC147KSS08
(Black) (White) (Stainless)
W10203840
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8303698 Door Liner
2 Hinge, Door
9760569 Right (Green)
9760570 Left (Green)
(Below hinges are
used on Stainless
models only)
9760571 Right (White)
9760572 Left (White)
3 4449247 Glass, Inner
4 4451720 Insulation, Door
5 4449743 Screw
6 3196184 Screw
7 9759223 Glass, Inner
8 3400832 Screw
9 4448520 Bumper, Door
10 4449809 Screw
12 Door Glass, Assy
8300836 Black
8300837 White
8302467 Stainless
13 Door Handle
9760538 Black
9760539 White
9760537 Stainless
14 Bracket, Handle
4455803 Right
4455804 Left
15 9759229 Bracket(2nd Glass)
16 9759230 Bracket(3rd Glass)
19 4457101 Shield, Heat
20 4457130 Retainer, Glass
21 8300853 Seal, Door Top
22 4457112 Shield, Heat
23 Retainer, Clip
4450863 Black
4450864 White
4451432 Stainless
24 9759226 Glass, Inner
TOP VENTING PARTS
6
For Models: KEBC147KBL08,KEBC147KWH08,KEBC147KSS08
(Black) (White) (Stainless)
W10203840
Illus. Part
No. No. DESCRIPTION
1 4451759 Vent, Exhaust
2 4455178 Elbow, Vent−Top
3 4457289 Blower 60MM
4 4451758 Block, Foam
6 4451985 Suppressor
7 3400080 Screw
8 4455177 Elbow, Vent Bottom
10 9760587 Transformer,
Control
11 4449868 Block, Terminal
12 3400080 Screw
13 4448547 Vent, Control
Panel
14 Side, Control Top
4451597 Right
4451598 Left
15 9759135 Back, Control
16 4450549 Cover, Top Rear
17 4449809 Screw
18 4452365 Cover, Top Front
OPTIONAL PARTS
7
For Models: KEBC147KBL08,KEBC147KWH08,KEBC147KSS08
(Black) (White) (Stainless)
W10203840
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
261869 Cord Brown
72032 Black
PAINT, SPRAY
350930 White
261900 Citrine White
830864 Black
ADHESIVE
591014 Adhesive
Loctite (1/3 oz.)
482338 Sealer, Silastic
(3 oz.)
SPLICING WIRES−−25FT.
LENGTH
242828 Wire (12 Ga.
150 c Black)
242820 Wire (14 Ga.
150 c Black)
242821 Wire (14 Ga.
150 c Blue)
242822 Wire (14 Ga.
150 c Brown)
242830 Wire (14 Ga.
200 c Brown)
242823 Wire (14 Ga.
150 c Green)
242824 Wire (14 Ga.
150 c Orange)
242825 Wire (14 Ga.
150 c Red)
242831 Wire (14 Ga.
200 c Red)
242827 Wire (14 Ga.
150 c Yellow)
WIRING HARNESS PARTS
W10179651
Harness, Main
4450952 Conduit
4448664 Clamp
98997 Clip
4449809 Screw
4450800 Screw, Ground
112432 Nut
4451761 Support, Wiring
4452400 Harness, Ground
Miscellaneous
814381 Pin Hinge Kit
4448950 Screw, Install (4)
