KitchenAid KEBS208DBL7 Manuel utilisateur

OVEN PARTS

For Models: KEBS208DBL7, KEBS208DWH7, KEBS208DBS7, KEBS208DSS7

(BLACK) (WHITE) (BLACK−STAINLESS) (STAINLESS STEEL)

11−04 Litho in U.S.A.(RS) Part No. 885470

30" BUILT−IN ELECTRIC

DOUBLE OVEN

THERMAL CONVECTION

SELF−CLEAN

OVEN PARTS

For Models: KEBS208DBL7, KEBS208DWH7, KEBS208DBS7, KEBS208DSS7

(BLACK) (WHITE) (BLACK−STAINLESS) (STAINLESS STEEL)

885470

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 Trim, Side

4450850 RH Black & BS Mdls

4450851 RH White Model

4450853 LH Black & BS Mdls

4450854 LH White Model

Screw

4449747 Black & BS Models

4449041 White Model

4 4448520 Bumper, Door

6 4452201 Divider, Vent

4449809 Screw

7 4452237 Top Chassis

4449809 Screw

9 4452158 Tube, Vent

4449154 Screw

10 4452163 Lens, Light

11 4448972 Oven Light Assy

4449748 Screw

12 4452164 Bulb, Light

14 4451740 Frame, Front

4449040 Screw

4450118 Nut

15 4449372 Gasket, Door

19 4451478 Support, Insulation

4449809 Screw

20 4451605 Cap, Spacer

21 Rail, Side

4450581 Right Side

4450582 Left Side

4448444 Grommet

4449154 Screw

22 4451896 Latch Assy

4449154 Screw

23 4452224 Solenoid

24 4451422 Micro Switch N.C.

25 4454691 Side, Chassis

(R.H. & L.H.)

4449809 Screw

26 4452234 Back, Chassis

4449809 Screw

27 Liner, Oven

(Not serviceable)

28 4451426 Micro Switch

29 4451665 Sensor

4449154 Screw

30 4451537 Spring, Latch

33 4451619 Deflector, Vent

34 4452267 Vent, Center

37 4452223 Thermostat (TOD)

4449809 Screw

43 4451398 Base, Chassis

4449809 Screw

49 4448933 Retainer, Gasket

4449154 Screw

50 4451747 Cover, Back

4449809 Screw

51 Trim, Bottom

4448478 White Model

4448477 Black & BS Models

53 4449845 Support, Bracket

4449809 Screw

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449316 Insulation, Wrap

4450365 Insulation, Back

CONTROL PANEL PARTS

For Models: KEBS208DBL7, KEBS208DWH7, KEBS208DBS7, KEBS208DSS7

(BLACK) (WHITE) (BLACK−STAINLESS) (STAINLESS STEEL)

885470

Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 Control Panel Assy

W/Membrane, Switch

4451949 Black

4451950 White Model

4451791 S. Steel (w/o switch)

4452379 Membrane Switch

(Stls Steel Model)

2 4451034 Gasket,

Control Panel

3 4451986 Microcomputer

4449745 Screw

LITERATURE PARTS

LIT4450411

Installation

Instructions

LIT4451952

Use & Care Guide

LIT4449066

Cookbook

(T/C Oven)

LIT4451879

Tech Sheet

LIT4449264

Easy Set Guide

LIT3191638

Safer Cooking Tips

OVEN DOOR PARTS

For Models: KEBS208DBL7, KEBS208DWH7, KEBS208DBS7, KEBS208DSS7

(BLACK) (WHITE) (BLACK−STAINLESS) (STAINLESS STEEL)

885470

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 4451719 Door Liner

2 4454947 Hinge, Door

4449743 Screw

3 4449259 Glass, Inner

4 4451722 Insulation, Door

5 4451671 Retainer, Glass

4449809 Screw

7 4449263 Glass, Inner

9 4451668 Retainer, Glass

4449809 Screw

12 Door Glass, Assy

4452074 Black Model

4452075 White Model

4452078 BS Model

13 Door Handle

4448414 Black & BS Models

4448415 White Model

14 4450813 Bracket, Handle

4451040 Screw

19 4450362 Shield, Heat

4449809 Screw

21 4451674 Seal, Door Top

23 Retainer, Clip

4450863 Black & BS Models

4450864 White Model

4452316 Stainless Steel

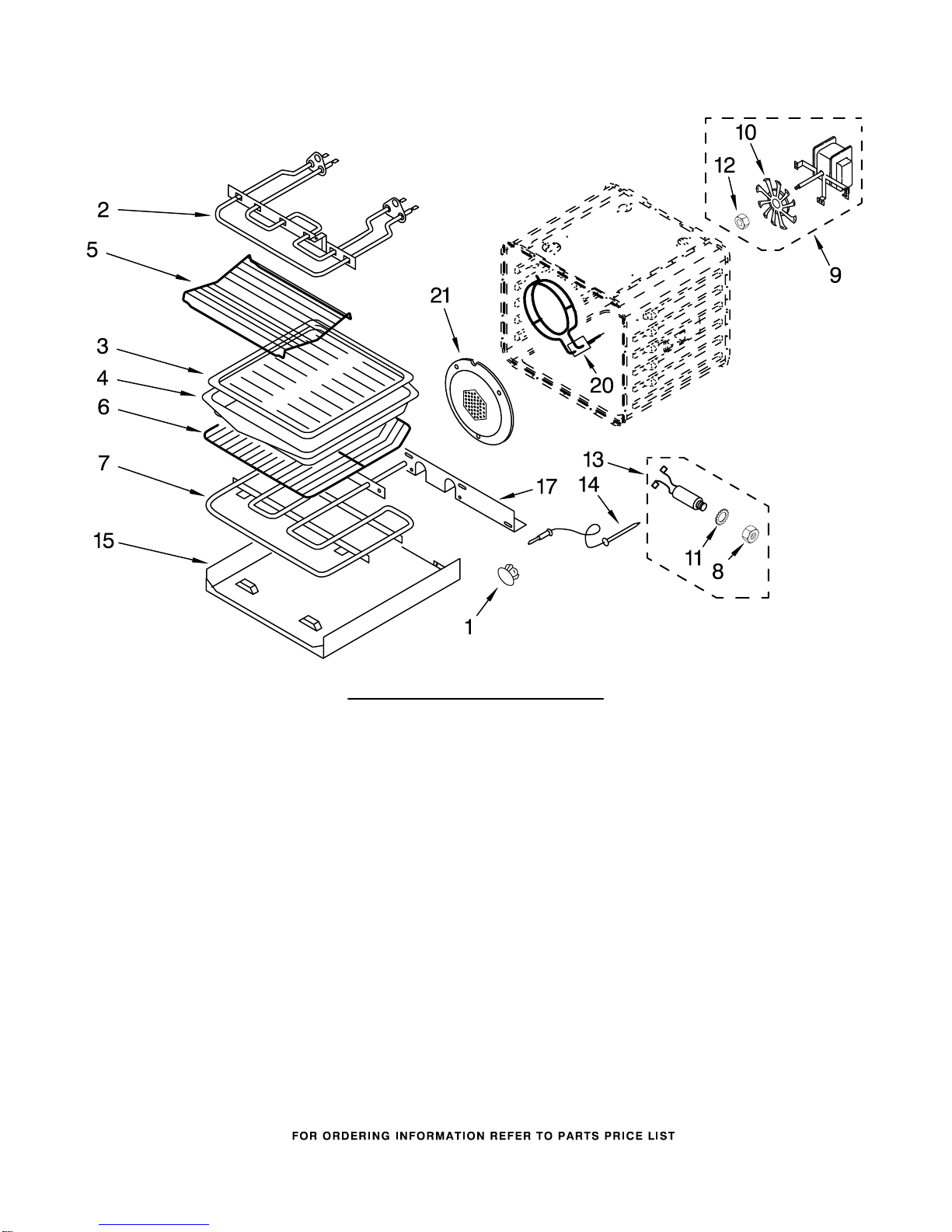

INTERNAL OVEN PARTS

For Models: KEBS208DBL7, KEBS208DWH7, KEBS208DBS7, KEBS208DSS7

(BLACK) (WHITE) (BLACK−STAINLESS) (STAINLESS STEEL)

885470

Illus. Part

No. No. DESCRIPTION

1 4448982 Plug, Button

2 4452156 Element, Broil

4449154 Screw

3 3147563 Grill, Broiler

4 3147845 Pan, Broiler

5 3181534 Rack, Roasting

6 4448717 Rack, Oven

7 4452155 Element, Bake

8 4448881 Nut, Hex

9 4451583 Fan, Convection

4449154 Screw

10 4452226 Blade, Fan

11 4448882 Washer, Lock

12 4452227 Nut

13 4451355 Jack, Meat Probe

14 4448948 Probe, Meat

15 4448723 Tray, Bake

17 4450039 Cover, Bake Tray

4449809 Screw

20 4452157 Element,

Convection

4449154 Screw

21 4448418 Cover, Fan

4449154 Screw

TOP VENTING PARTS

For Models: KEBS208DBL7, KEBS208DWH7, KEBS208DBS7, KEBS208DSS7

(BLACK) (WHITE) (BLACK−STAINLESS) (STAINLESS STEEL)

885470

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 4451758 Foam, Block

2 4451759 Vent, Exhaust

4449809 Screw

3 4451744 Blower

5 4451596 Transformer,

(Lights)

4449809 Screw

7 4451929 Transformer

4449809 Screw

8 4451438 Elbow, Vent−Top

9 4451752 Elbow, Vent−Bottom

10 4451789 Plate, Mounting

11 4449868 Block, Terminal

3400016 Screw

13 4448552 Vent,

(Control Panel)

4450038 Screw

14 Side, Control Top

4451597 Right

4451598 Left

4449809 Screw

15 4452244 Back, Control

4449809 Screw

16 4450551 Cover, Top Rear

4449809 Screw

17 4448664 Clamp

4449809 Screw

112432 Nut

18 4450554 Cover, Top Front

4449809 Screw

4452260 Spacer, Foam

19 4451985 Suppressor

OPTIONAL PARTS

For Models: KEBS208DBL7, KEBS208DWH7, KEBS208DBS7, KEBS208DSS7

(BLACK) (WHITE) (BLACK−STAINLESS) (STAINLESS STEEL)

885470

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242829 Wire (12 Ga.

150 c Red)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242826 Wire (14 Ga.

150 c White)

242827 Wire (14 Ga.

150 c Yellow)

242832 Wire (14 Ga.

200 c Yellow)

WIRING HARNESS PARTS

4451926 Harness, Wire

(Latch)

4449809 Screw

4451864 Harness, Wire

(Main)

4450953 Conduit, Double

4450800 Screw

4448664 Clamp

4449809 Screw

112432 Nut

4450815 Fuse Assy

(Service Only)

4452222 Spacer, Harness

4454835 Tie, Cable

4451761 Support, Wiring

4454842 Tie, Cable

313438 Clip, Harness

Miscellaneous

814381 Pin Hinge Kit

4448950 Screw, Install (4)
