The KICKER KM coaxial speakers are speciﬁcally designed for mounting in free-air applications. The

speakers do not require a sealed enclosure for optimum performance. It is important to isolate the sound

coming off the front of the driver from the sound radiating from the back of the driver. This isolation is

usually accomplished by using the driver in a factory speaker location, or in a location with a semi-isolated

rear chamber.

SPECIFICATIONS

Authorized KICKER Dealer:

Purchase Date:

Speaker Model Number:

LOCATION

The sound produced by the KM coaxials is directional. Find the best location for stereophonic sound. If

necessary, add more KM coaxial speakers to the system to help distribute and balance the sound-stage.

After determining the best mounting locations, carefully check the areas where the mounting hardware will

be placed.

Model: KM4 KM65 KM8

Woofer [in, mm] 4, 100 6-1/2, 165 8, 200

Tweeter [in,mm] 1/2, 13 3/4, 20 1, 25

Rated Impedance [Ω] 2, 4 4 4

Peak Power Handling [ Watts] 150 195 300

Continuous Power Handling [Watts RMS] 50 65 150

Sensitivity [1W, 1m] 89 90 92

Frequency Response [Hz] 60-20k 35-21k 30-21k

Mounting Hole Diameter [in, mm] 3-3/4, 94 5-1/16, 128 6-9/16, 170

Mounting Depth [in, mm] 1-13/16, 46 2-3/8, 59.9 3-5/16, 82.9

Grilles Yes Yes Yes

Tweeter Magnet Material Neodymium Neodymium Neodymium

Tweeter Dome Material PEI (polyether imide) Titanium Titanium

Tweeter Design Balanced Dome Dome Dome

Woofer Cone Material Polypropylene Polypropylene Polypropylene

Woofer Surround Material Santoprene Santoprene Santoprene

KM Coaxial Speakers

Owner’s Manual

IMPORTANT SAFETY WARNING

Prolonged continuous operation of an ampliﬁer, speaker, or subwoofer in a distorted, clipped or over-

powered manner can cause your audio system to overheat, possibly catching ﬁre and resulting in serious

damage to your components and/or vehicle. Ampliﬁers require up to 4 inches (10cm) open ventilation.

Subwoofers should be mounted with at least 1 inch (2.5cm) clearance between the front of the speaker and

any surface.

2018 KM Coax Rev E.indd 22018 KM Coax Rev E.indd 2 11/10/2017 7:03:33 AM11/10/2017 7:03:33 AM

Mount the speaker and

grille right side-up to take

advantage of the coaxial

system’s integrated

moisture draining system.

Loops for mounting with Zip Ties

Locking Terminal Cover

Wire Divider

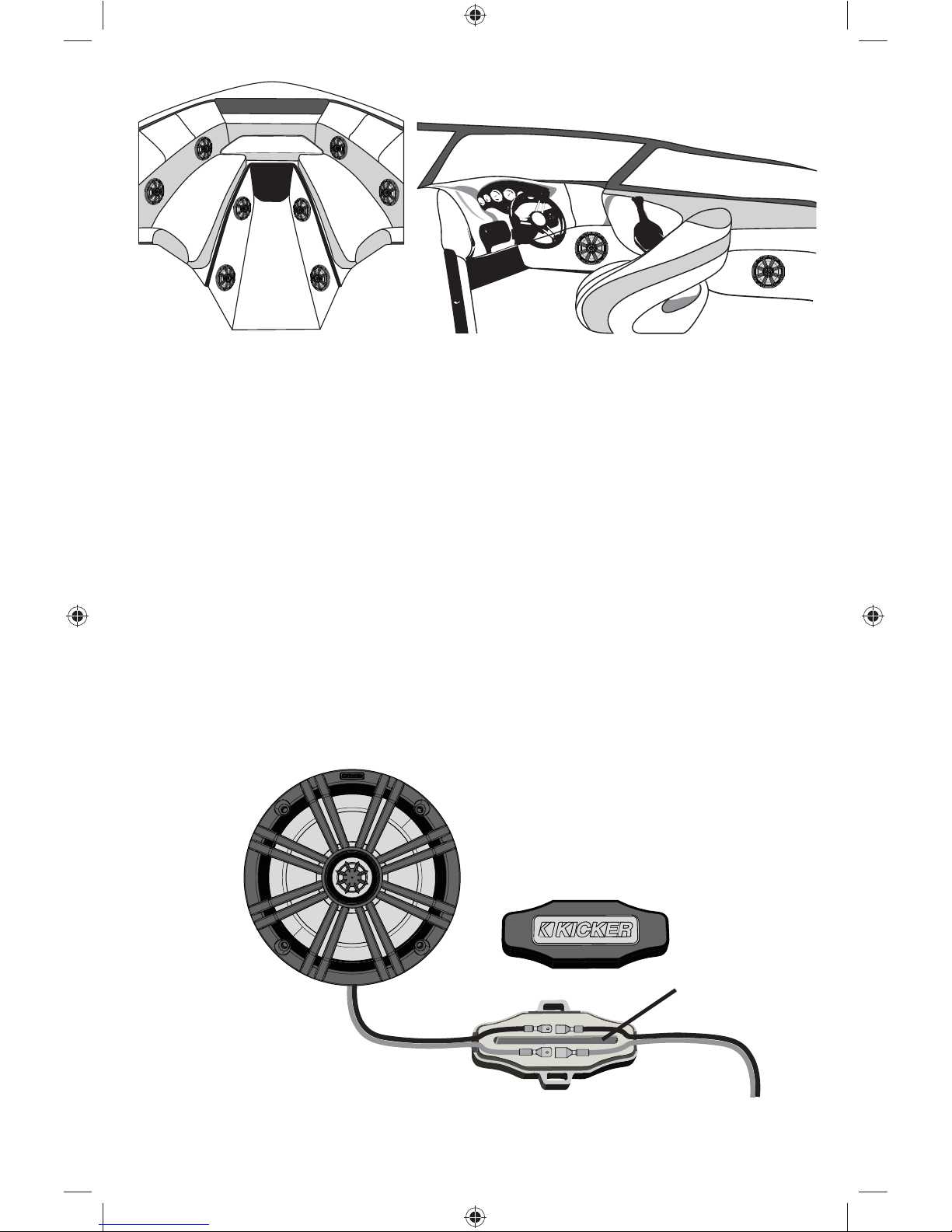

Possible locations for KM

Coaxial Speaker Mounting

Mounted in the Bow

Mounted

Mid-Ship Stern

Mounted

INSTALLATION

Mounting: Make sure the stainless steel mounting screws and U-type speed clips will not puncture the

fuel cell, wiring, or interfere with any mechanical parts on the underside of the mounting surface. Pre-drill

the mounting screw holes using a 7/64” (2.5mm) bit, and attach the KM coaxial speakers to the boat

by fastening the supplied stainless steel coarse-threaded screws to the boat’s structure. If applicable,

use the enclosed stainless steel U-type speed clips. If the supplied hardware is not applicable to your

installation, some other means of securely attaching the speakers to the boat must be used.

Wiring: Carefully place the speaker wire in a location that is clear of standing water and moving

components of the boat. For reference, the Blue wire is Positive and the Grey wire is Negative. The

locking terminal cover with water resistant gasket is removable for wiring installation; it helps prevent

terminal corrosion and electrical shorting. Connect the gold-plated male quick-disconnect on the end

of the 7 inch (175mm) speaker wire leads coming out of the sealed speaker basket to the wires from

your ampliﬁer or source unit. Place the connected wires into the locking terminal, making sure the divider

separates the blue and silver wire quick disconnects, and snap the locking terminal cover into place.

Connect the other end of the wire to your ampliﬁer in accordance with its owner’s manual. Mount the

locking terminal cover in a location free and clear of standing water by utilizing the supplied zip ties

through the integrated loops in the locking terminal cover.

2018 KM Coax Rev E.indd 32018 KM Coax Rev E.indd 3 11/10/2017 7:03:33 AM11/10/2017 7:03:33 AM

Note: KICKER Marine speakers meet or exceed industry standards for environmental humidity and corrosion, and for

material degradation due to UV exposure. All speciﬁcations and performance ﬁgures are subject to change. Please visit

www.kicker.com for the most current information.

Color Combinations: Splice and combine the ground wires to yield a different color.

Red Red

Green Green

Blue Blue

Red/Green Lime Green

Red/Blue Magenta

Blue/Green Aquamarine

Red/Green/Blue Blue-White

LED Wiring (KM65/KM8 only): When hard-wiring the RGB lighting, the black lead is +12V and the

red, green, and blue leads are ground. There are seven colors available, depending on your wiring

conﬁguration. KICKER recommends using the KMLC lighting controller (sold separately) for more colors,

patterns, and special effects.

12V

}Ground

+12V

Pro Tip: You are one KMA Ampliﬁer and a few cables away from a complete, high-quality system with

rock-solid bottom end as only available from KICKER! Please ask your dealer about KICKER KMA ampliﬁer

upgrades.

2A fuse

(max) ≤7”

(17.5cm)

battery

2018 KM Coax Rev E.indd 42018 KM Coax Rev E.indd 4 11/10/2017 7:03:36 AM11/10/2017 7:03:36 AM
