Kicker KSS269 Manuel utilisateur
2English
Contents
Overview..........................3
Specifications.............................4
Installation ........................5
Crossover & Wiring
Configuration..............................5
Crossover Mounting ...................7
Speaker Mounting ......................8
Midrange/Tweeter Mounting......11
Warranty ........................12
Int. Warranty...................44
3English
Overview
IMPORTANT SAFETY WARNING
PROLONGED CONTINUOUS OPERATION OF AN AMPLIFIER, SPEAKER, OR
SUBWOOFER IN A DISTORTED, CLIPPED OR OVER-POWERED MANNER
CAN CAUSE YOUR AUDIO SYSTEM TO OVERHEAT, POSSIBLY CATCHING
FIRE AND RESULTING IN SERIOUS DAMAGE TO YOUR COMPONENTS
AND/OR VEHICLE. AMPLIFIERS REQUIRE UP TO 4 INCHES (10CM) OPEN
VENTILATION. SUBWOOFERS SHOULD BE MOUNTED WITH AT LEAST 1
INCH (2.5CM) CLEARANCE BETWEEN THE FRONT OF THE SPEAKER AND
ANY SURFACE. KICKER PRODUCTS ARE CAPABLE OF PRODUCING SOUND
LEVELS THAT CAN PERMANENTLY DAMAGE YOUR HEARING! TURNING UP A
SYSTEM TO A LEVEL THAT HAS AUDIBLE DISTORTION IS MORE DAMAGING
TO YOUR EARS THAN LISTENING TO AN UNDISTORTED SYSTEM AT THE
SAME VOLUME LEVEL. THE THRESHOLD OF PAIN IS ALWAYS AN INDICATOR
THAT THE SOUND LEVEL IS TOO LOUD AND MAY PERMANENTLY DAMAGE
YOUR HEARING. PLEASE USE COMMON SENSE WHEN CONTROLLING
VOLUME.
The KICKER KS speakers offer an excellent upgrade
to your vehicle’s factory sound system, delivering
great full-range sound at an amazing value! Whether
dropping the KS speakers in a factory location or
customizing your install, their high-efficiency design
means less power is needed to play your music,
while our use of advanced materials and construction
techniques ensures optimal performance for years
to come. Designed for versatile applications without
sacrificing sound quality or aesthetics, we hope you
have the chance to combine these new, upgraded
audiophile components with our all-new KEY Smart
Amplifiers and a KICKER sub for an audio experience
you won’t forget!
4English
Specifications
KS Component Speakers KSS269
Woofer [in, mm] 6x9, 160x230
Midrange/Tweeter [in, mm] 2.75, 70
Rated Impedance [Ω] 4
Peak Power Handling [ Watts] 200
Recommended Amplifier Power [Watts RMS] 15-100
Sensitivity [1W, 1m] 92
Frequency Response [Hz] 30-20k
Midrange/Tweeter Magnet Material Ferite
Midrange/Tweeter Cone Material Composite Paper
(Treated Paper)
Midrange/Tweeter Surround Material UV Treated Cloth
Woofer Cone Material Polyproplene
Woofer Surround Material Santoprene
Woofer Mounting Hole Diameter [in, mm] 5-11/16x8-7/16
Woofer Top Mount Depth [in, mm] 2-15/16, 75
Woofer Bottom Mount Depth [in, mm] 3-3/16, 81
Midrange/Tweeter Mounting Hole Diameter [in, mm] 2-3/8, 61
Midrange/Tweeter Top Mount Depth [in, mm] 1-1/4, 32
Midrange/Tweeter Bottom Mount Depth [in, mm] 1-3/8, 35
Note: All specifications and performance figures
are subject to change. Please visit www.kicker.
com for the most current information. To get the best
performance from your new KICKER speakers, we
recommend using genuine KICKER accessories and
wiring. Please allow two weeks of break-in time for
the speakers to reach optimum performance.
5English
Crossover & Wiring Configuration
We recommend using 16 gauge (or larger) wire. The
KS Speakers are rated at 4 ohms and work with
any source unit or amplifier designed to operate at
a 4 ohm load. Make sure your source unit or
amplifier is rated for 4 ohm operation.
Connect the crossover terminals and receptacles to
their respective mated connector and wire color. Slide
the clear cover over the terminals to prevent a short
circuit. Connect the crossover input to the outputs
of the head unit or amplifier using the supplied butt
connectors. The positive lead has gray insulation and
is labeled with a plus symbol. The negative lead has
gray insulation with a black stripe.
Crossover Wiring
One component set per channel
At least two amplifier channels are needed for stereo
operation
amp
crossover
Installation
6English
+
-
+
-
+
-
+
-
+
-

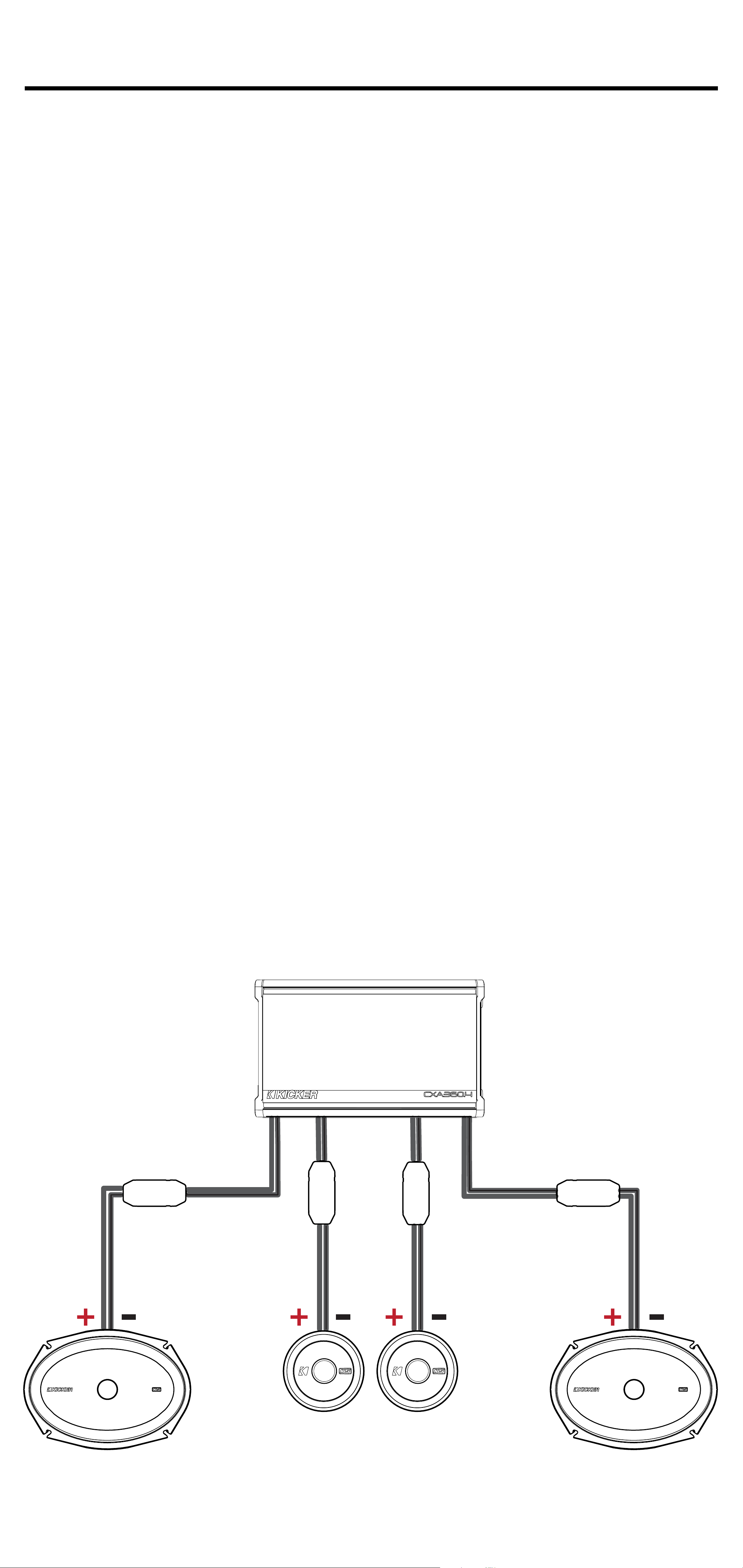

Crossover Wiring
Two component sets per channel
At least two amplifier channels are needed for stereo
operation (only one channel is shown)
Requires two complete KSS systems
(four woofers, four tweeters, four crossovers)
Pro Tip: You’re a KICKER KX amplifier and a
few cables away from a full system upgrade that
will dominate any factory system! KICKER line of
amplifiers make it easy to upgrade to solid bass with
your existing or stock source unit. Also, ask your
dealer about KICKER Subwoofer upgrades.
7English

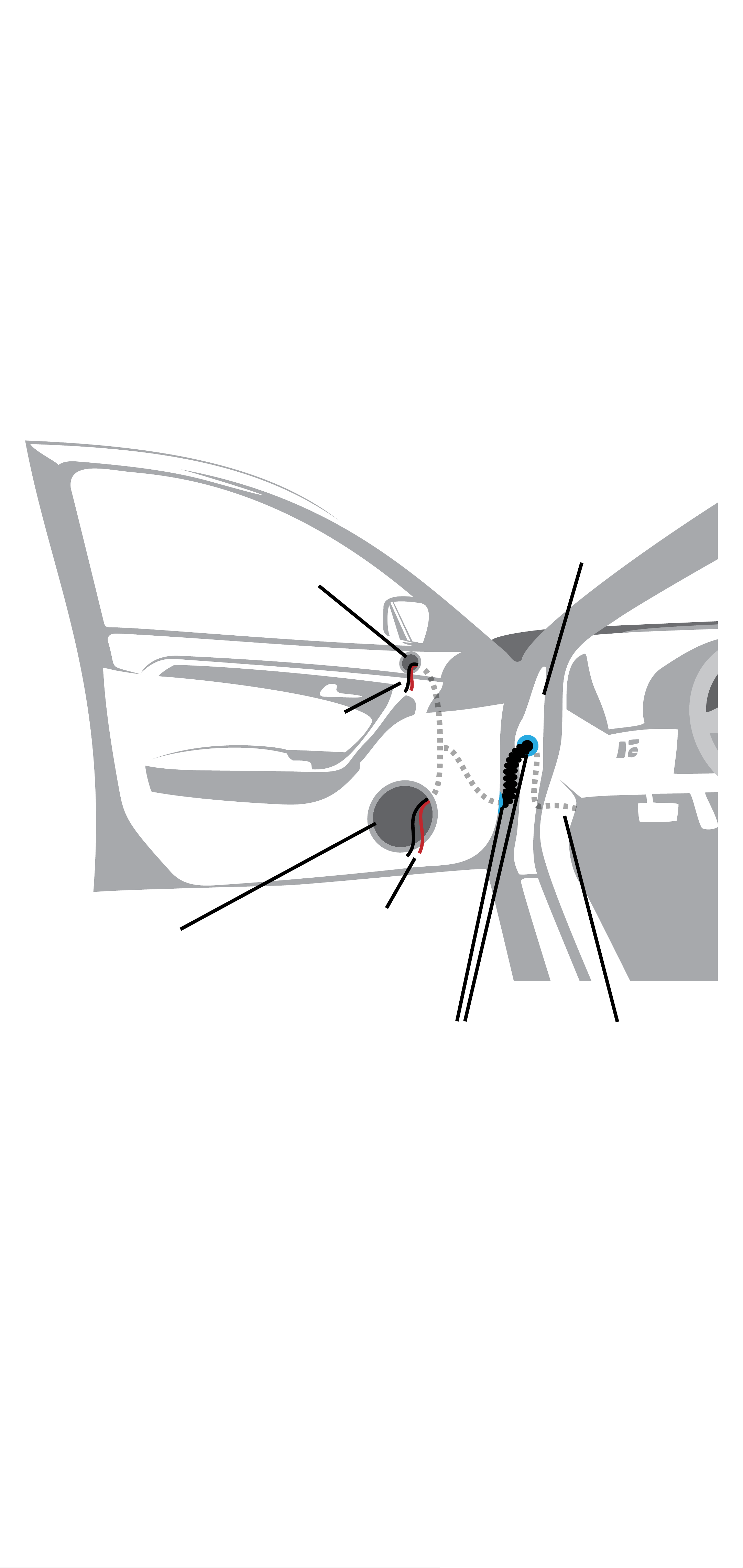

Crossover Mounting
Mount the crossover in a location that is easy to
access for wiring. Make sure that the crossover
will not be exposed to water. The bottom of the car
door is not a good location. If you must mount the
crossover in the car door, exercise caution as water
can accumulate in the bottom of the door. Keep the
crossover high in the door and shielded from water.
door jamb
rubber
grommets
from
amplifier or
source unit
woofer mounting hole
tweeter mounting hole
to woofer
terminals
to tweeter lead wires
If factory speaker wiring is not available in your desired
location, it may be necessary to run speaker wire
through the door jamb. The speaker wire should be
kept away from sharp edges and avoid the possibility
of getting pinched by the door. An existing grommet
in the door jamb is the ideal place to run the speaker
wire. If the factory hole and grommet do not exist
or are inaccessible, you must drill a hole to run the
8English
speaker wire through the door jamb. Be careful not
to drill into other wiring or existing door mechanisms.
Any time a wire is run through a hole, it is necessary
to insert a rubber or plastic grommet to protect the
wire from damage.
Speaker Mounting
The KICKER KS Speakers are designed for free-air
applications and do not require a sealed enclosure
for optimum performance. It is important to isolate the
sound coming from the front of the speaker from the
sound radiating from the back of the speaker. This is
most easily accomplished by mounting the speakers
in a vehicle’s factory locations or in a location with a
semi-isolated rear chamber (like the rear deck of a car
behind the rear seats).
If you are replacing factory speakers in their original
locations, you may need to use the included multi-
purpose adapter, or modify it as such that it will fit
your required screw patterns. You may also need to
enlarge the speaker cut-outs and pre-drill new screw
holes using a 7/64” (2.5mm) bit. Custom mounting
locations will require more preparation and work.
Make sure that the speaker will not interfere with trunk
and door opening and closing mechanisms and that
the enclosed screws will not puncture the fuel tank,
puncture wiring, or interfere with any other mechanical
parts on the underside of the mounting surface. Cycle
the windows all the way down and up.
If the speaker cut-out locations require you to cut
metal, avoid structural metal and braces. If the
door body and panel cannot support the weight of
the speaker, an optional reinforcing ring (thin piece
of wood or Medium Density Fiberboard) may be
fastened or adhered to the door body.
9English
The multi-bracket adapter will help accommodate
the KSS speakers in factory or custom locations.
You may need to cut off parts or otherwise modify
the adapter to fit your vehicle or application. Trimable
parts are best seen from the reverse side (hilighted
below). For some applications, the adapter clips to
the mounting panel on one side. It may be necessary
to use the foam damper to tighten the fitment of the
clip-on side of the adapter.
KS69 ADAPTER
10English
door
rear gasket
(optional)
door panel
speaker
cut-out
KS Speaker
Secure speaker to desired location
